Removal (Mazda6 2.3L)

  1. Remove the right front wheel.
  2. Remove the splash shield.

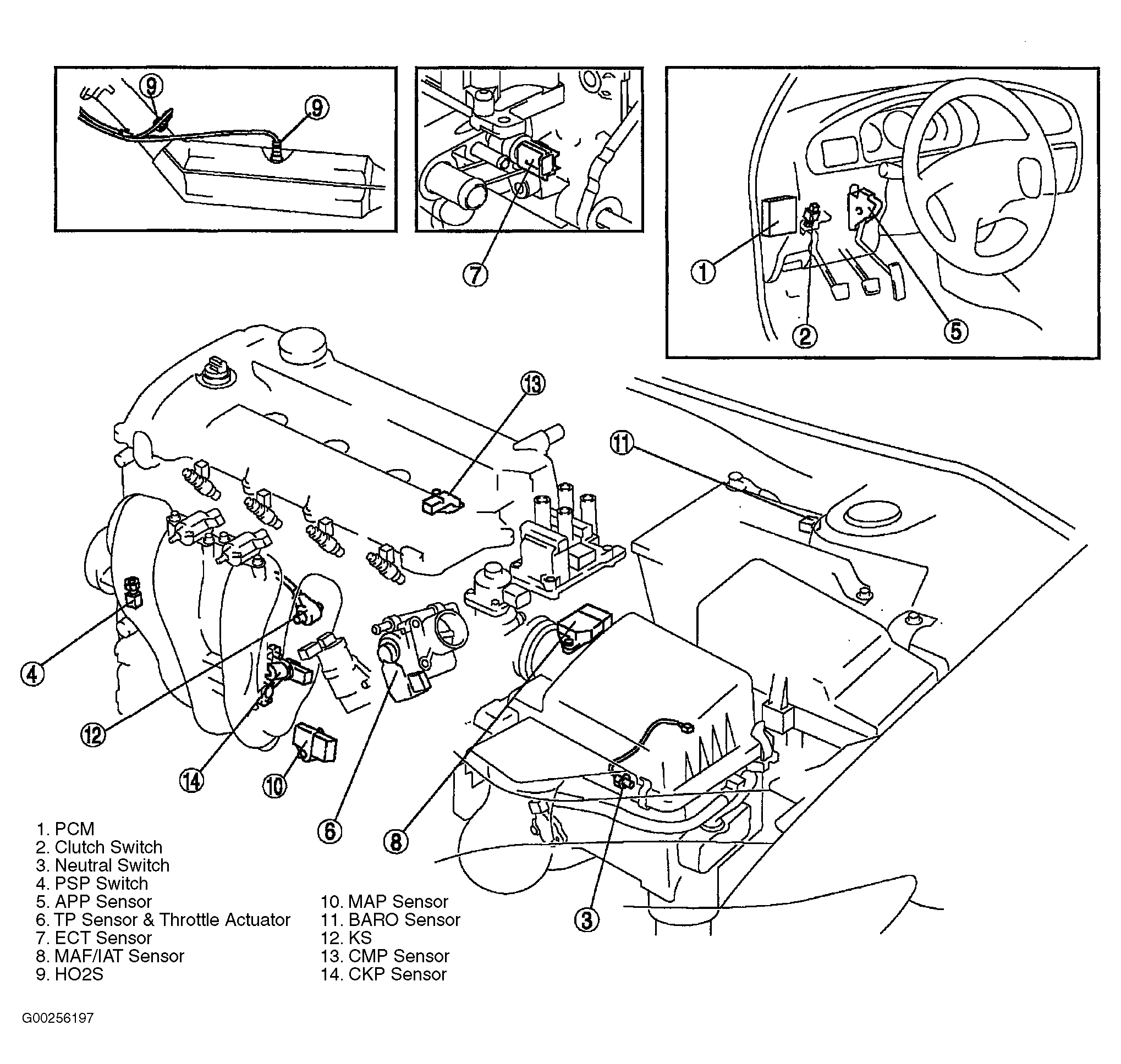

  3. Disconnect the Crankshaft Position (CKP) sensor harness connector. See Figure.
  4. Remove the bolts and remove the CKP sensor.
