Removal & Installation (Miata)

CAUTION: Make sure that the CMP sensor is free of any metallic shavings or particles. If metallic shavings or particles are found on the sensor, clean them off.
  1. Disconnect the negative battery cable.

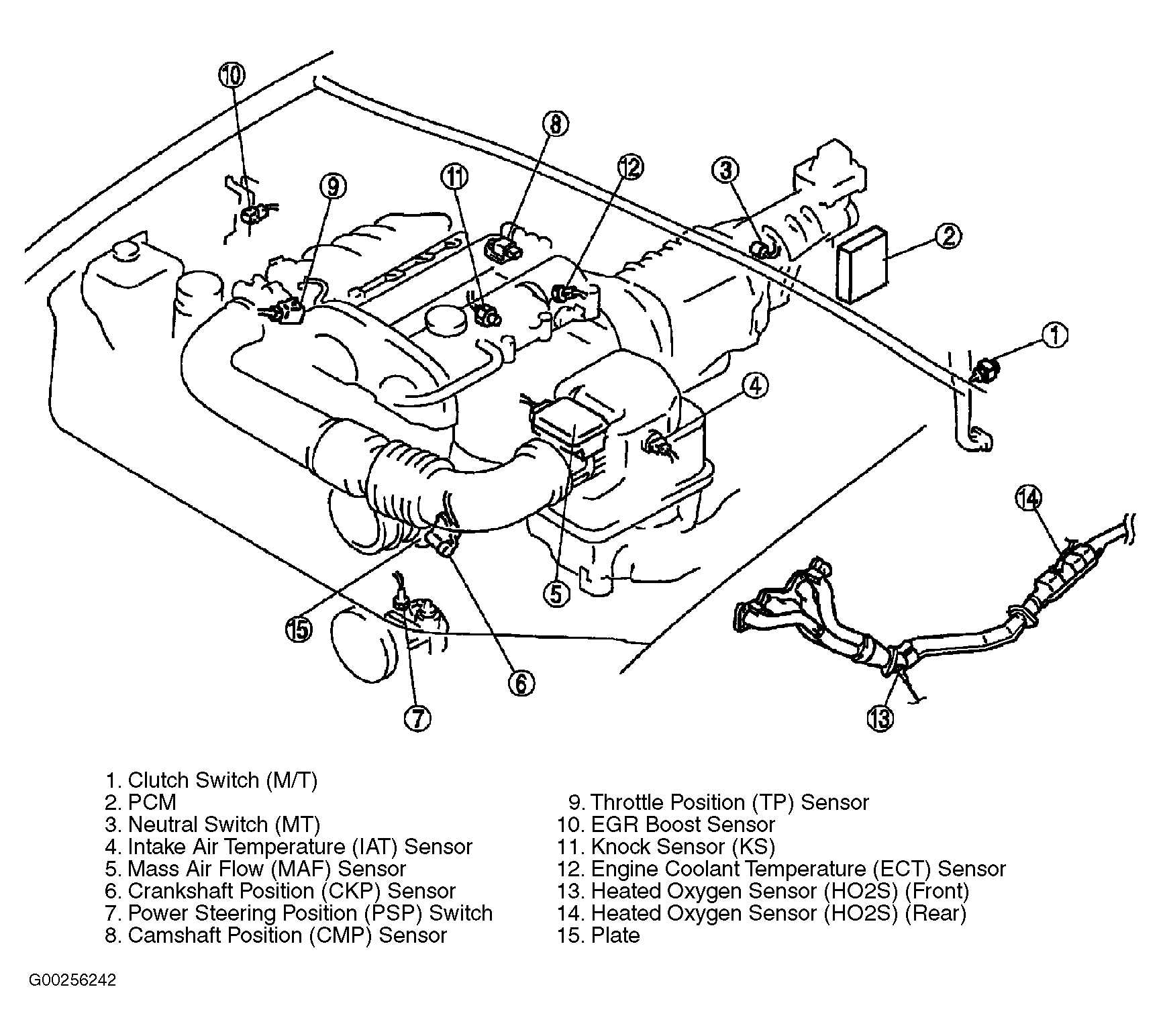

  2. Disconnect the Camshaft (CMP) sensor connector. See Figure.
  3. Remove the CMP sensor installation bolt.
  4. Remove the CMP sensor.
  5. To install, reverse removal procedure. See TORQUE SPECIFICATIONS .
