Parking Brake System Pinpoint Test 2: Parking Brake Will Not Release
Parking Brake System Pinpoint Test 2: Parking Brake Will Not Release

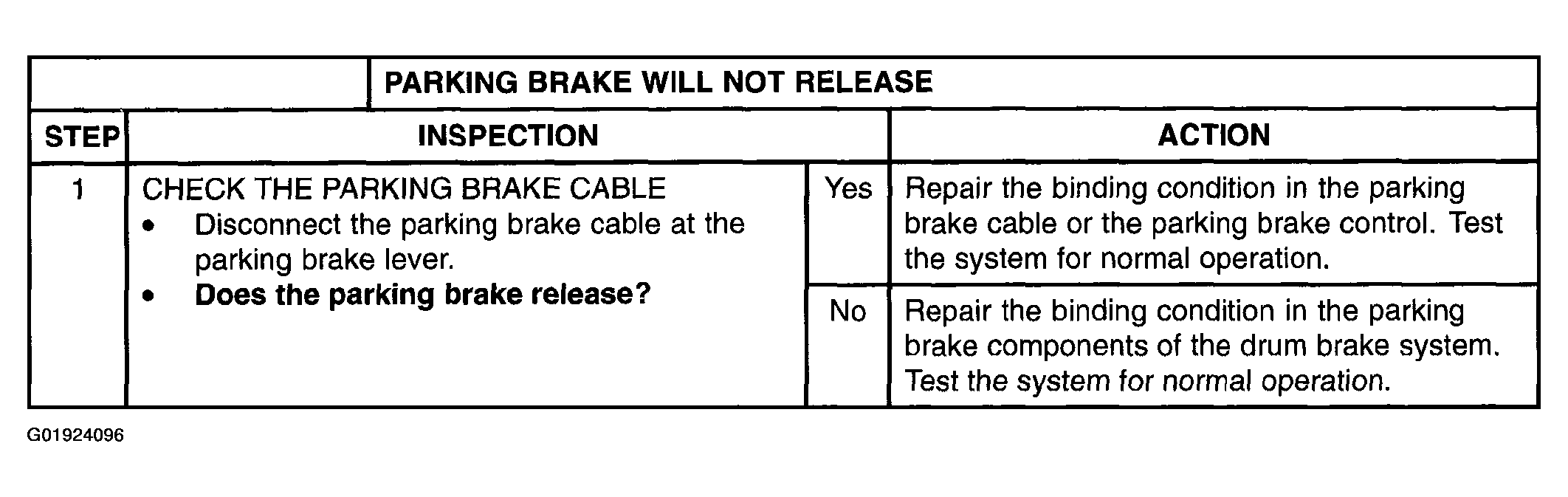

Fig 1: Diagnosis Procedure - Parking Brake System Pinpoint Test 2: Parking Brake Will Not Release
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
