DTC C1095: Hydraulic Pump Motor Circuit Failure

NOTE:

• DTC C1095 is generated by the 4WABS control module when the pump motor is triggered but does not run.

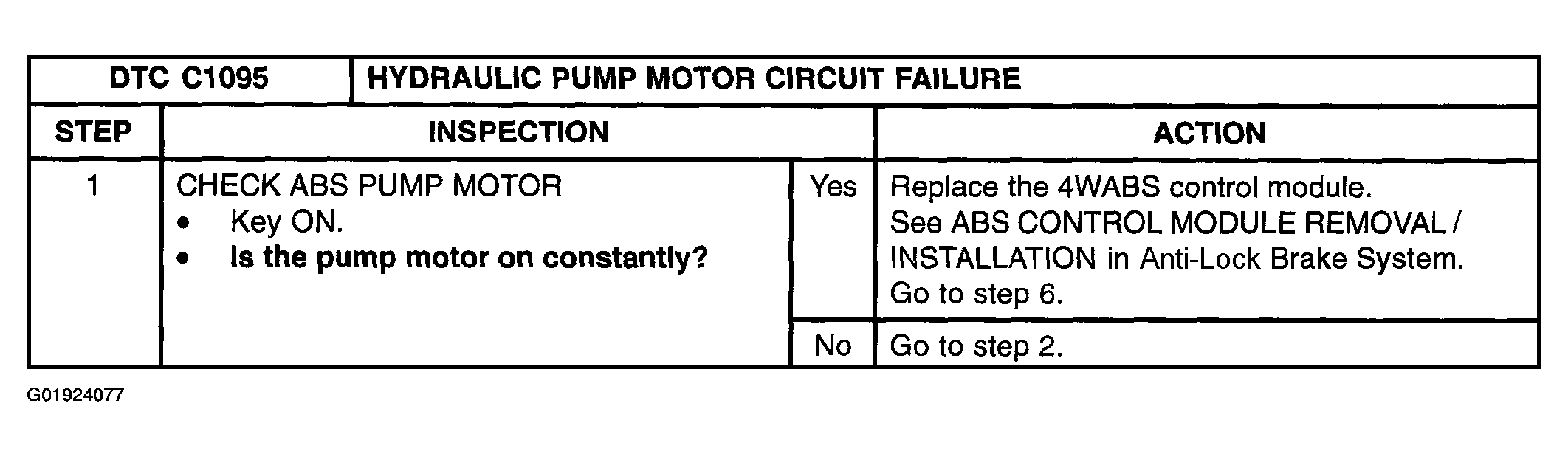

Fig 1: Diagnosis Procedure - Hydraulic Pump Motor Circuit Failure (DTC C1095) (Step 1)

Courtesy of MAZDA MOTORS CORP.

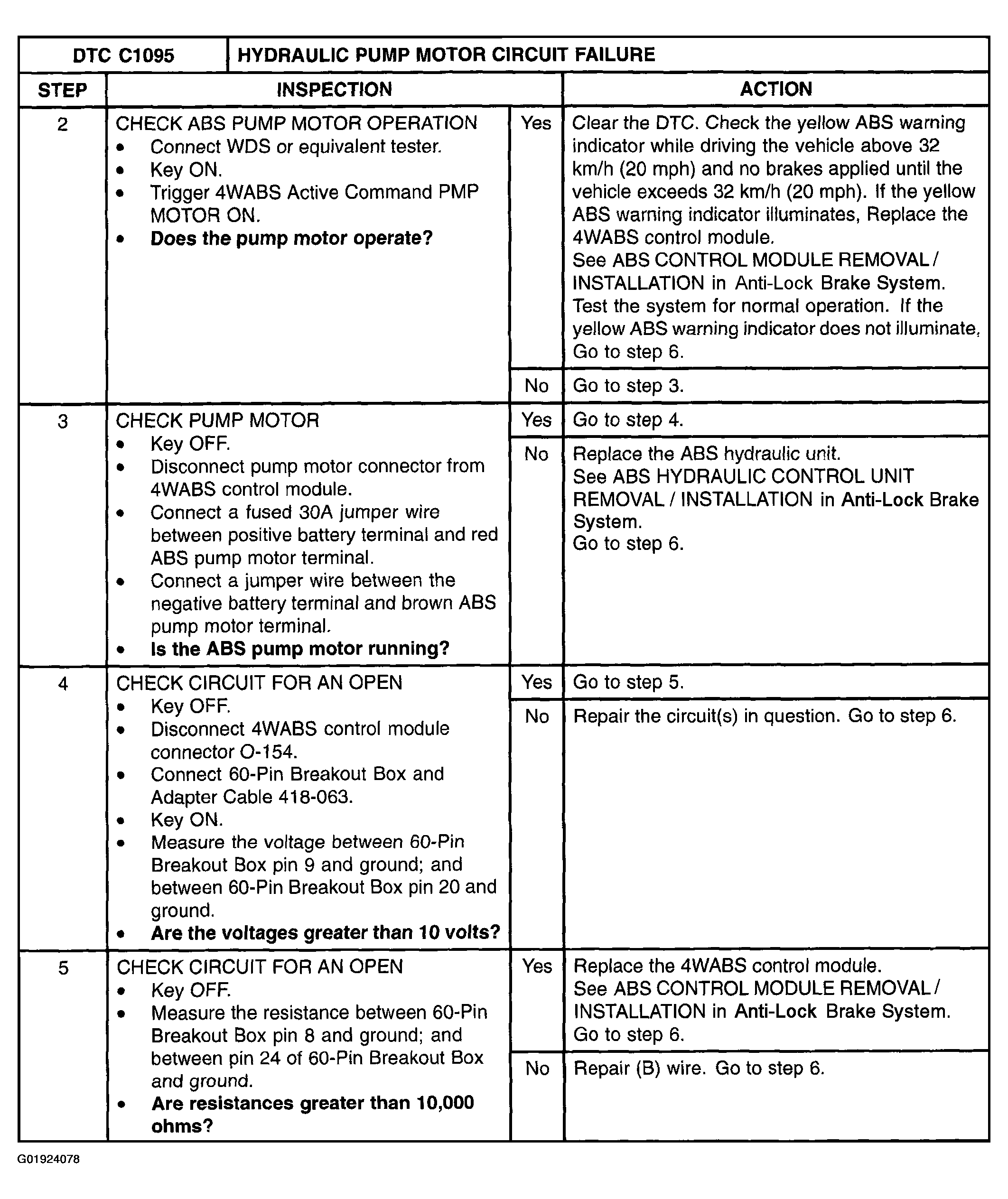

Fig 2: Diagnosis Procedure - Hydraulic Pump Motor Circuit Failure (DTC C1095) (Steps 2-5)

Courtesy of MAZDA MOTORS CORP.

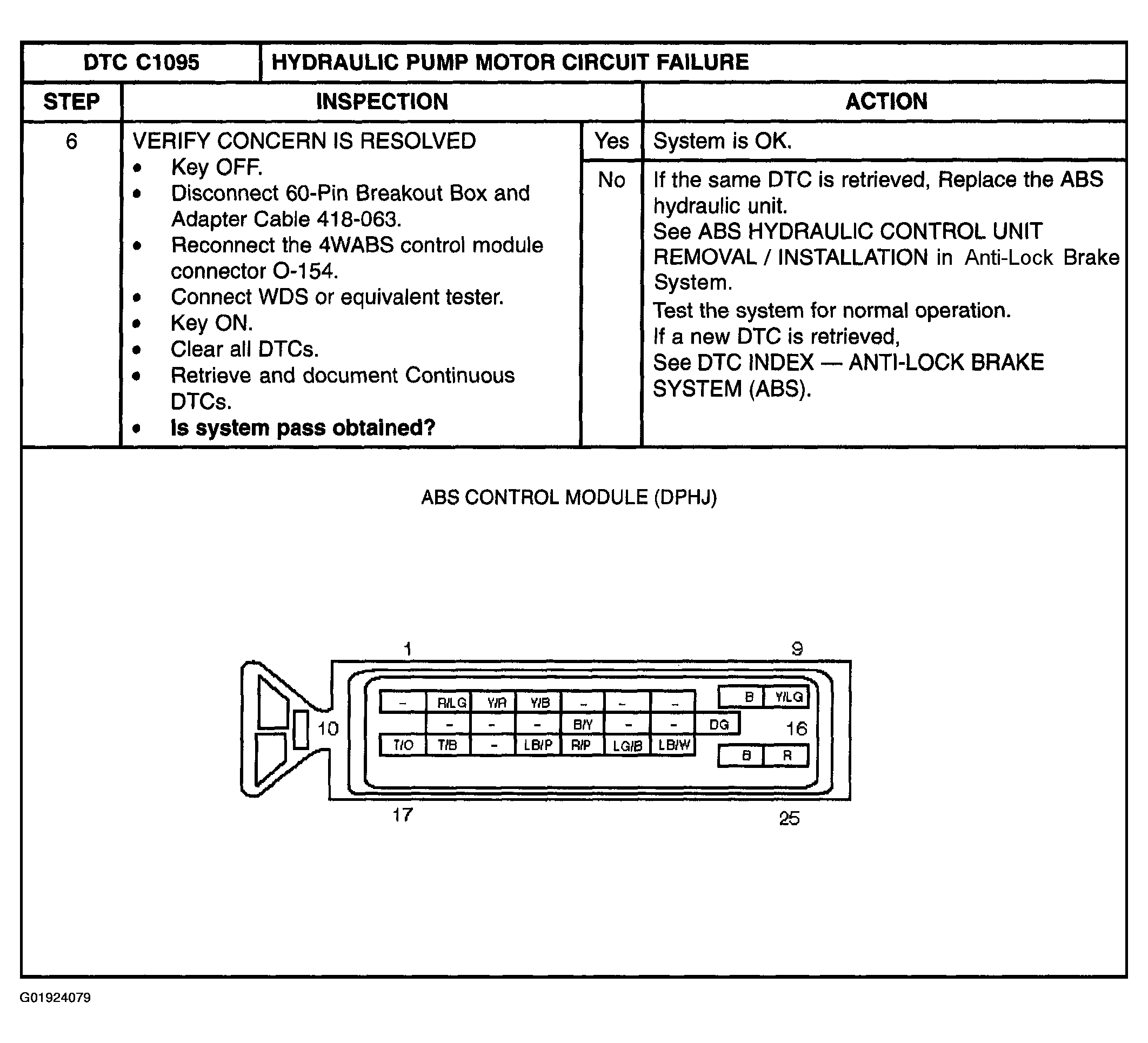

Fig 3: Diagnosis Procedure - Hydraulic Pump Motor Circuit Failure (DTC C1095) (Step 6)

Courtesy of MAZDA MOTORS CORP.
