Illumination Source Inoperative - Cruise Control Actuator Switches
Illumination Source Inoperative - Cruise Control Actuator Switches

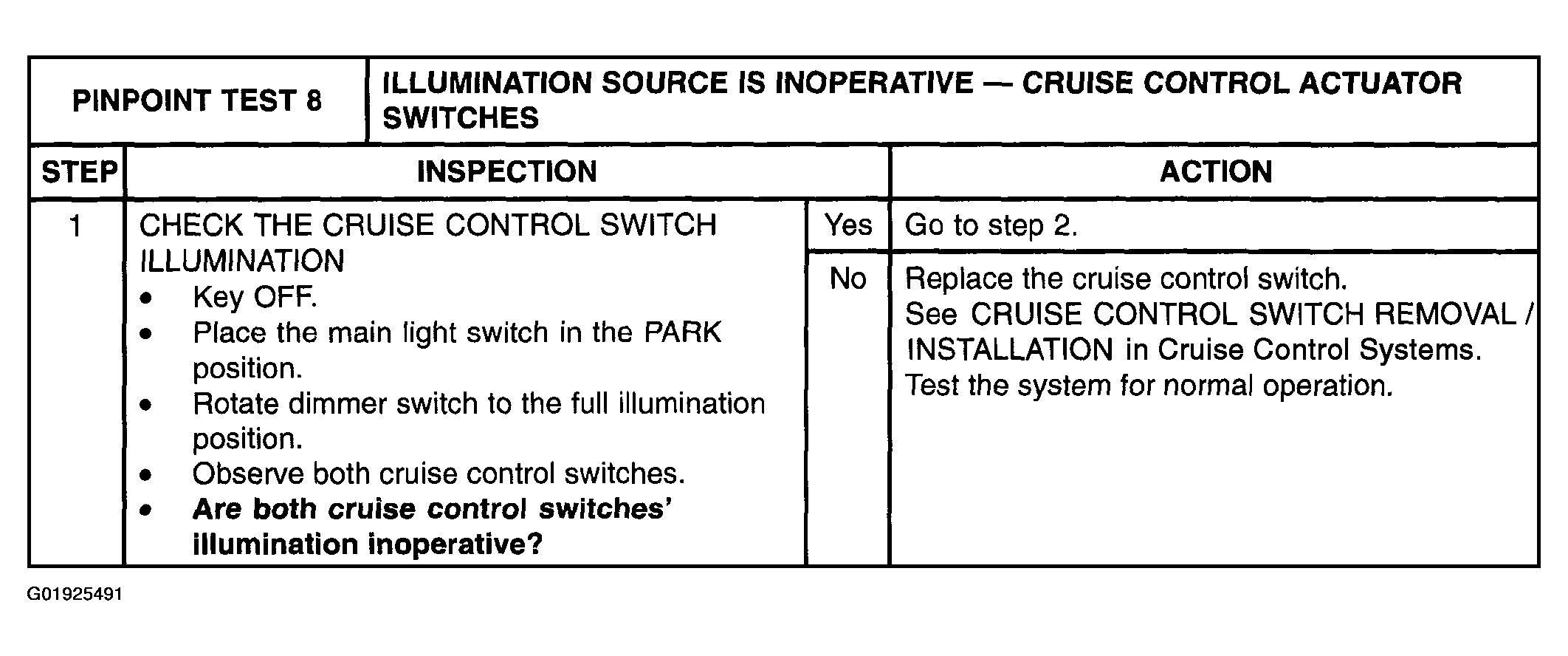

Fig 1: Pinpoint Test: Illumination Source Inoperative - Cruise Control Actuator Switches (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

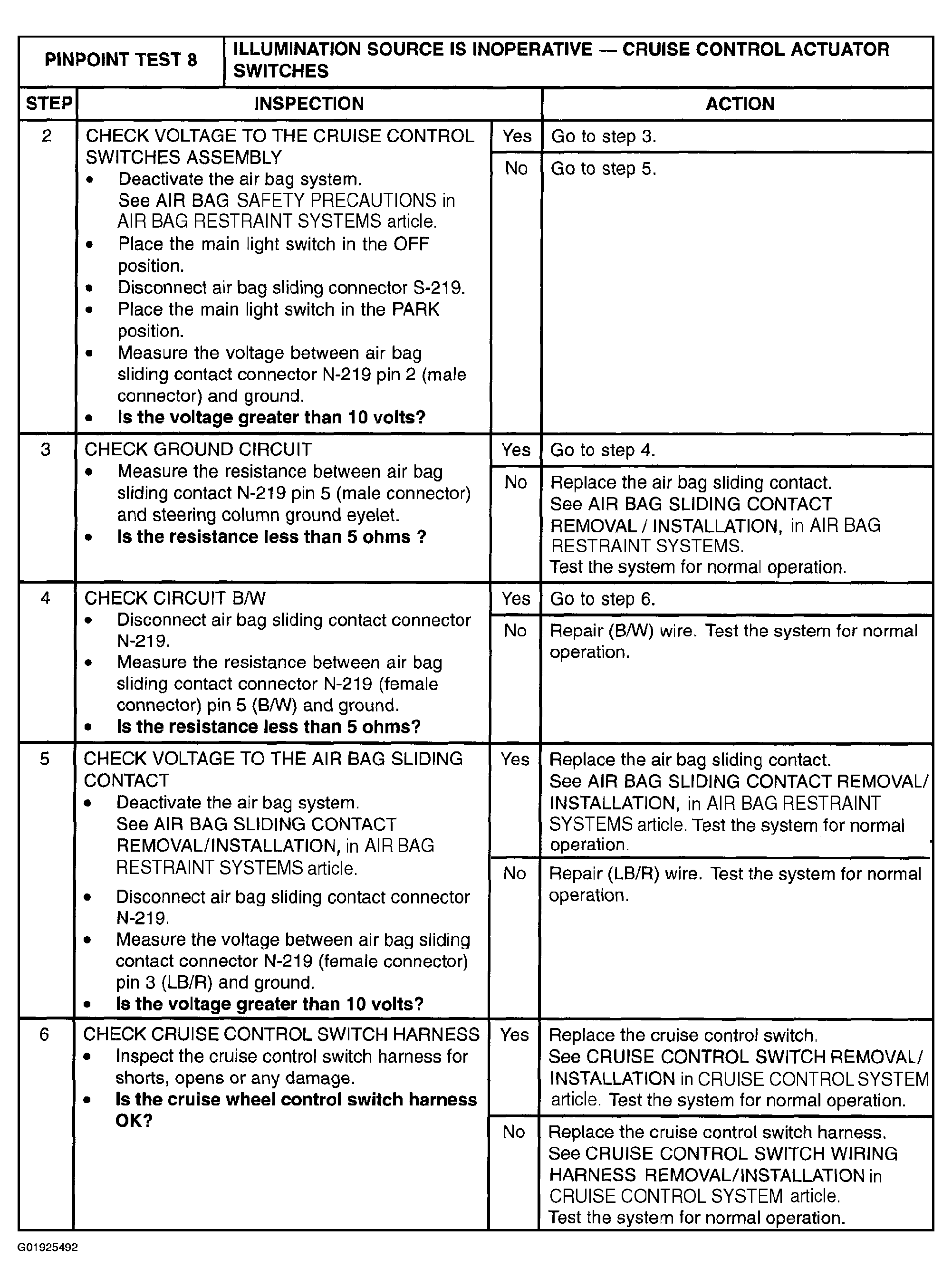

Fig 2: Pinpoint Test: Illumination Source Inoperative - Cruise Control Actuator Switches (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

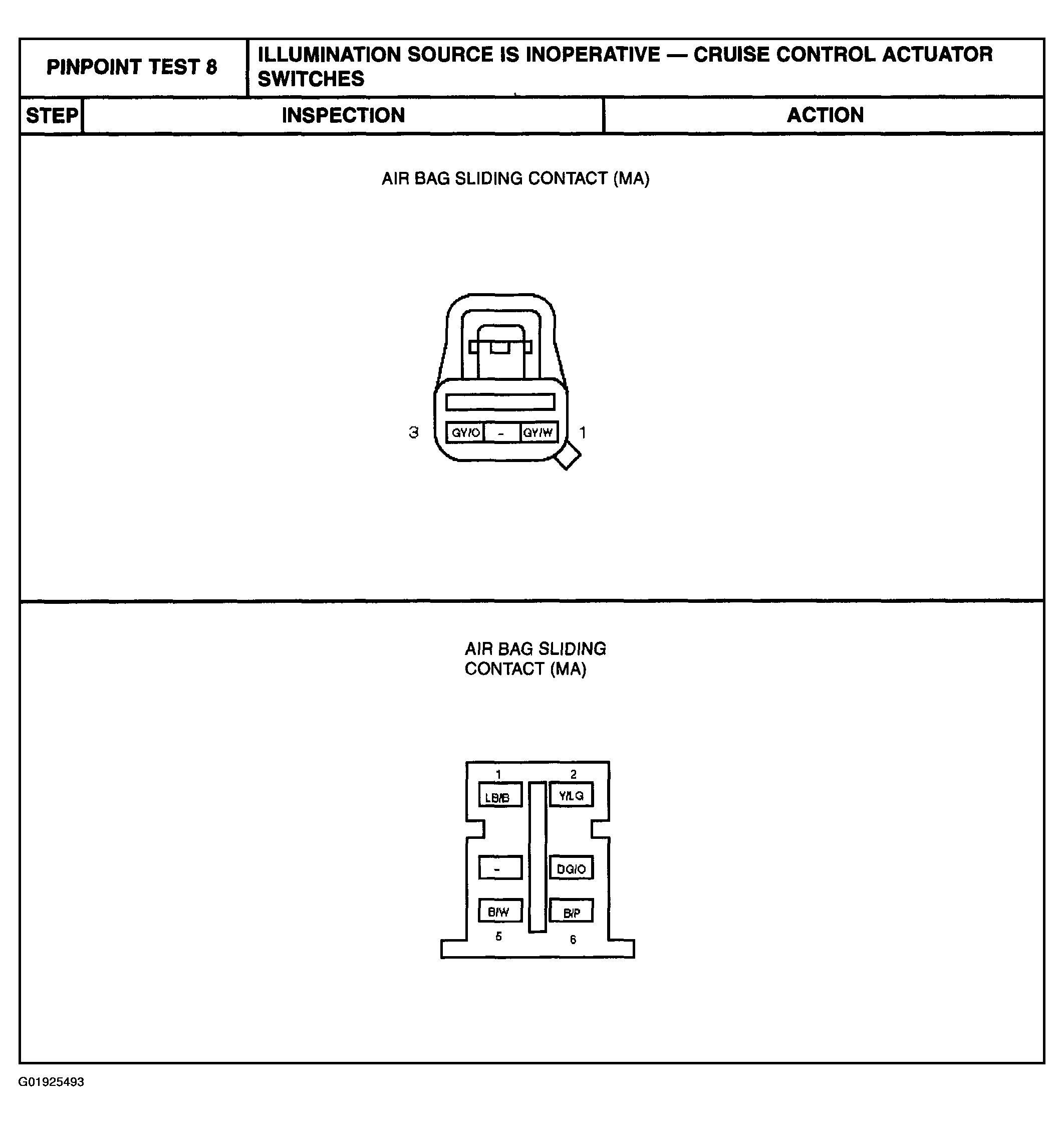

Fig 3: Pinpoint Test: Illumination Source Inoperative - Cruise Control Actuator Switches (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
