Illumination Inoperative - Instrument Cluster

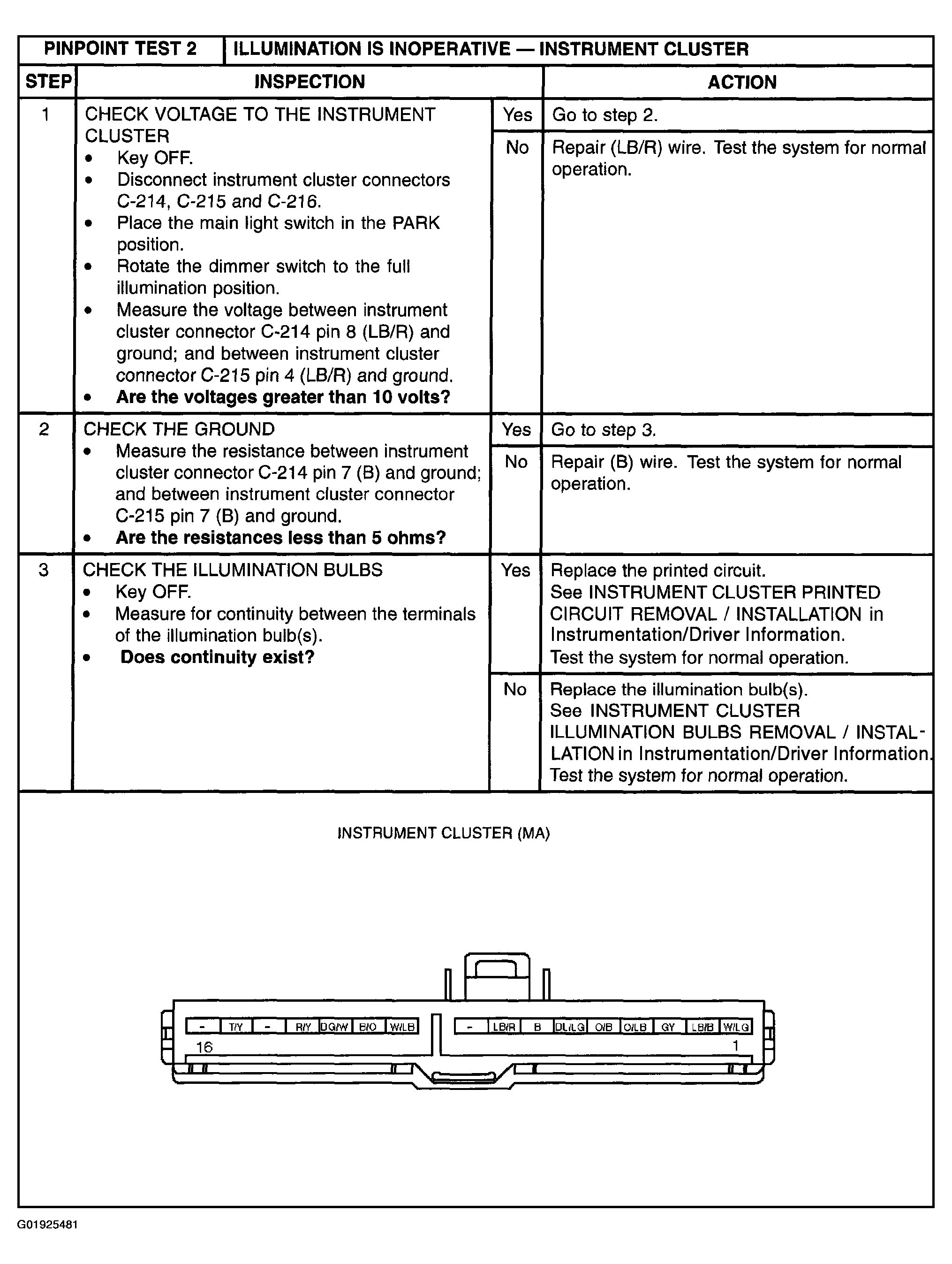

Fig 1: Pinpoint Test: Illumination Inoperative - Instrument Cluster (1 Of 2)
G01925481Courtesy of MAZDA MOTORS CORP.

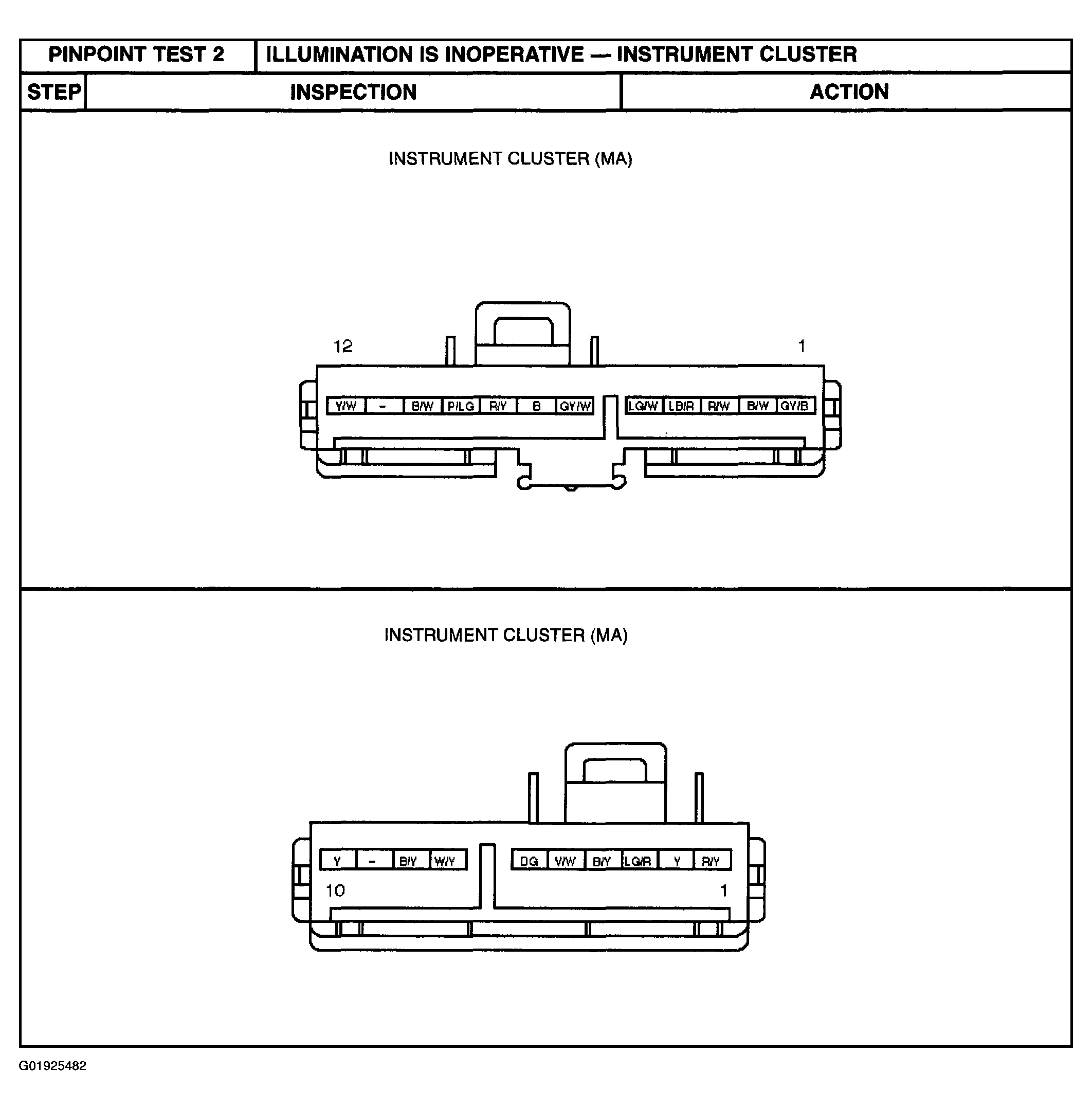

Fig 2: Pinpoint Test: Illumination Inoperative - Instrument Cluster (2 Of 2)
G01925482Courtesy of MAZDA MOTORS CORP.
