Headlamps Inoperative (Both)

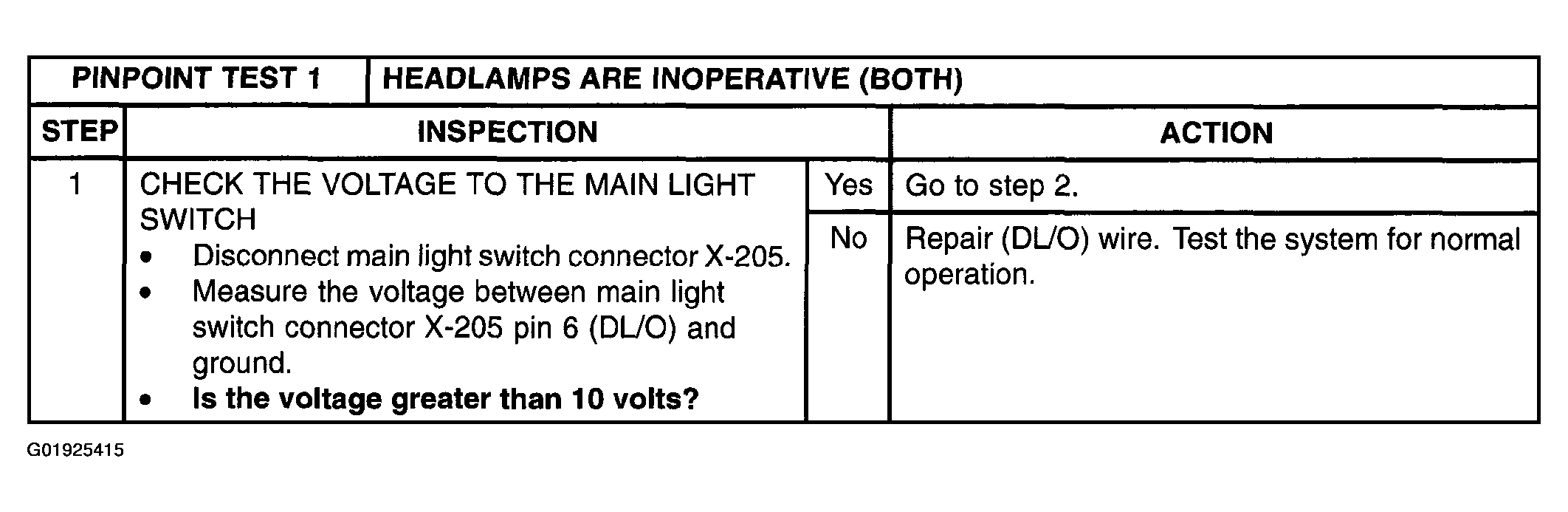

Fig 1: Pinpoint Test: Headlamps Inoperative (Both) (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

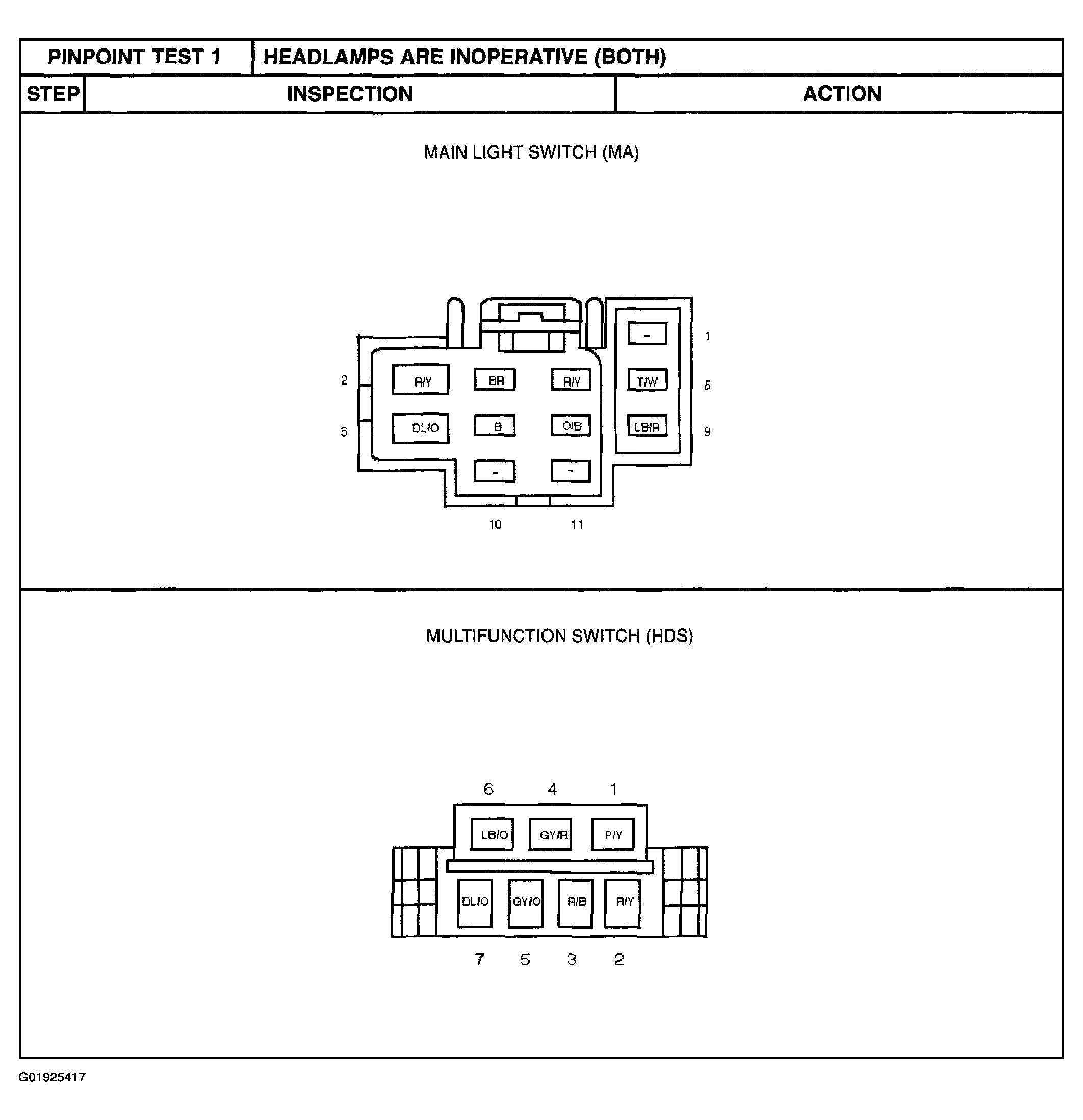

Fig 2: Pinpoint Test: Headlamps Inoperative (Both) (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

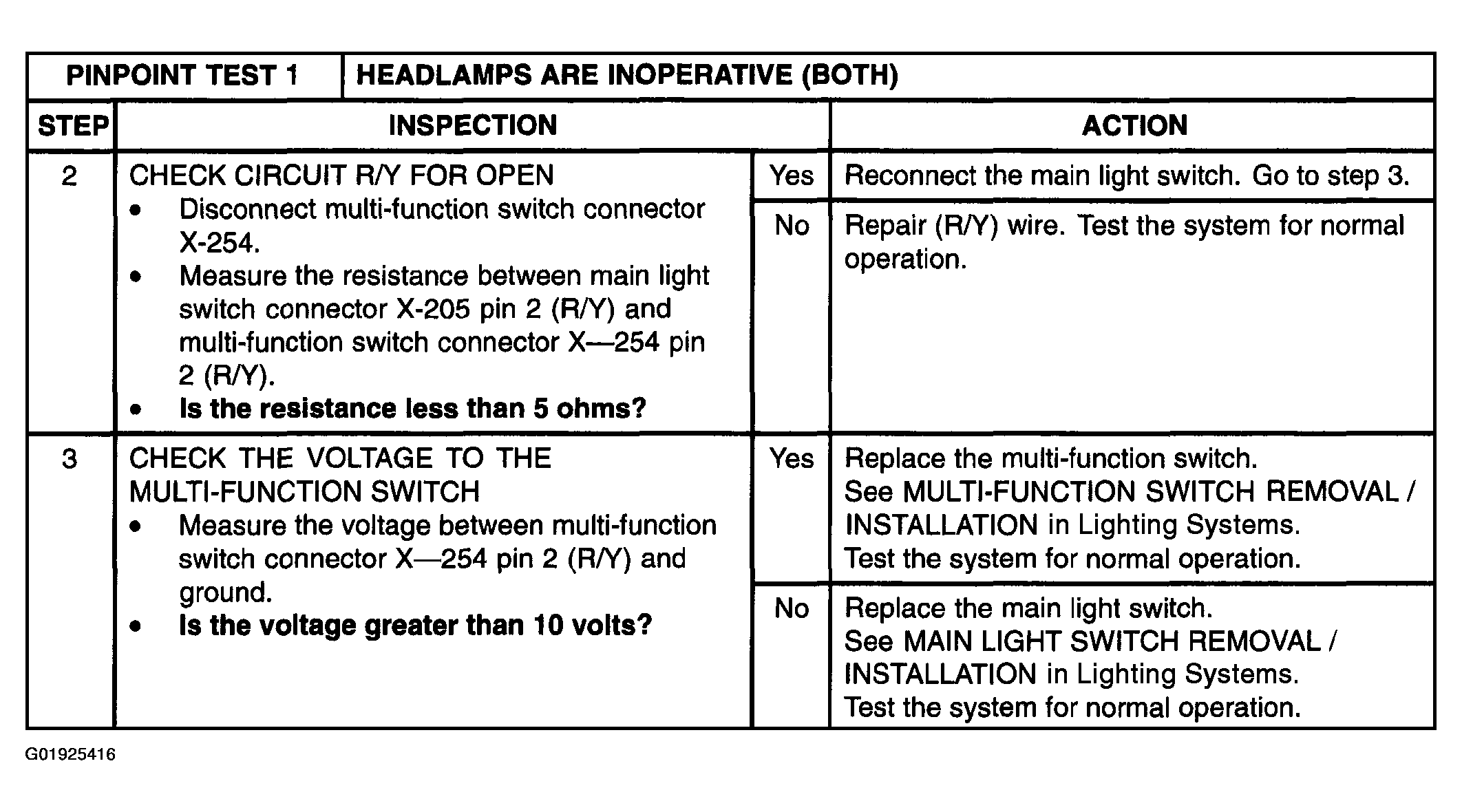

Fig 3: Pinpoint Test: Headlamps Inoperative (Both) (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
