Parking, Rear Or License Lamps Inoperative

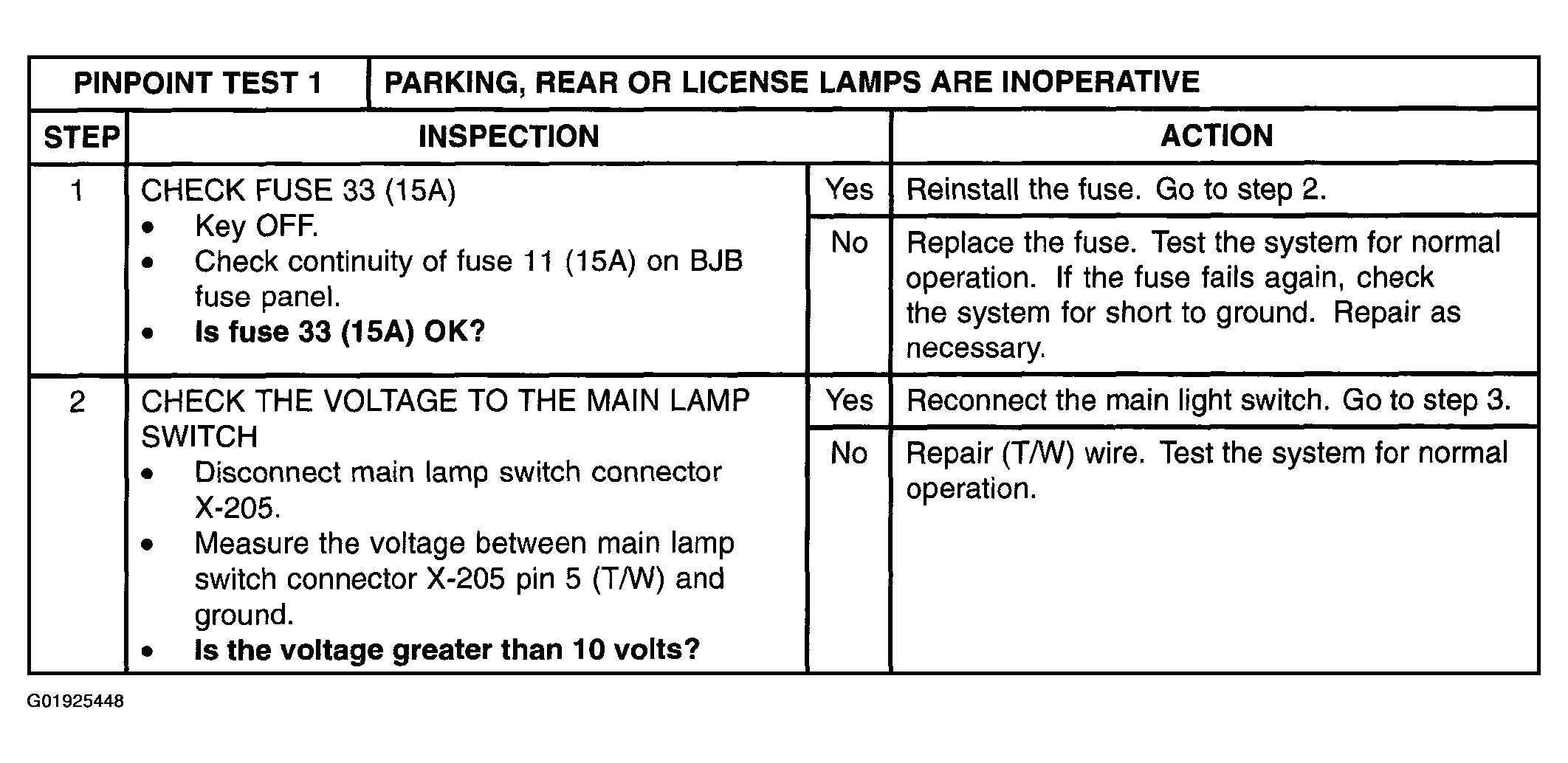

Fig 1: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (1 Of 5)

Courtesy of MAZDA MOTORS CORP.

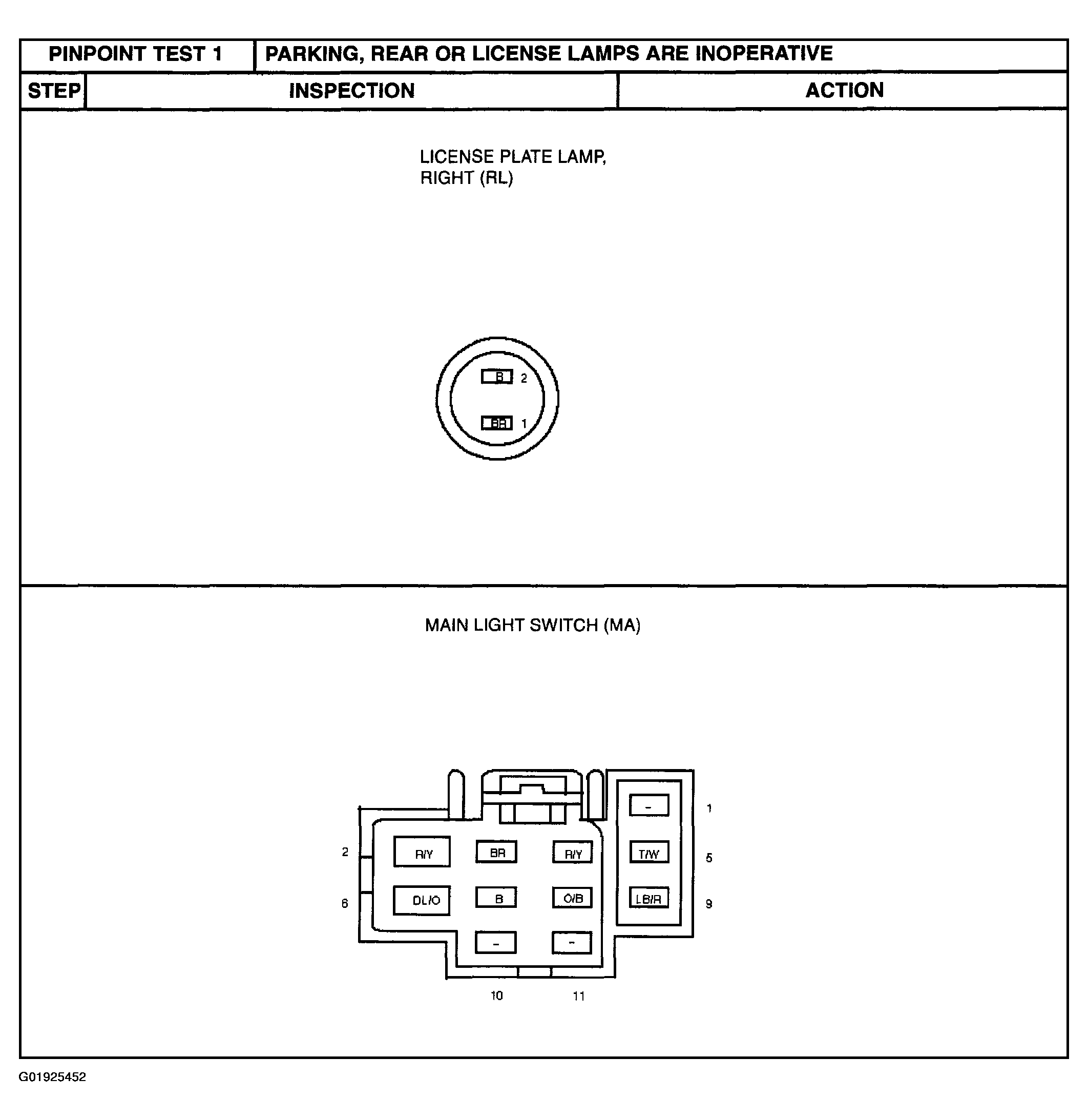

Fig 2: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (2 Of 5)

Courtesy of MAZDA MOTORS CORP.

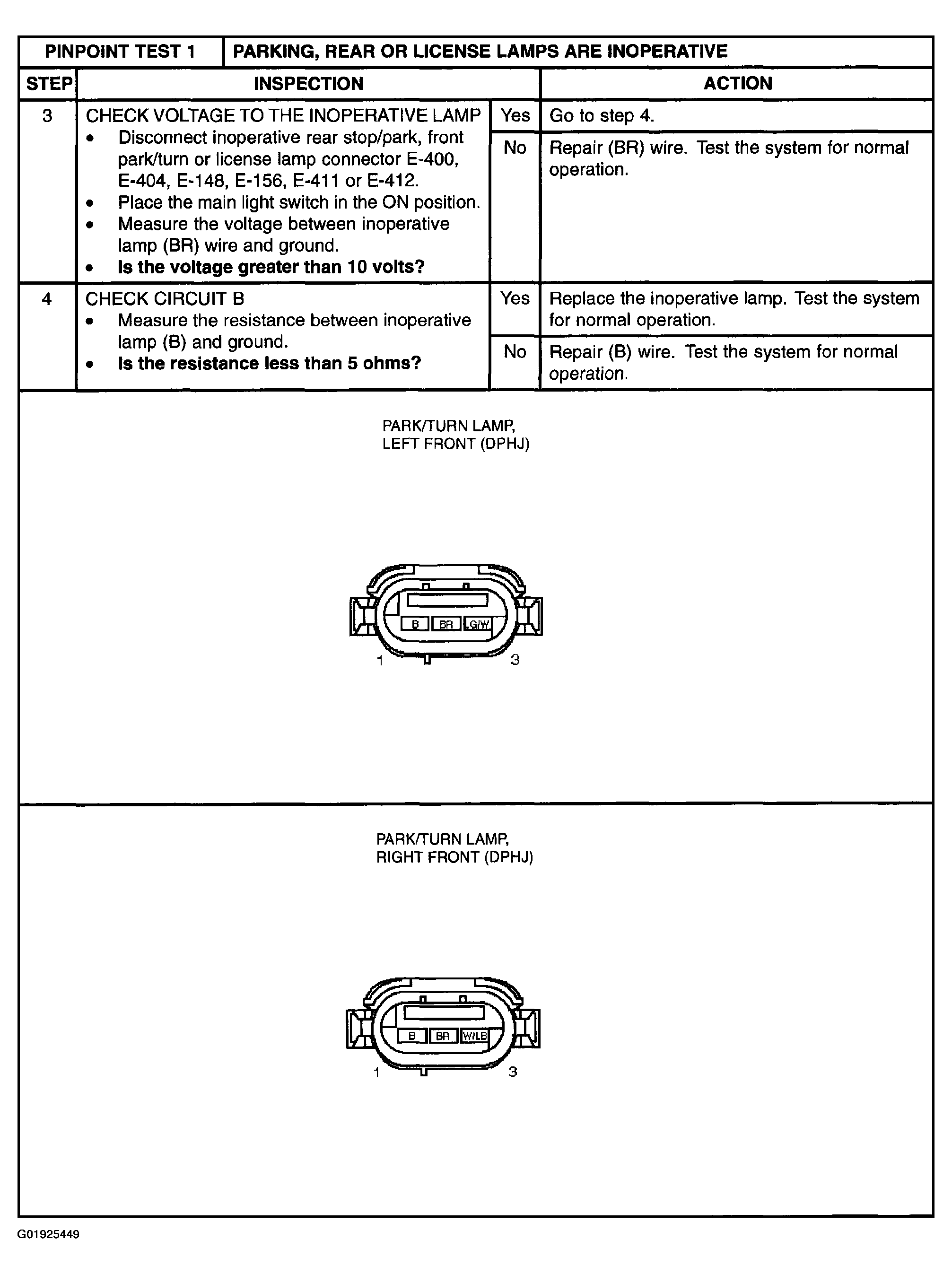

Fig 3: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (3 Of 5)

Courtesy of MAZDA MOTORS CORP.

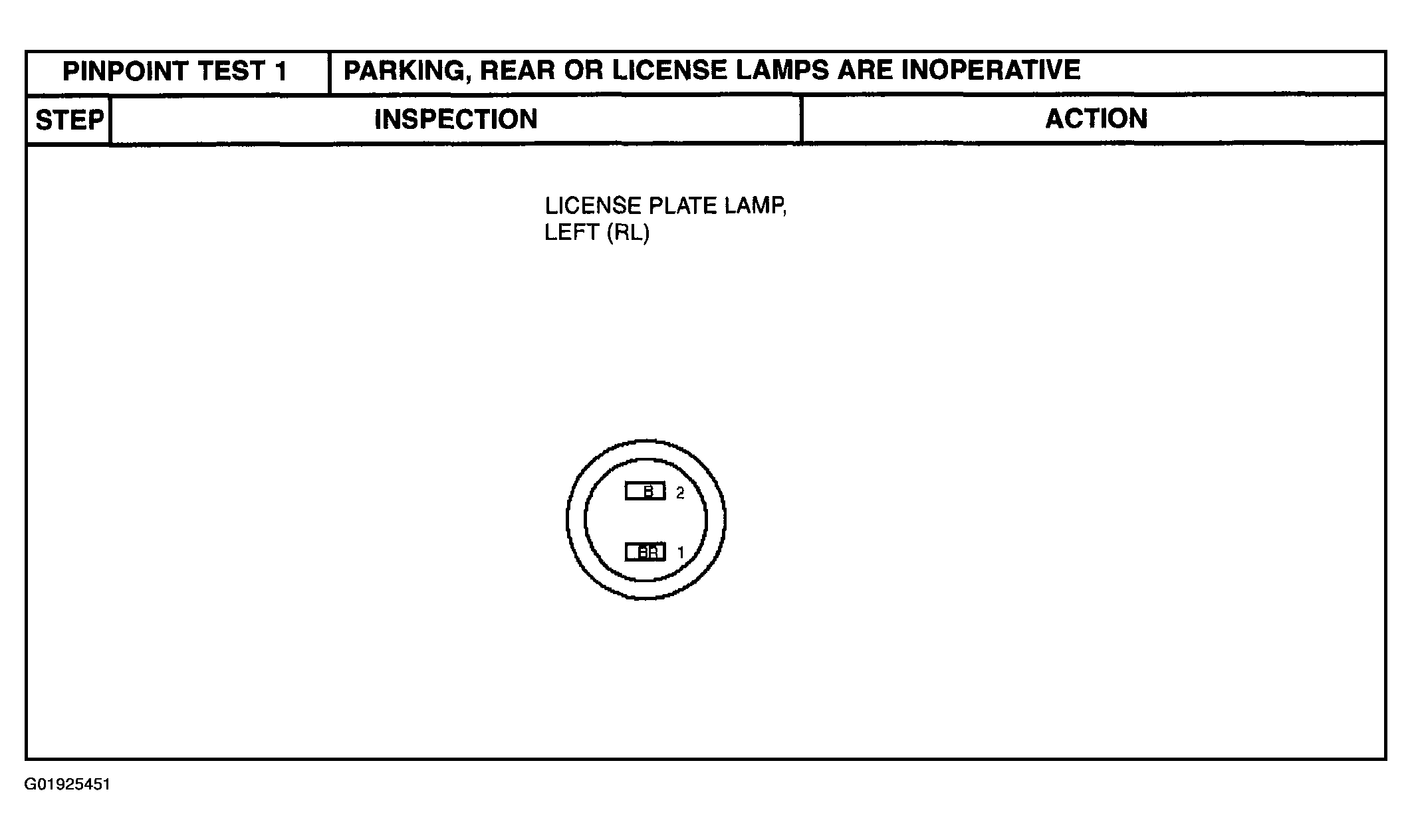

Fig 4: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (4 Of 5)

Courtesy of MAZDA MOTORS CORP.

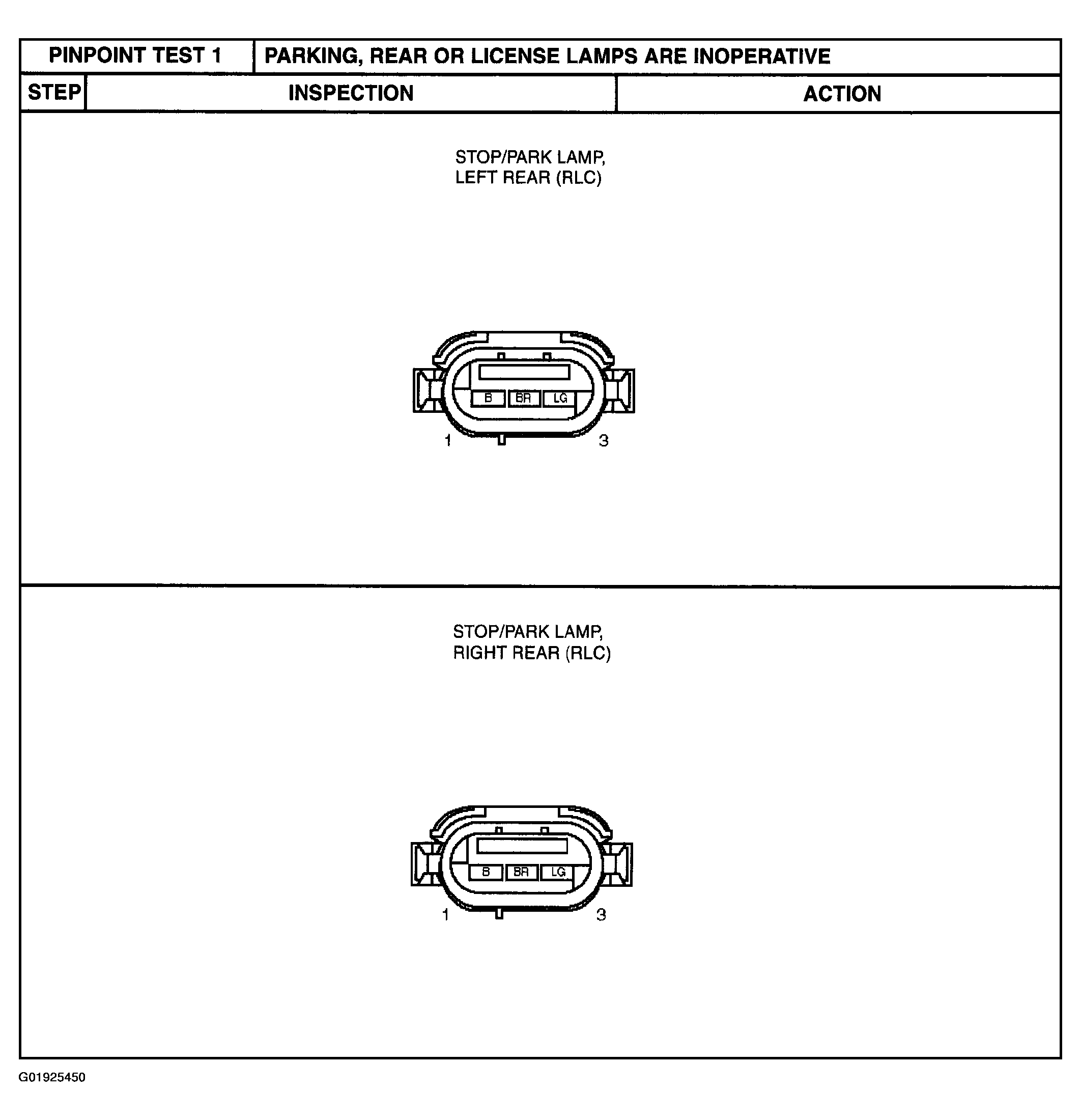

Fig 5: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (5 Of 5)

Courtesy of MAZDA MOTORS CORP.
