Parking, Rear Or License Lamps Inoperative (One Or More)

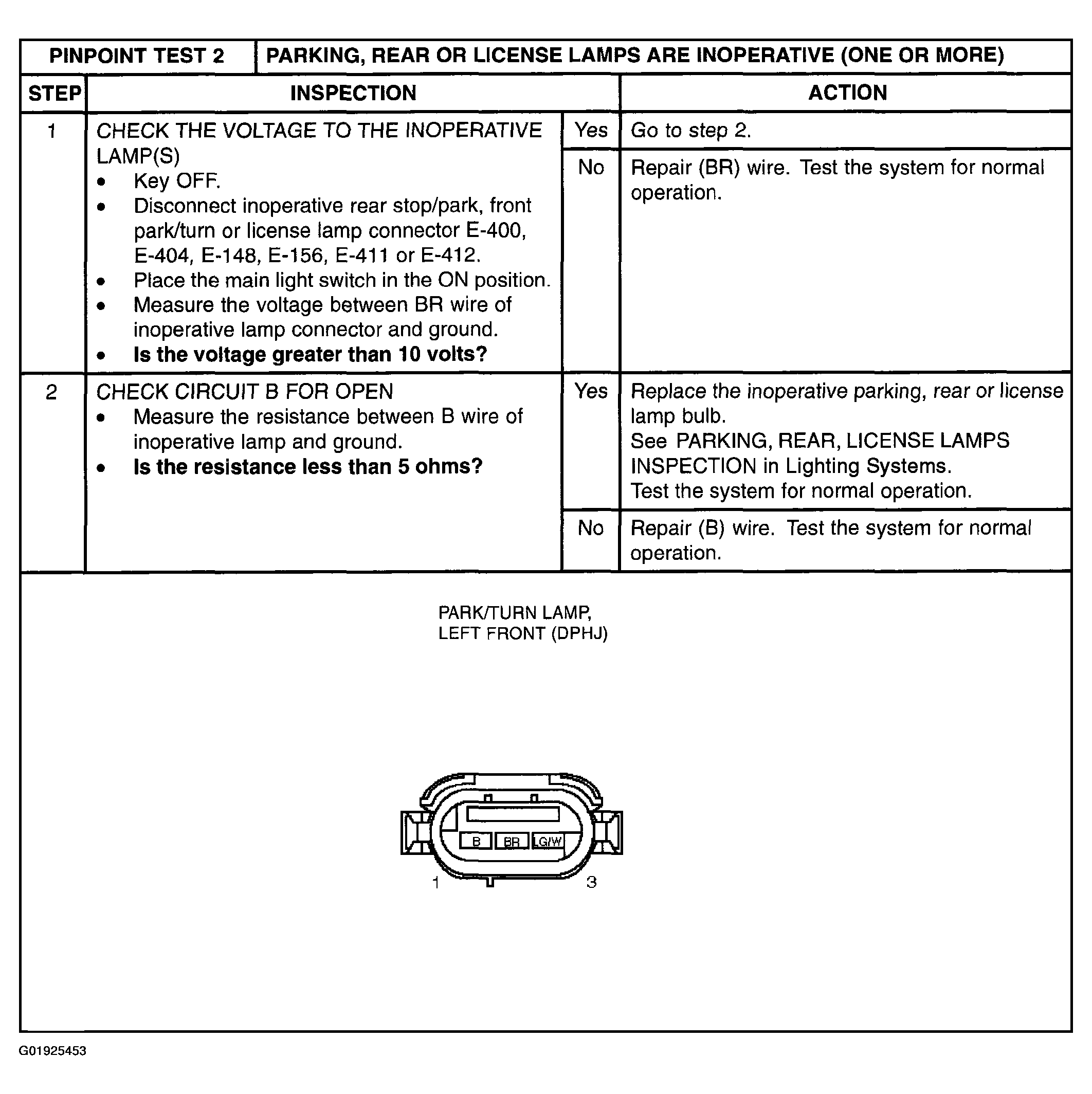

Fig 1: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (One Or More) (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

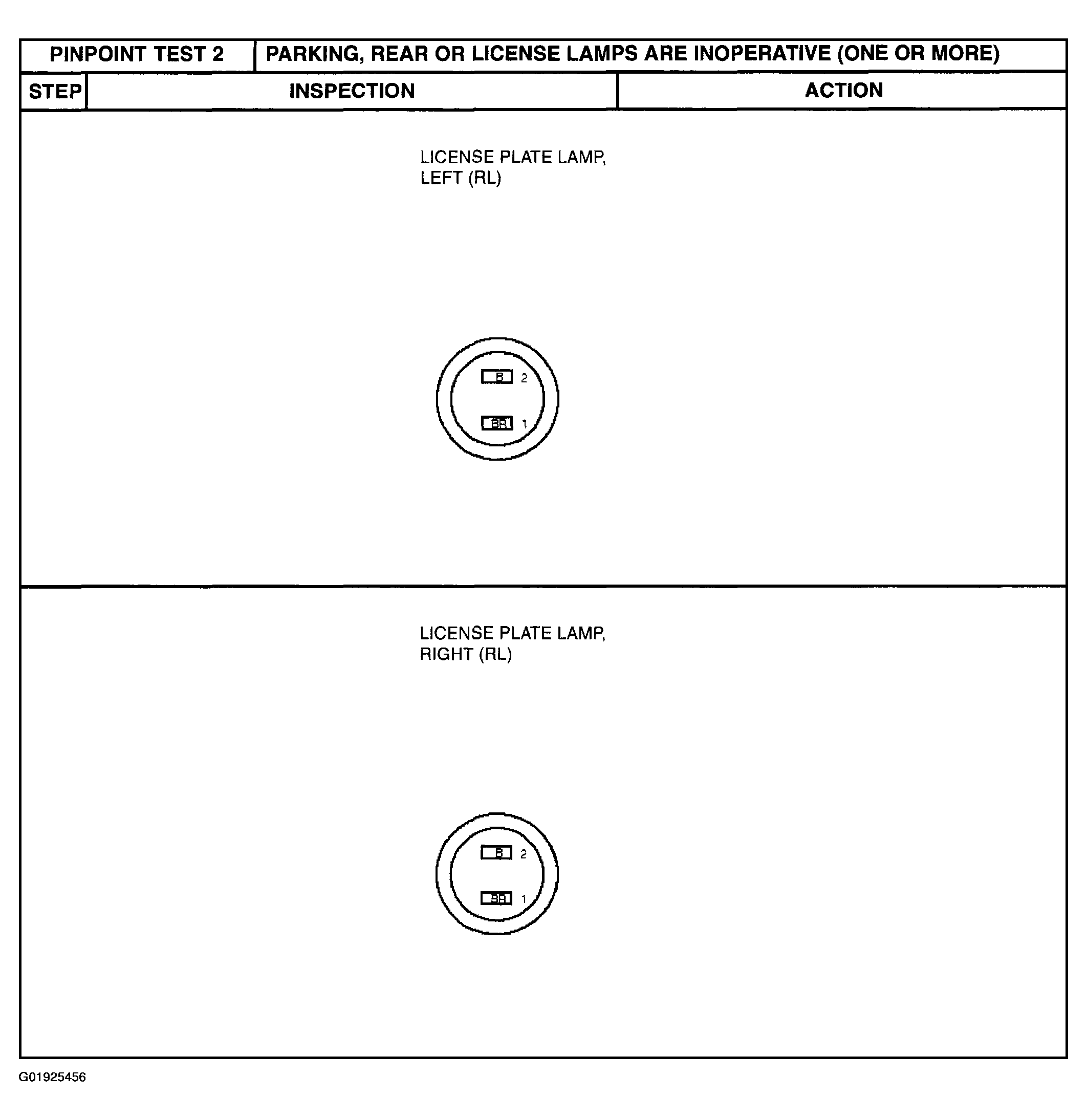

Fig 2: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (One Or More) (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

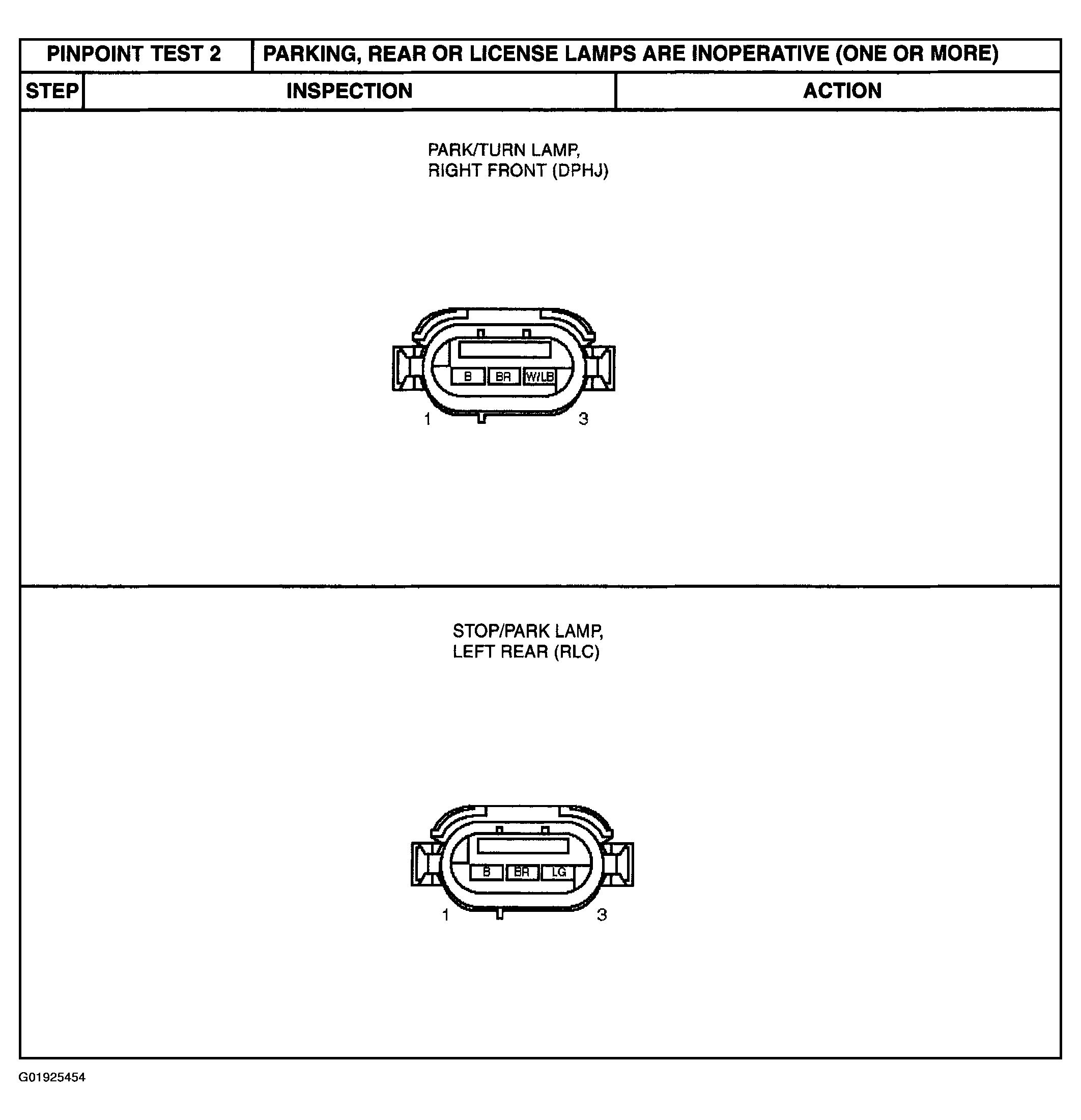

Fig 3: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (One Or More) (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

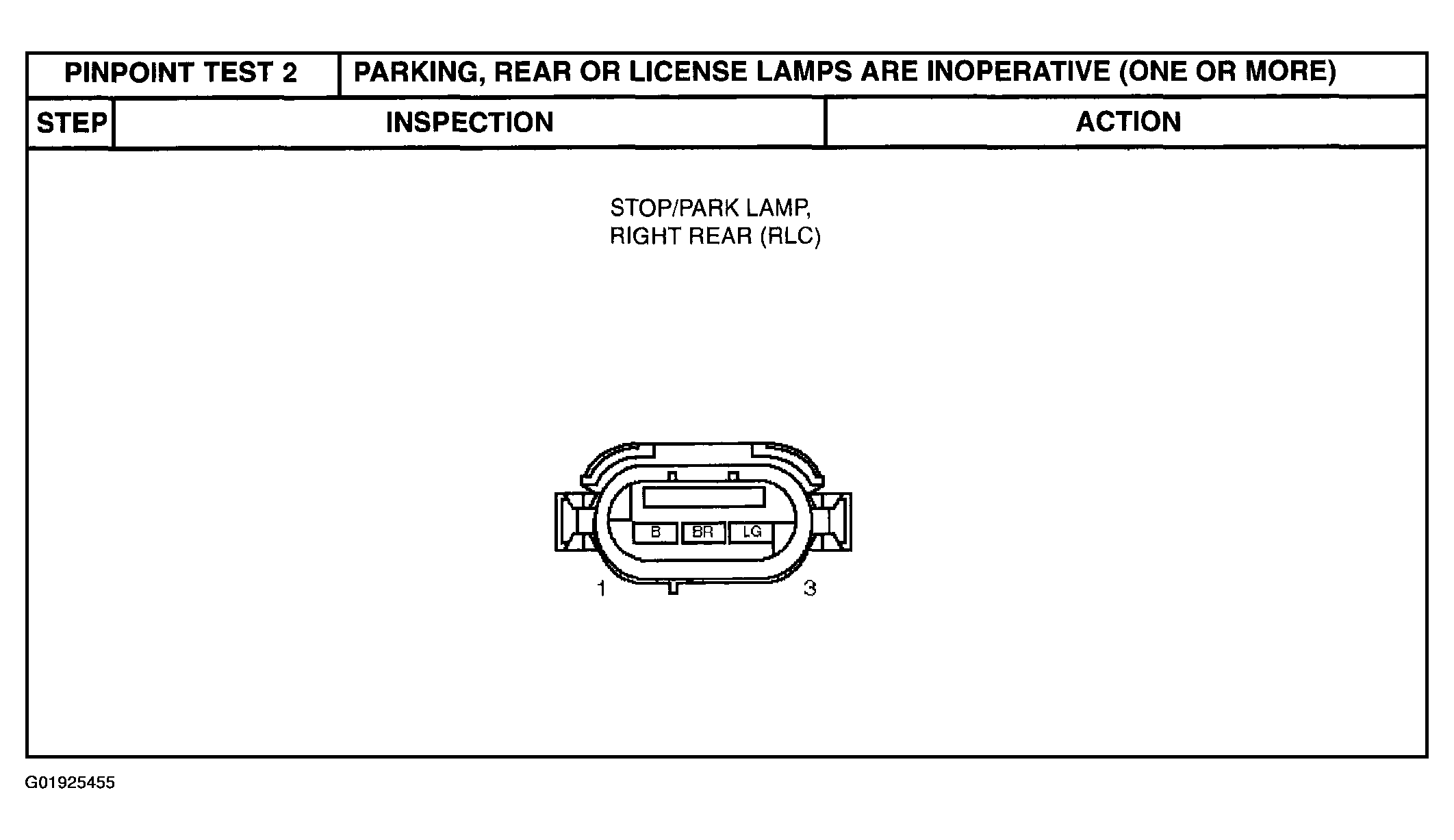

Fig 4: Pinpoint Test: Parking, Rear Or License Lamps Inoperative (One Or More) (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
