Headlamps, One Low Beam Headlamp Inoperative

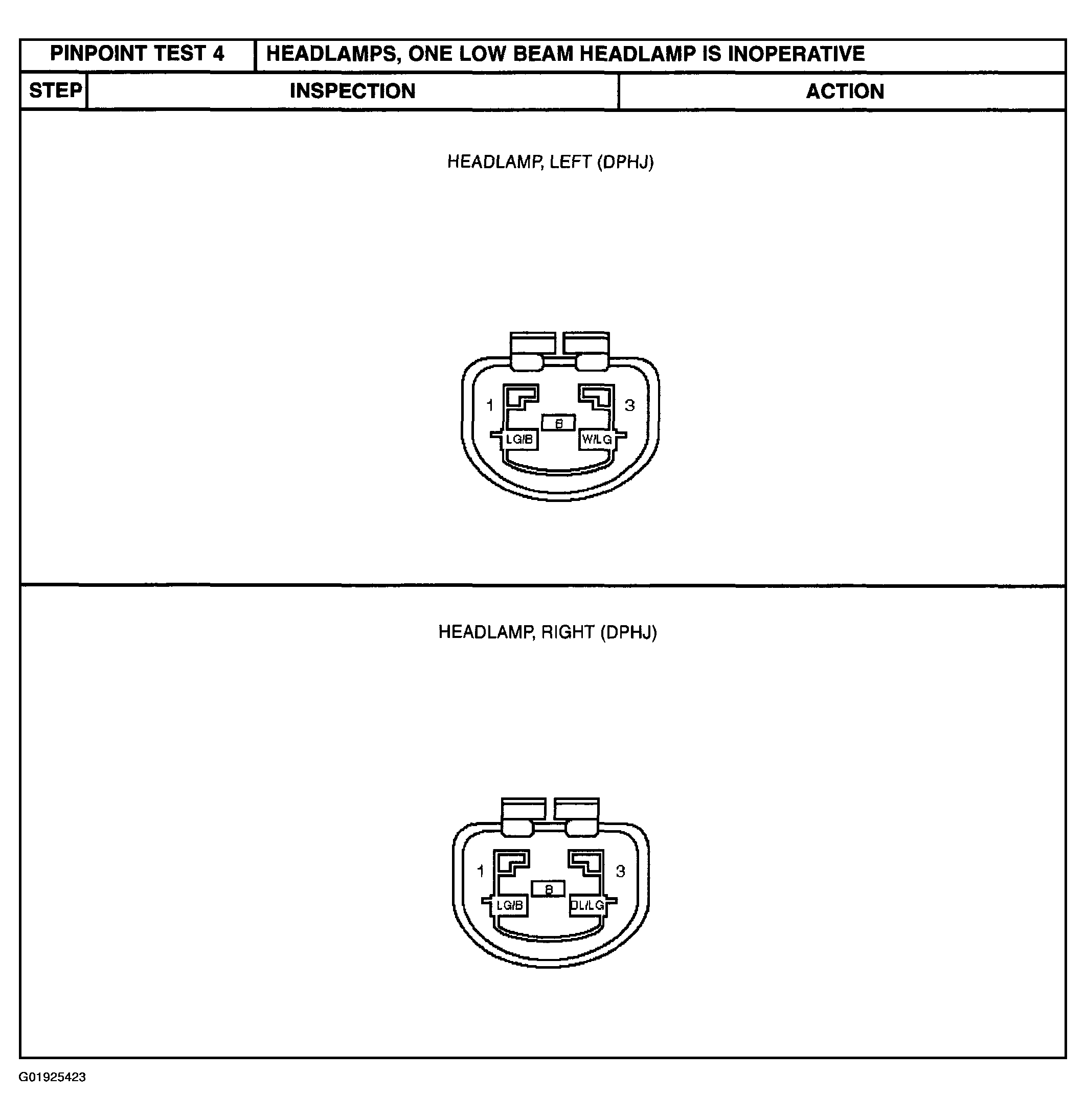

Fig 1: Pinpoint Test: Headlamps, One Low Beam Headlamp Inoperative (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

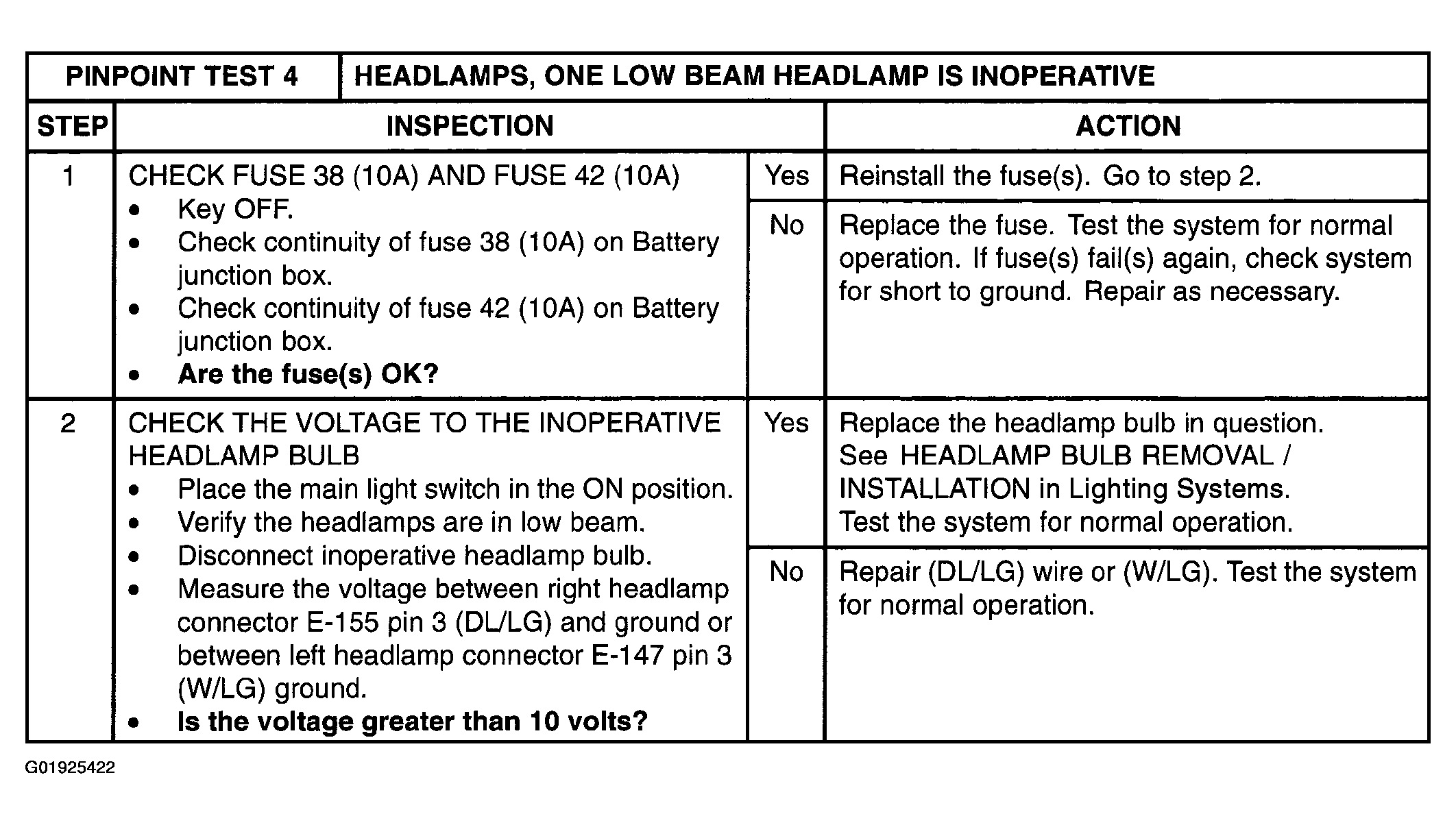

Fig 2: Pinpoint Test: Headlamps, One Low Beam Headlamp Inoperative (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
