Headlamps, One High Beam Headlamp Inoperative

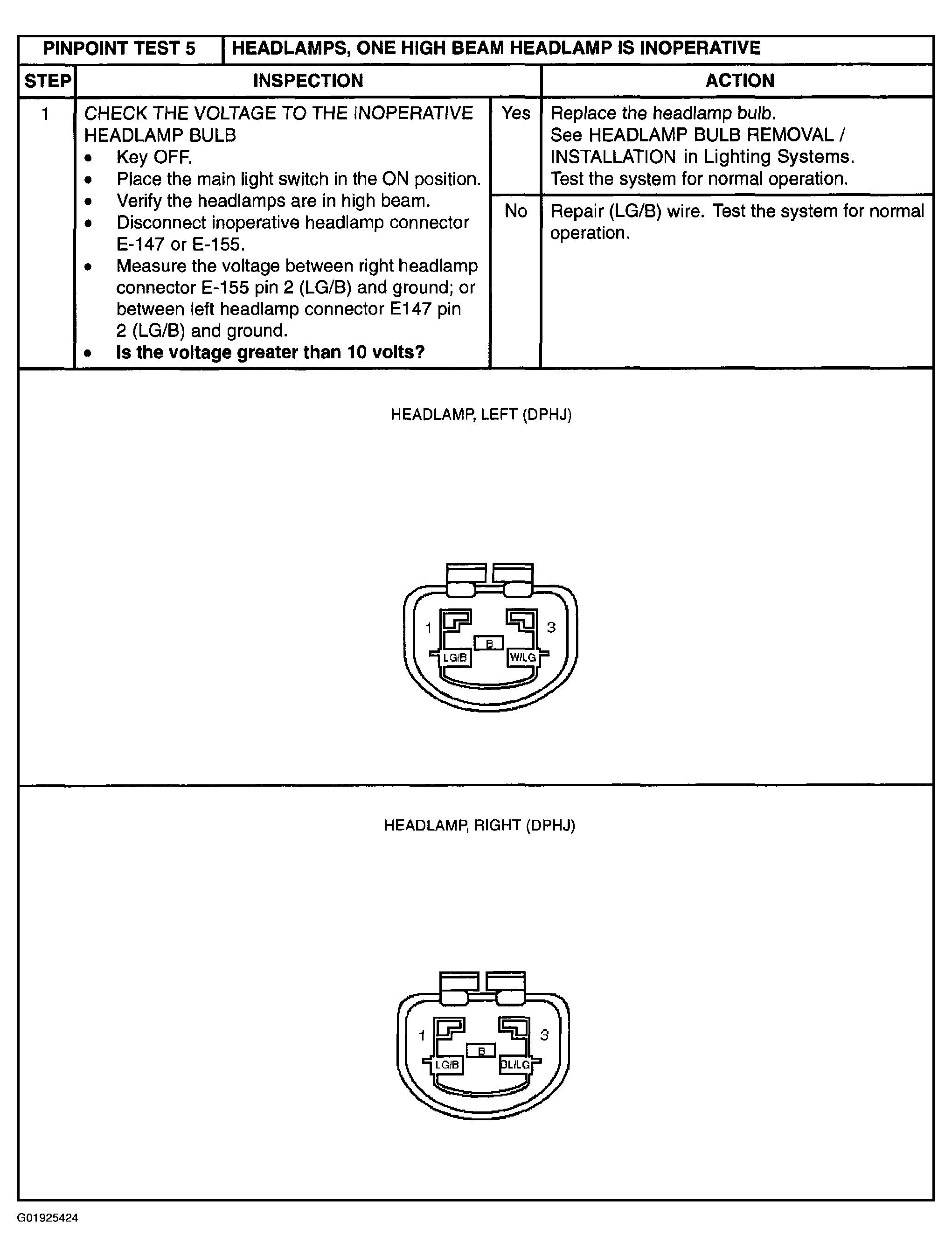

Fig 1: Pinpoint Test: Headlamps, One High Beam Headlamp Inoperative

G01925424

Courtesy of MAZDA MOTORS CORP.
