Headlamps, Low Beams Inoperative

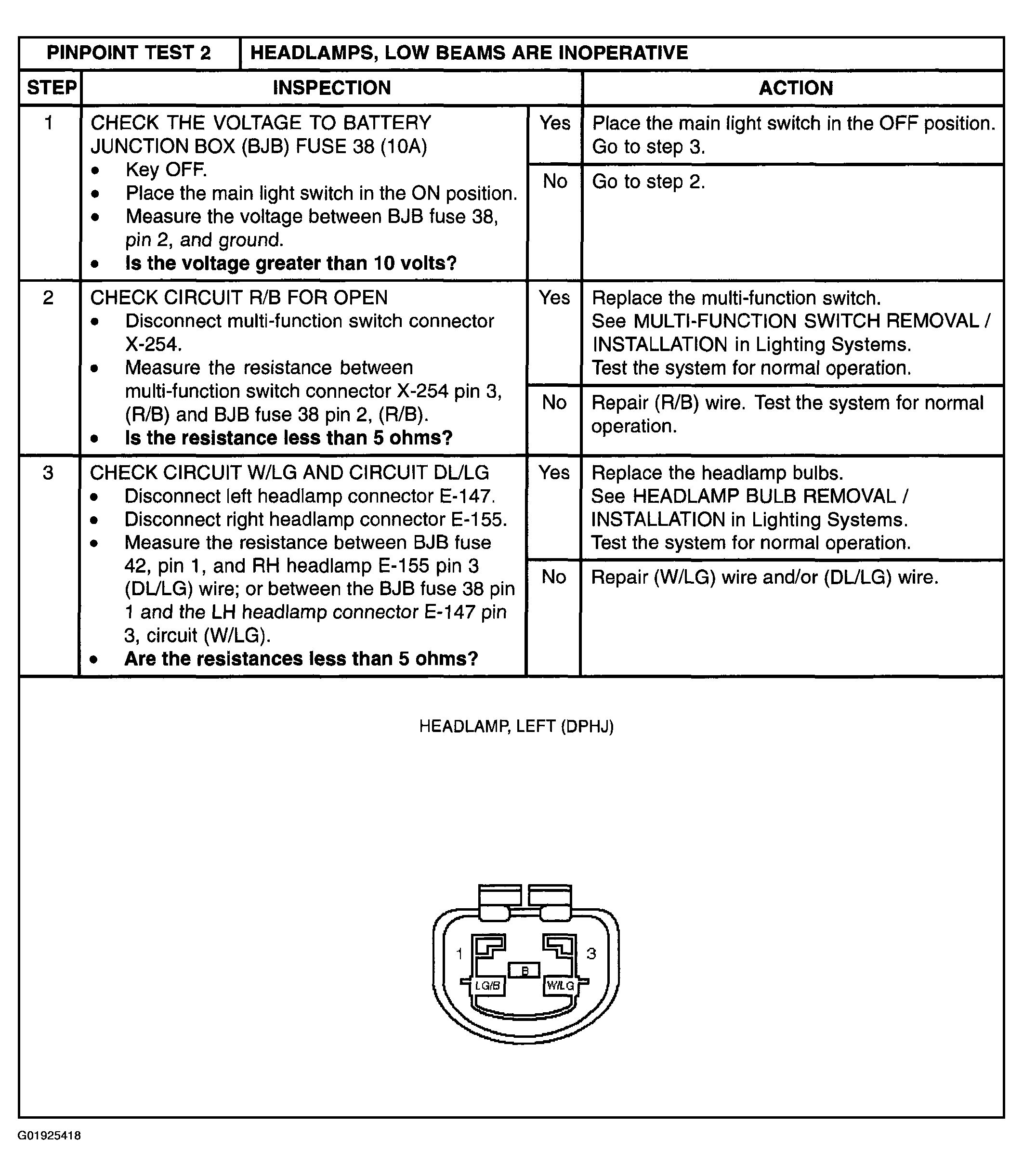

Fig 1: Pinpoint Test: Headlamps, Low Beams Inoperative (1 Of 2)
G01925418Courtesy of MAZDA MOTORS CORP.

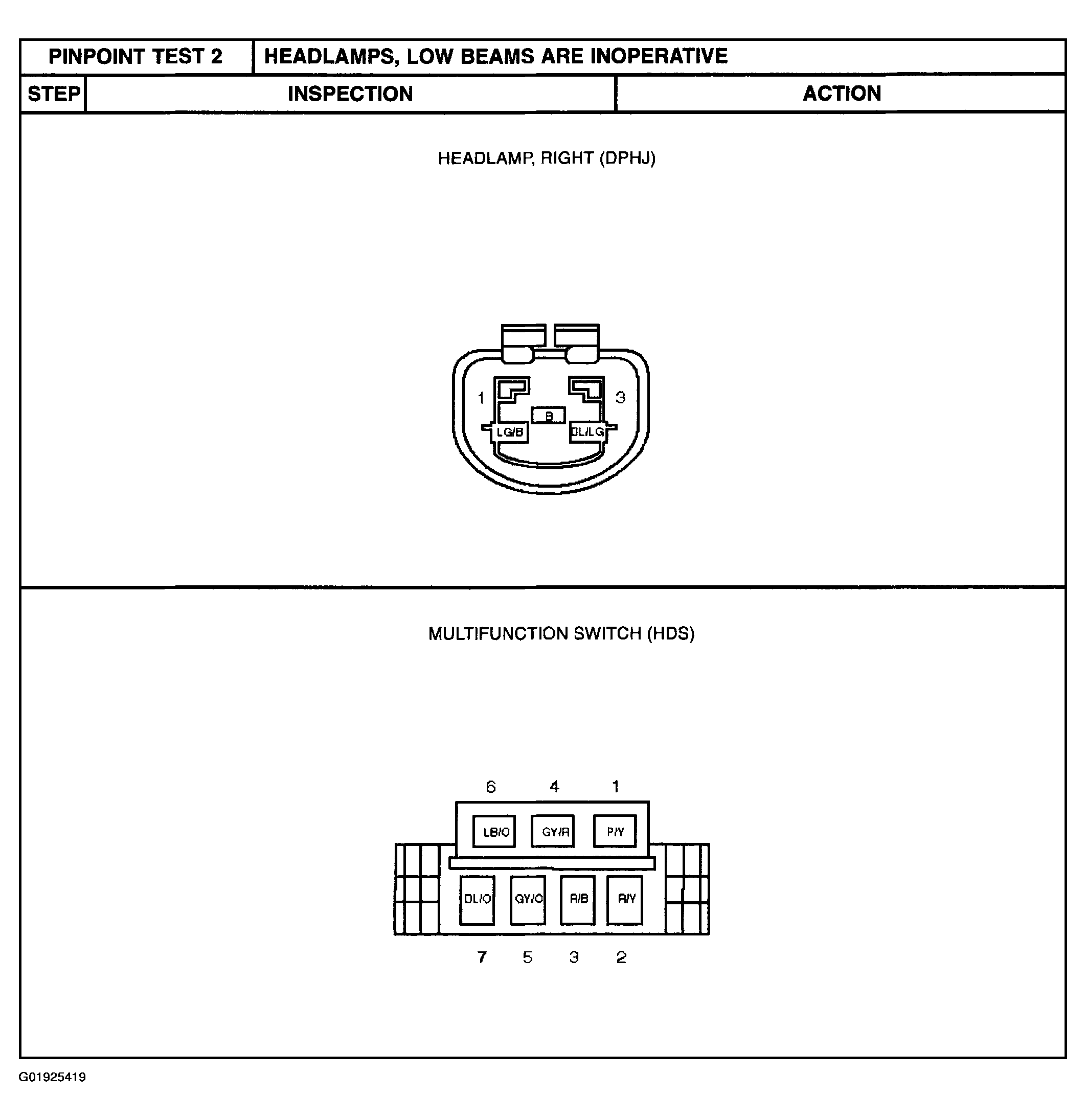

Fig 2: Pinpoint Test: Headlamps, Low Beams Inoperative (2 Of 2)
G01925419Courtesy of MAZDA MOTORS CORP.
