Headlamps, High Beams Inoperative

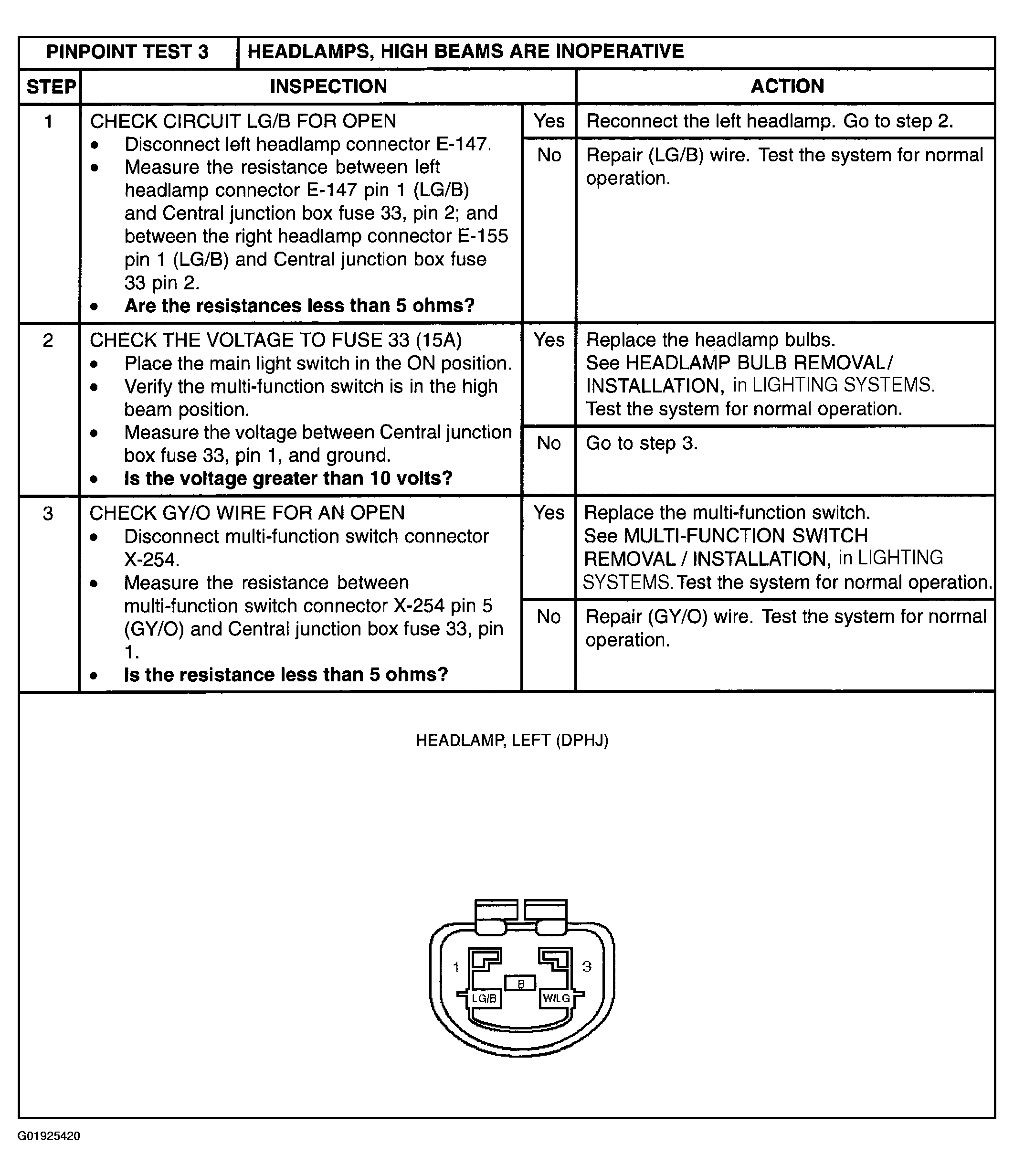

Fig 1: Pinpoint Test: Headlamps, High Beams Inoperative (1 Of 2)
G01925420Courtesy of MAZDA MOTORS CORP.

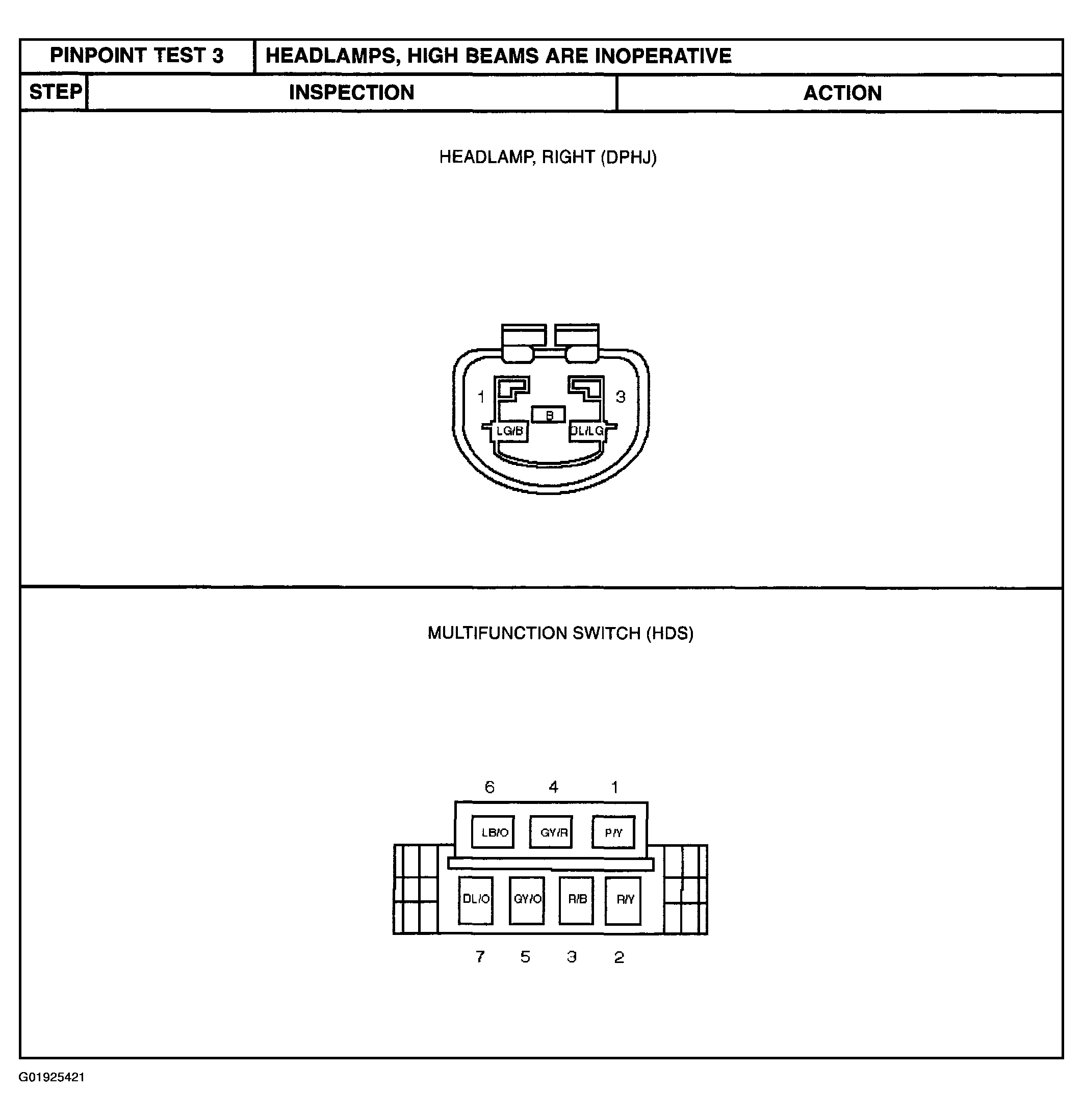

Fig 2: Pinpoint Test: Headlamps, High Beams Inoperative (2 Of 2)
G01925421Courtesy of MAZDA MOTORS CORP.
