Gauges & Instrument Panels
>>
Troubleshooting (Instrumentation/Driver Information)
>>
Symptom Troubleshooting Chart - Instrument Cluster
Symptom Troubleshooting Chart - Instrument Cluster

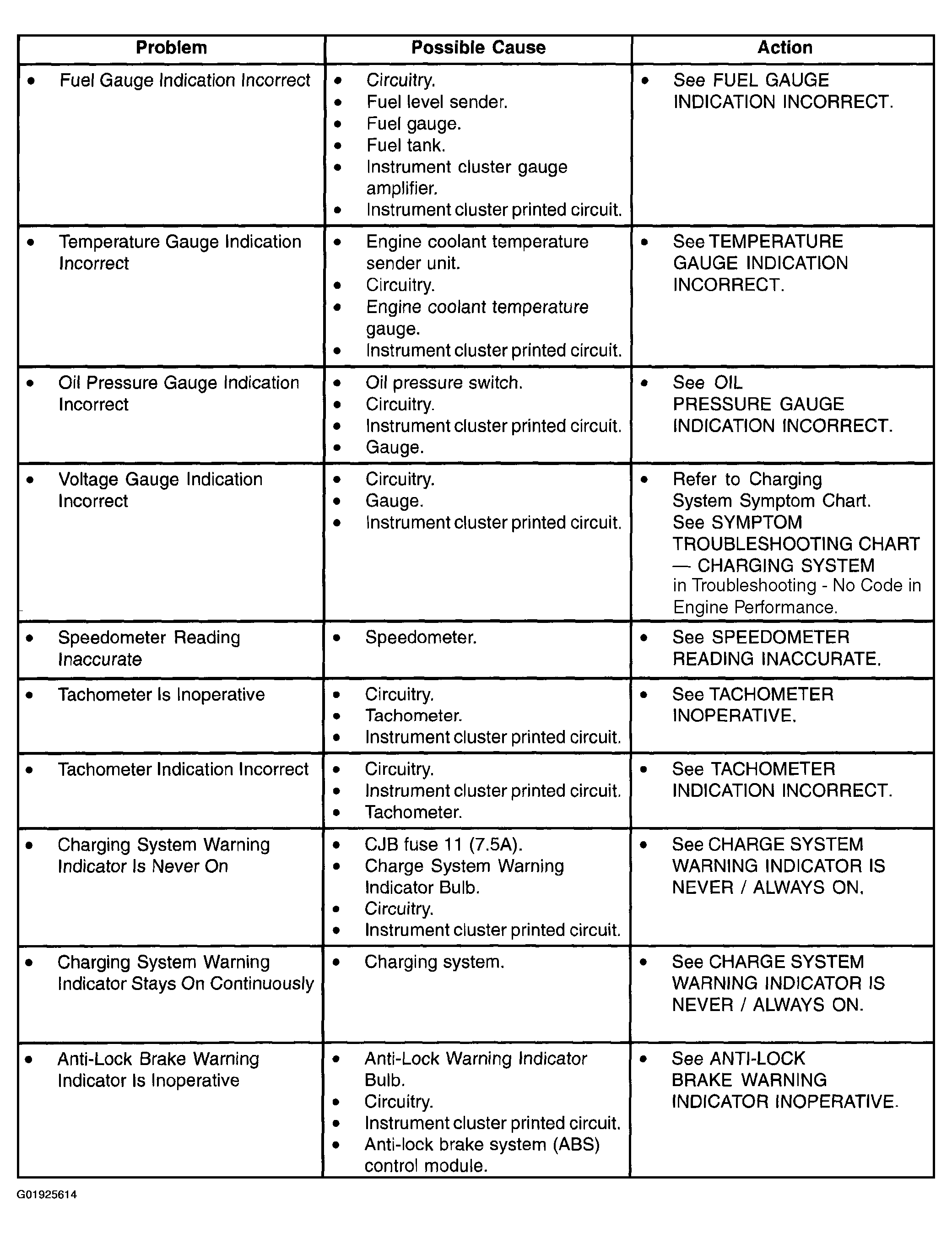

Fig 1: Symptom Troubleshooting Chart -- Instrument Cluster (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

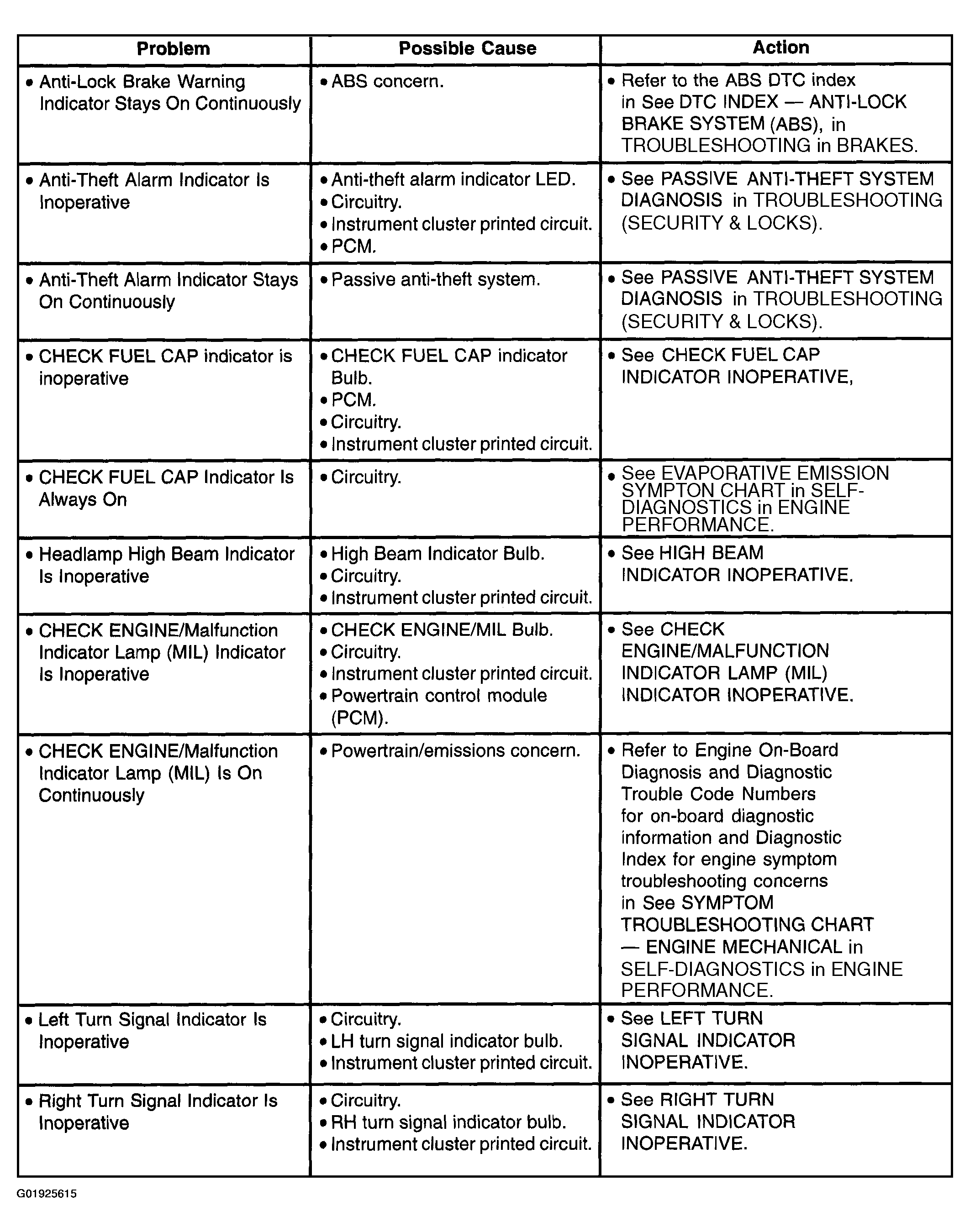

Fig 2: Symptom Troubleshooting Chart -- Instrument Cluster (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

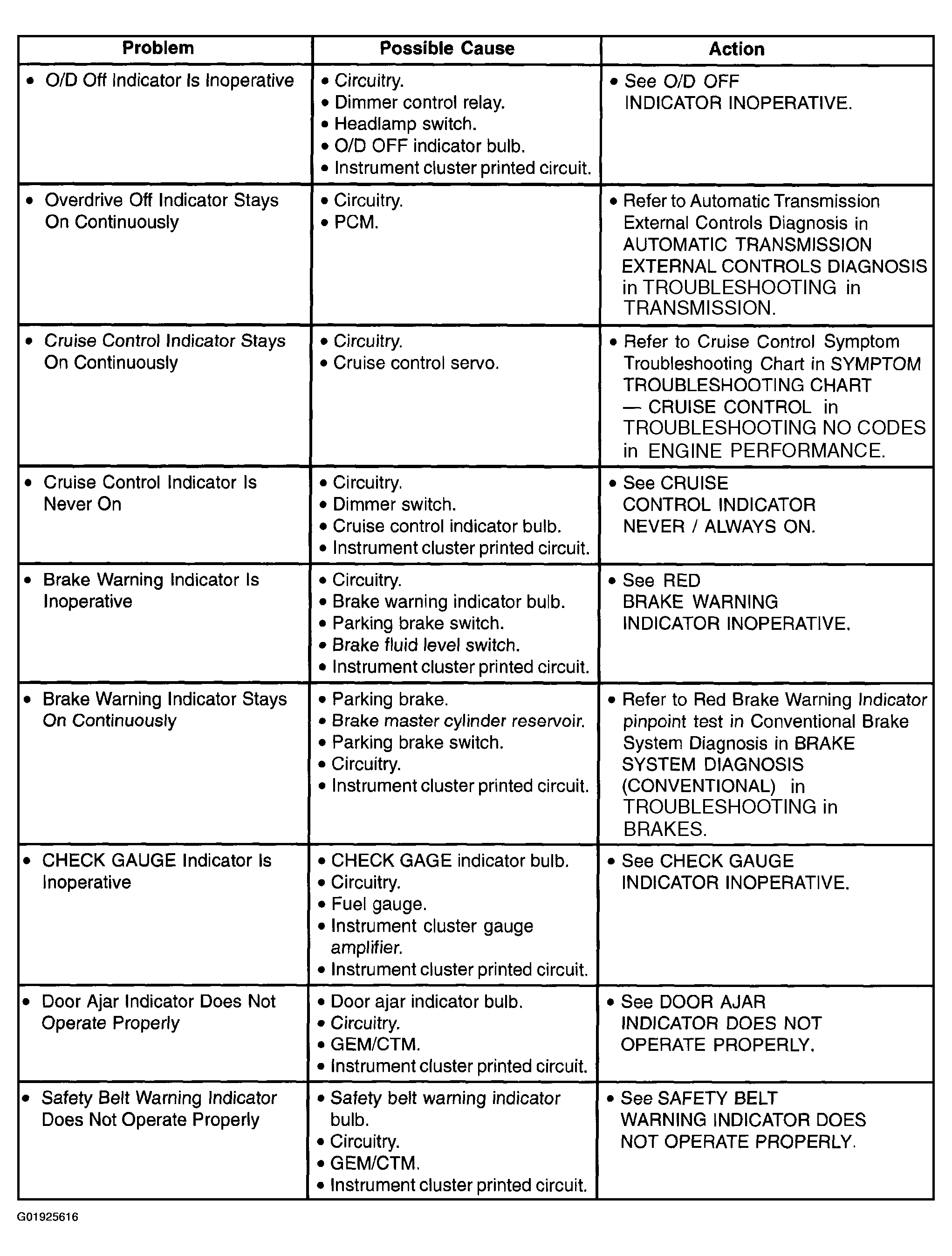

Fig 3: Symptom Troubleshooting Chart -- Instrument Cluster (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

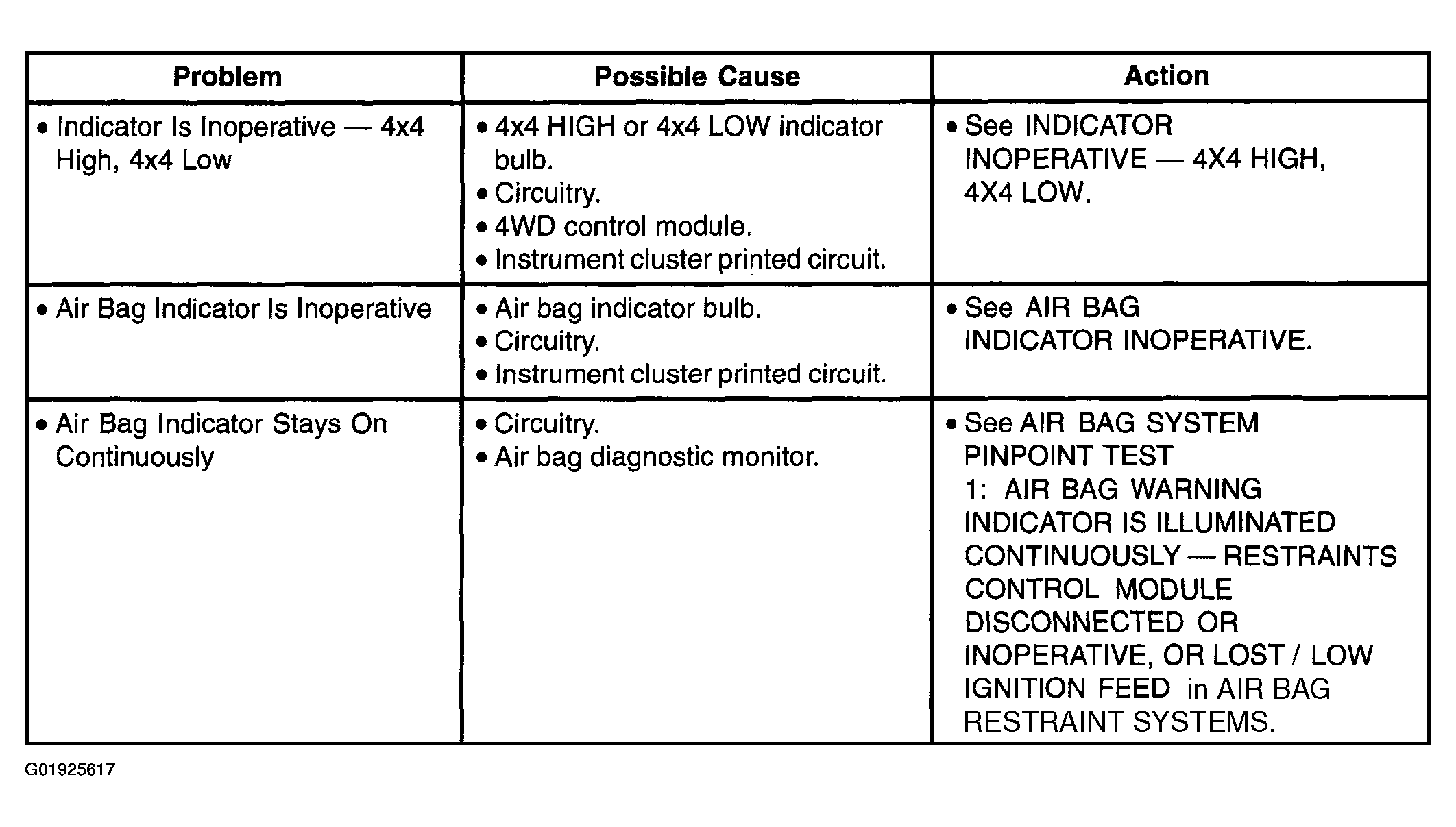

Fig 4: Symptom Troubleshooting Chart -- Instrument Cluster (4 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 5: Symptom Troubleshooting Chart -- Instrument Cluster (5 Of 5)
Courtesy of MAZDA MOTORS CORP.

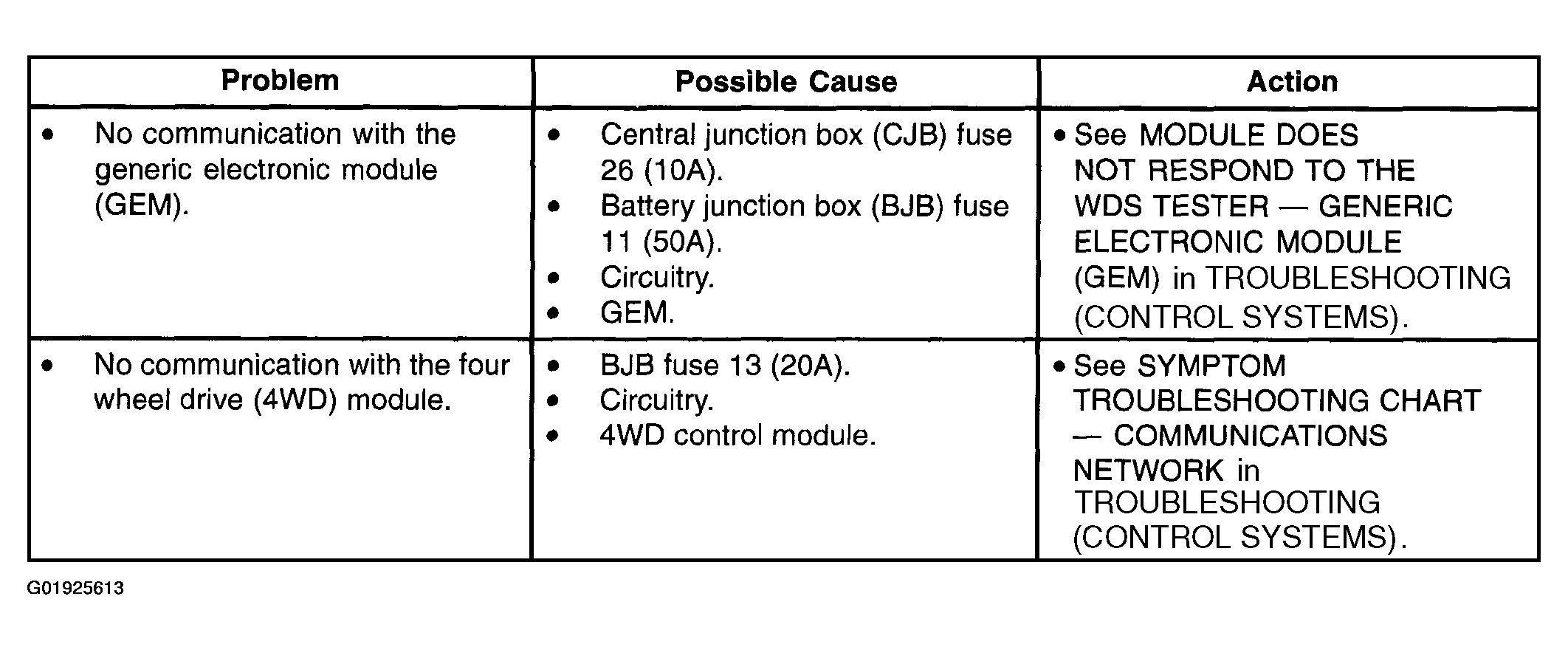

Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
