Speedometer/Odometer Inoperative

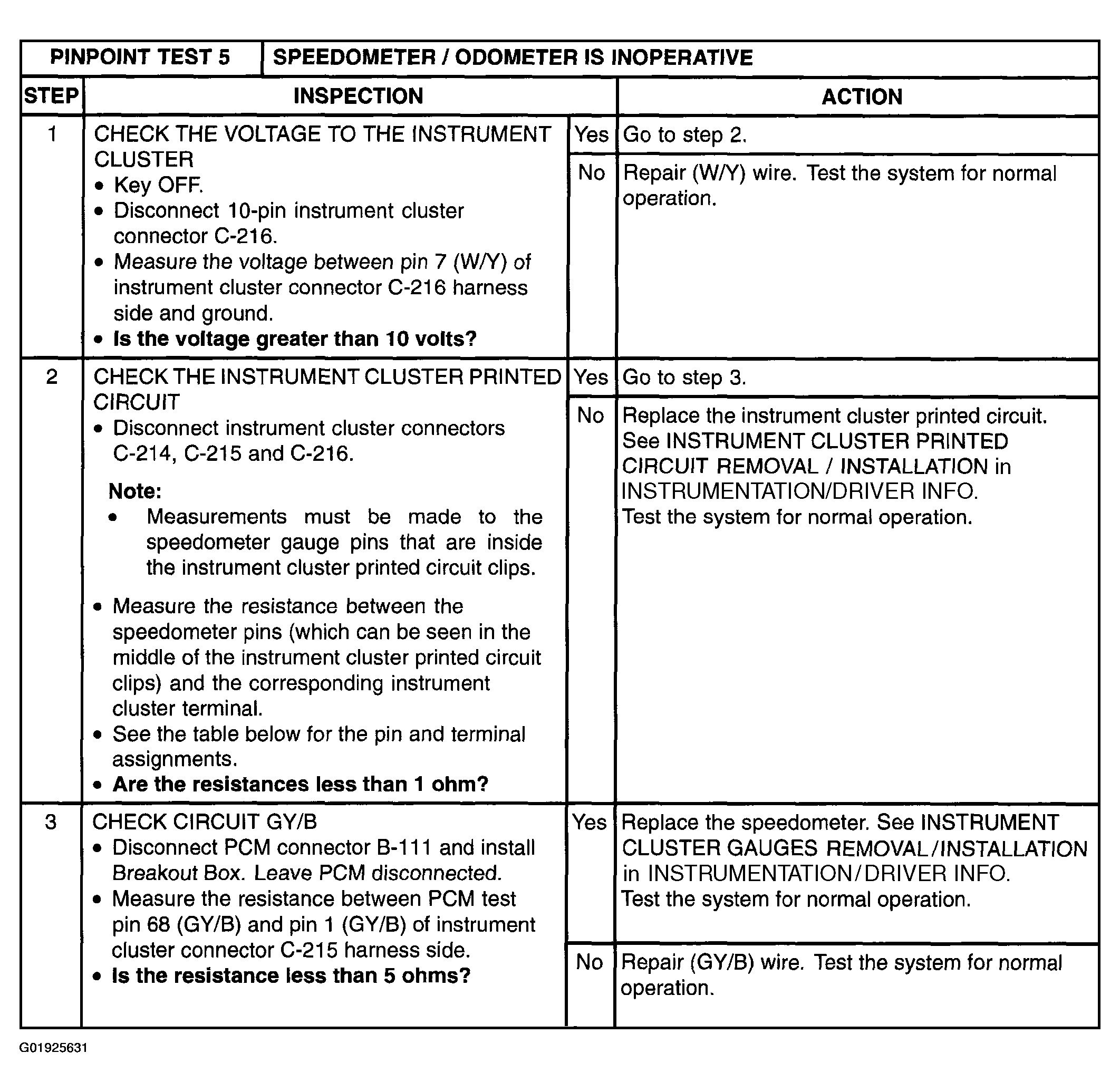

Fig 1: Diagnosis Procedure -- Speedometer/Odometer Inoperative (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

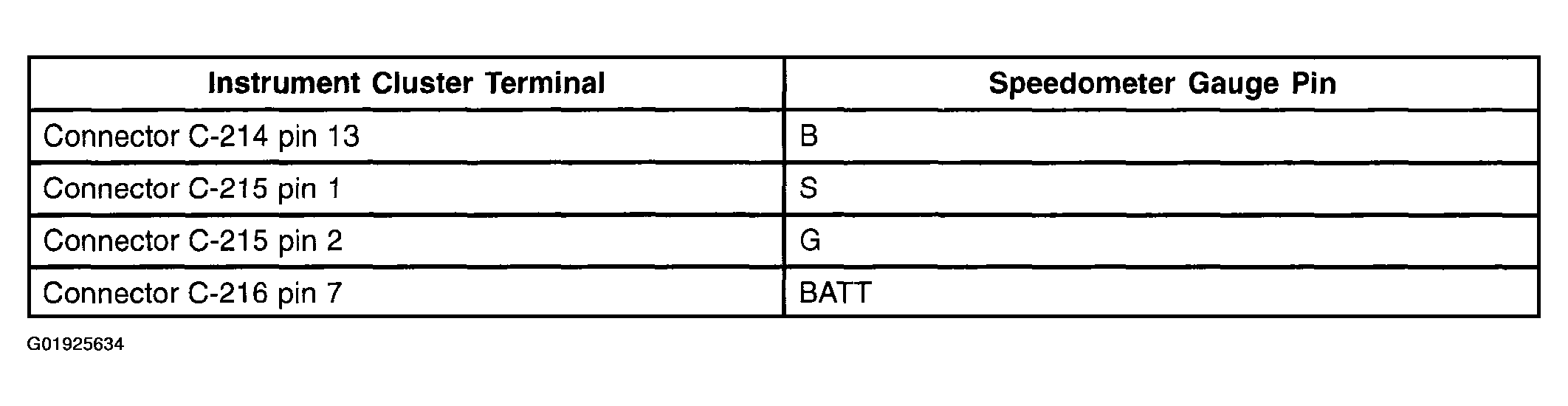

Fig 2: Identifying Instrument Cluster Connector Terminals (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

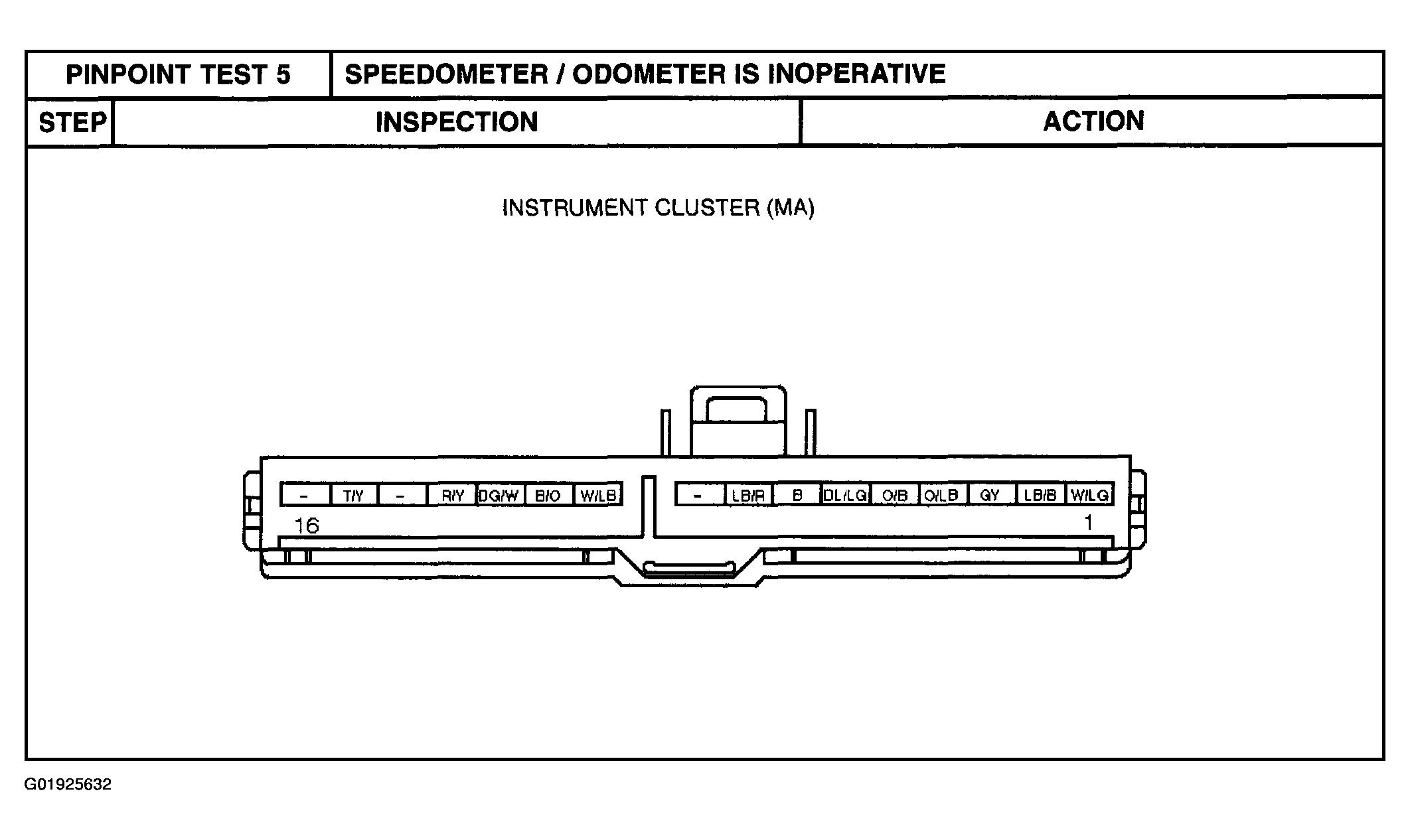

Fig 3: Identifying Instrument Cluster Connector Terminals (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

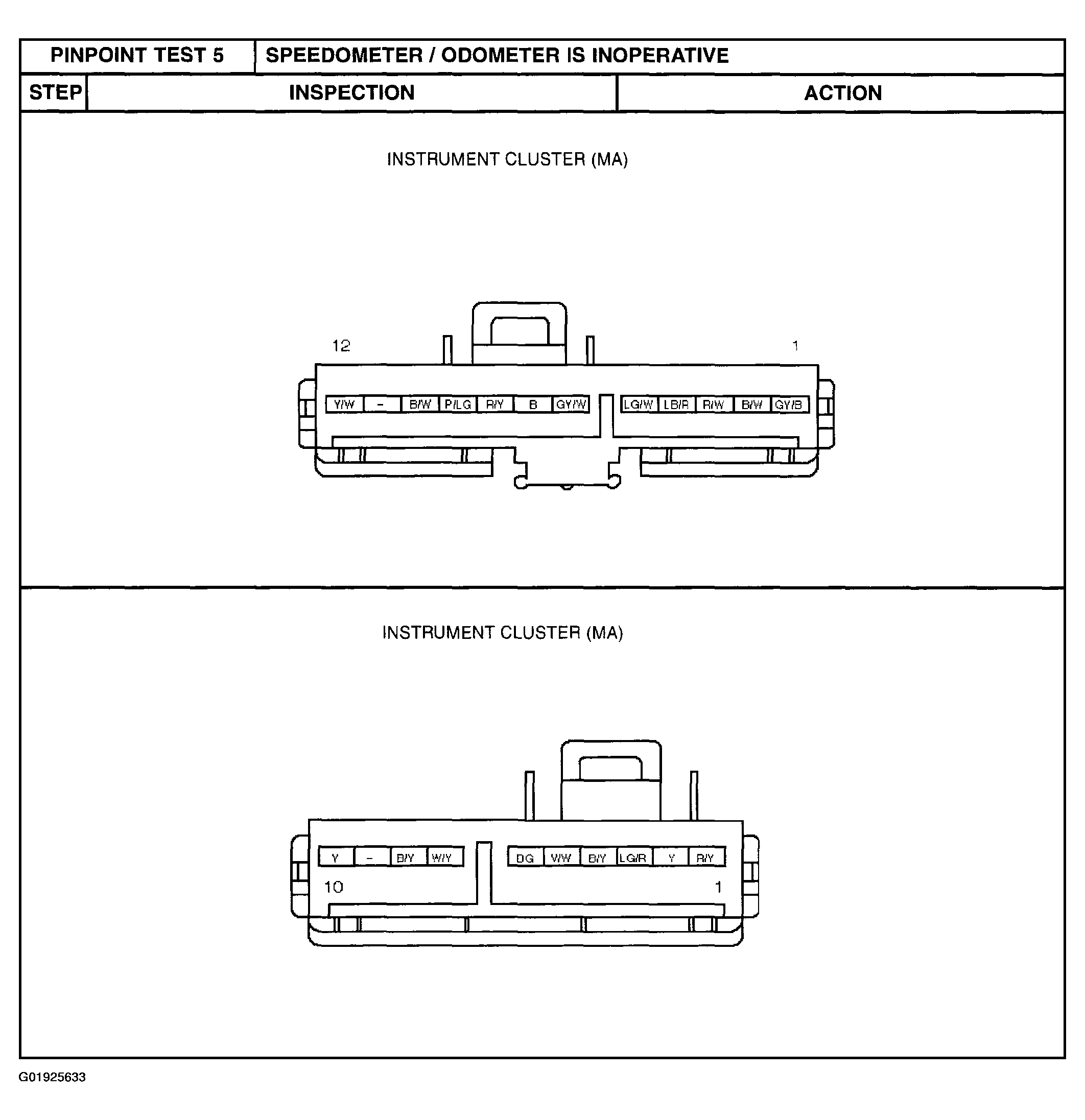

Fig 4: Identifying Instrument Cluster Connector Terminals (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
