Safety Belt Warning Chime Does Not Operate Properly

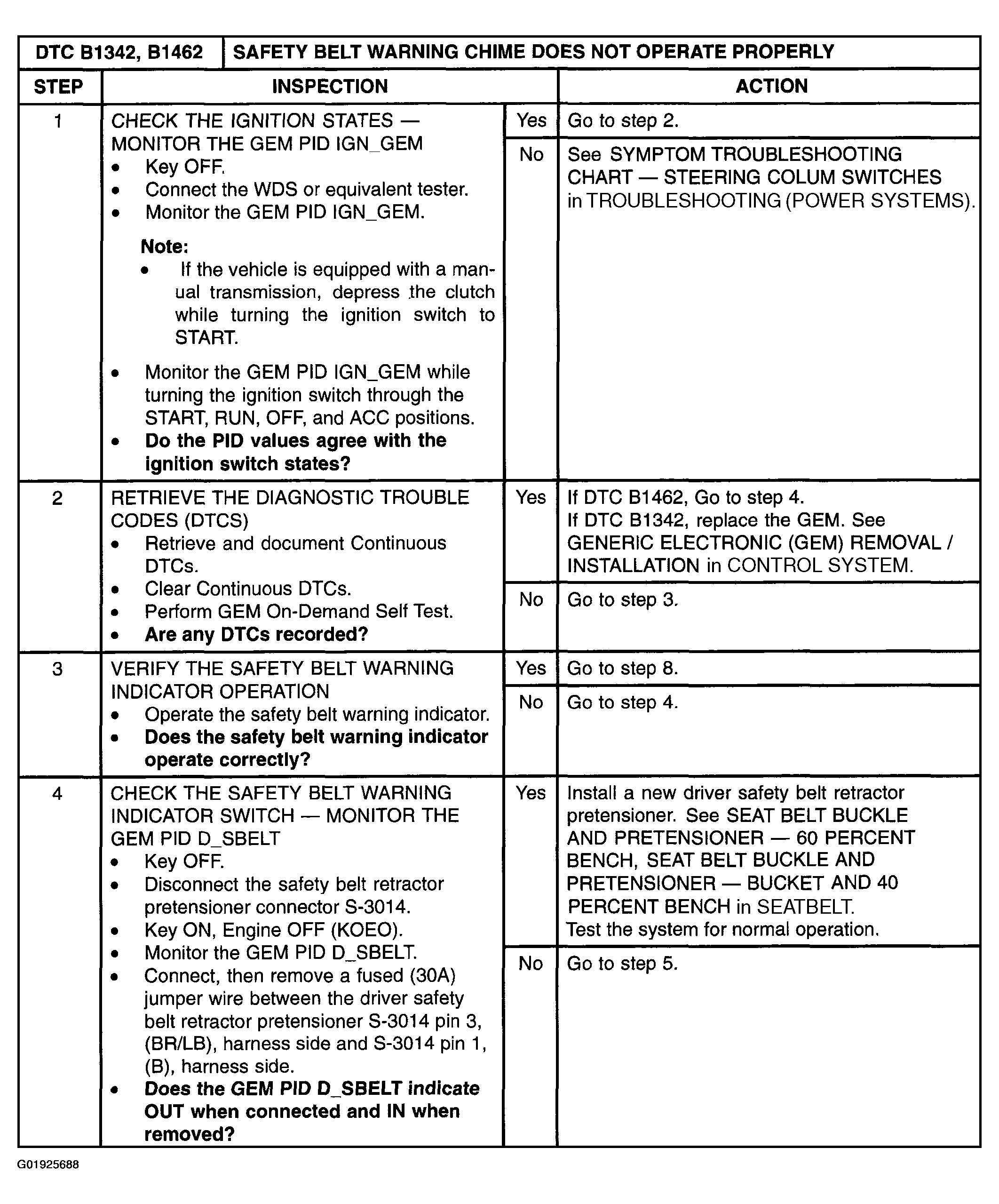

Fig 1: Diagnosis Procedure -- Safety Belt Warning Chime Does Not Operate Properly (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

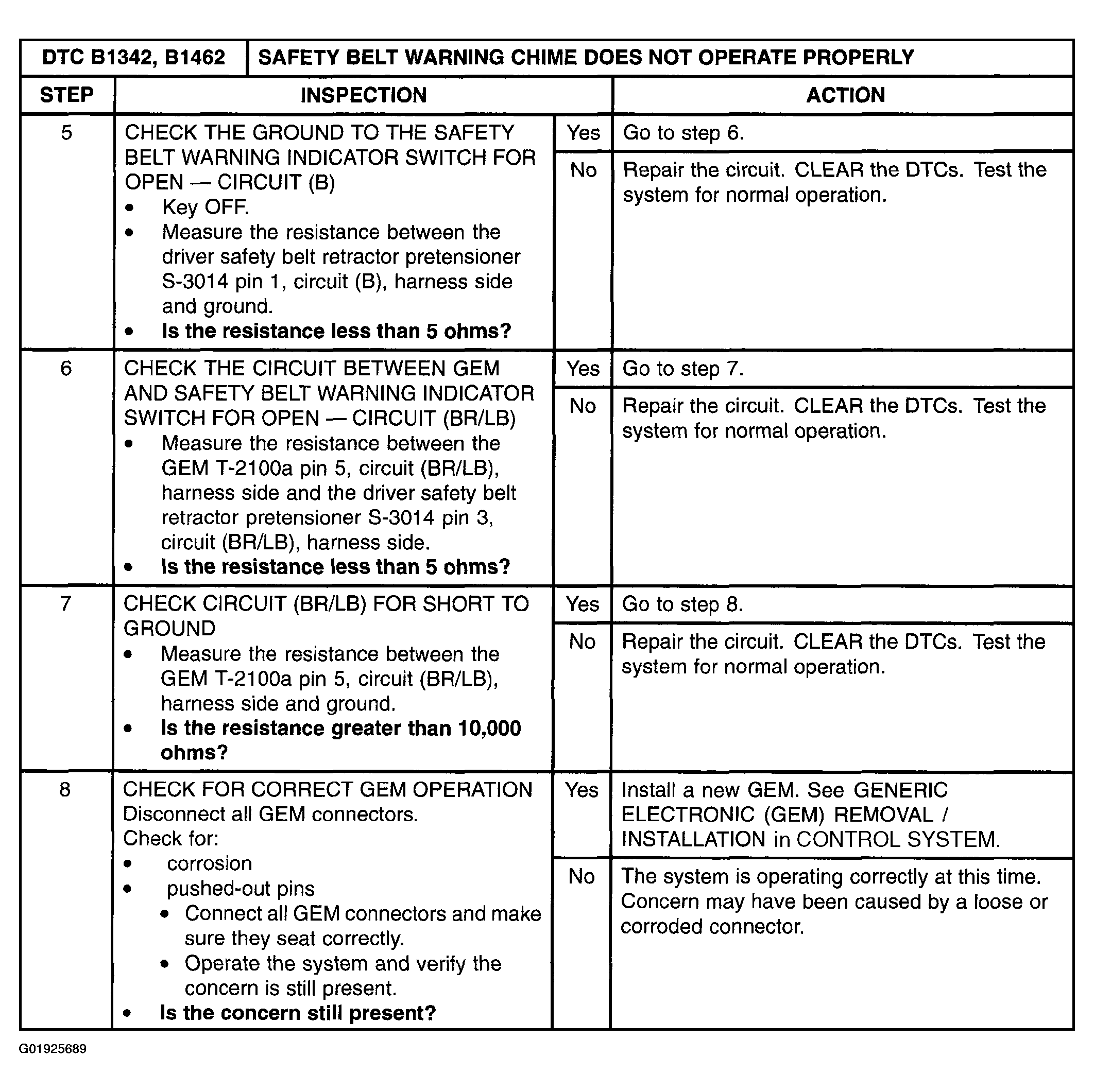

Fig 2: Diagnosis Procedure -- Safety Belt Warning Chime Does Not Operate Properly (Steps 5-8)

Courtesy of MAZDA MOTORS CORP.

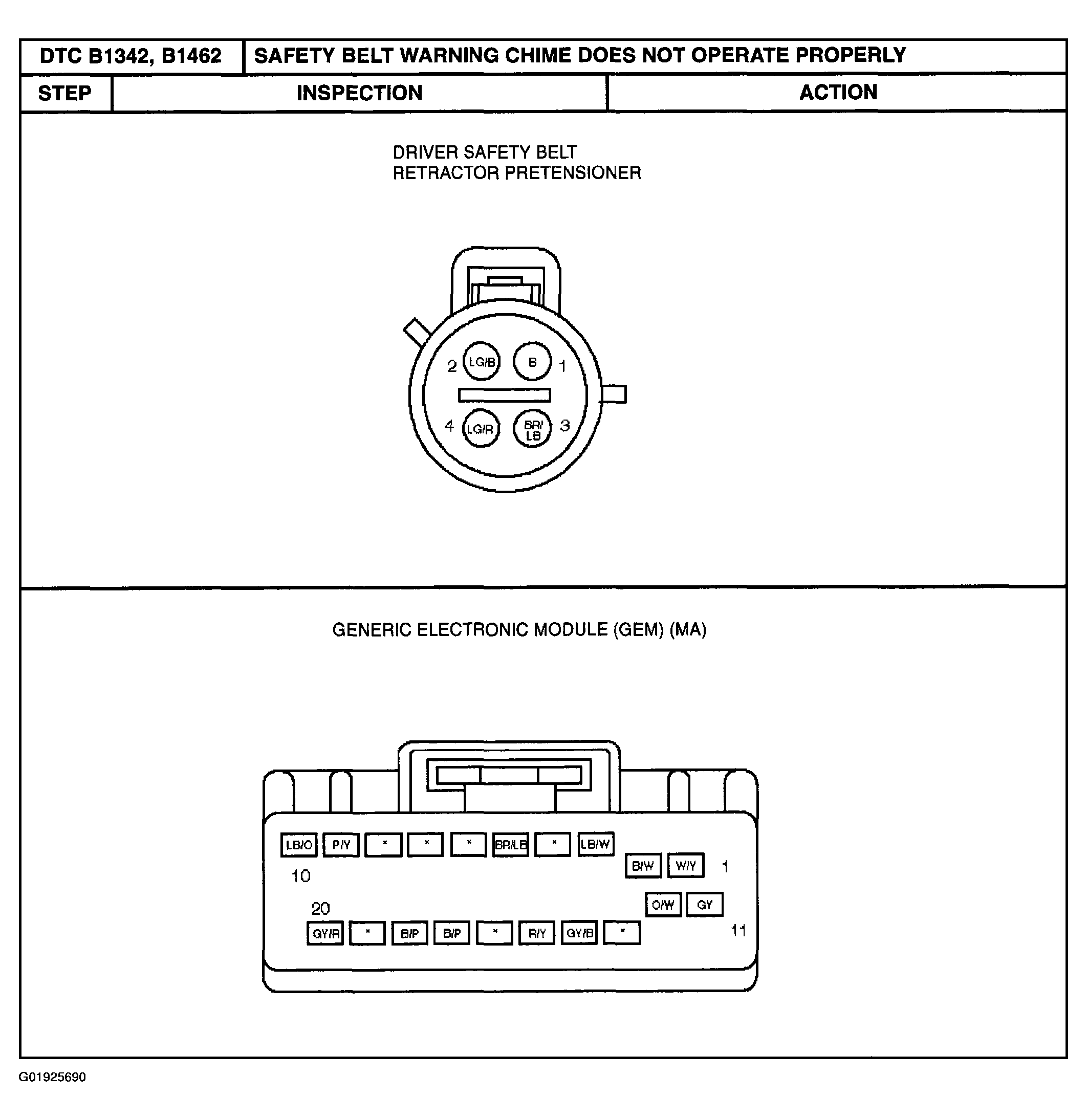

Fig 3: Identifying Driver Safety Belt Retractor Pretensioner & Generic Electronic Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.
