Right Turn Signal Indicator Inoperative
Right Turn Signal Indicator Inoperative

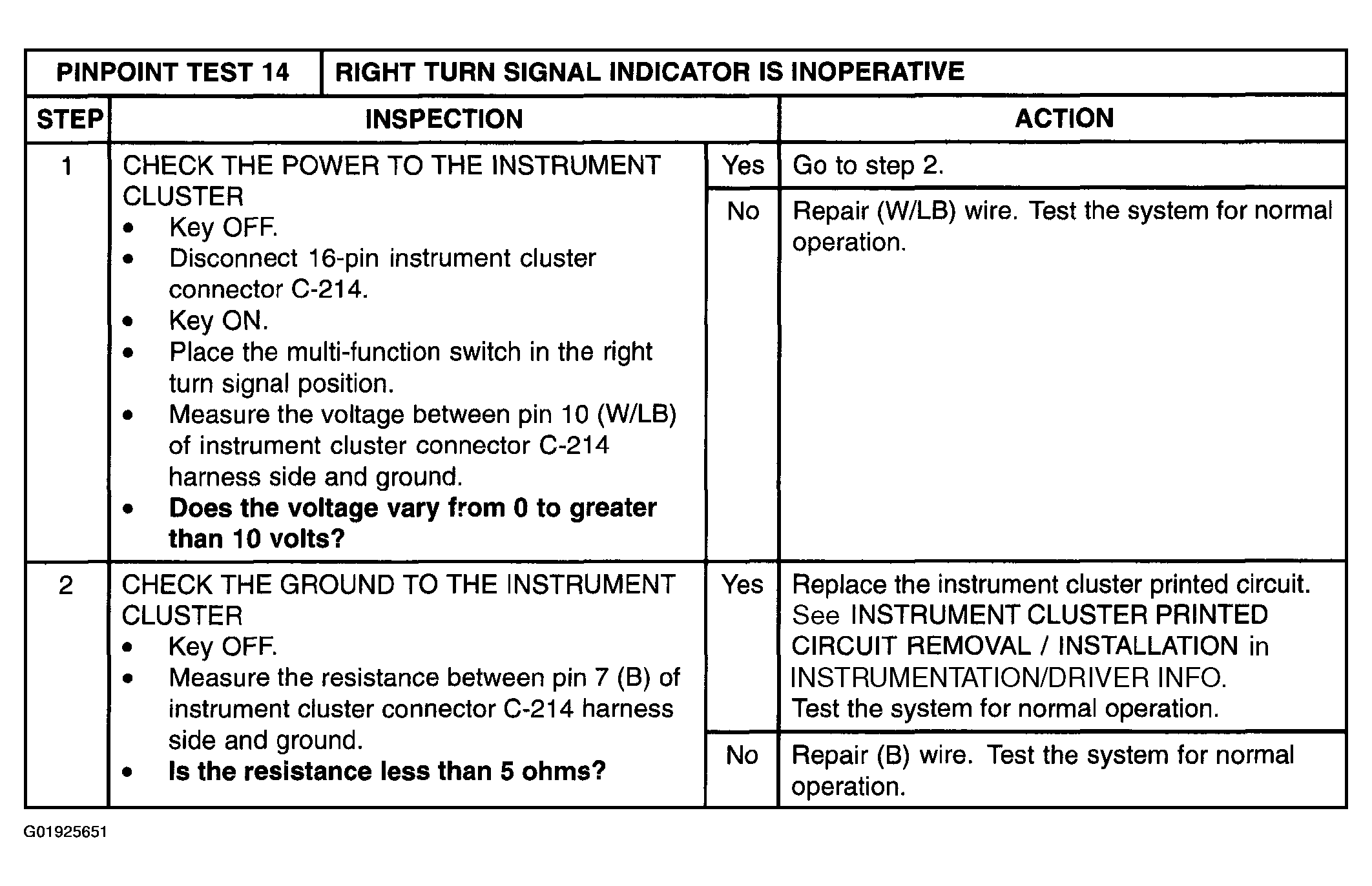

Fig 1: Diagnosis Procedure -- Right Turn Signal Indicator Inoperative (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

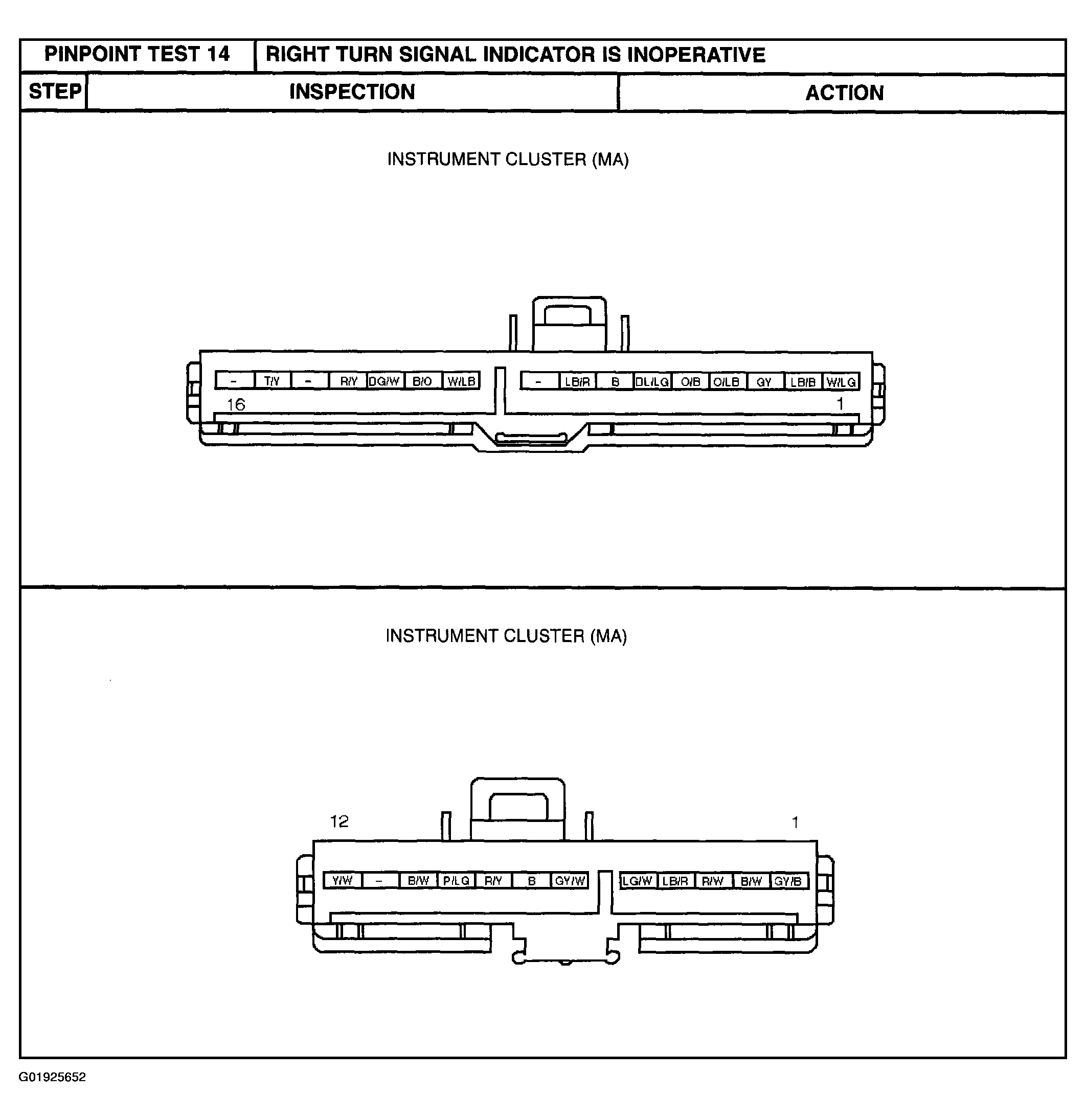

Fig 2: Identifying Instrument Cluster Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
