Oil Pressure Gauge Indication Incorrect

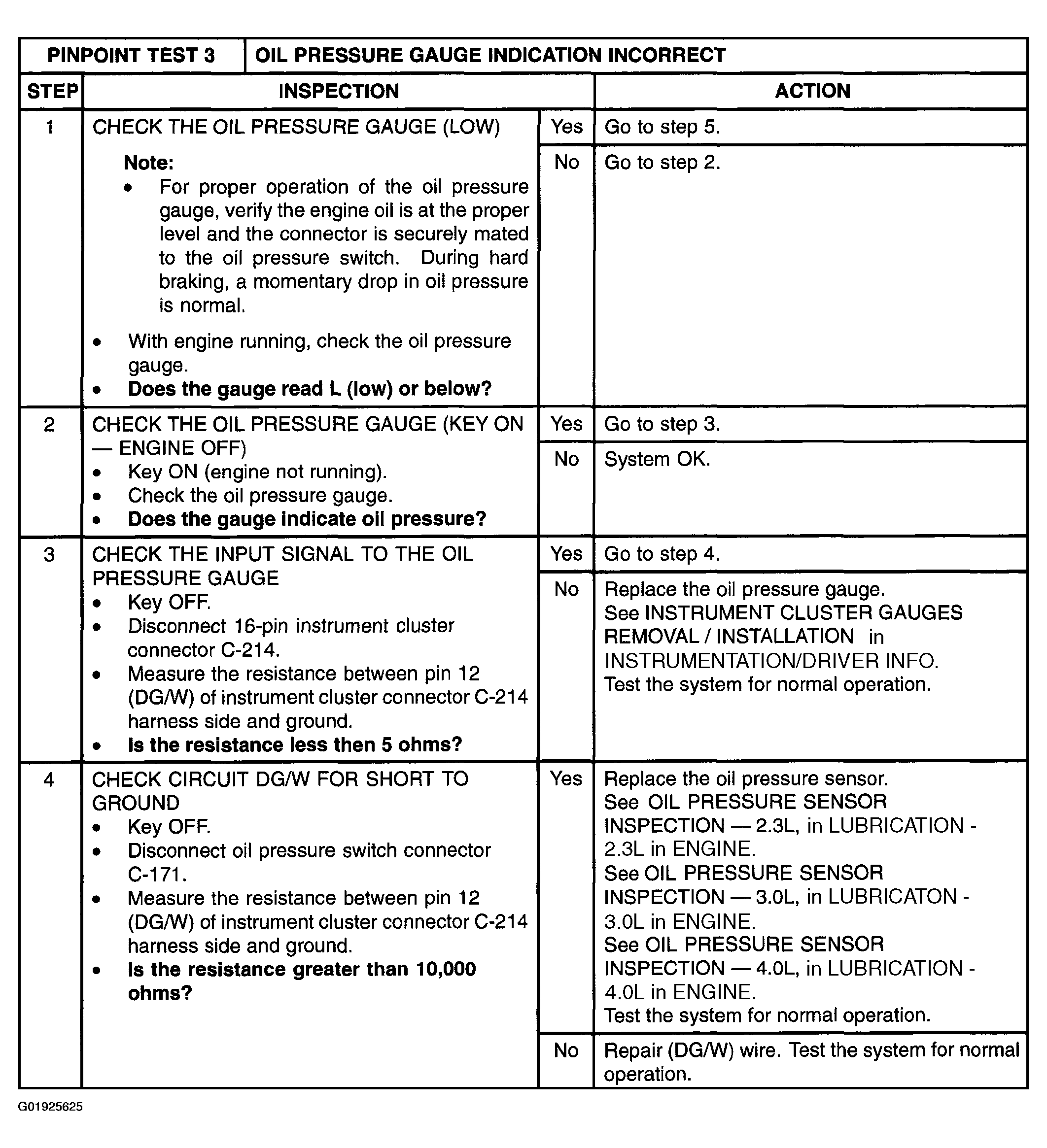

Fig 1: Diagnosis Procedure -- Oil Pressure Gauge Indication Incorrect (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

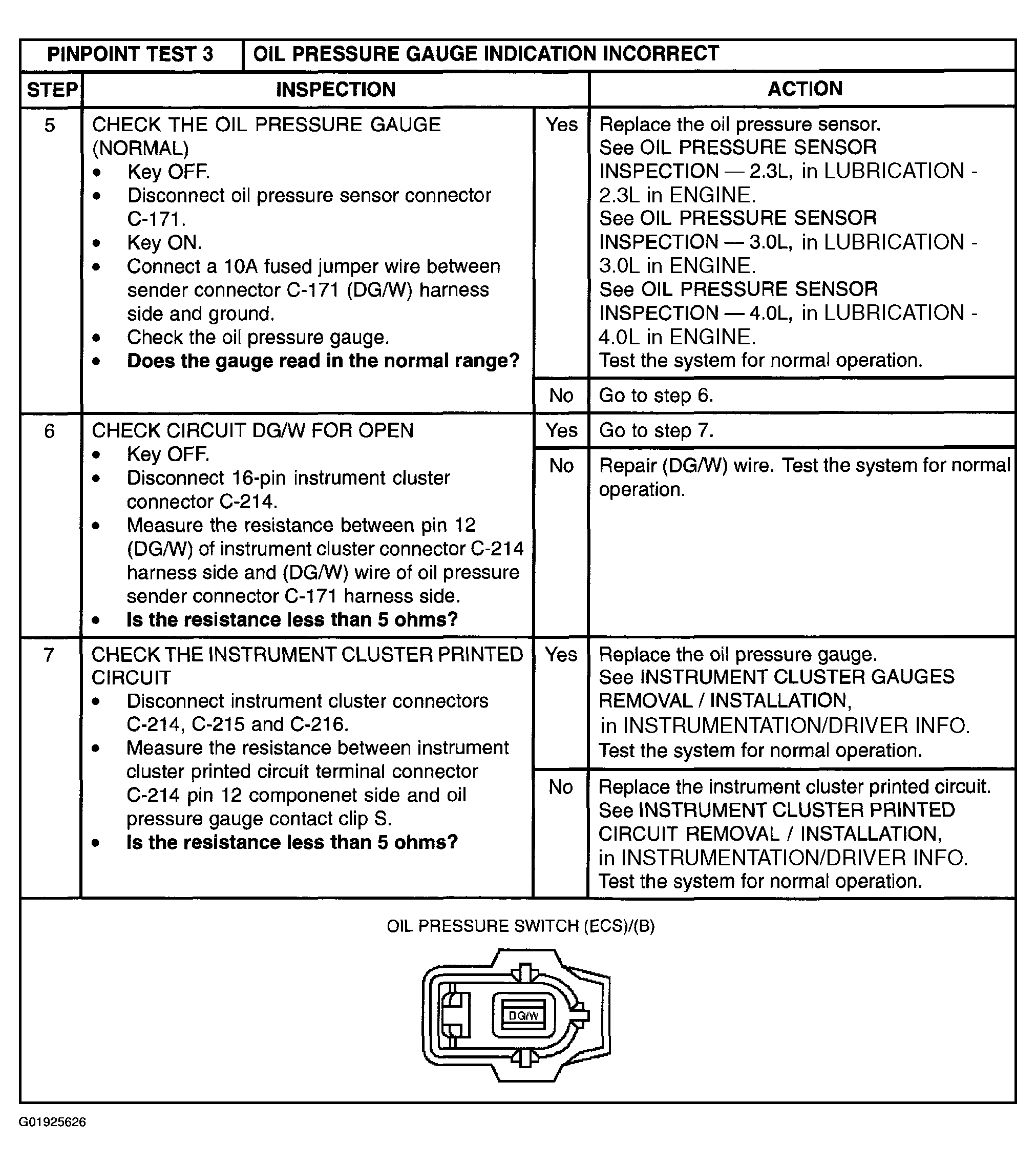

Fig 2: Diagnosis Procedure -- Oil Pressure Gauge Indication Incorrect (Steps 5-7)

Courtesy of MAZDA MOTORS CORP.

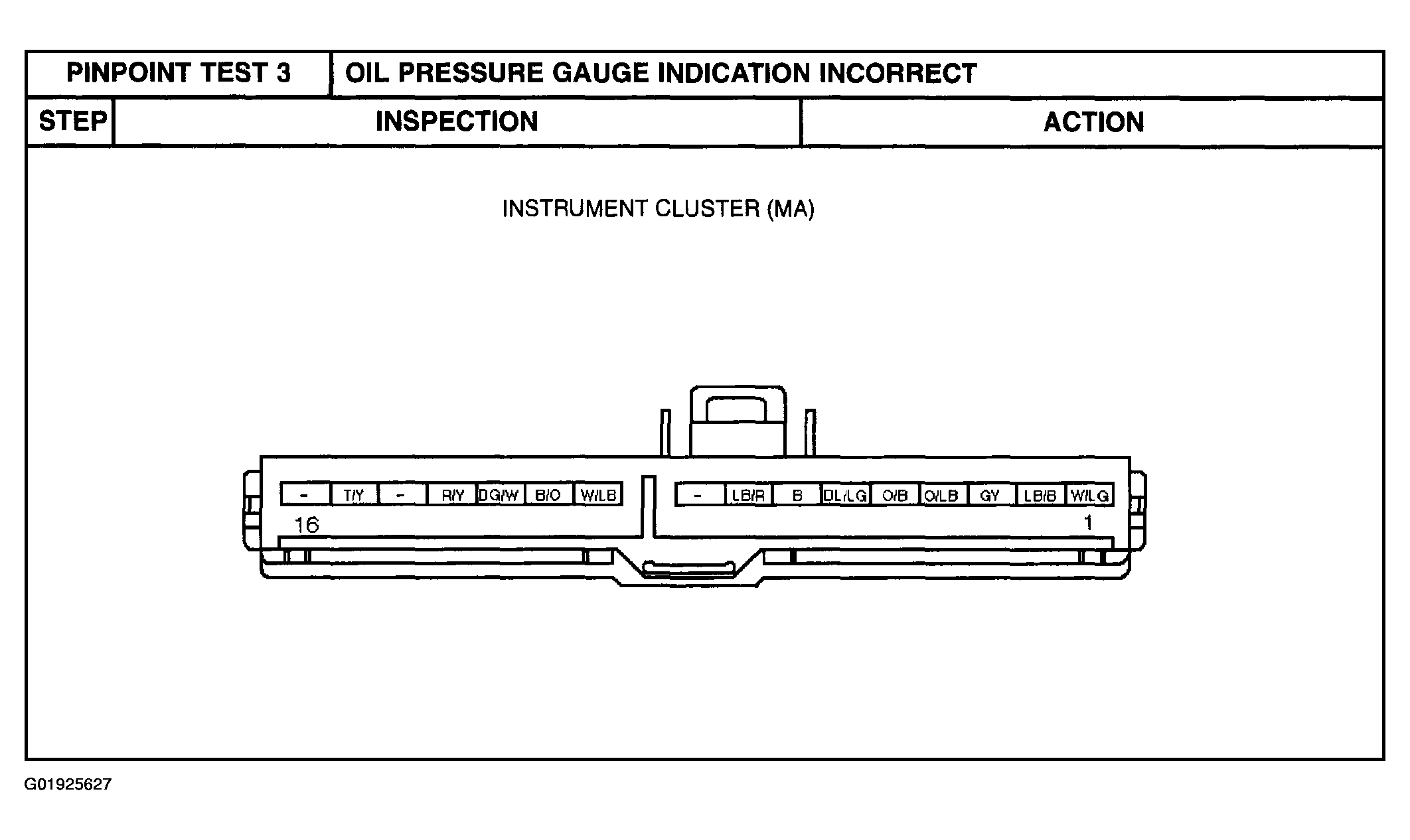

Fig 3: Identifying Instrument Cluster Connector Terminals (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

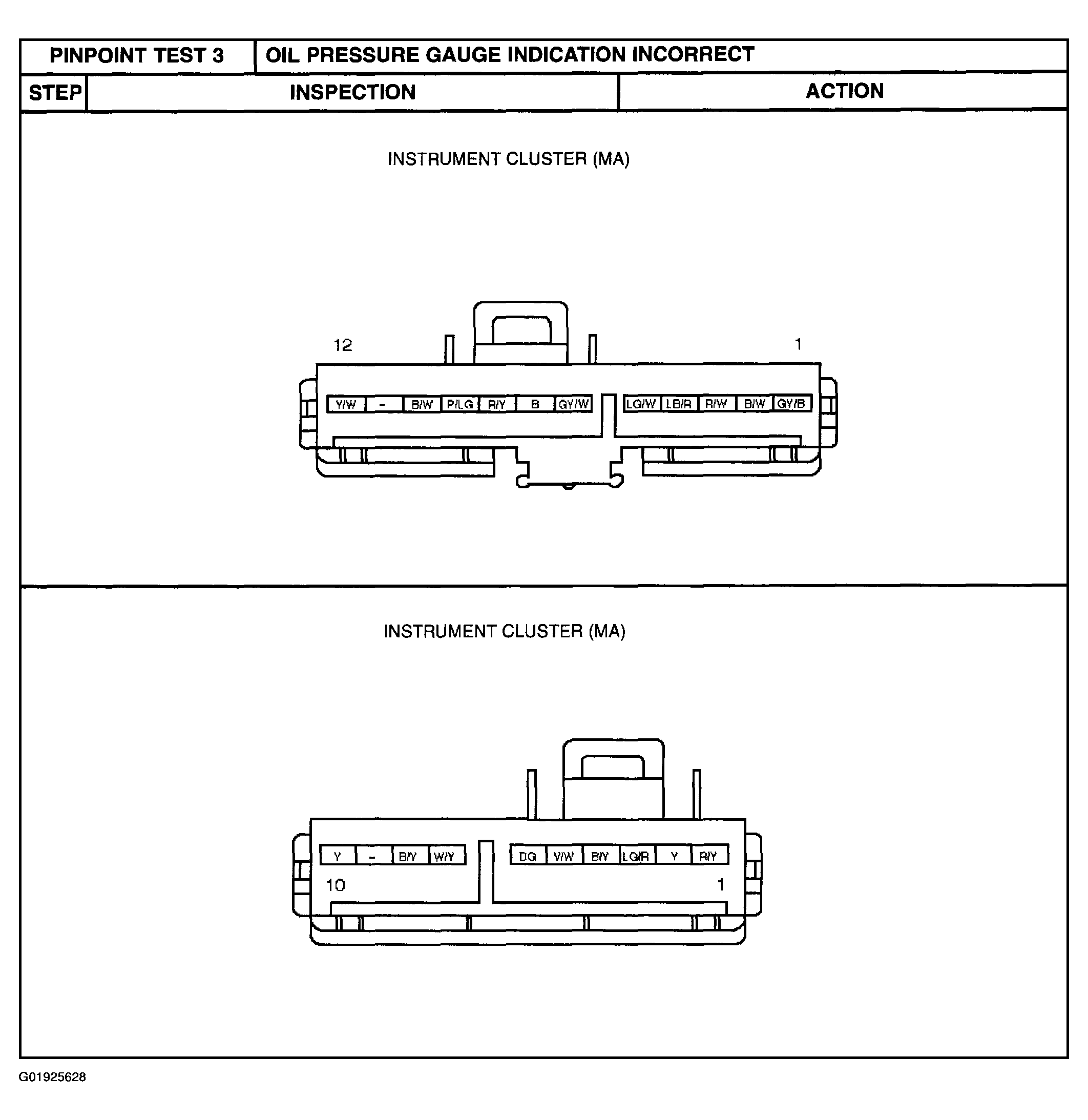

Fig 4: Identifying Instrument Cluster Connector Terminals (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
