B2300 Base, Standard
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Troubleshooting (Instrumentation/Driver Information)
>>
O/D Off Indicator Inoperative
O/D Off Indicator Inoperative

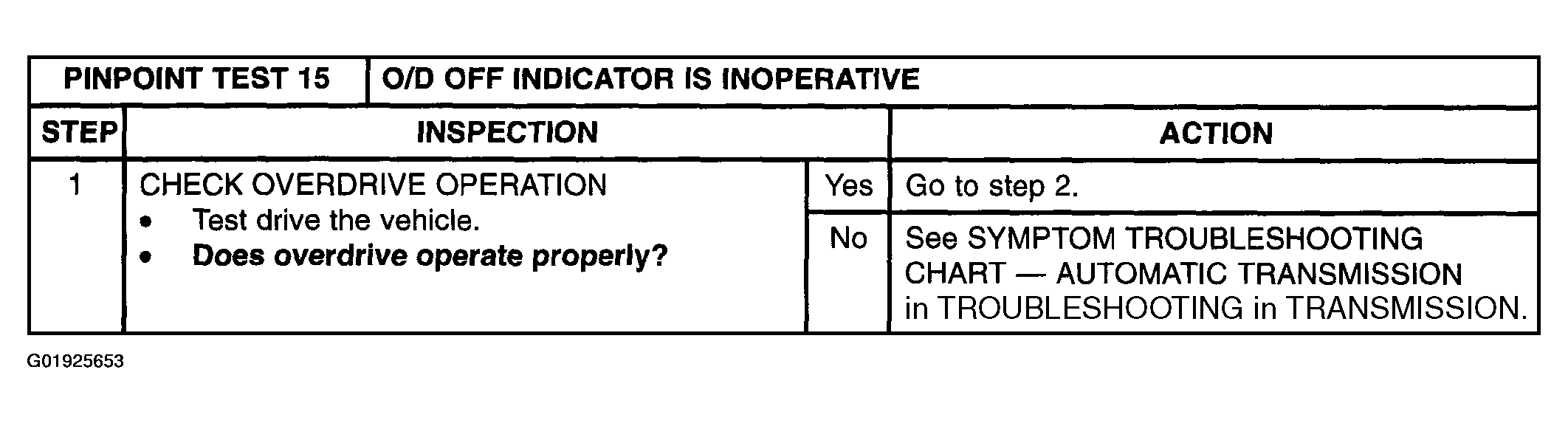

Fig 1: Diagnosis Procedure -- O/D Off Indicator Inoperative (Step 1)
Courtesy of MAZDA MOTORS CORP.

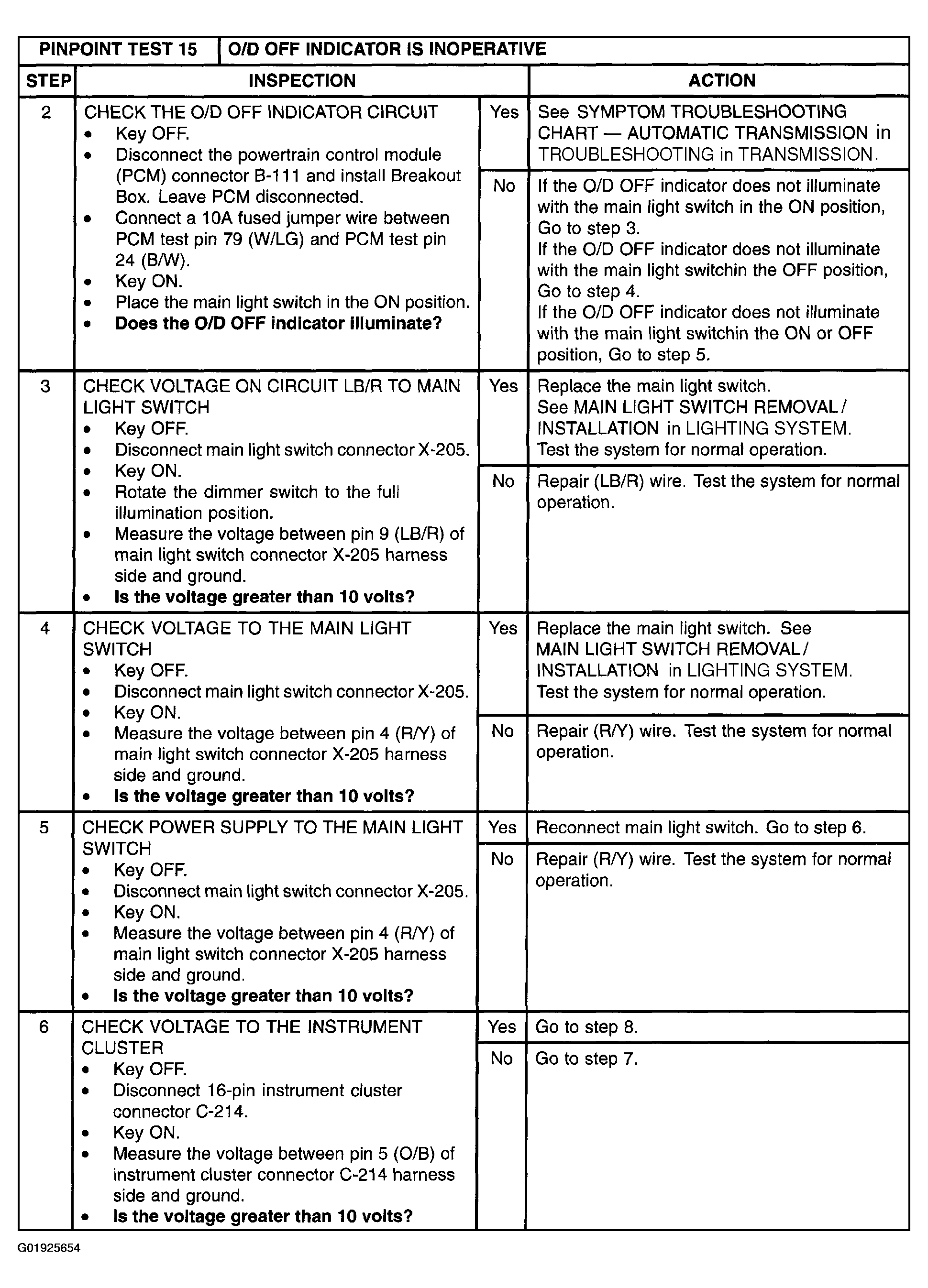

Fig 2: Diagnosis Procedure -- O/D Off Indicator Inoperative (Steps 2-6)
Courtesy of MAZDA MOTORS CORP.

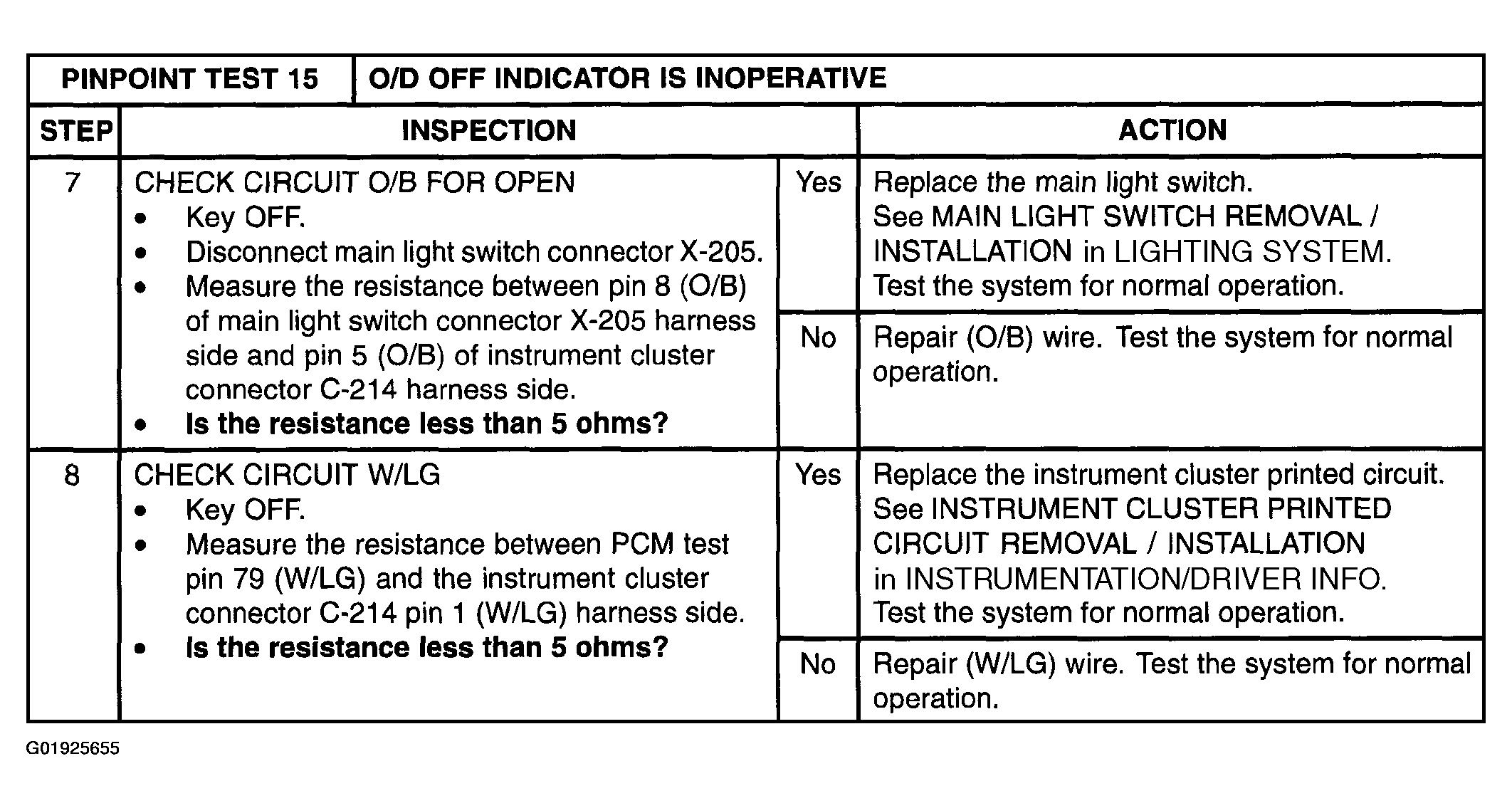

Fig 3: Diagnosis Procedure -- O/D Off Indicator Inoperative (Step 7-8)
Courtesy of MAZDA MOTORS CORP.

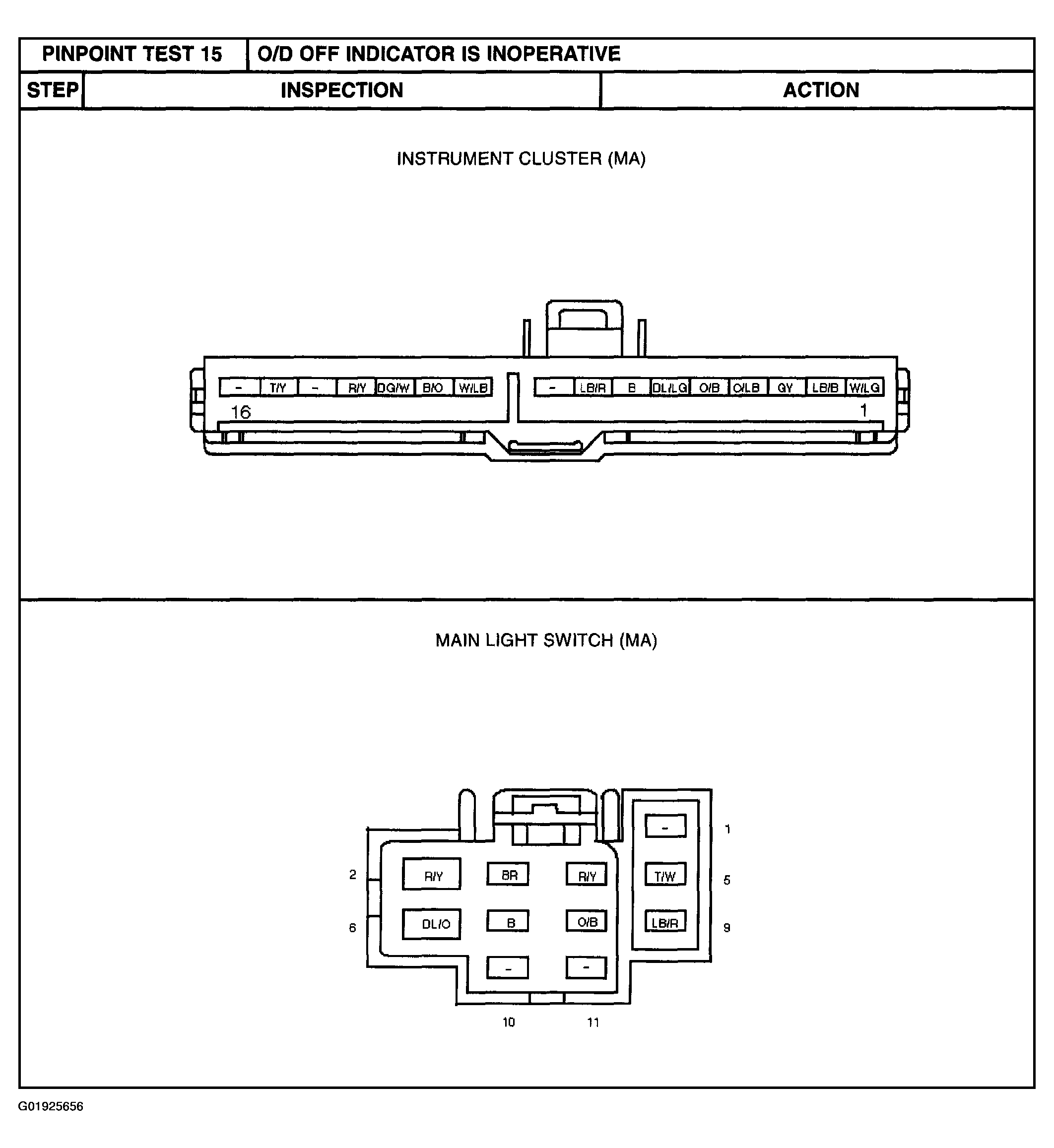

Fig 4: Identifying Instrument Cluster & Main Light Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
