Indicator Inoperative - 4X4 High, 4X4 Low

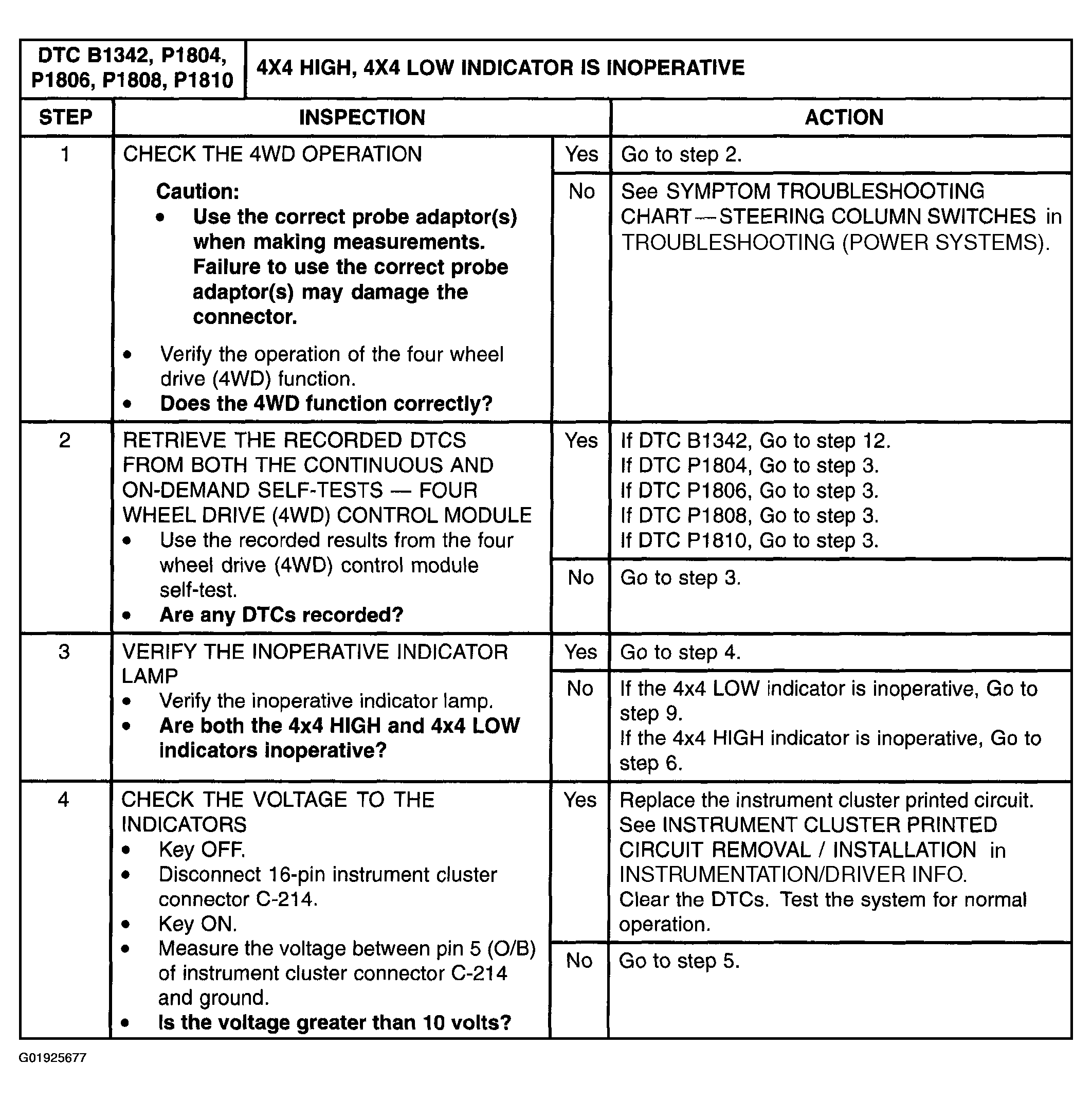

Fig 1: Diagnosis Procedure -- Indicator Inoperative - 4X4 High, 4X4 Low (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

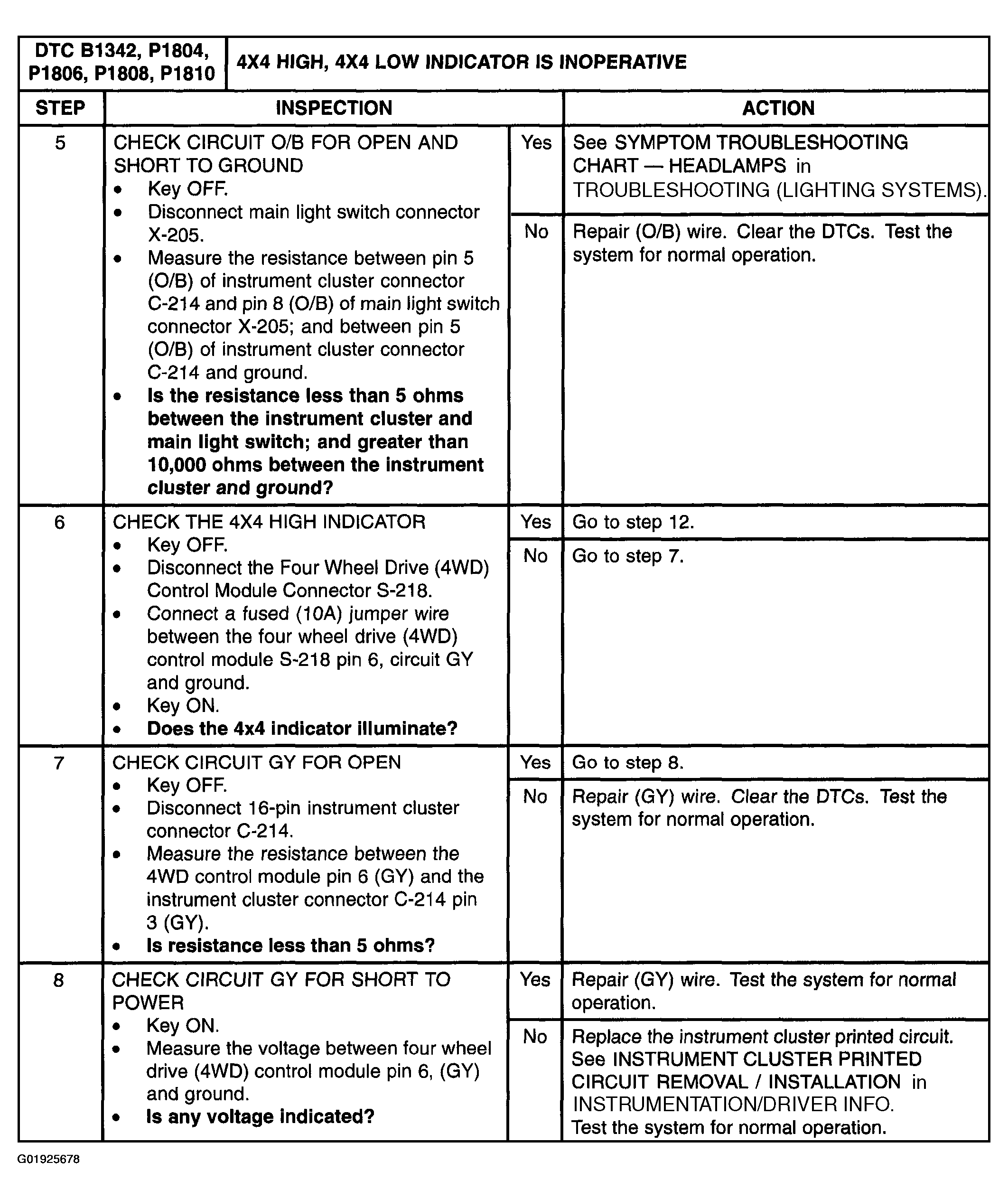

Fig 2: Diagnosis Procedure -- Indicator Inoperative - 4X4 High, 4X4 Low (Step 5-8)

Courtesy of MAZDA MOTORS CORP.

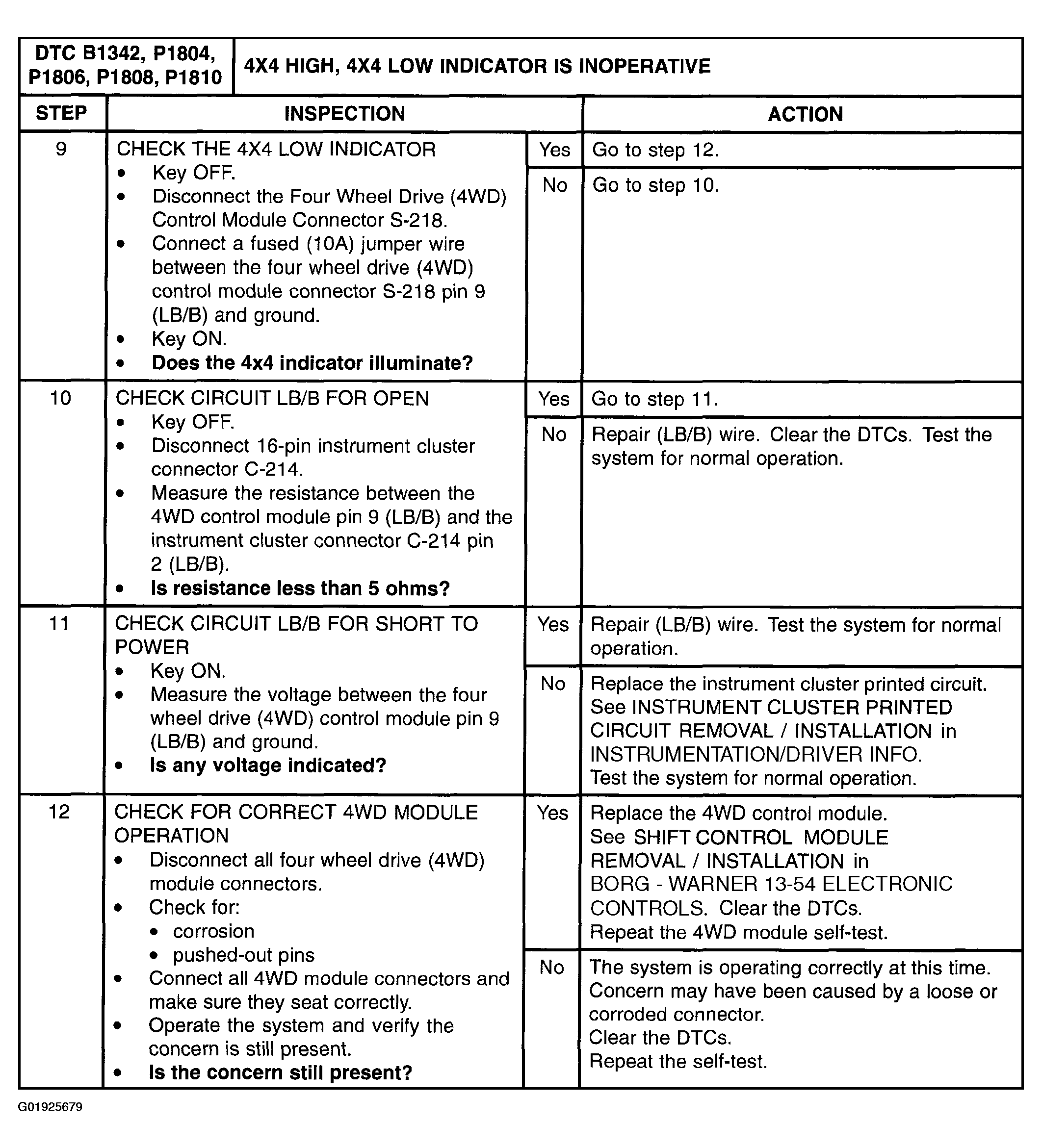

Fig 3: Diagnosis Procedure -- Indicator Inoperative - 4X4 High, 4X4 Low (Steps 9-12)

Courtesy of MAZDA MOTORS CORP.

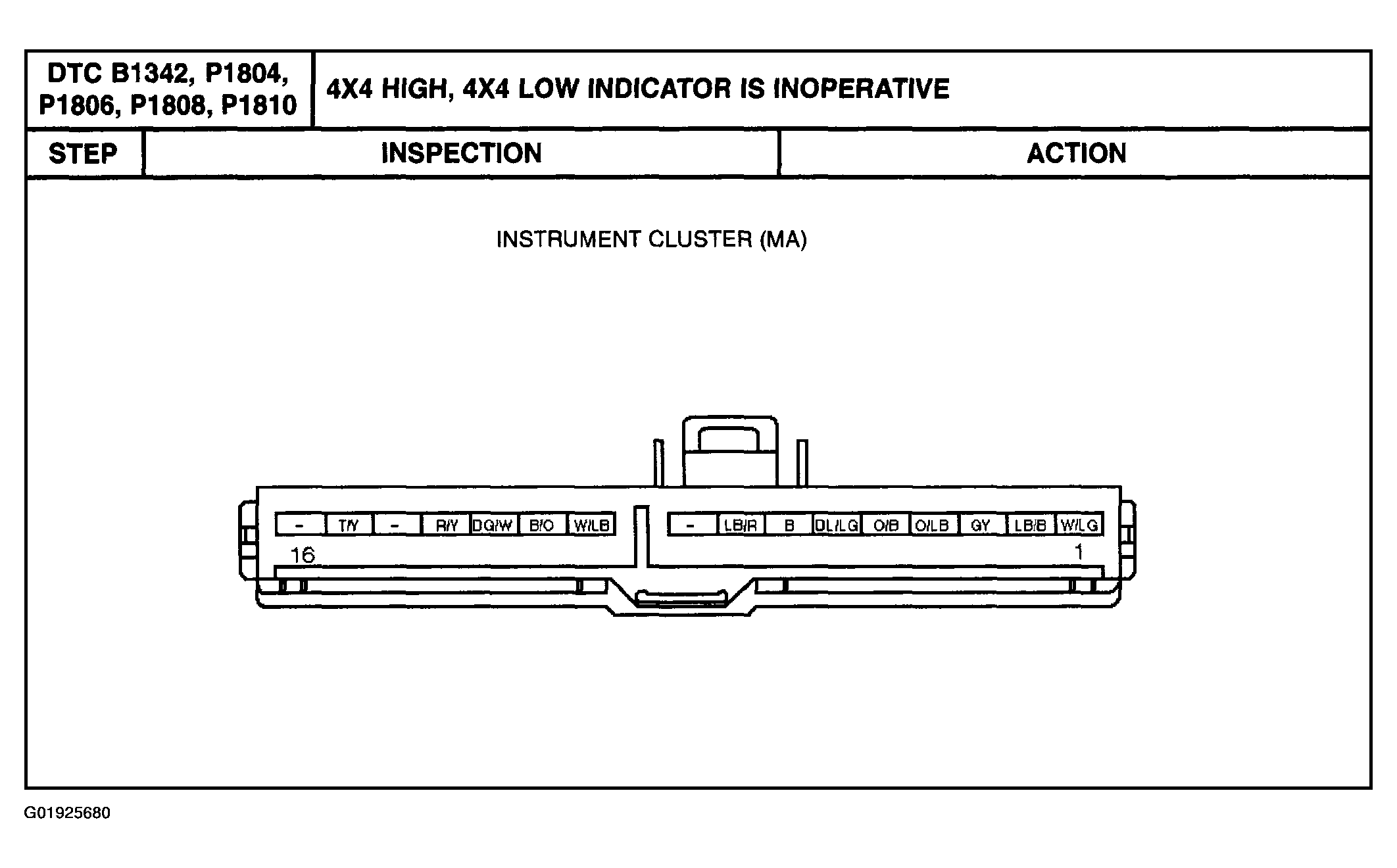

Fig 4: Diagnosis Procedure - Indicator Inoperative - 4X4 High, 4X4 Low (4 Of 5)

Courtesy of MAZDA MOTORS CORP.

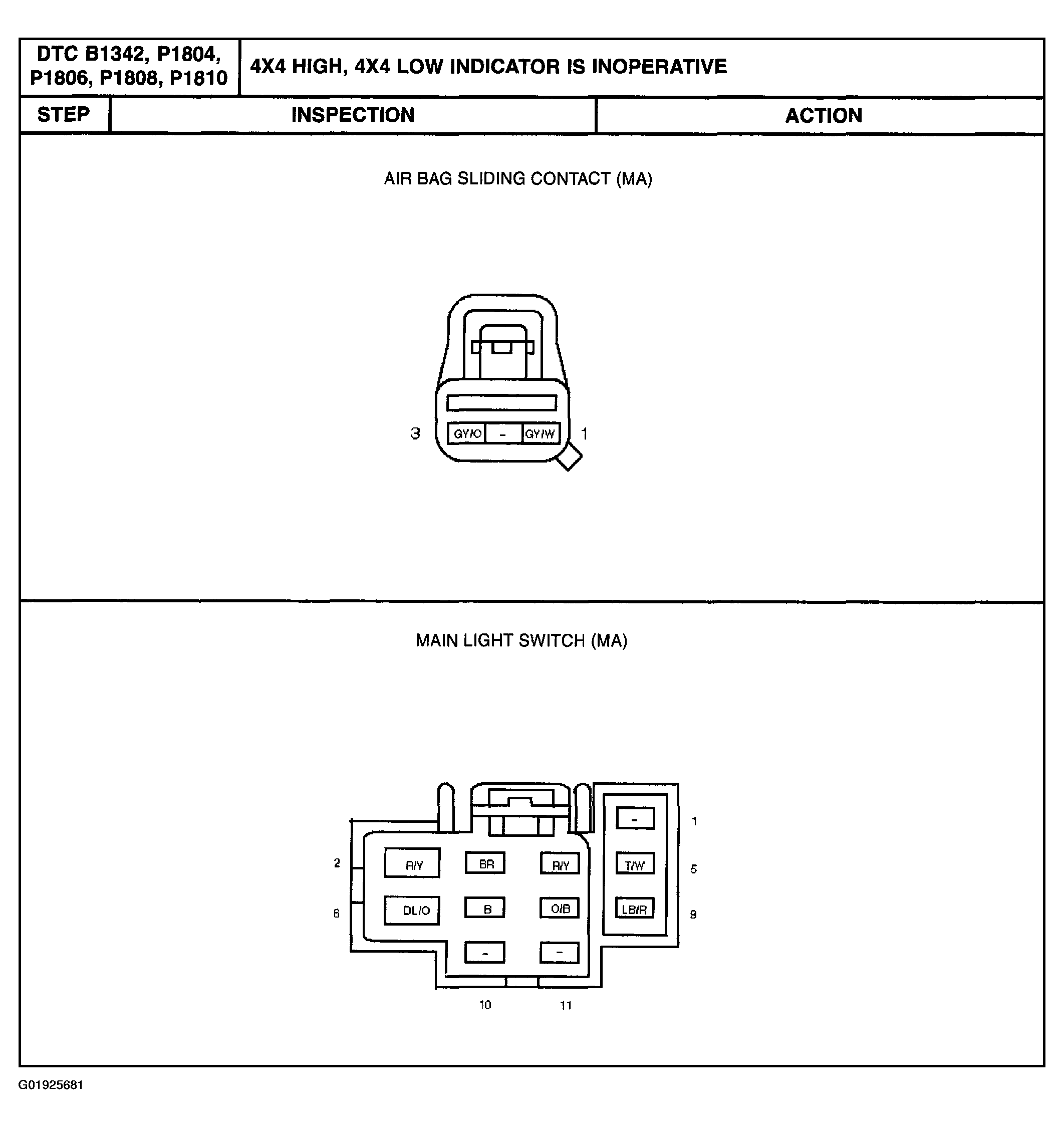

Fig 5: Identifying Air Bag Sliding Contact & Main Light Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
