Horn Sounds Continuously

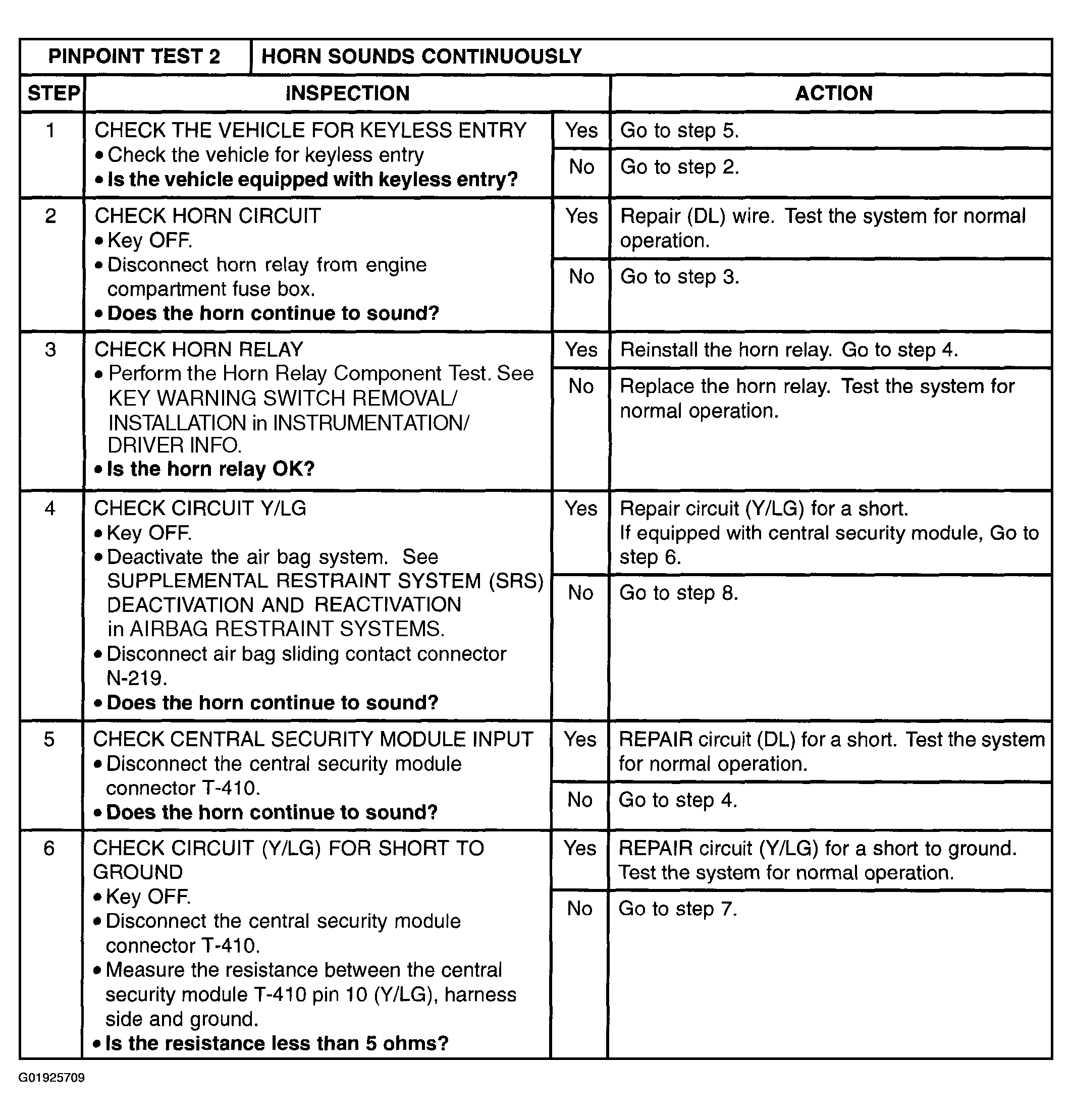

Fig 1: Diagnosis Procedure -- Horn Sounds Continuously (Steps 1-6)
G01925709Courtesy of MAZDA MOTORS CORP.

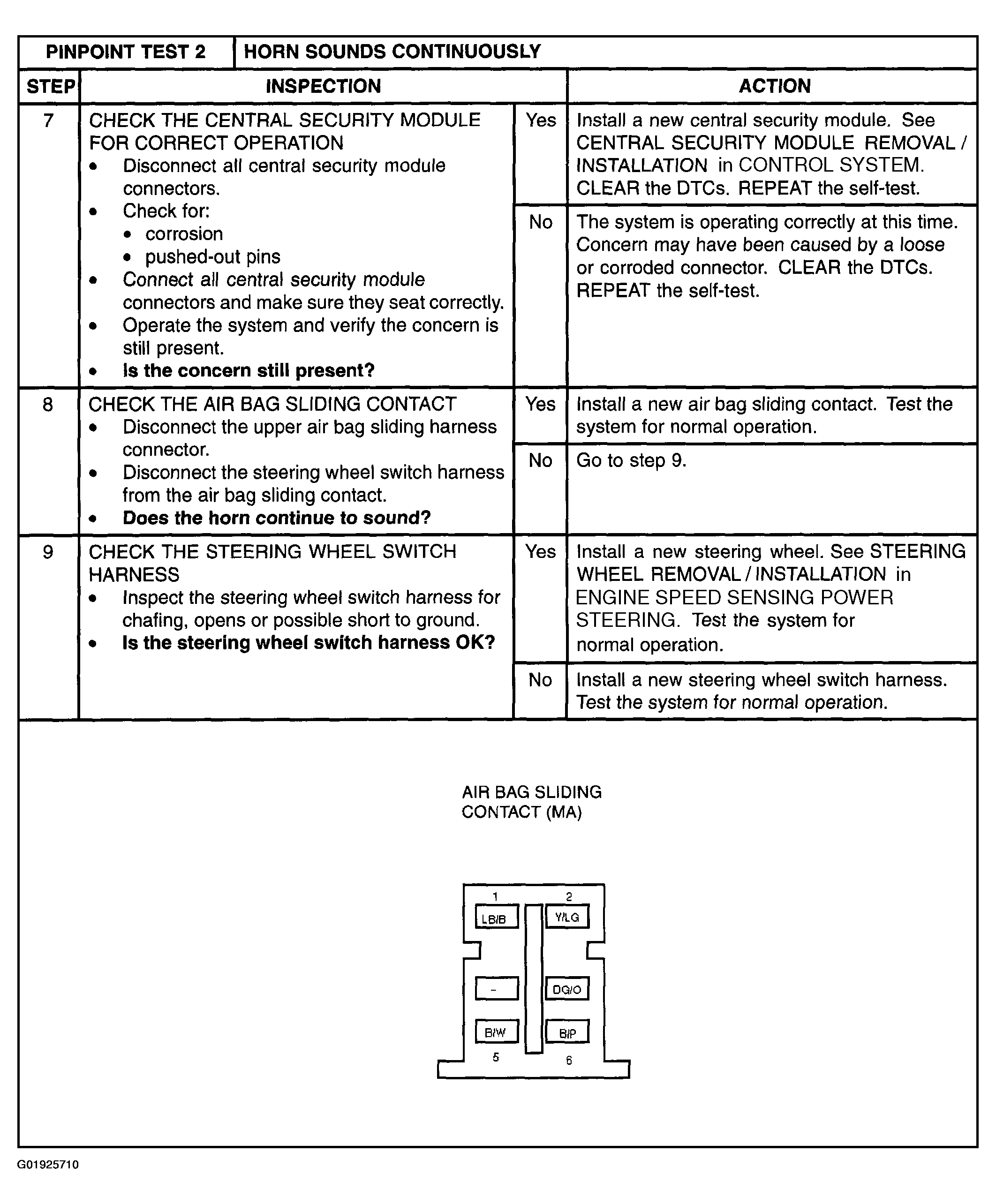

Fig 2: Diagnosis Procedure -- Horn Sounds Continuously (Steps 7-9)
G01925710Courtesy of MAZDA MOTORS CORP.

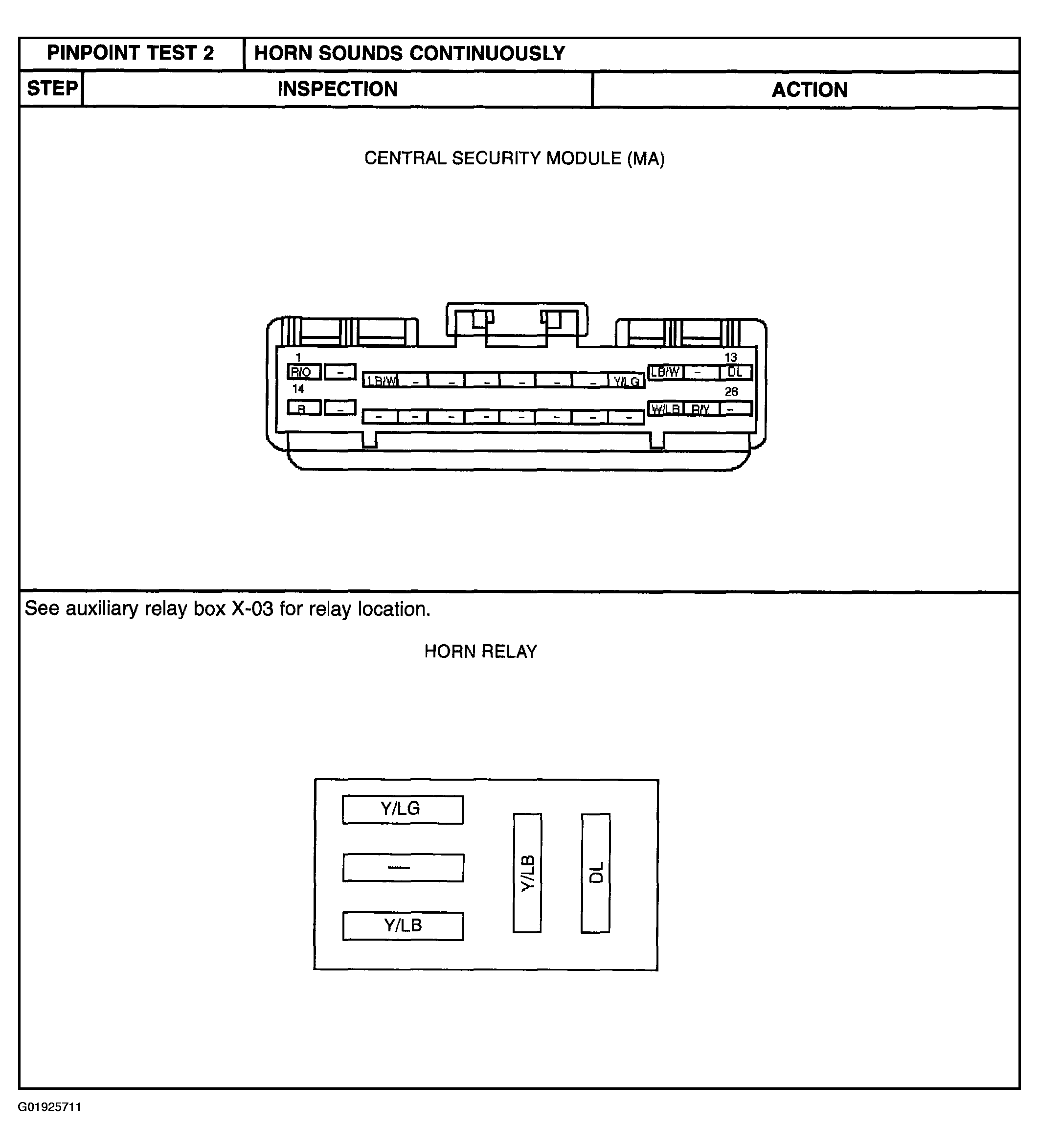

Fig 3: Identifying Central Security Module & Horn Relay Connector Terminals
G01925711Courtesy of MAZDA MOTORS CORP.
