Headlamp On Reminder Chime Does Not Operate Properly

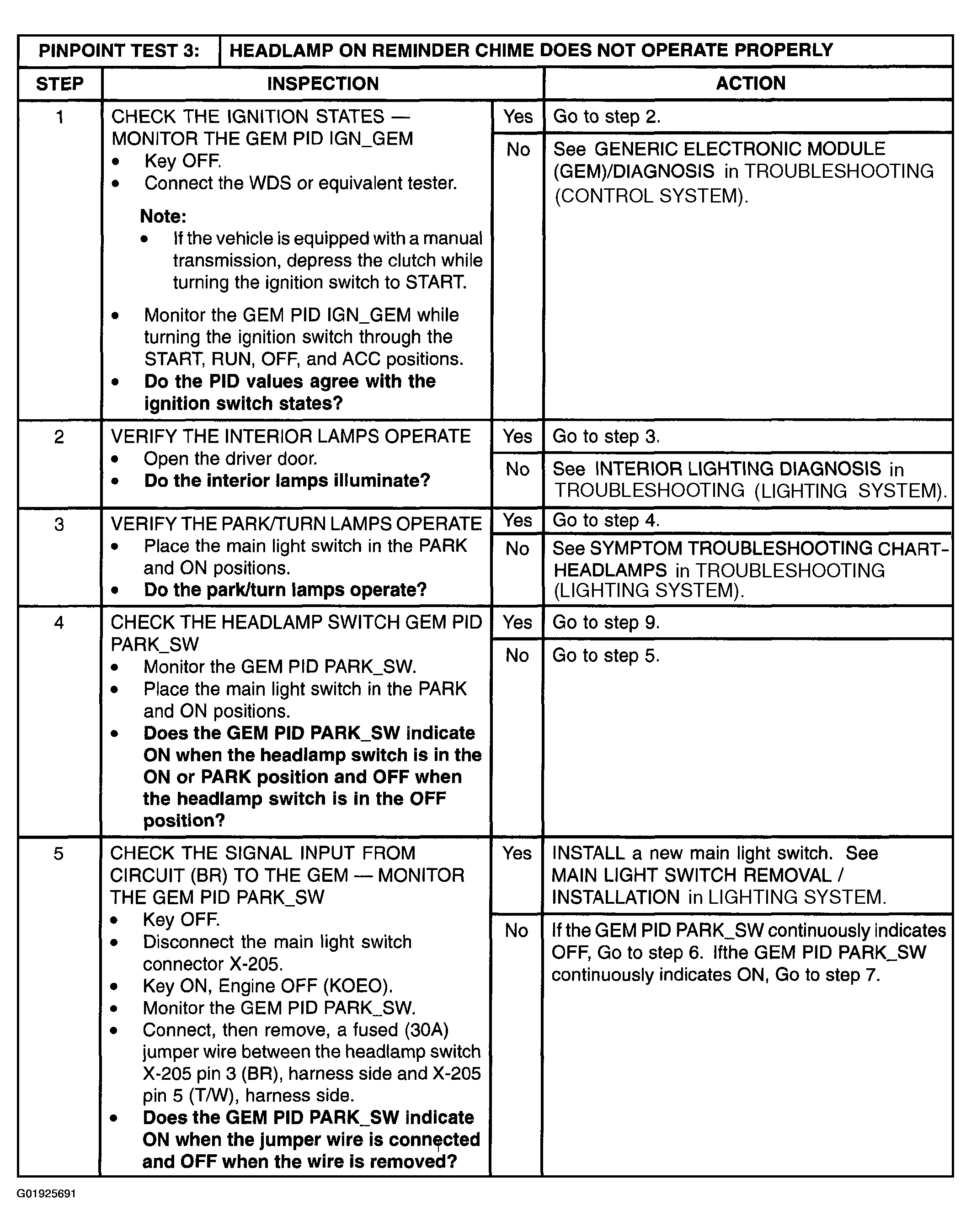

Fig 1: Diagnosis Procedure -- Headlamp On Reminder Chime Does Not Operate Properly (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

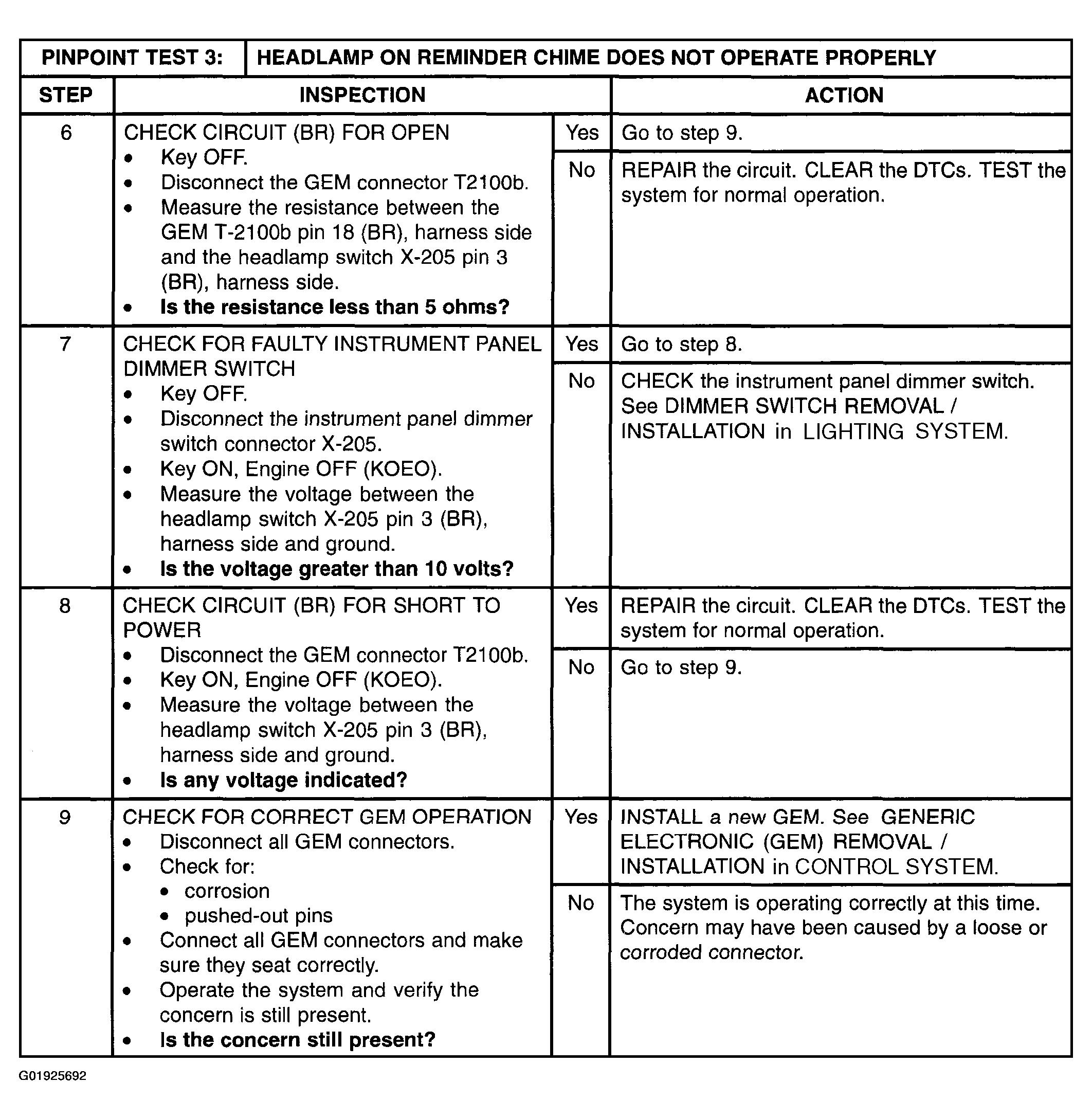

Fig 2: Diagnosis Procedure -- Headlamp On Reminder Chime Does Not Operate Properly (Steps 6-9)

Courtesy of MAZDA MOTORS CORP.

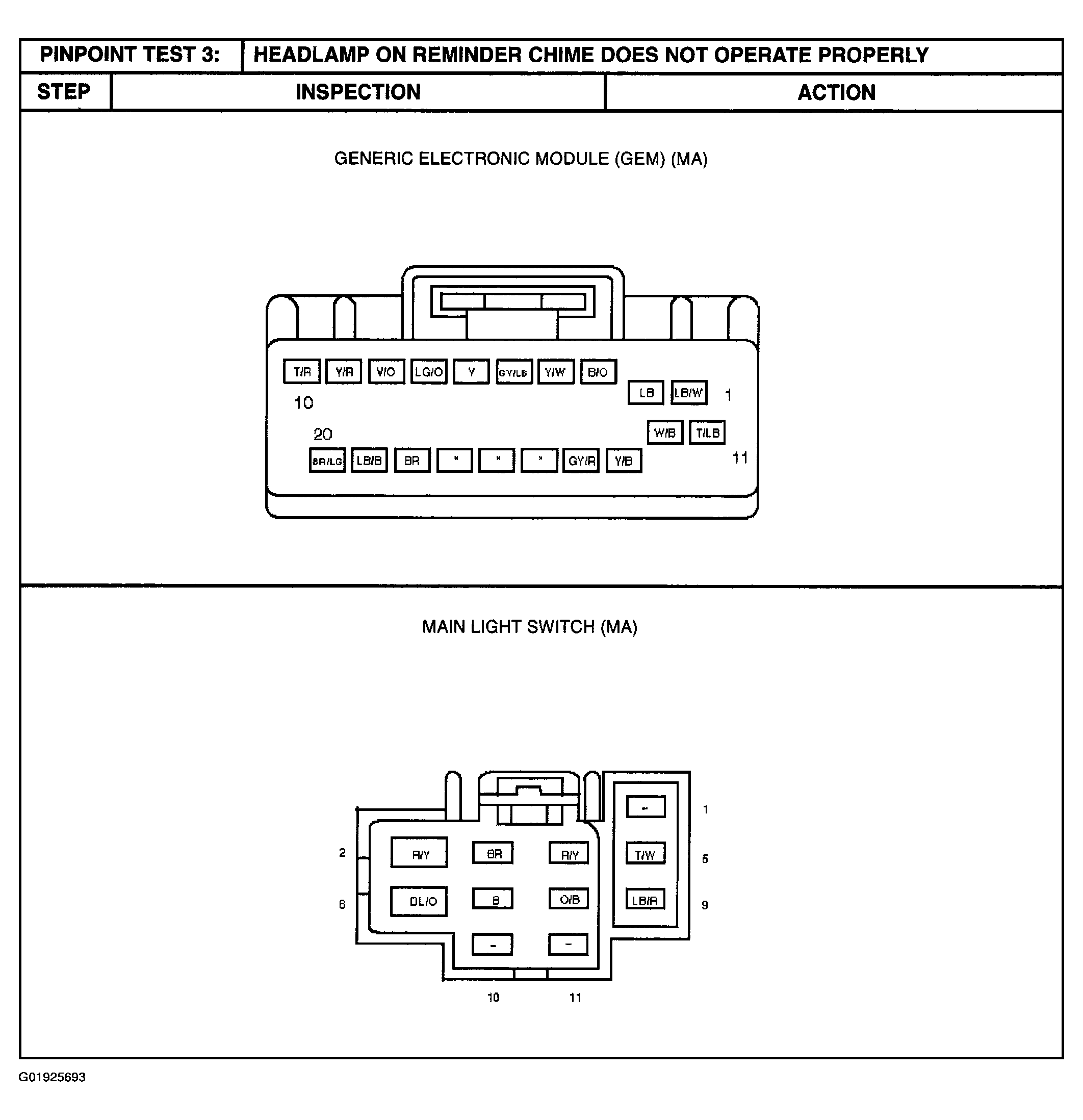

Fig 3: Identifying Generic Electronic Module & Main Light Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
