Fuel Gauge Indication Incorrect
Fuel Gauge Indication Incorrect

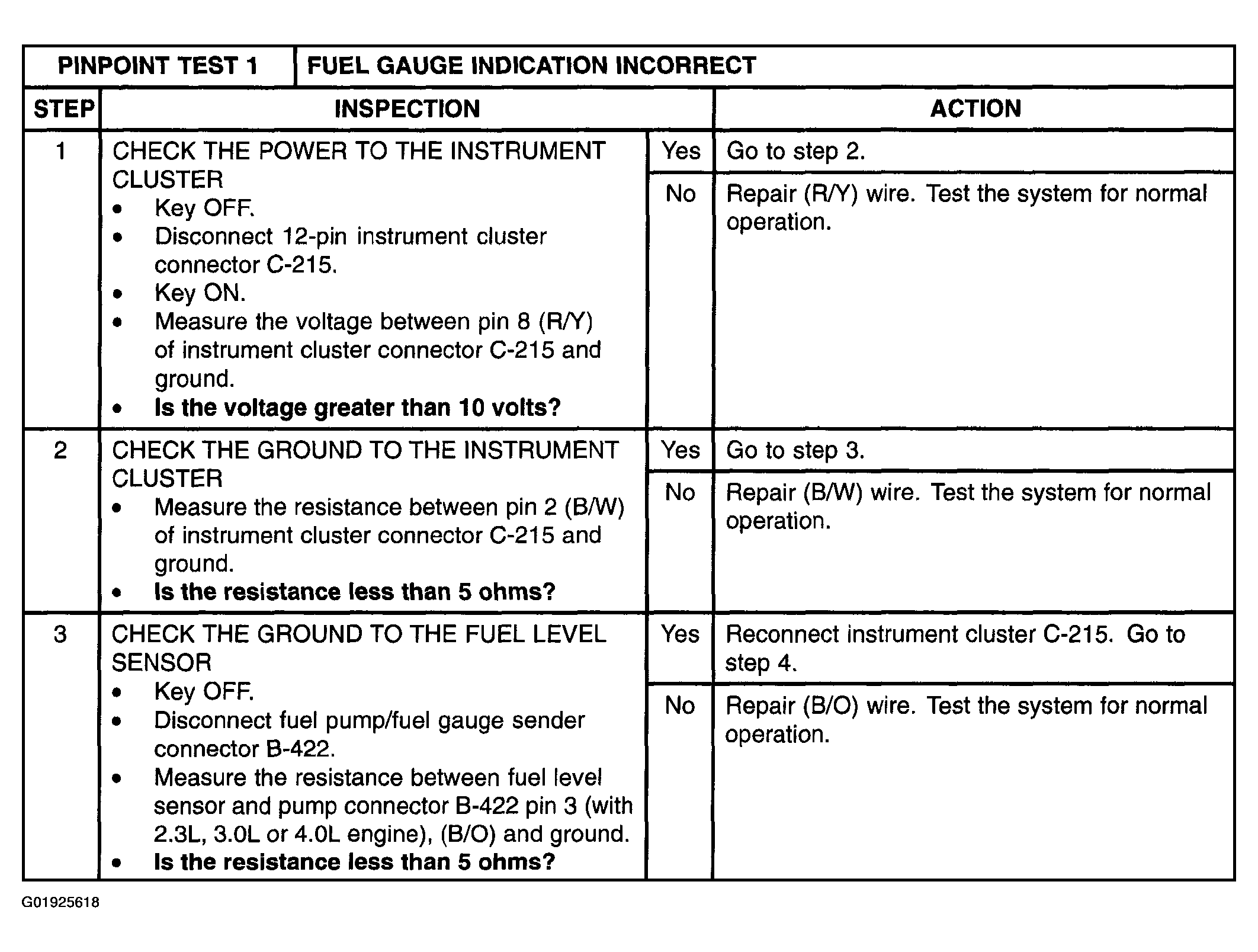

Fig 1: Diagnosis Procedure - Fuel Gauge Indication Incorrect (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

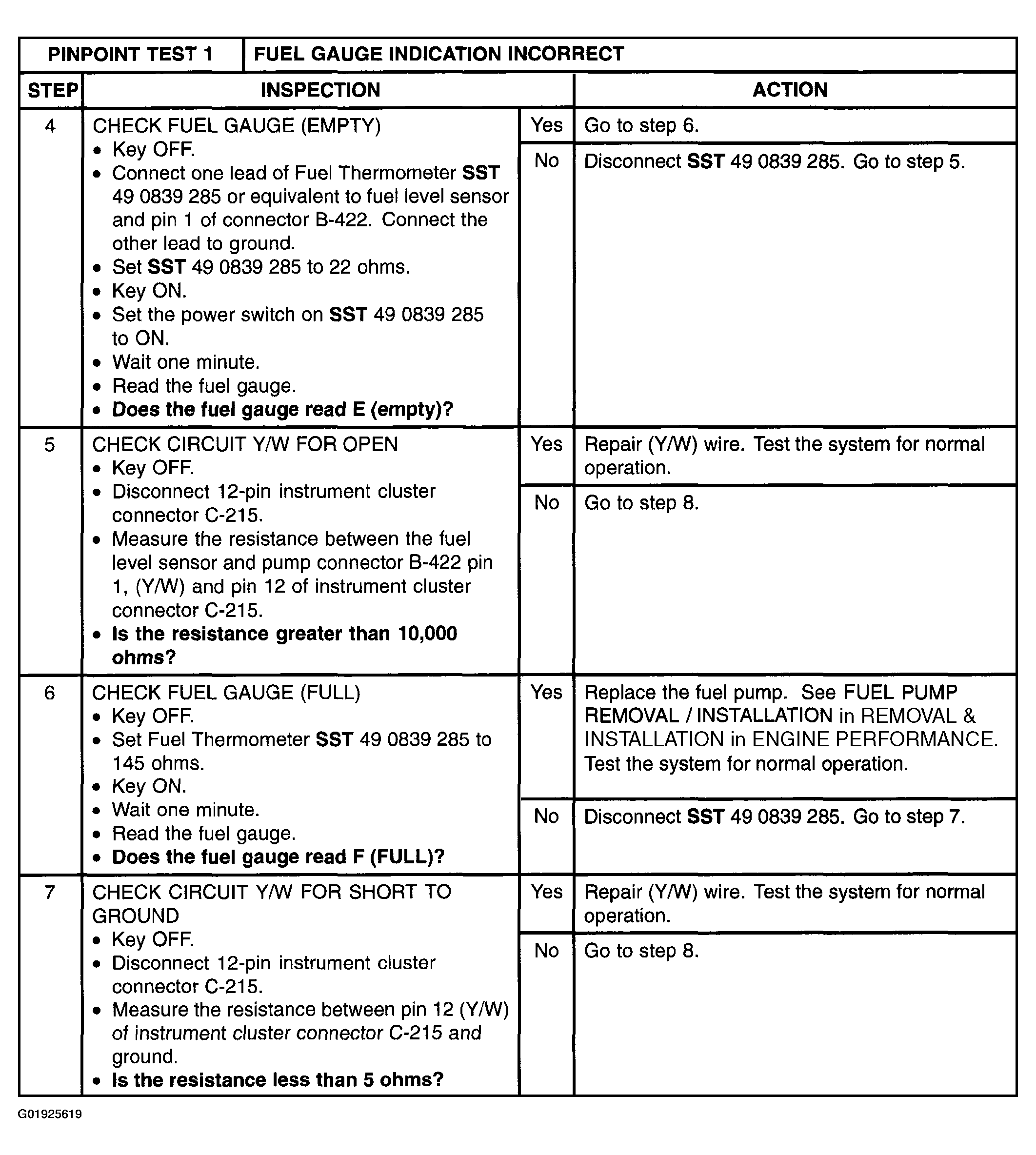

Fig 2: Diagnosis Procedure -- Fuel Gauge Indication Incorrect (Steps 4-7)
Courtesy of MAZDA MOTORS CORP.

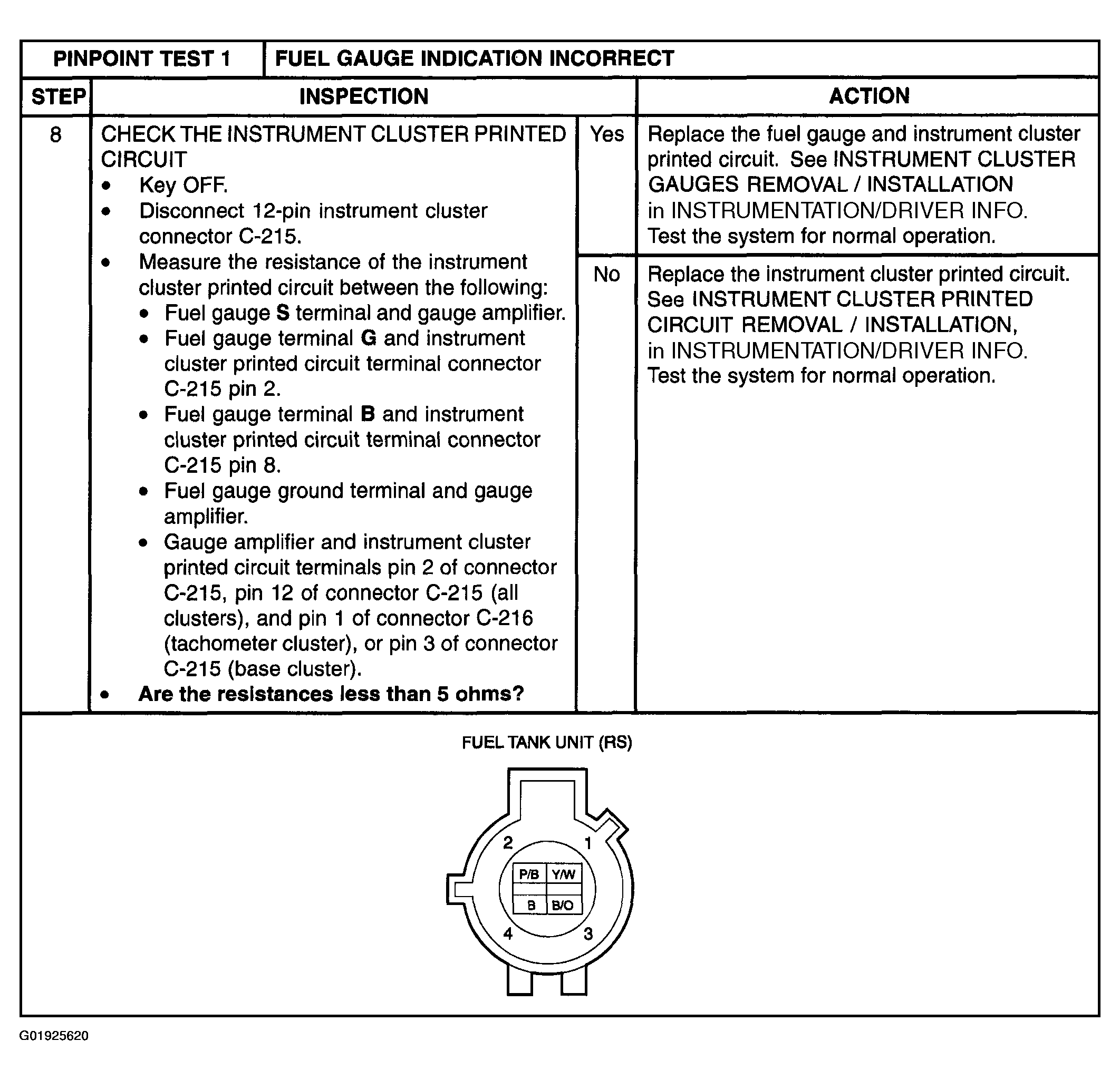

Fig 3: Diagnosis Procedure -- Fuel Gauge Indication Incorrect (Step 8)
Courtesy of MAZDA MOTORS CORP.

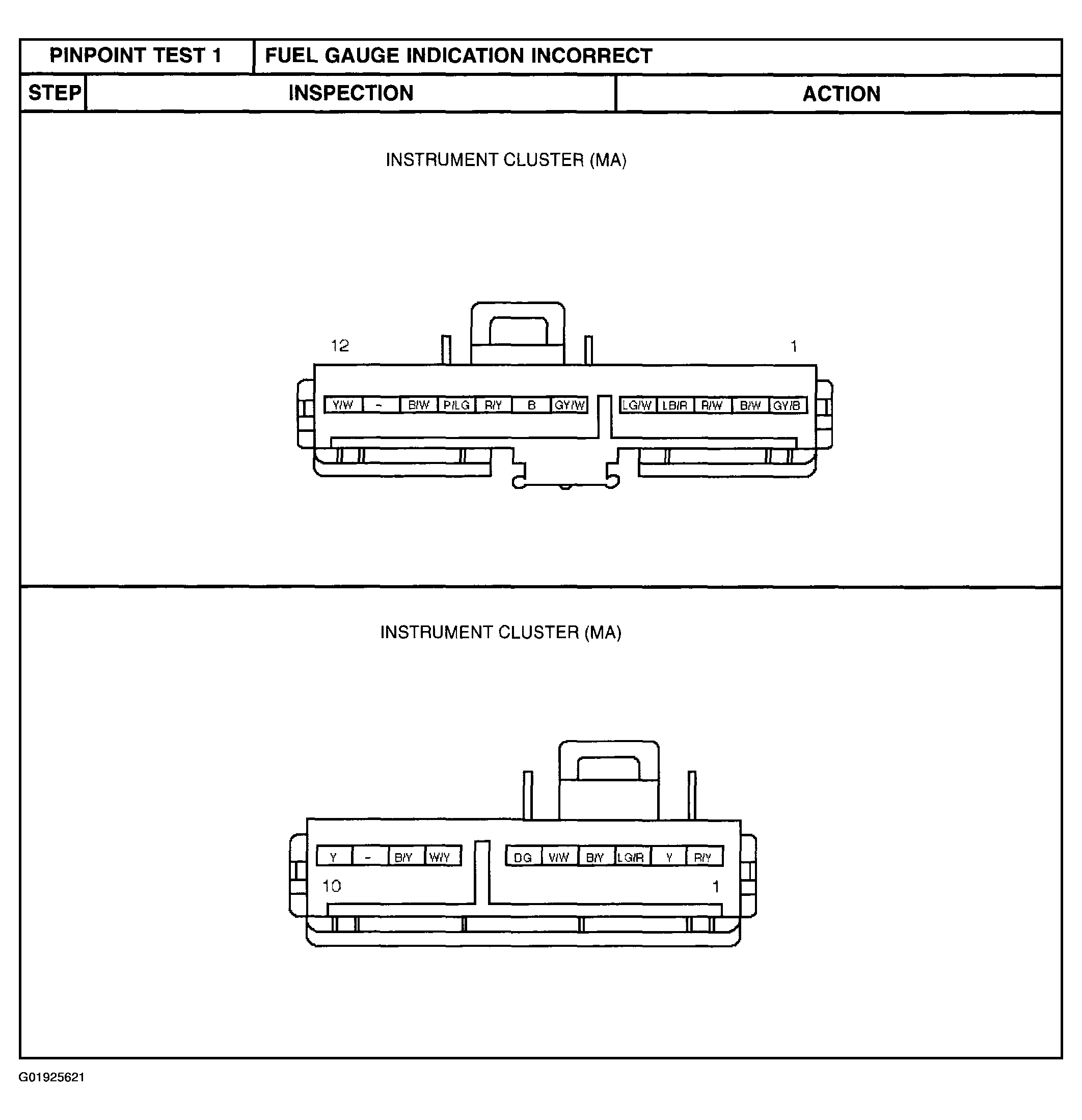

Fig 4: Identifying Instrument Cluster Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
