Door Ajar Indicator Does Not Operate Properly

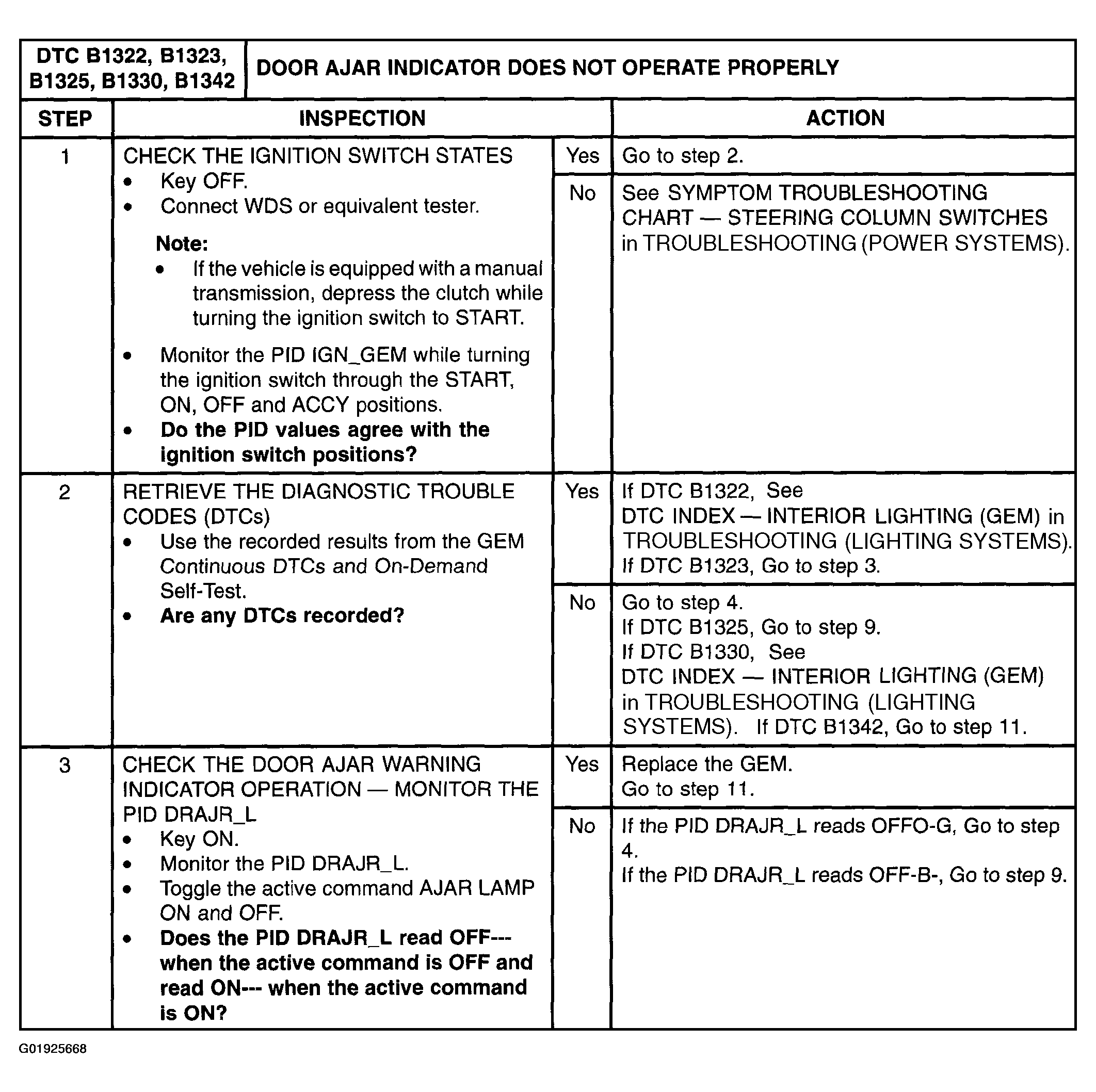

Fig 1: Diagnosis Procedure -- Door Ajar Indicator Does Not Operate Properly (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

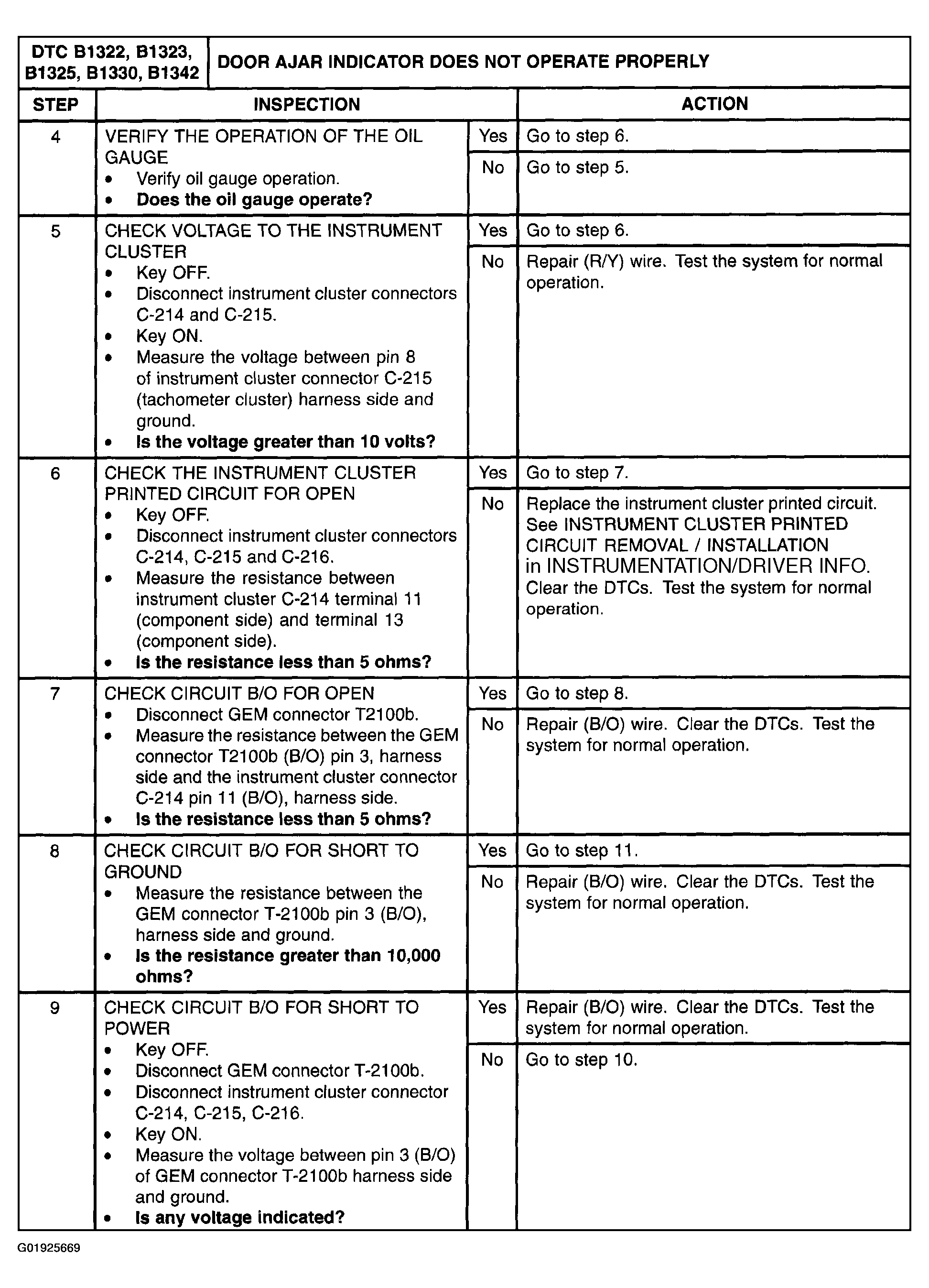

Fig 2: Diagnosis Procedure -- Door Ajar Indicator Does Not Operate Properly (Steps 4-9)

Courtesy of MAZDA MOTORS CORP.

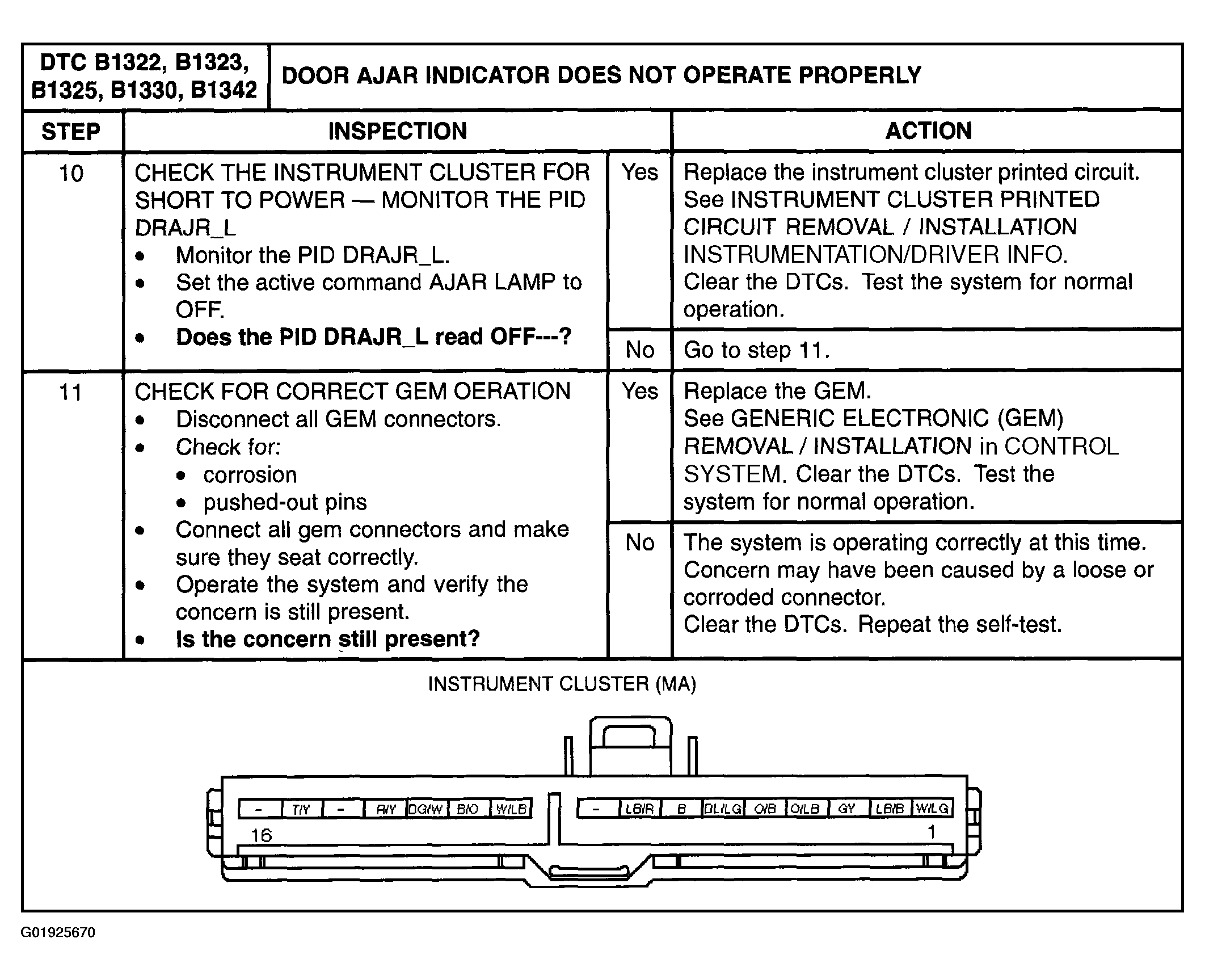

Fig 3: Diagnosis Procedure -- Door Ajar Indicator Does Not Operate Properly (Steps 10-11)

Courtesy of MAZDA MOTORS CORP.

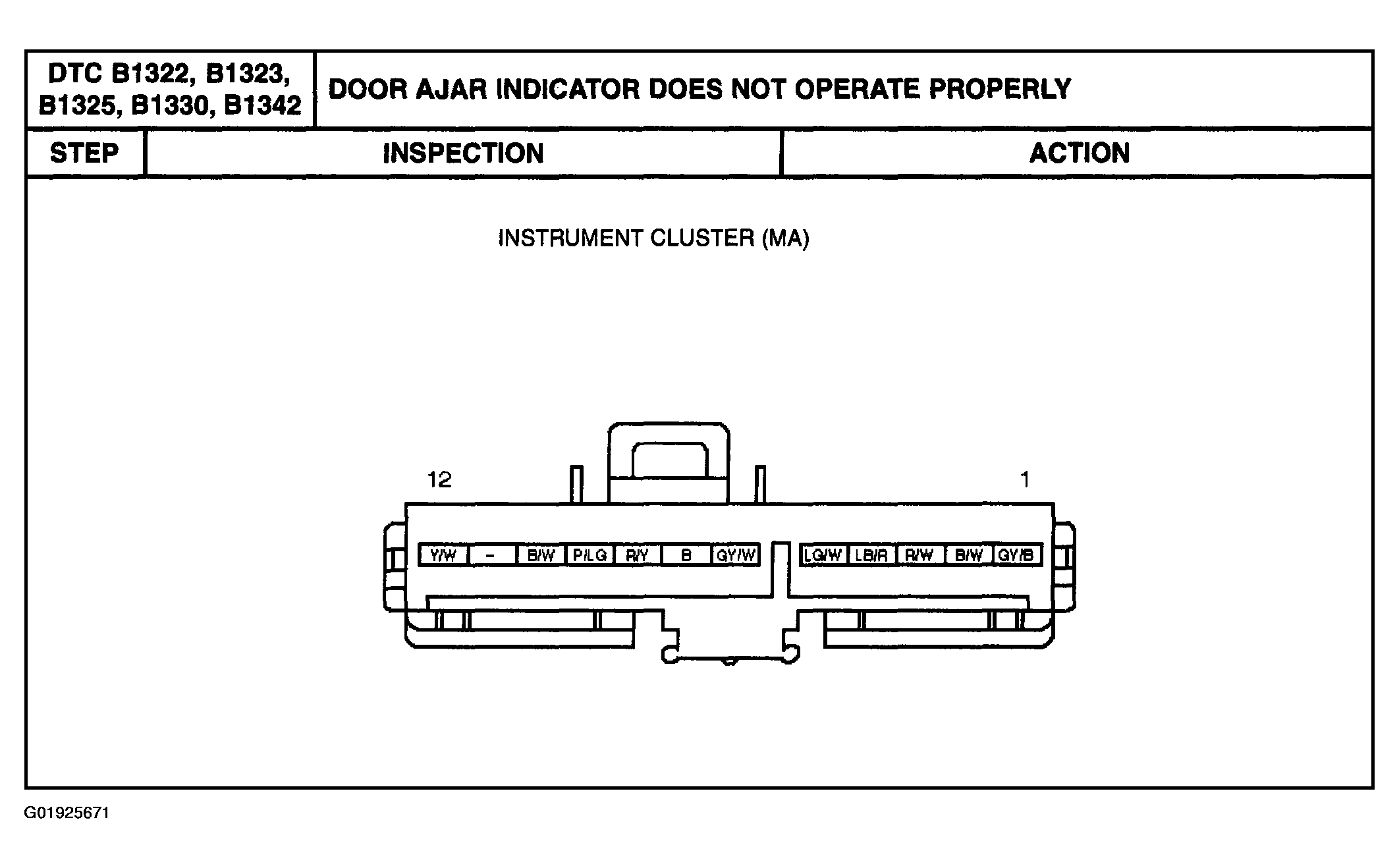

Fig 4: Identifying Instrument Cluster Connector Terminals

Courtesy of MAZDA MOTORS CORP.

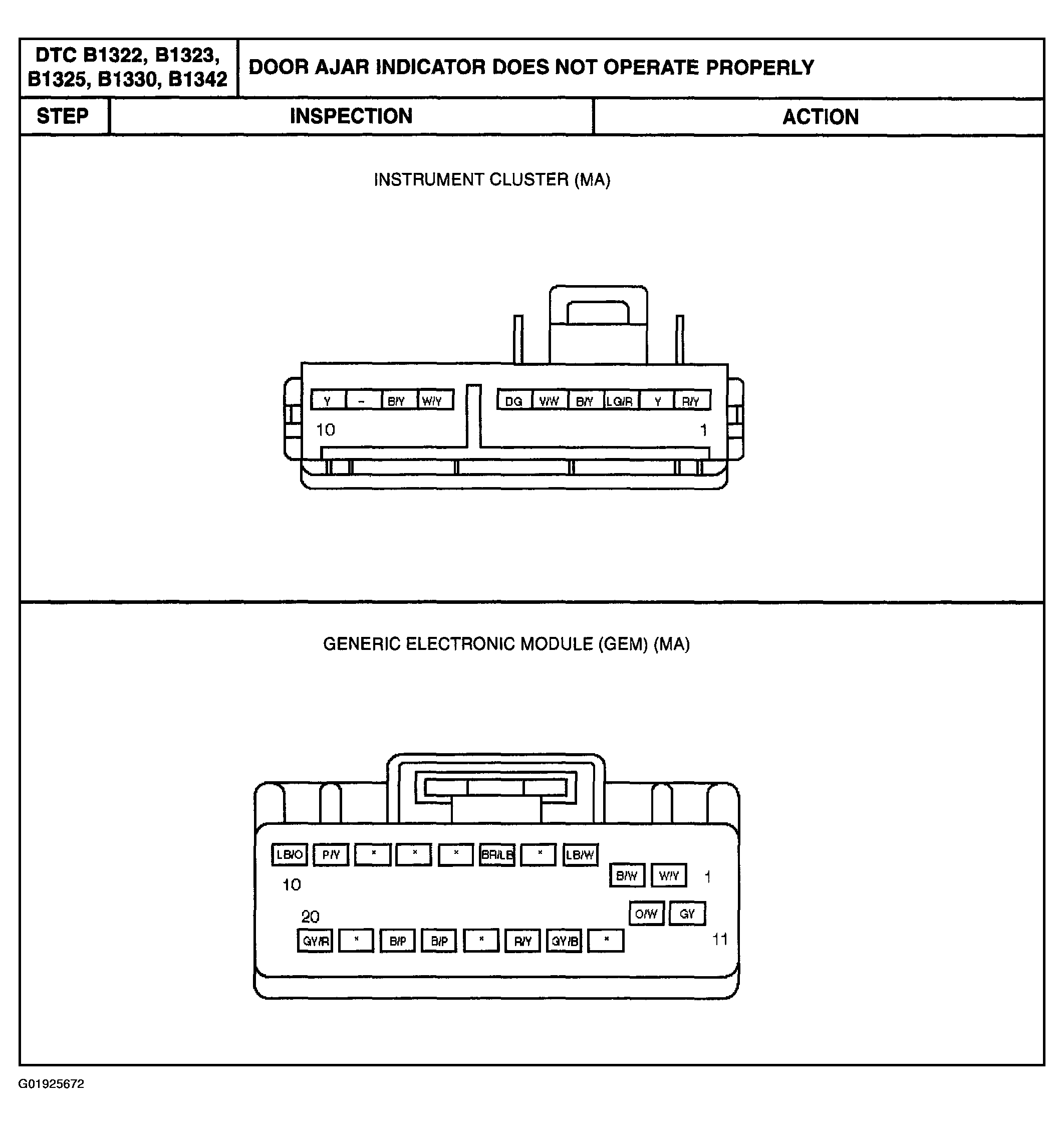

Fig 5: Identifying Instrument Cluster & Generic Electronic Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.
