Gauges & Instrument Panels
>>
Troubleshooting (Instrumentation/Driver Information)
>>
Check Gauge Indicator Inoperative
Check Gauge Indicator Inoperative

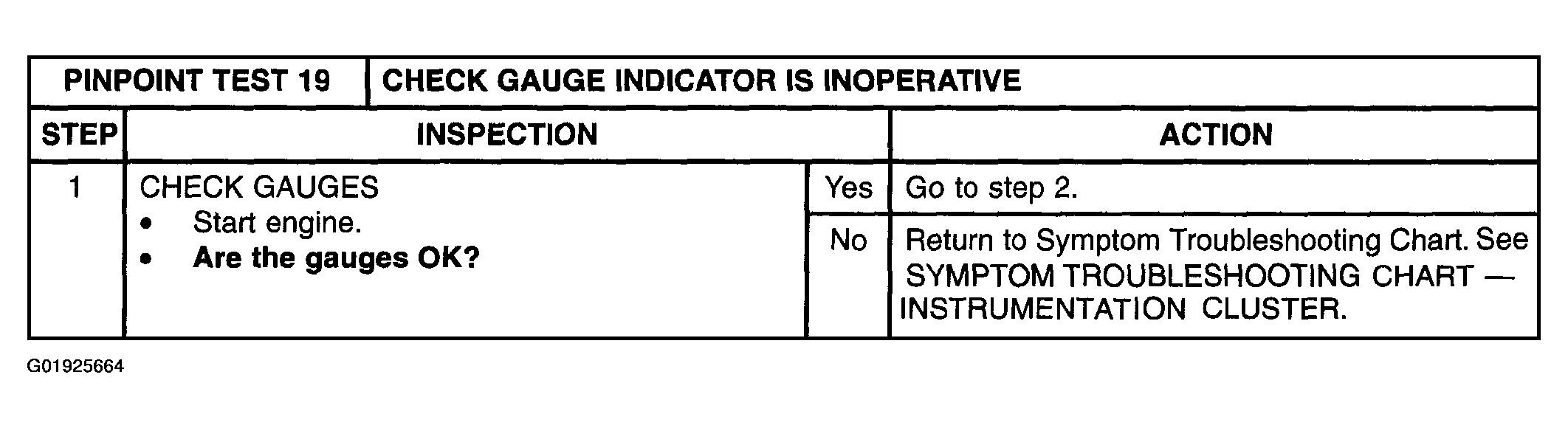

Fig 1: Diagnosis Procedure -- Check Gauge Indicator Inoperative (Step 1)
Courtesy of MAZDA MOTORS CORP.

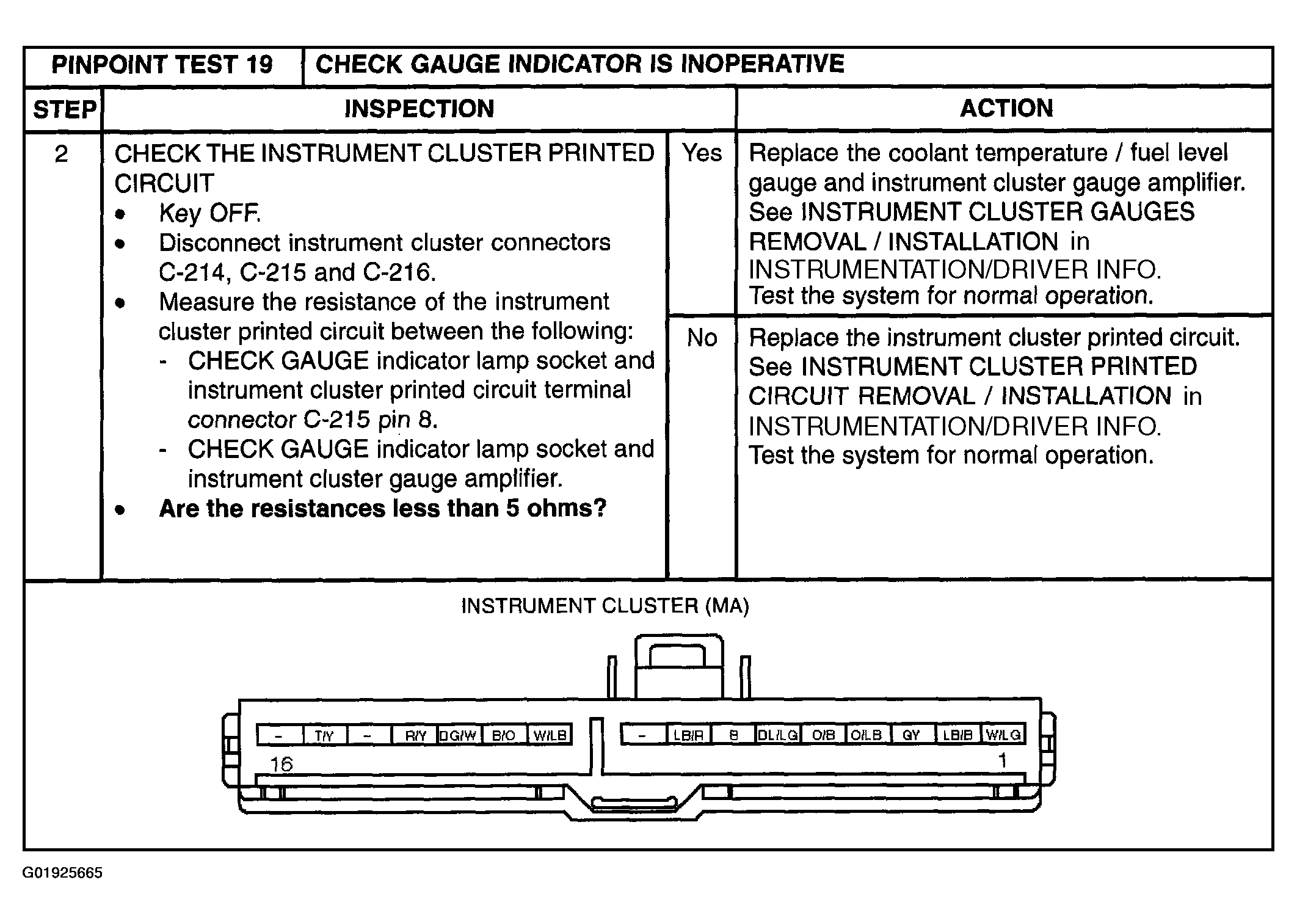

Fig 2: Diagnosis Procedure -- Check Gauge Indicator Inoperative (Step 2)
Courtesy of MAZDA MOTORS CORP.

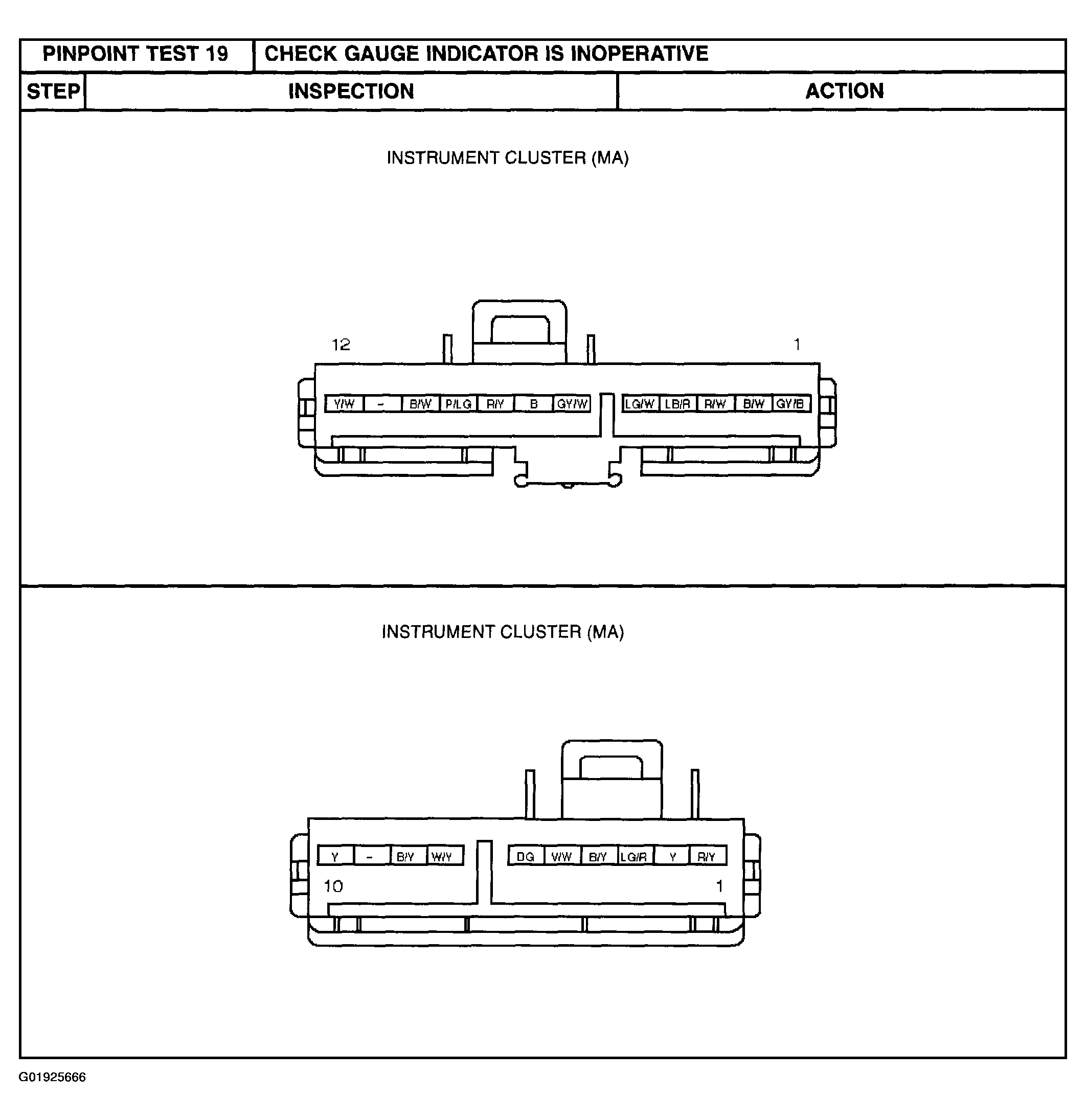

Fig 3: Identifying Instrument Cluster Connector Terminals
Courtesy of MAZDA MOTORS CORP.
