Check Fuel Cap Indicator Inoperative

CAUTION:
  • Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

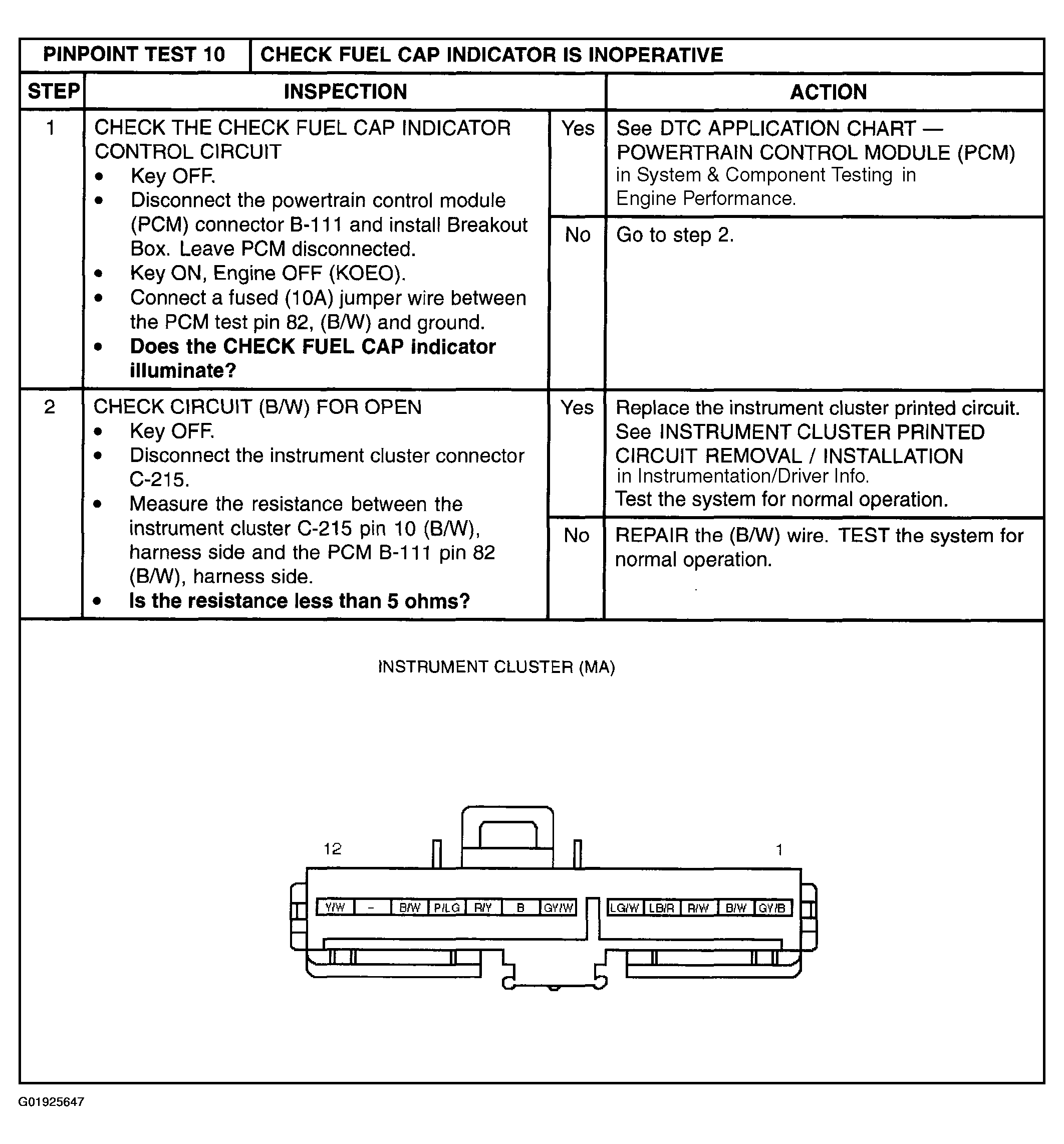

Fig 1: Diagnosis Procedure -- Check Fuel Cap Indicator Inoperative
G01925647Courtesy of MAZDA MOTORS CORP.
