Check Engine/Malfunction Indicator Lamp (Mil) Indicator Inoperative

NOTE:
  • Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

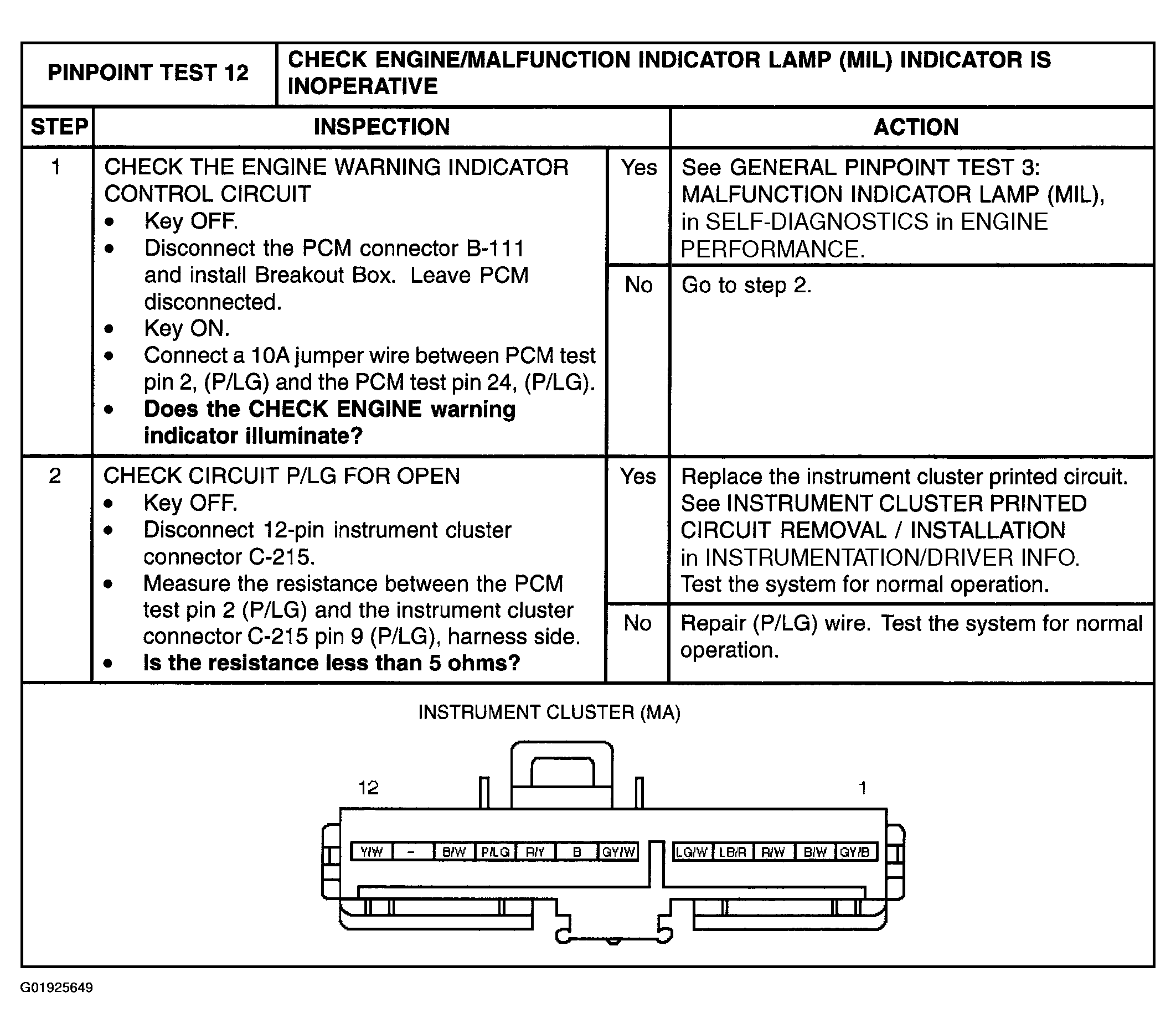

Fig 1: Diagnosis Procedure -- Check Engine/Malfunction Indicator Lamp (MIL) Indicator Inoperative
G01925649Courtesy of MAZDA MOTORS CORP.
