Anti-Lock Brake Warning Indicator Inoperative

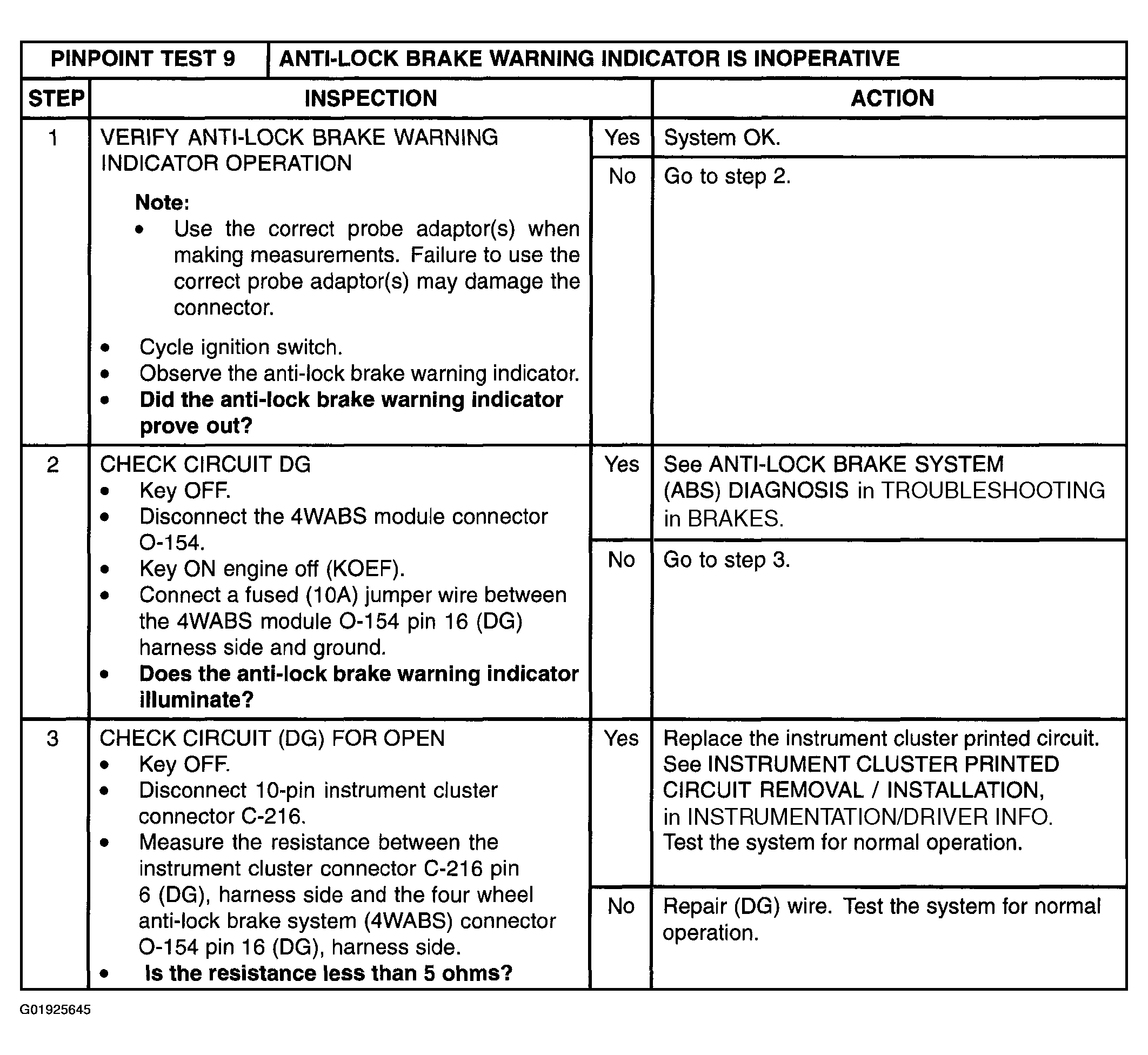

Fig 1: Diagnosis Procedure -- Anti-Lock Brake Warning Indicator Inoperative (Steps 1-3)
G01925645Courtesy of MAZDA MOTORS CORP.

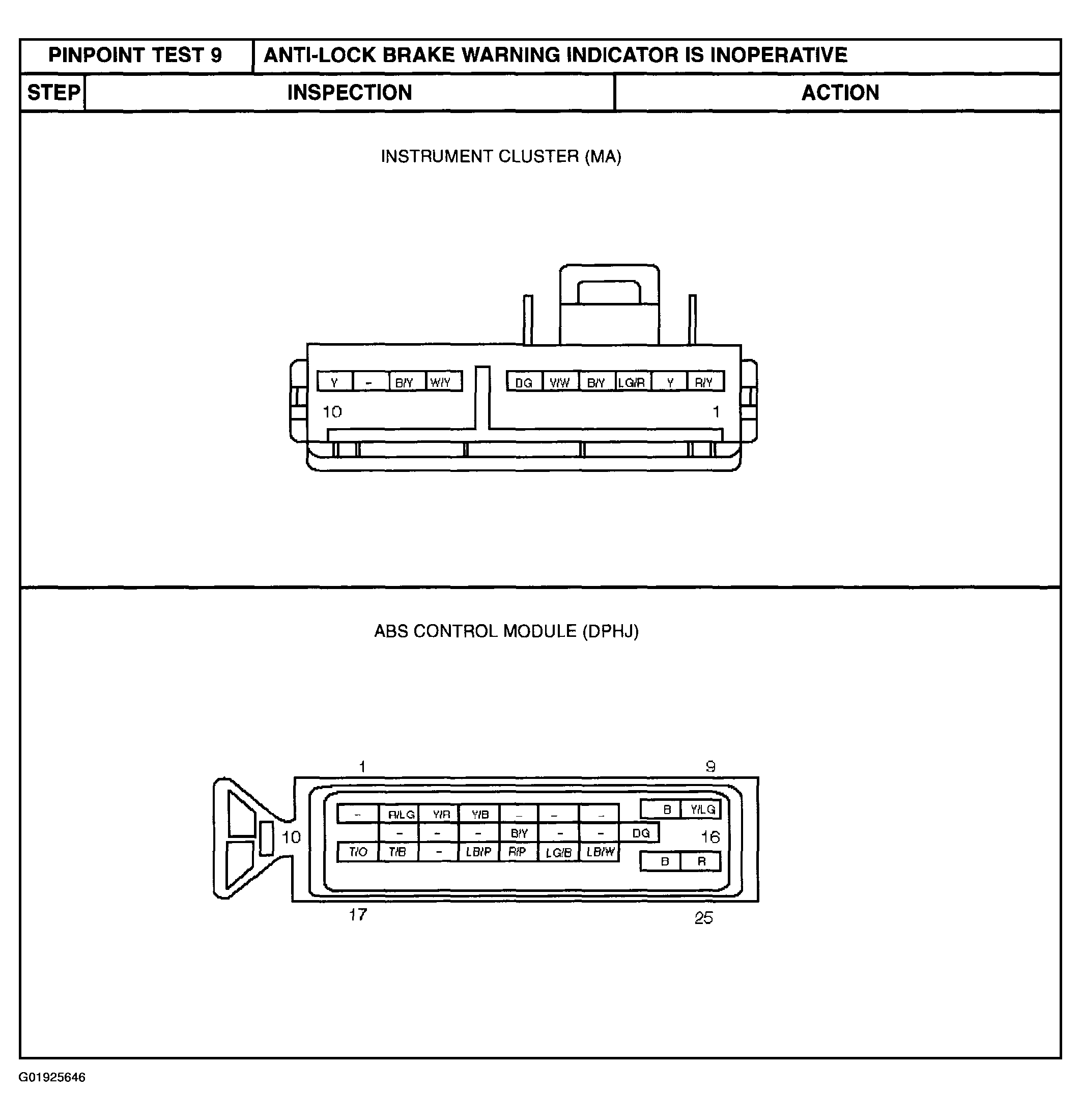

Fig 2: Identifying Instrument Cluster & ABS Control Module Connector Terminals
G01925646Courtesy of MAZDA MOTORS CORP.
