Poor Quality Sound From One Or More Speakers (Not All Speakers)

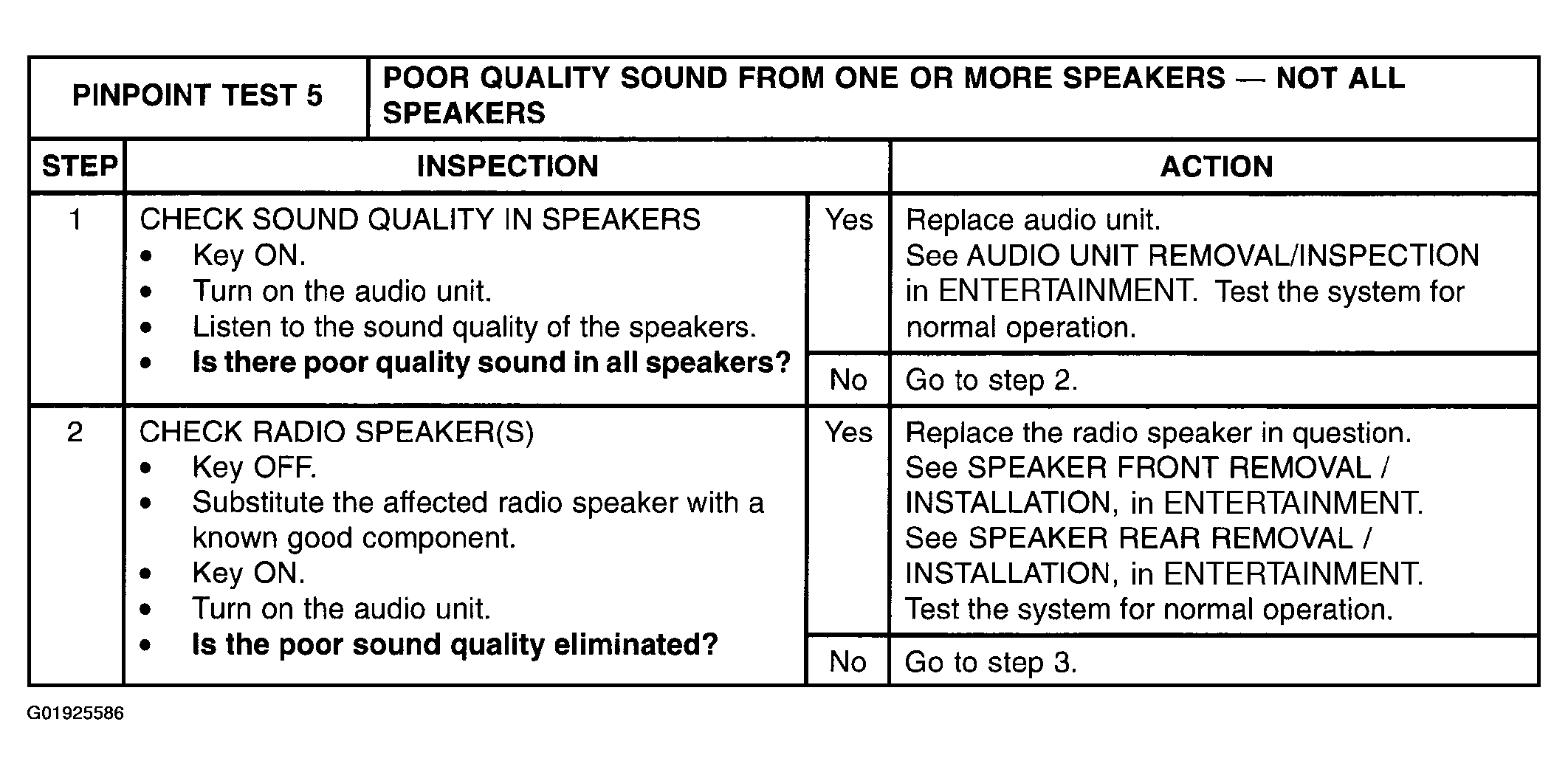

Fig 1: Poor Quality Sound From One Or More Speakers (Not All Speakers) Diagnostic Procedure (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

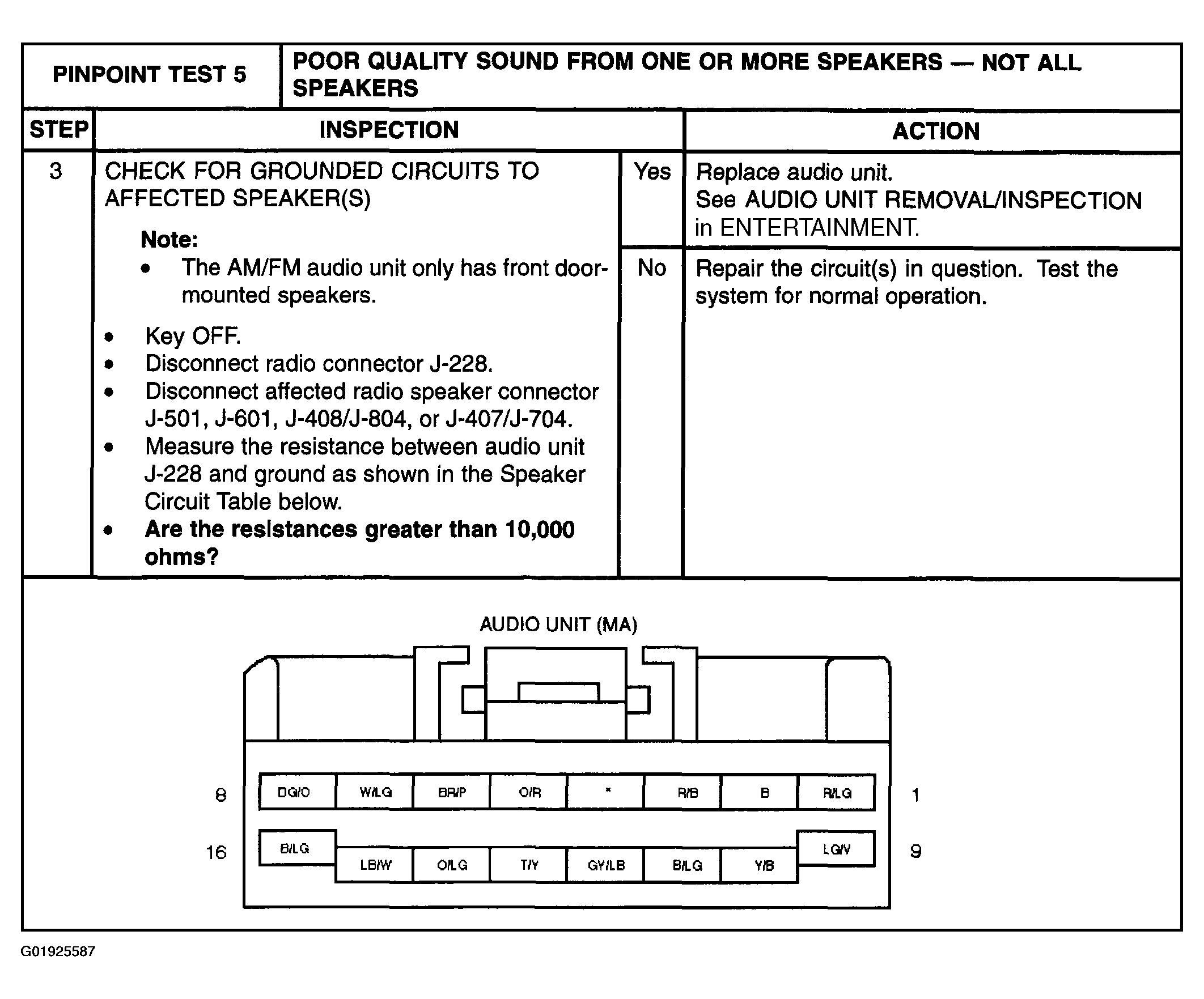

Fig 2: Poor Quality Sound From One Or More Speakers (Not All Speakers) Diagnostic Procedure (Step 3)

Courtesy of MAZDA MOTORS CORP.

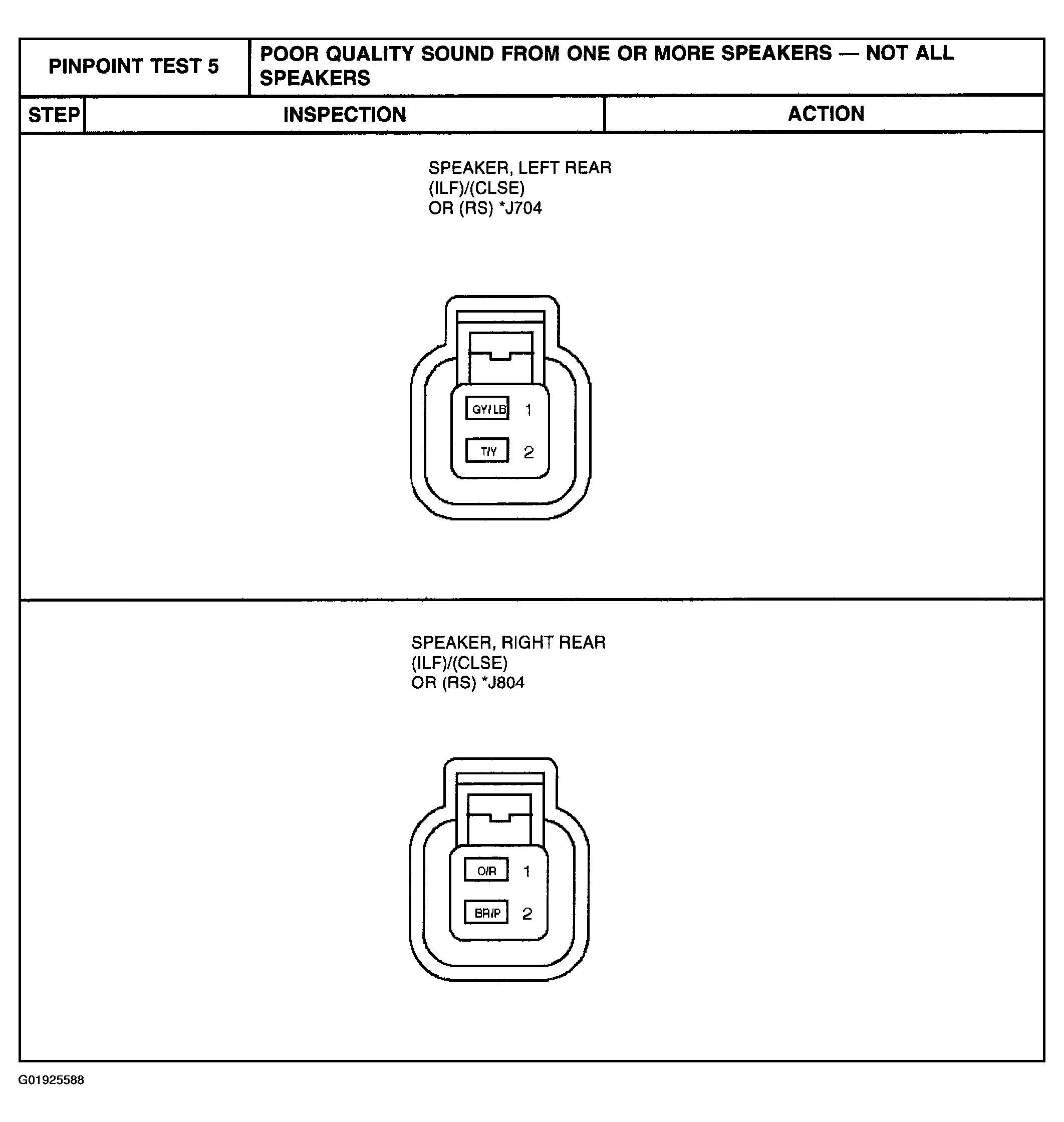

Fig 3: Identifying Left Rear & Right Rear Speaker Connector Terminals

Courtesy of MAZDA MOTORS CORP.

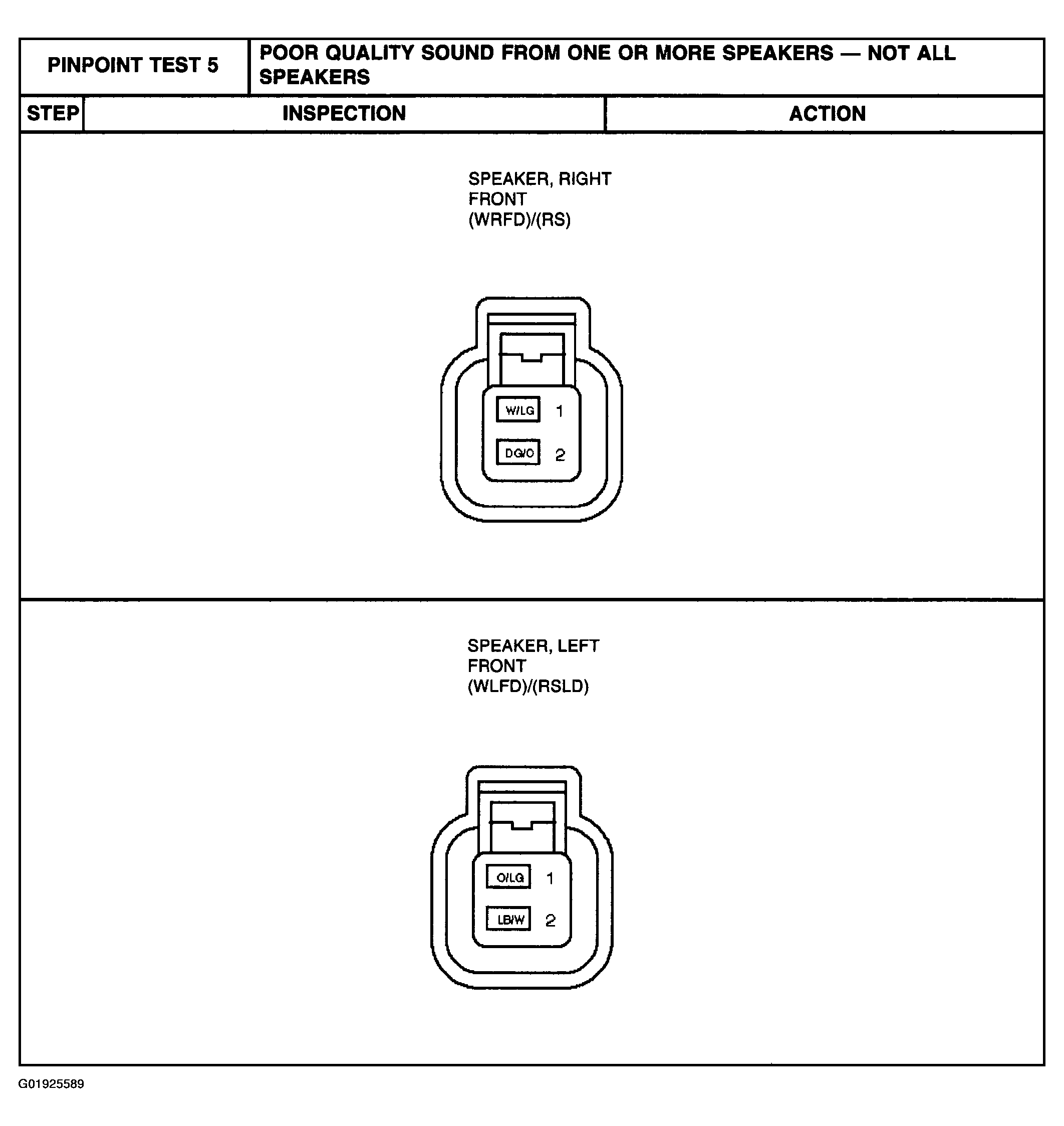

Fig 4: Identifying Left Front & Right Front Speaker Connector Terminals

Courtesy of MAZDA MOTORS CORP.

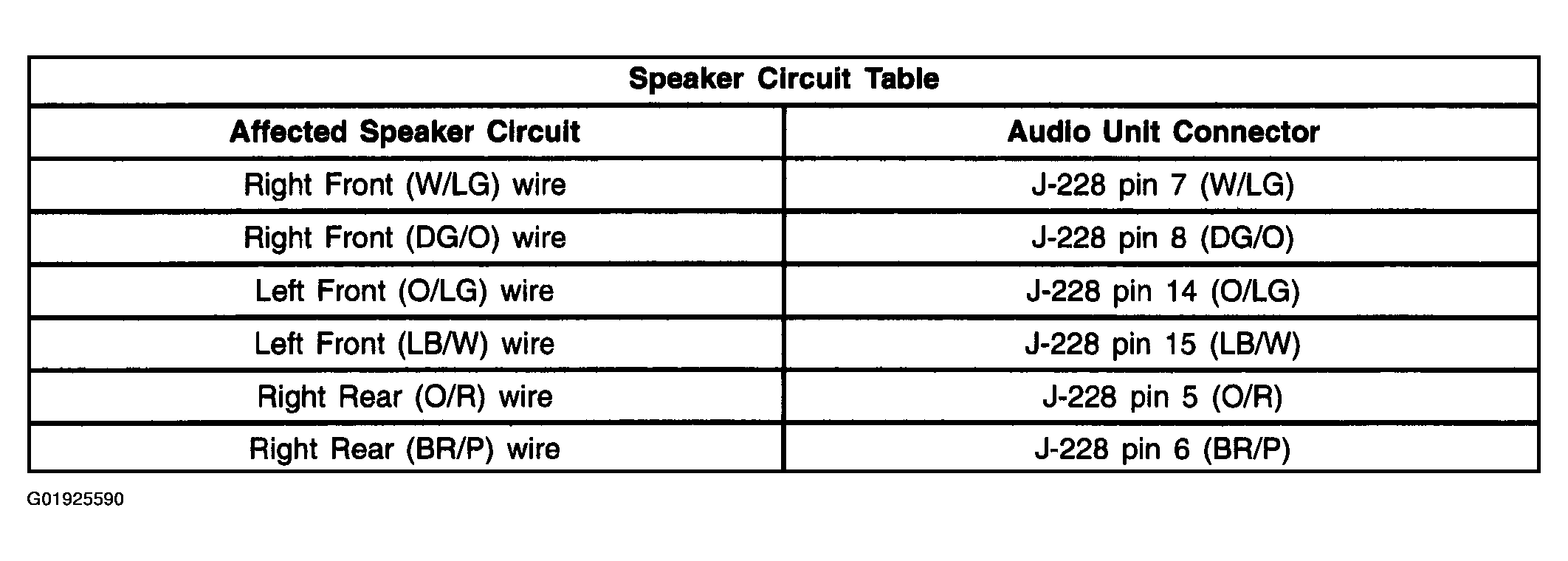

Fig 5: Speaker Circuit Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Speaker Circuit Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.
