No Sound From One Or More Of The Speakers - Not All Speakers

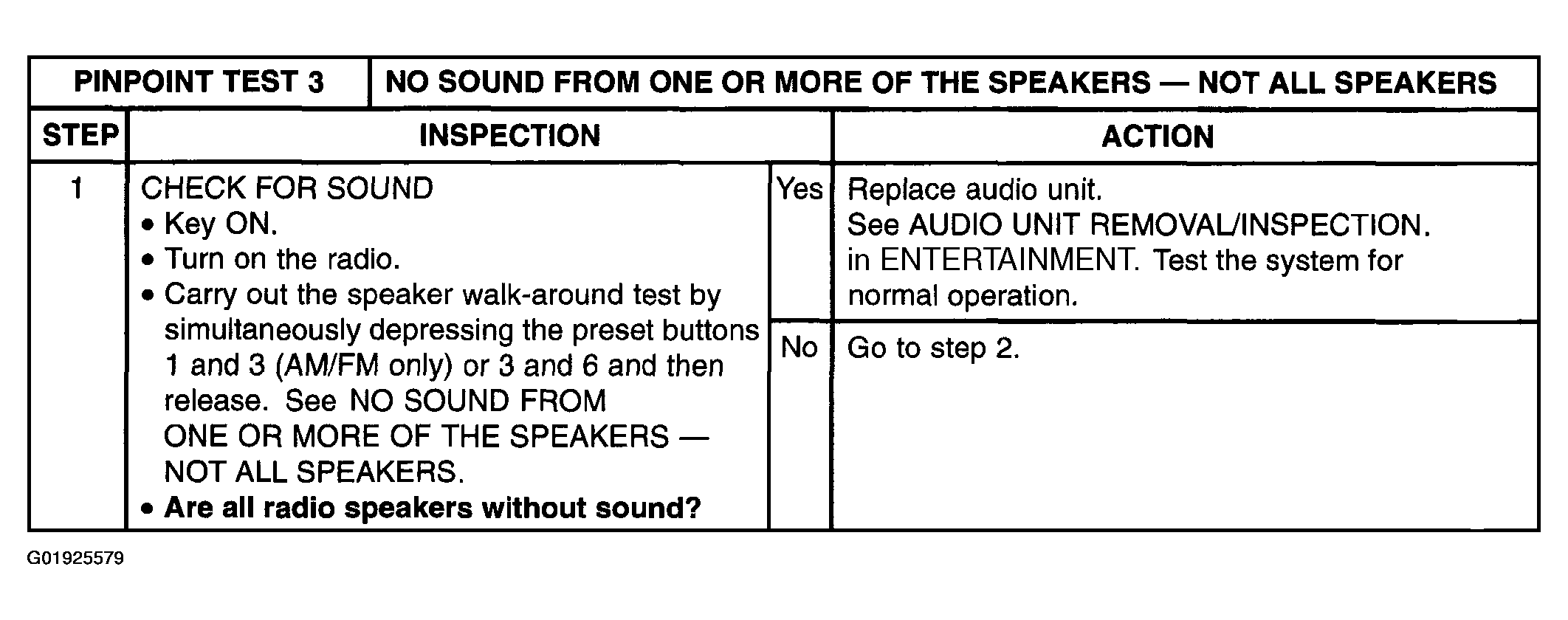

Fig 1: No Sound From One Or More Of The Speakers -- Not All Speakers Diagnostic Procedure (Step 1)

Courtesy of MAZDA MOTORS CORP.

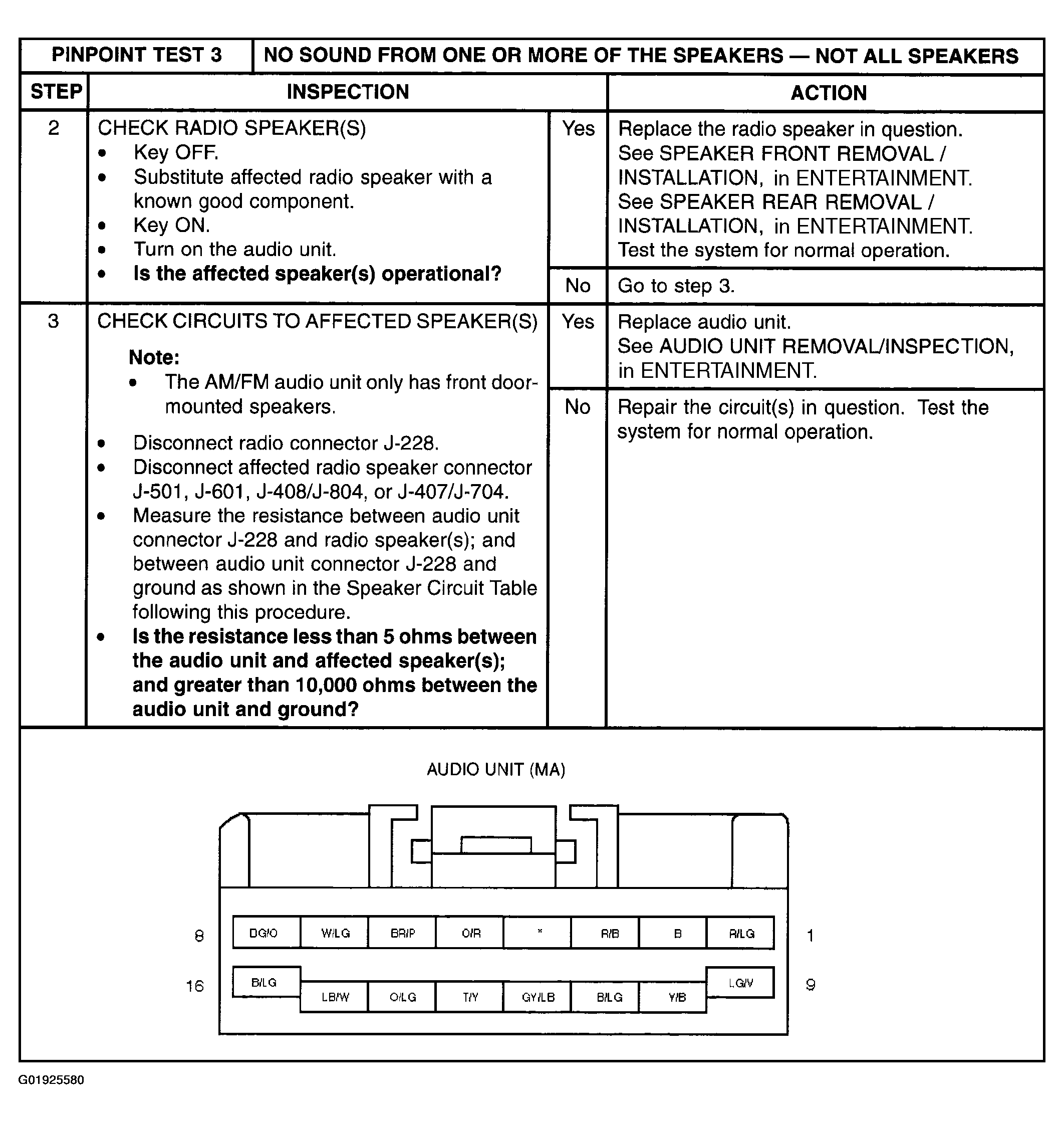

Fig 2: No Sound From One Or More Of The Speakers -- Not All Speakers Diagnostic Procedure (Step 2-3)

Courtesy of MAZDA MOTORS CORP.

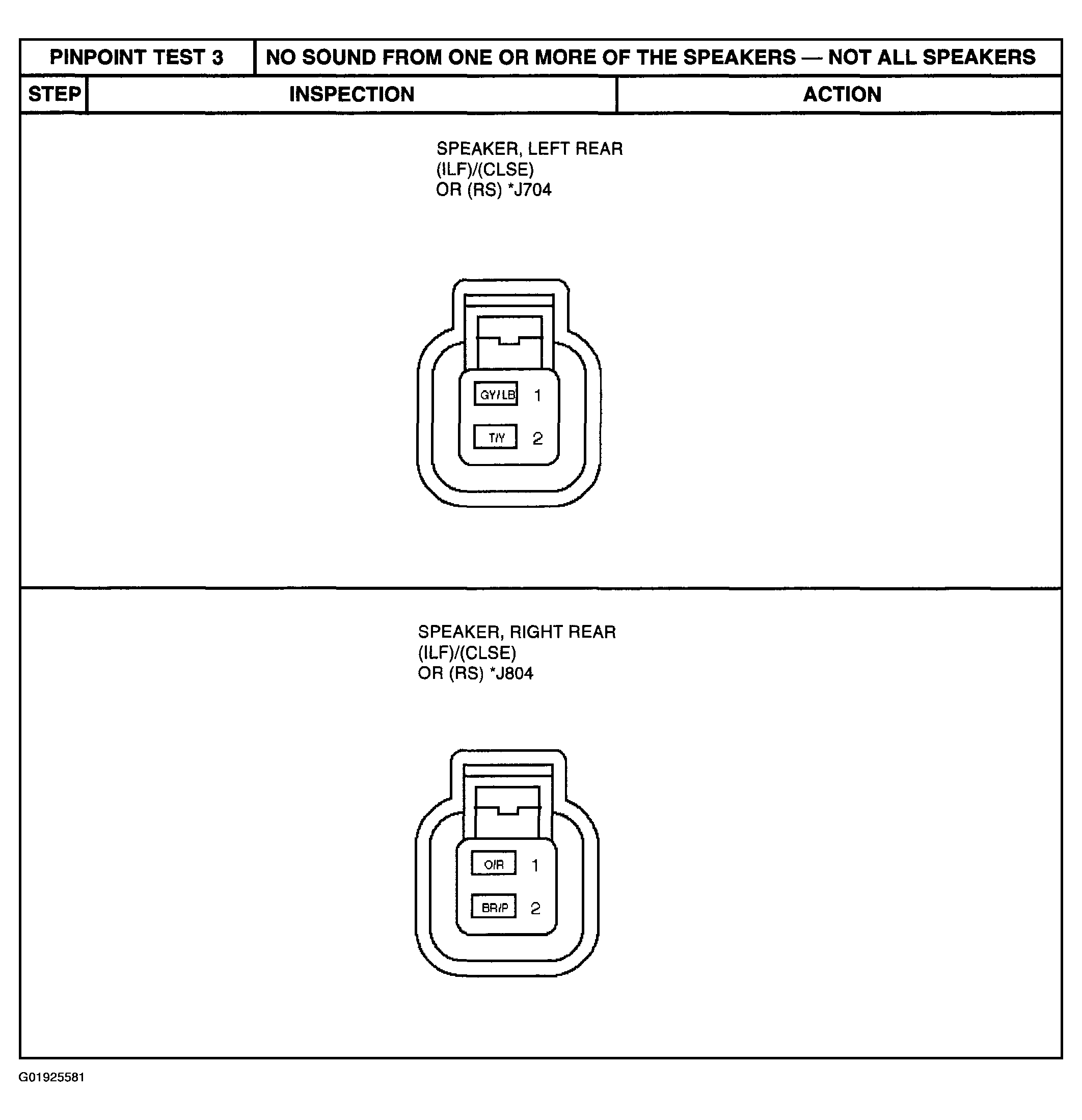

Fig 3: Identifying Left Rear & Right Rear Speaker Connector Terminals

Courtesy of MAZDA MOTORS CORP.

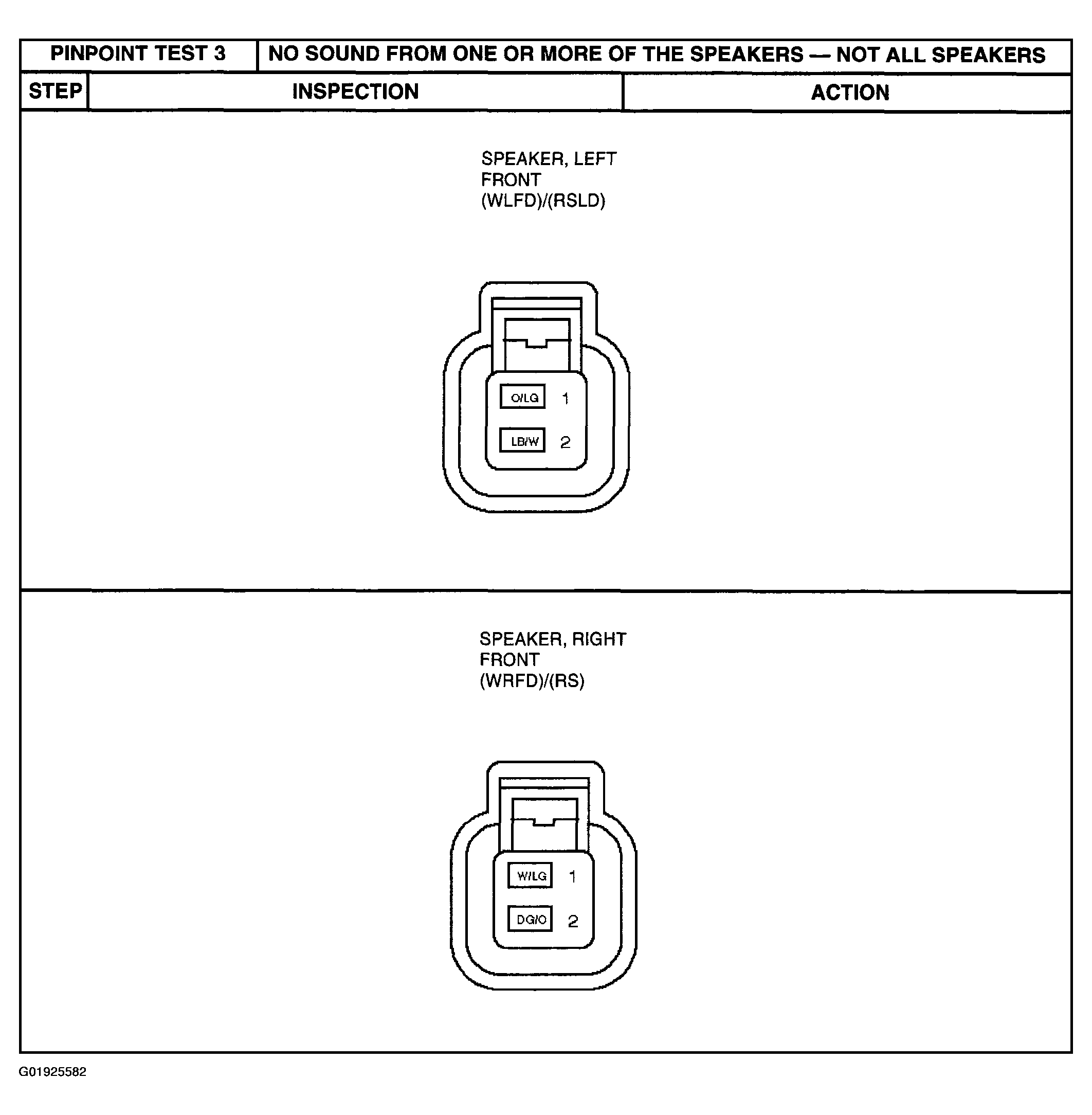

Fig 4: Identifying Left Front & Right Front Speaker Connector Terminals

Courtesy of MAZDA MOTORS CORP.

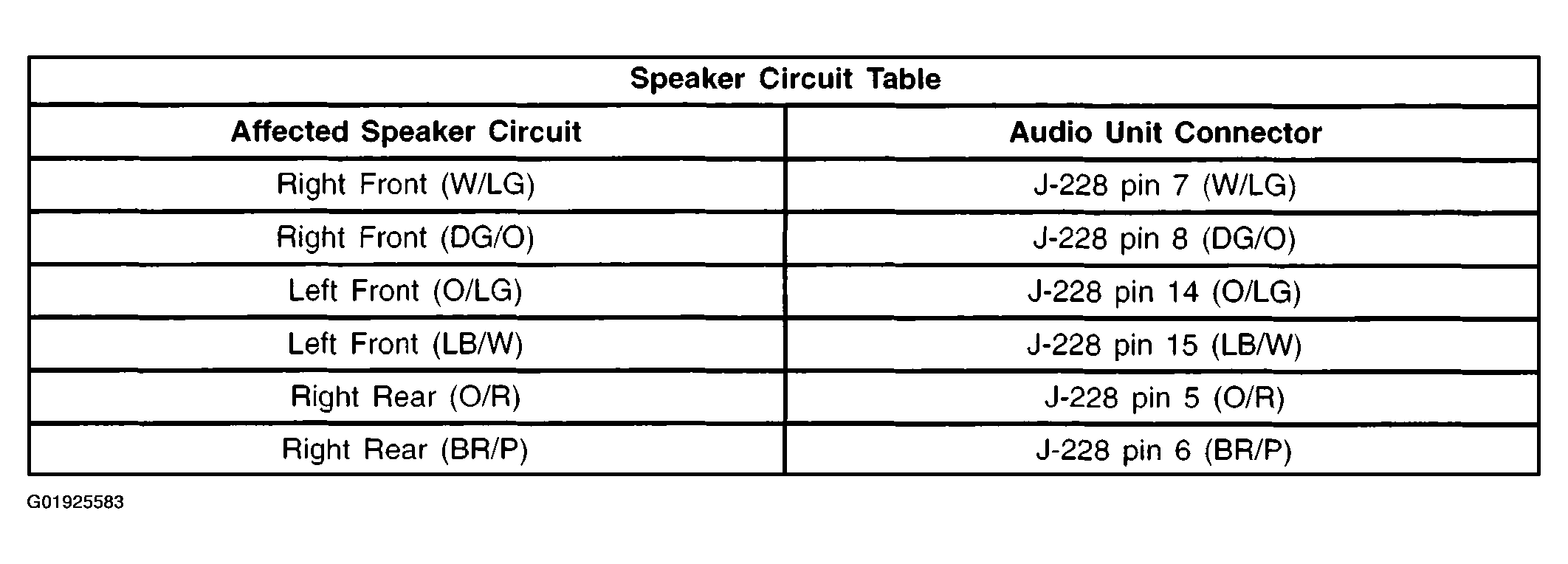

Fig 5: Speaker Circuit Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Speaker Circuit Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
