Wiring Diagrams

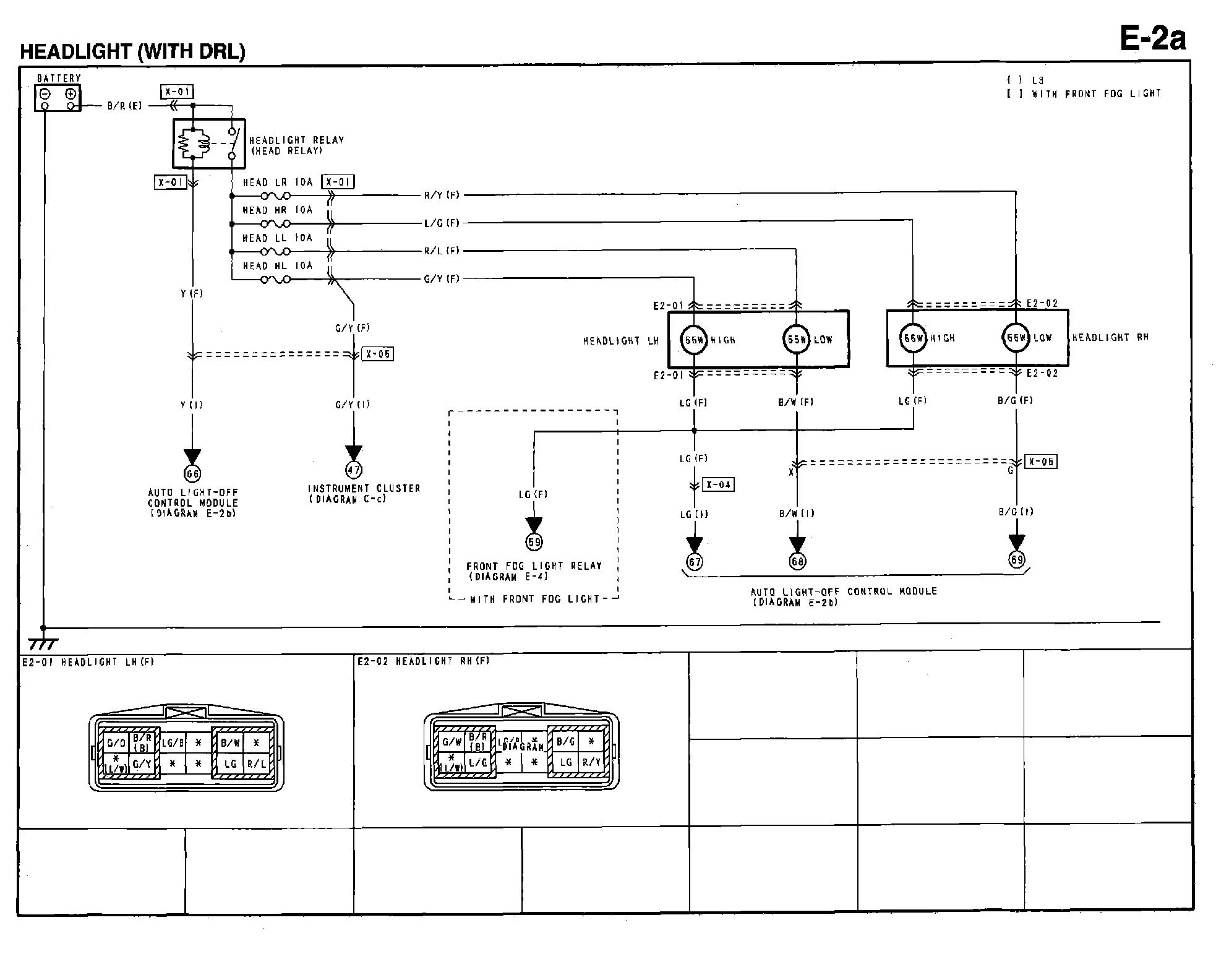

Diagram E-2a:

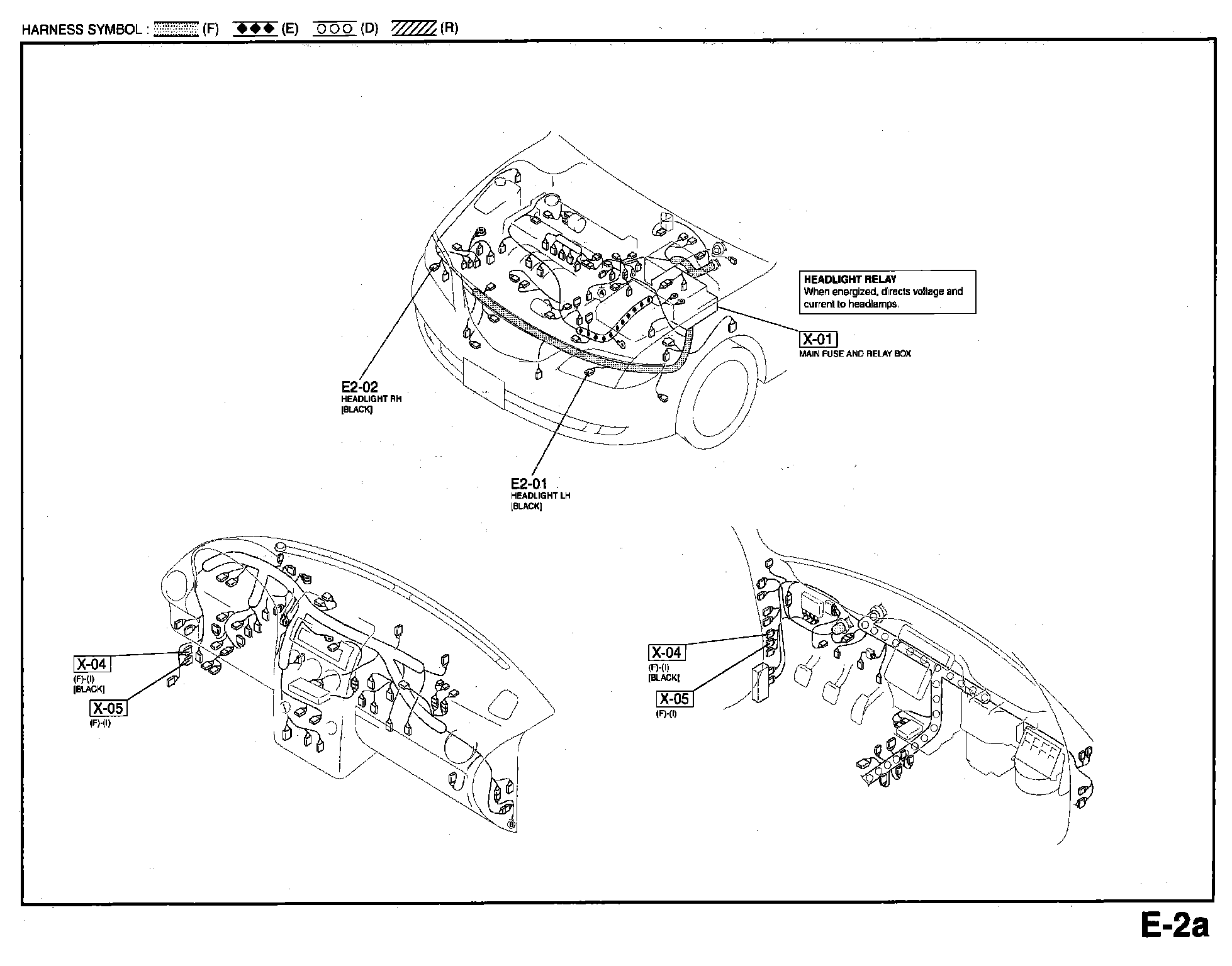

Routing View E-2a:

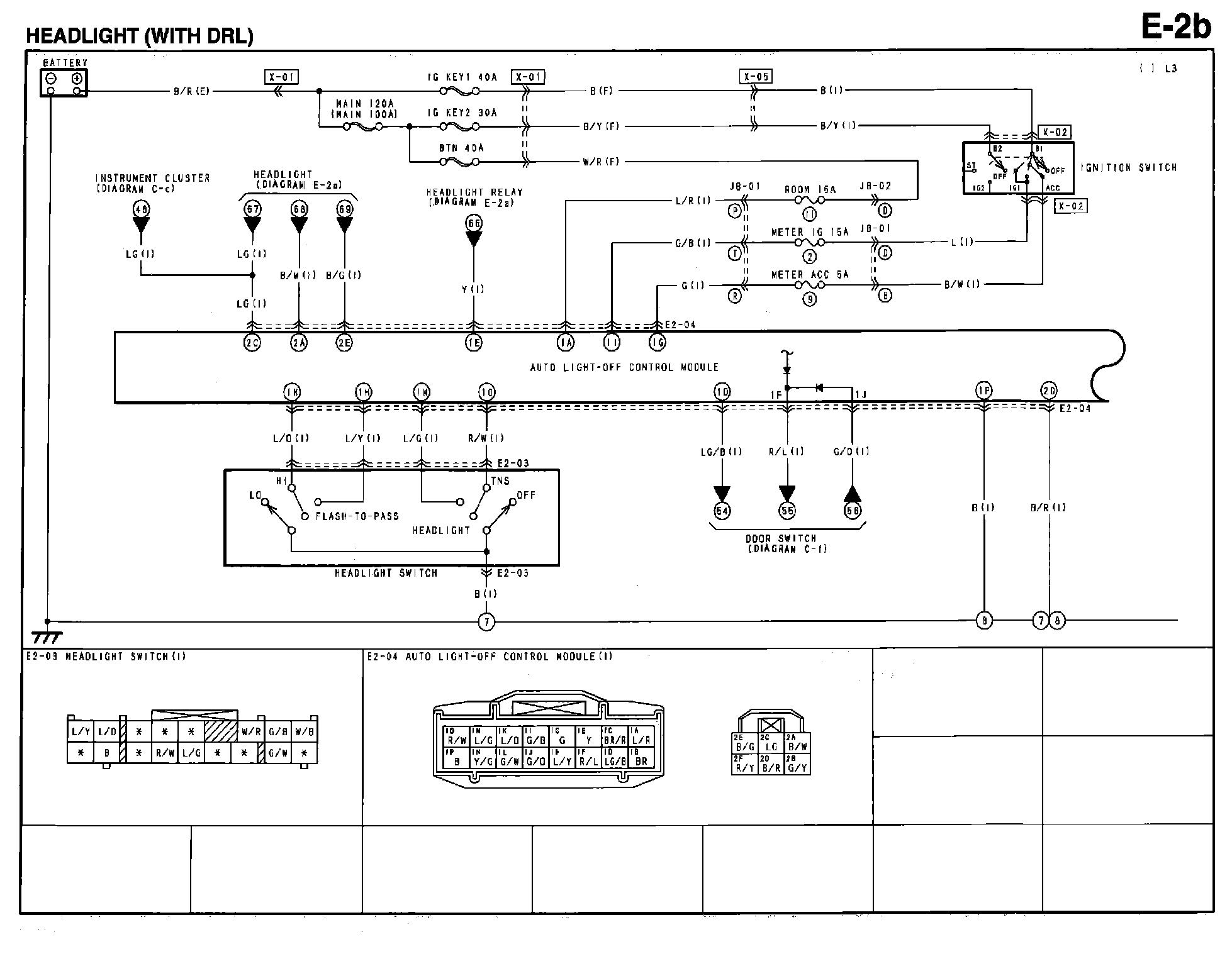

Diagram E-2b:

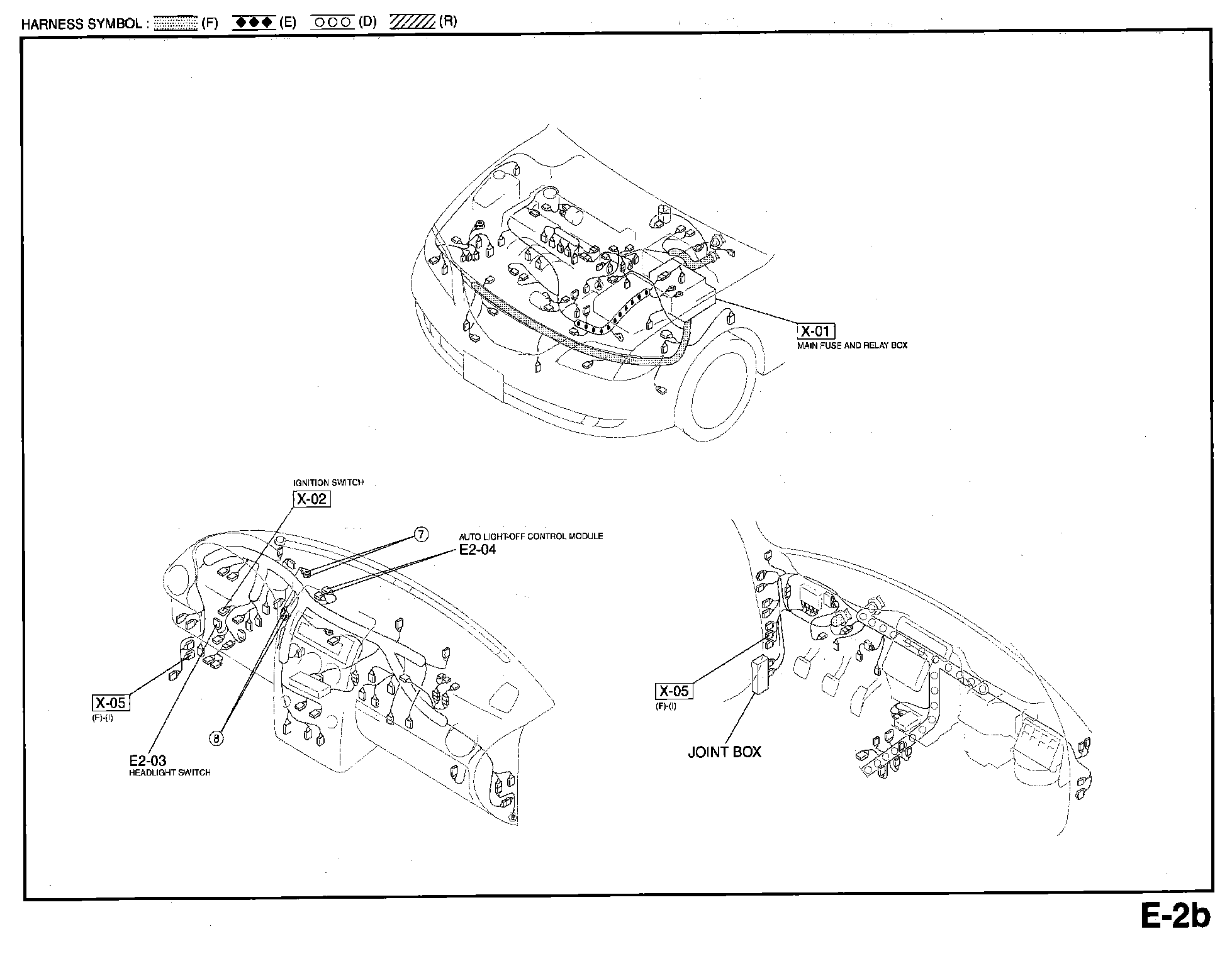

Routing View E-2b:

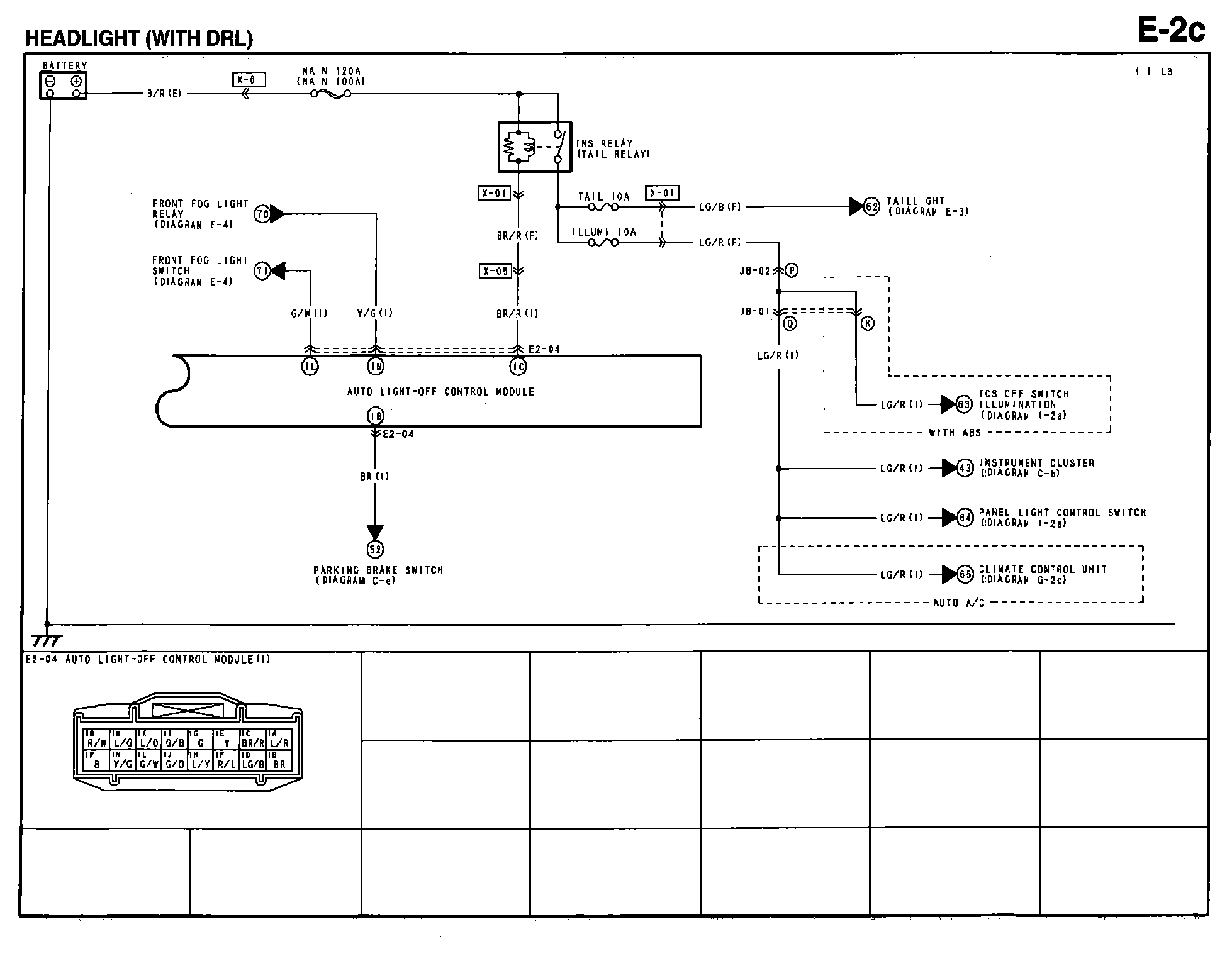

Diagram E-2c:

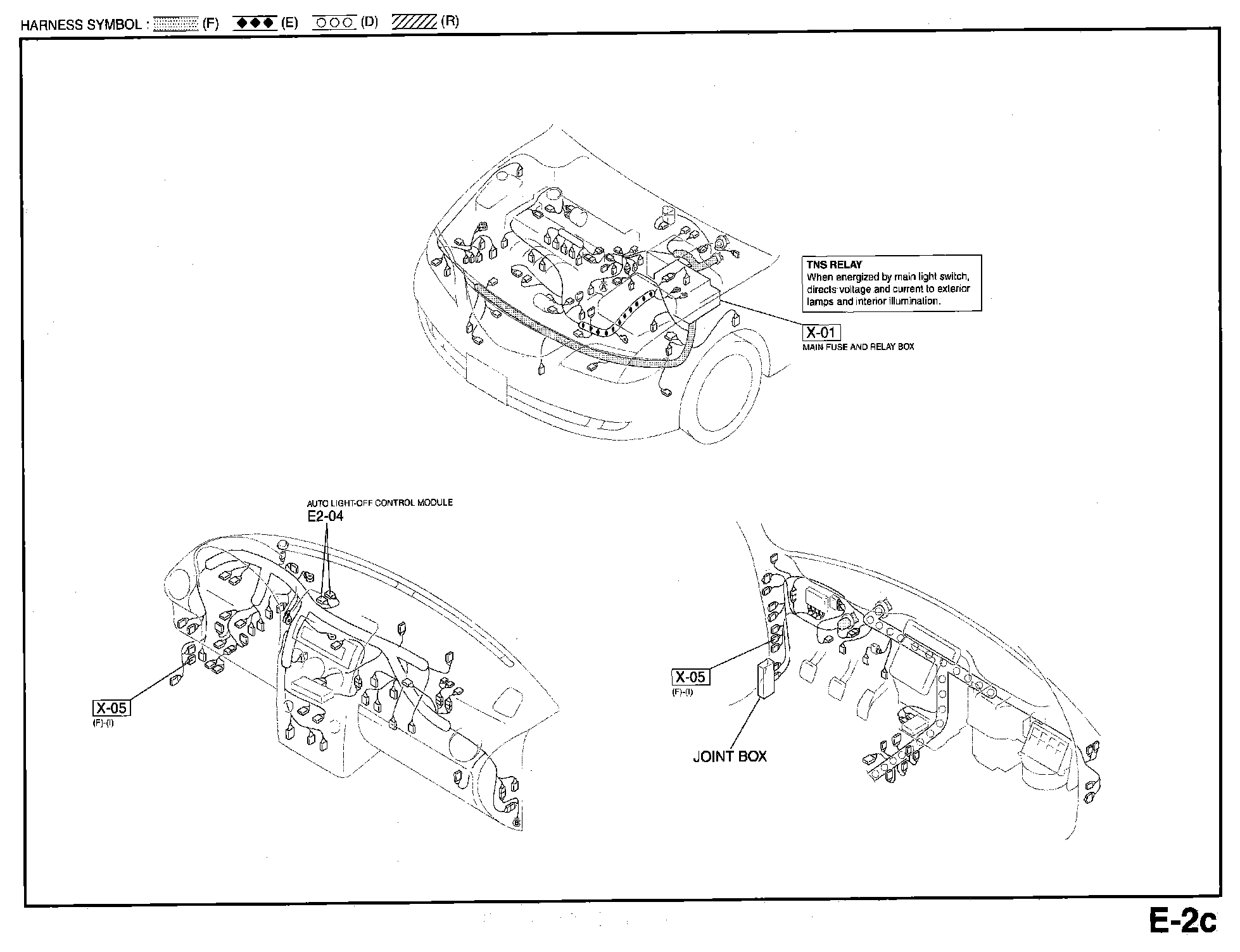

Routing View E-2c:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
