Pinpoint Test 7: Vibration

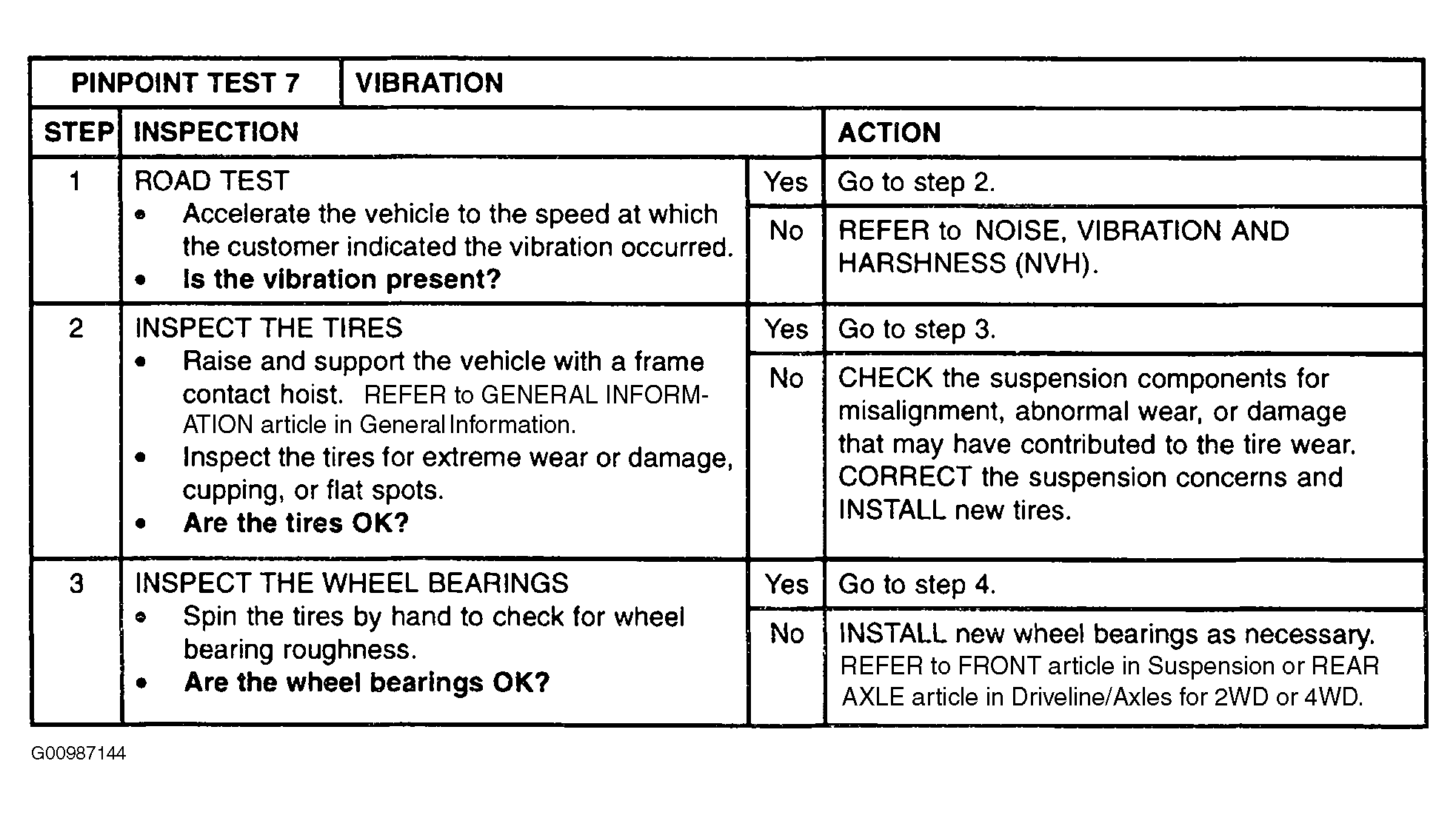

Fig 1: Pinpoint Test 7: Vibration (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Pinpoint Test 7: Vibration (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
