Pinpoint Test 6: Incorrect Tire Wear

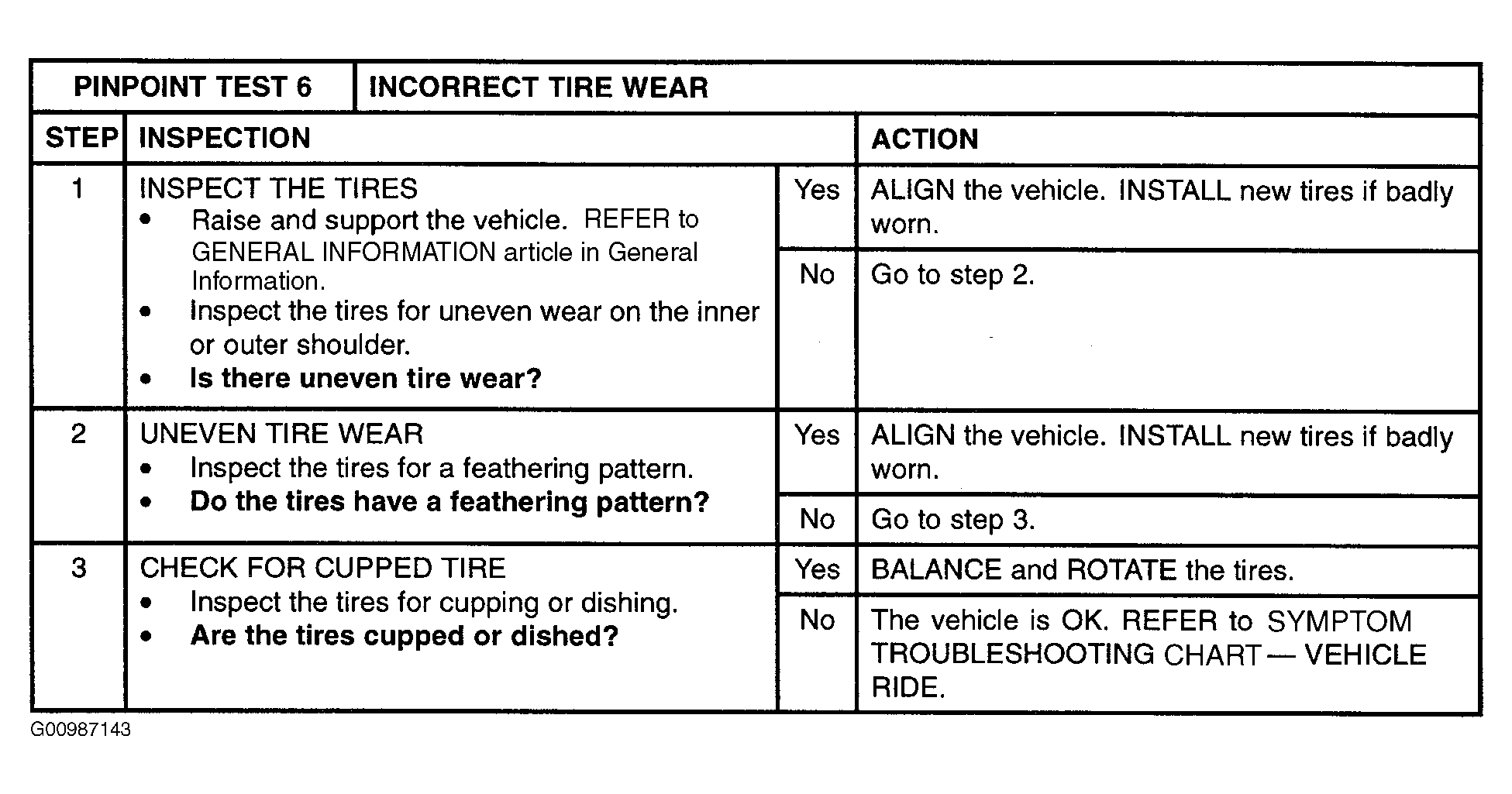

Fig 1: Pinpoint Test 6: Incorrect Tire Wear

G00987143

Courtesy of MAZDA MOTORS CORP.
