Home >> Mazda >> 2002 >> Tribute LX, 4WD >> Repair and Diagnosis >> Suspension >> Rear Suspension System >> Symptom Troubleshooting >> Symptom Troubleshooting Chart - Vehicle Ride >> Pinpoint Test 4: Rough Ride

Pinpoint Test 4: Rough Ride

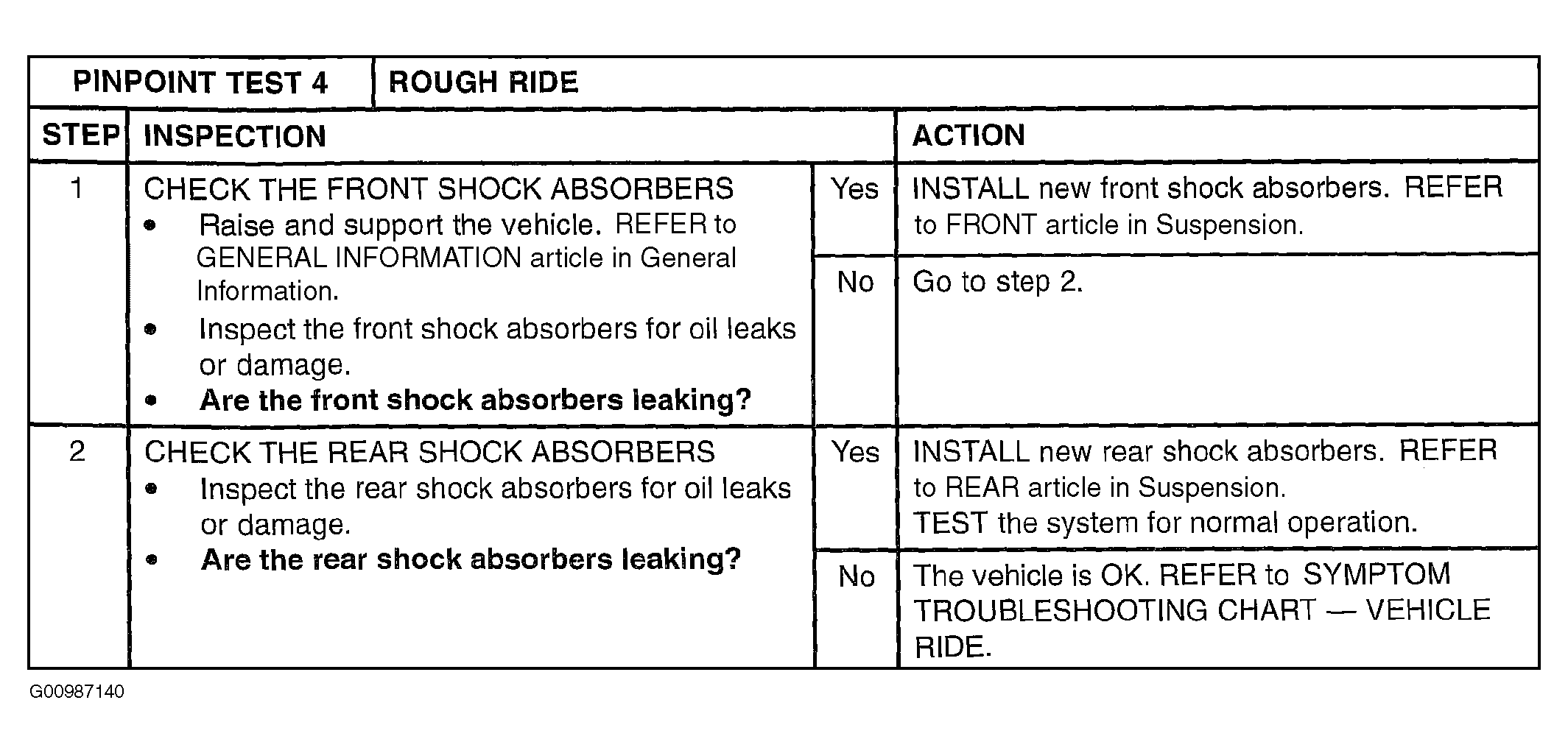

Fig 1: Pinpoint Test 4: Rough Ride

G00987140

Courtesy of MAZDA MOTORS CORP.
