Home >> Mazda >> 2002 >> Tribute LX, 4WD >> Repair and Diagnosis >> Suspension >> Rear Suspension System >> Symptom Troubleshooting >> Symptom Troubleshooting Chart - Vehicle Ride >> Pinpoint Test 3: Tracks Incorrectly

Pinpoint Test 3: Tracks Incorrectly

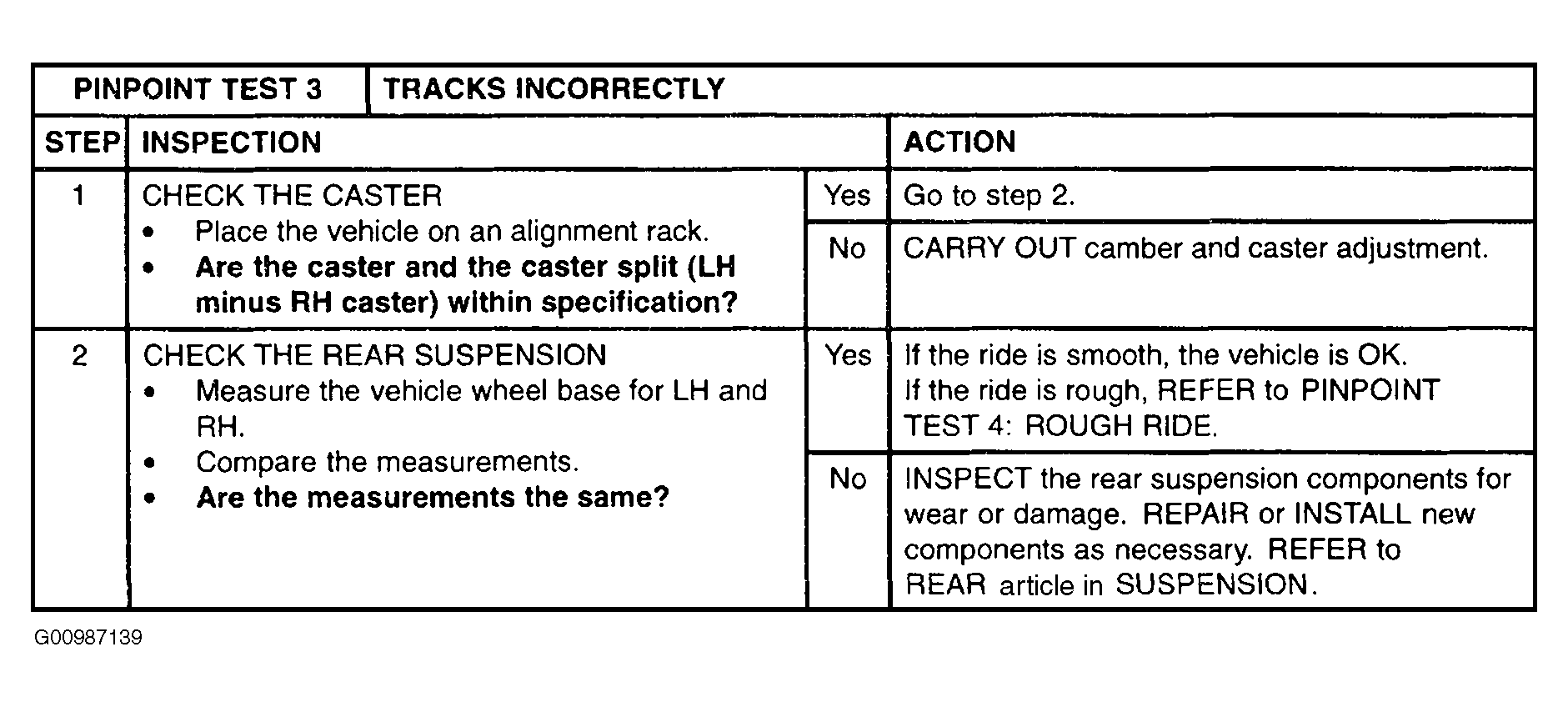

Fig 1: Pinpoint Test 3: Tracks Incorrectly

G00987139

Courtesy of MAZDA MOTORS CORP.
