Pinpoint Test 2: Steering Wheel Off-Center

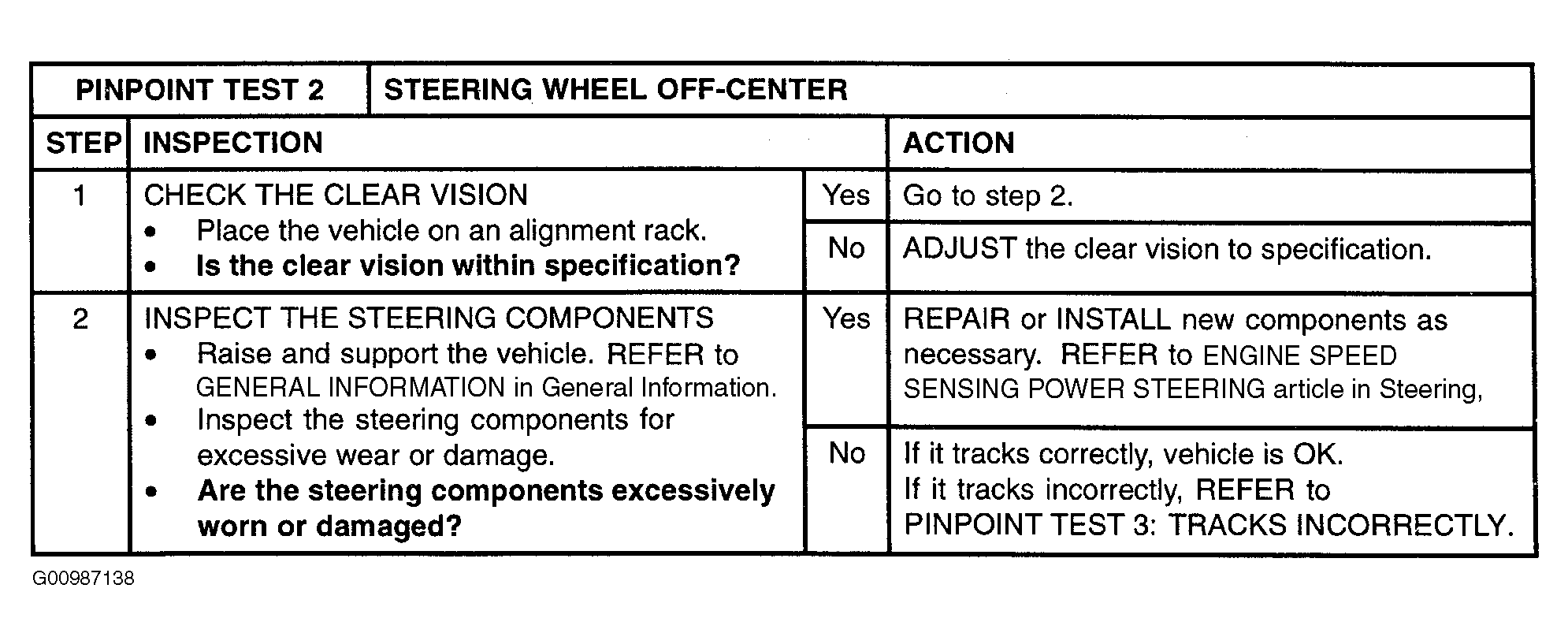

Fig 1: Pinpoint Test 2: Steering Wheel Off-Center

G00987138

Courtesy of MAZDA MOTORS CORP.
