Pinpoint Test 1: Drift Left Or Right

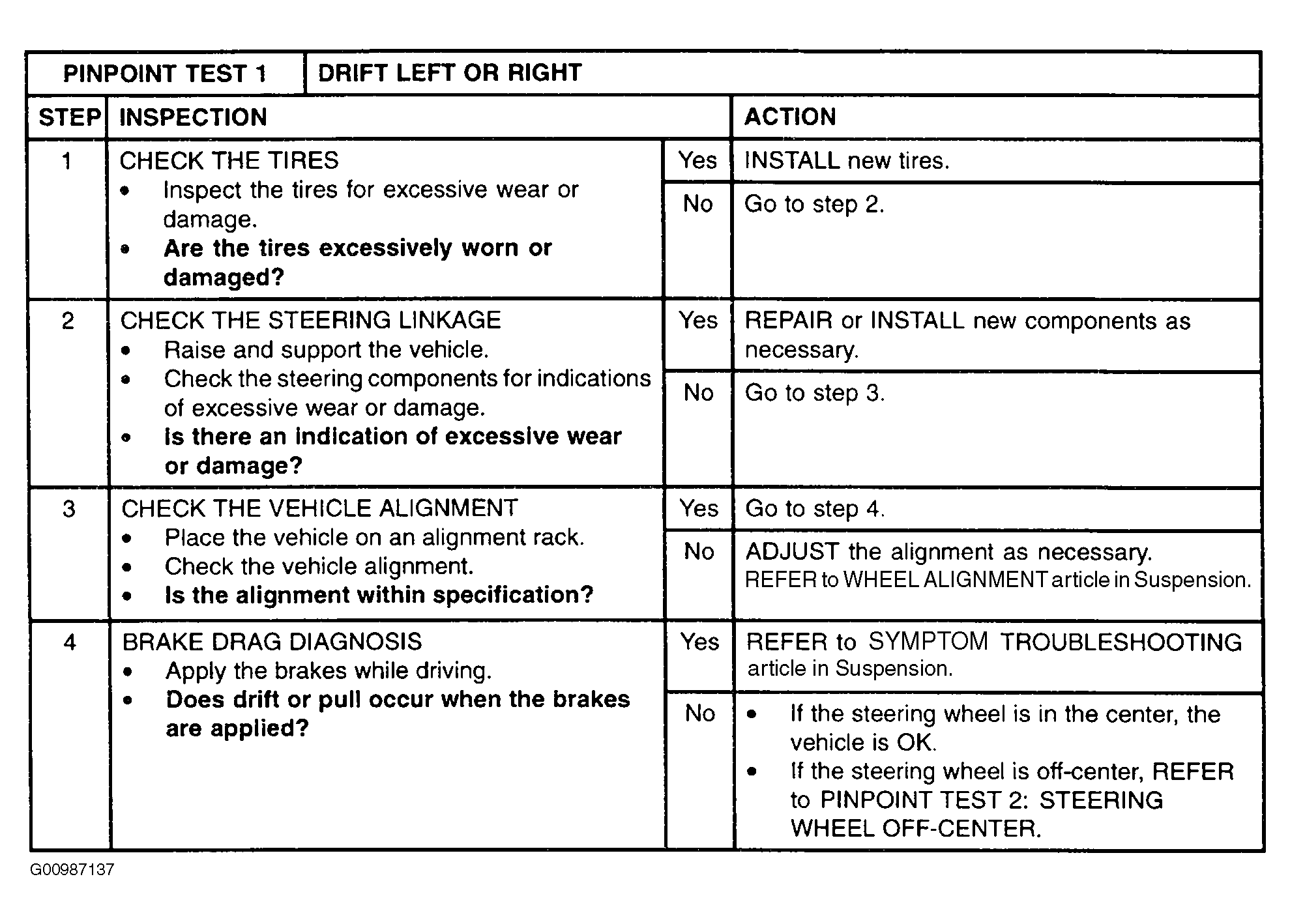

Fig 1: Pinpoint Test 1: Drift Left Or Right

G00987137

Courtesy of MAZDA MOTORS CORP.
