Symptom Troubleshooting Chart - Vehicle Ride: Notes

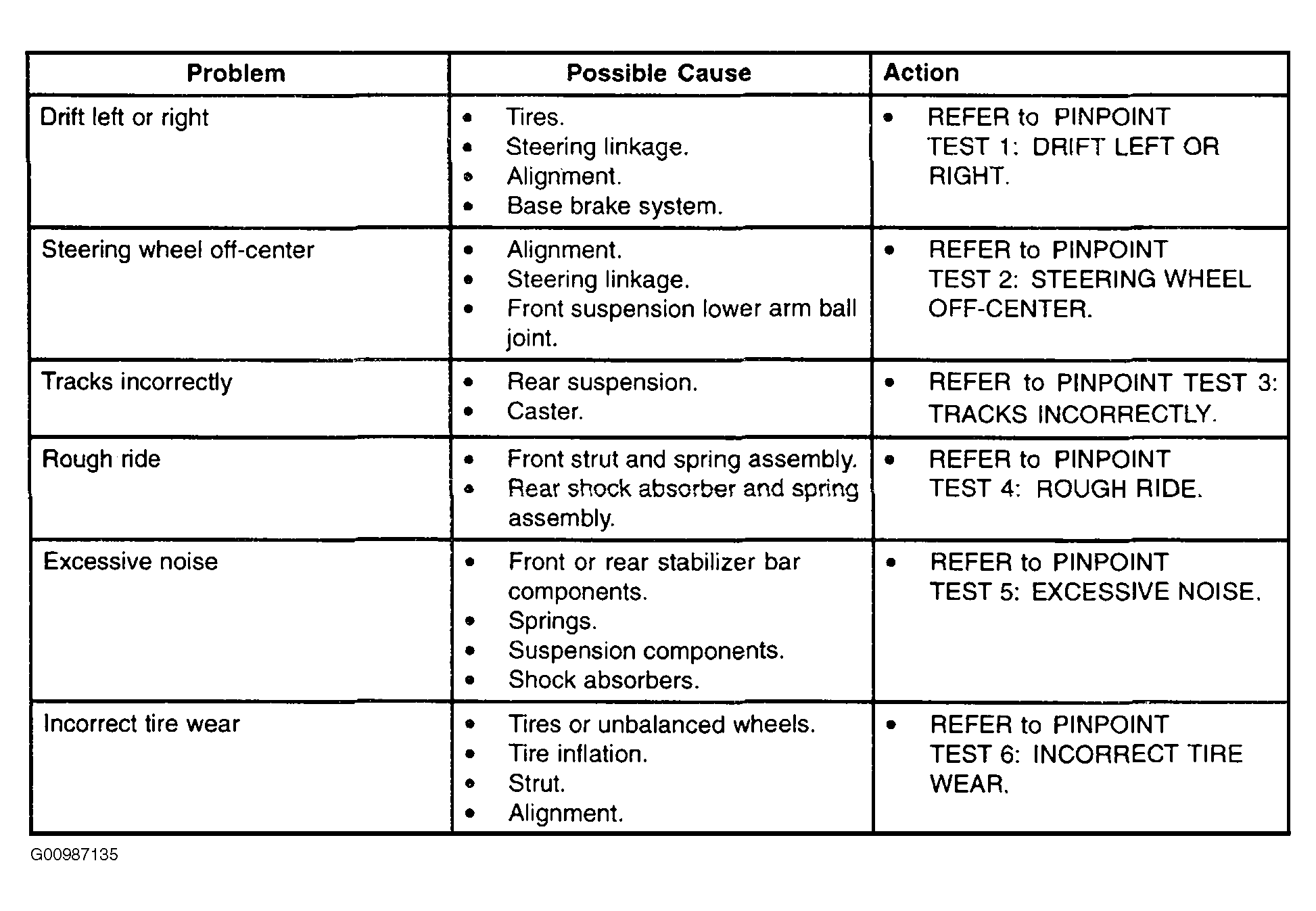

Fig 1: Symptom Troubleshooting Chart - Vehicle Ride (1 Of 2)
G00987135Courtesy of MAZDA MOTORS CORP.

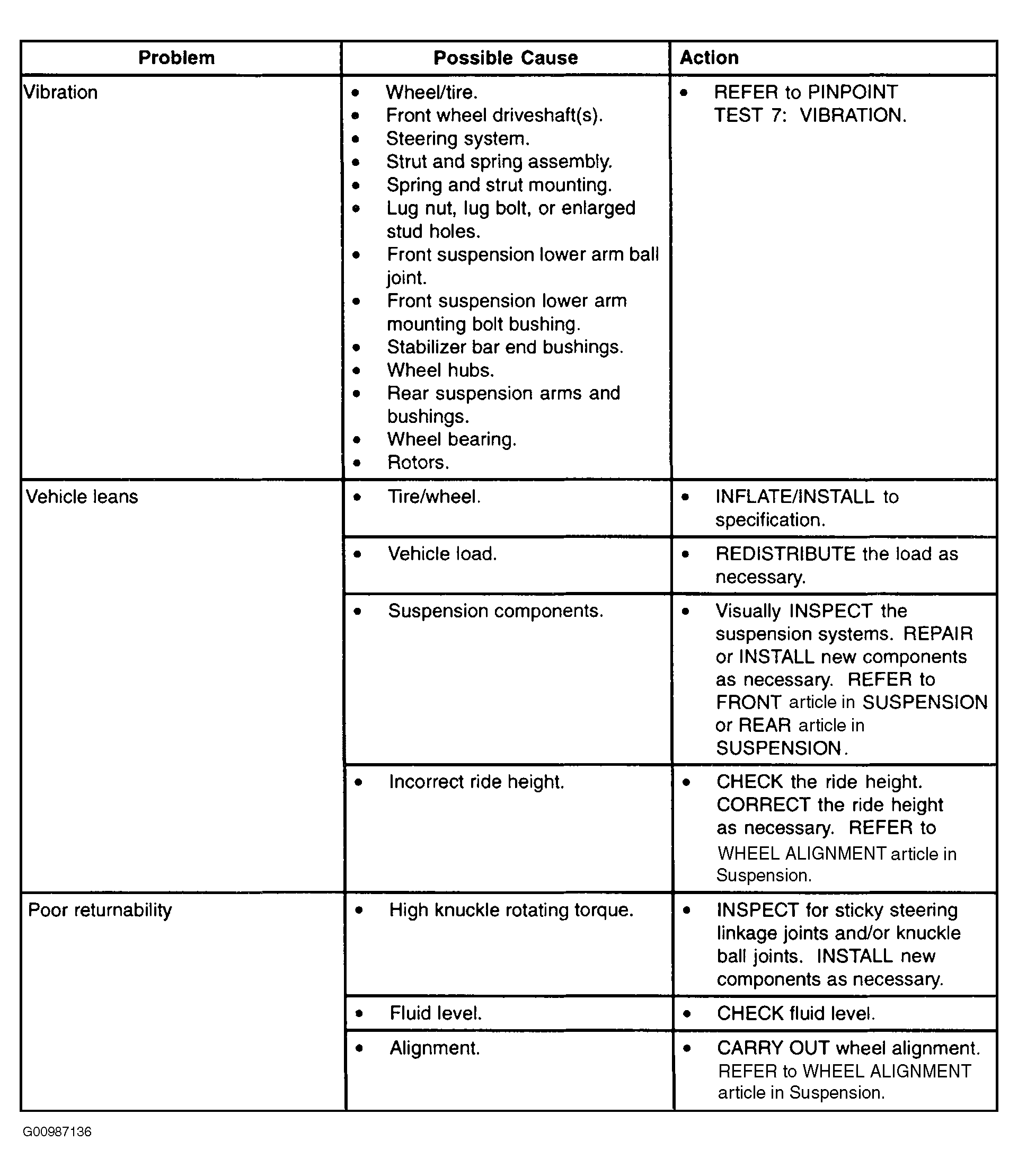

Fig 2: Symptom Troubleshooting Chart - Vehicle Ride (2 Of 2)
G00987136Courtesy of MAZDA MOTORS CORP.
