Symptom Troubleshooting Chart - Transaxle (Manual) & Power Take Off Unit Noise/Vibration: Notes

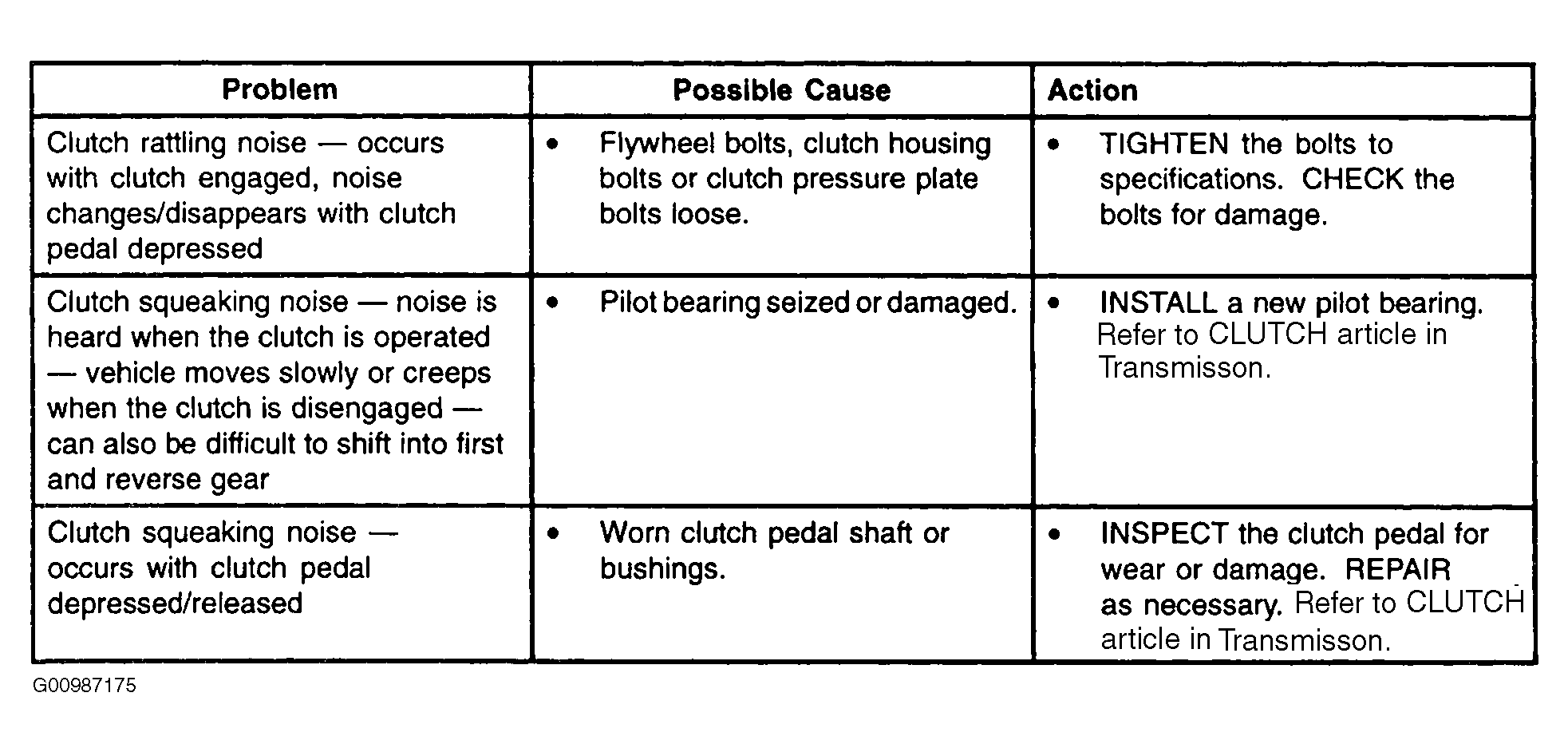

Fig 1: Symptom Troubleshooting Chart - Transaxle (Manual) & Power Take Off Unit Noise/Vibration (1 Of 6)

Courtesy of MAZDA MOTORS CORP.

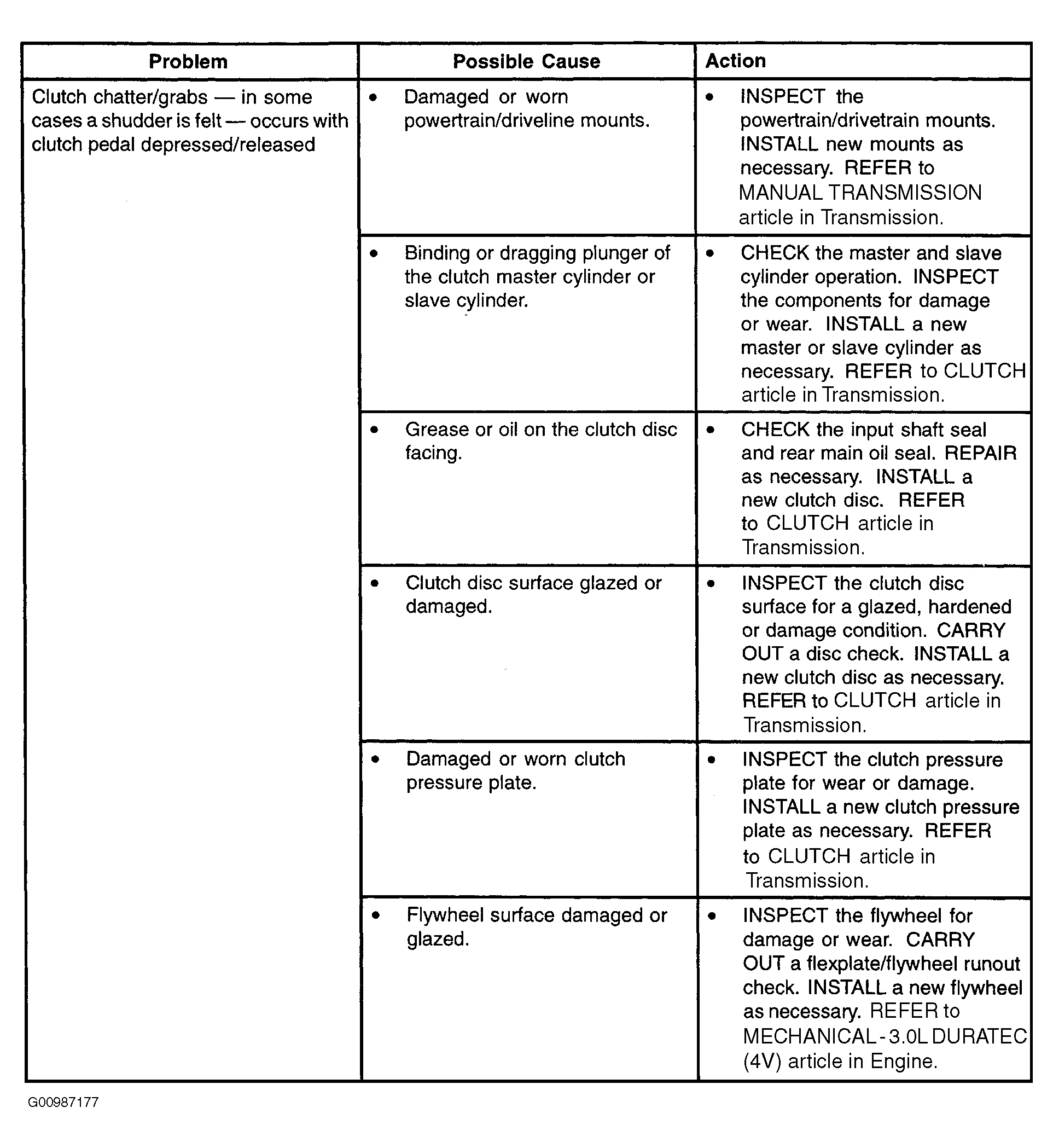

Fig 2: Symptom Troubleshooting Chart - Transaxle (Manual) & Power Take Off Unit Noise/Vibration (2 Of 6)

Courtesy of MAZDA MOTORS CORP.

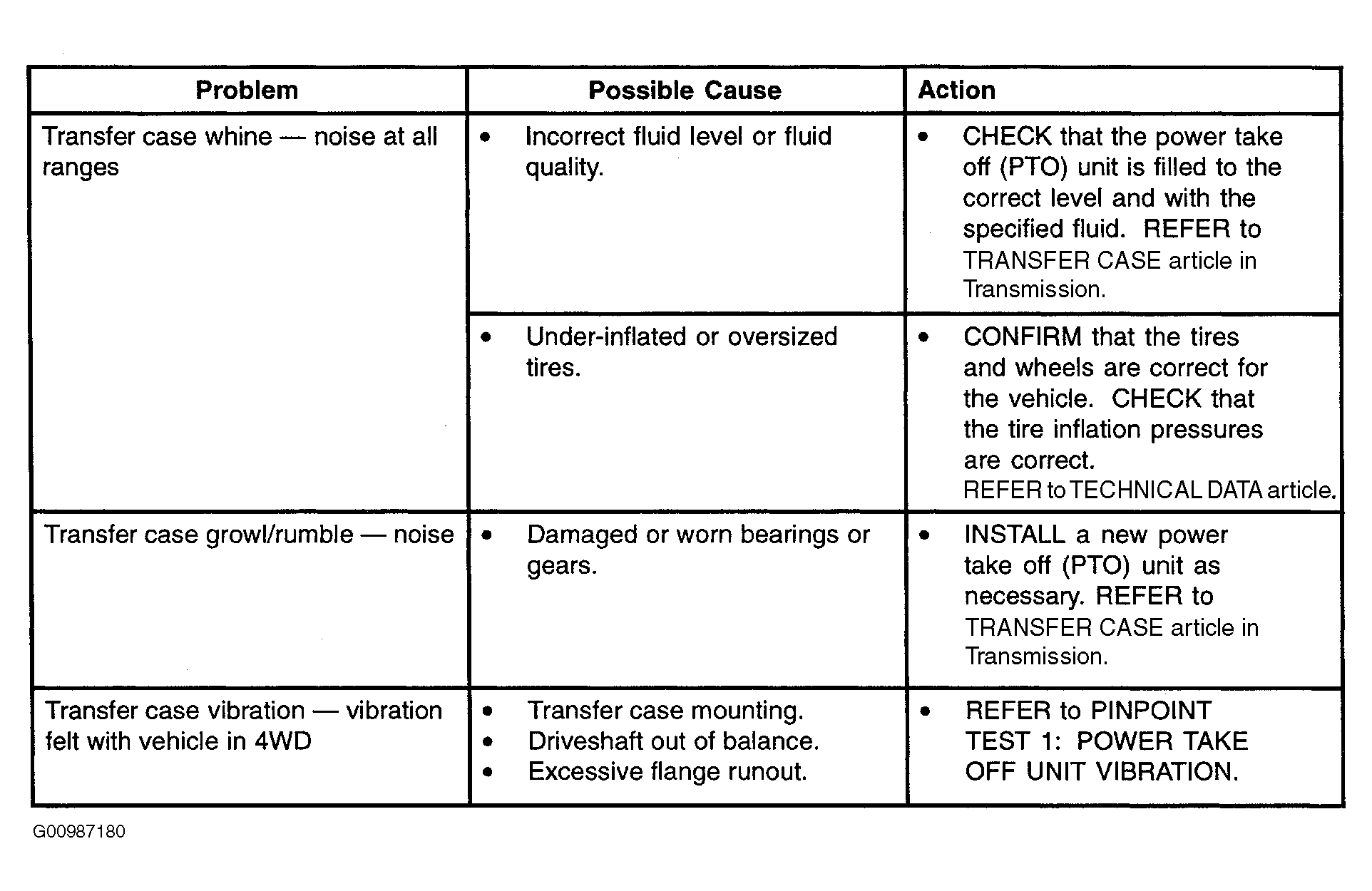

Fig 3: Symptom Troubleshooting Chart - Transaxle (Manual) & Power Take Off Unit Noise/Vibration (3 Of 6)

Courtesy of MAZDA MOTORS CORP.

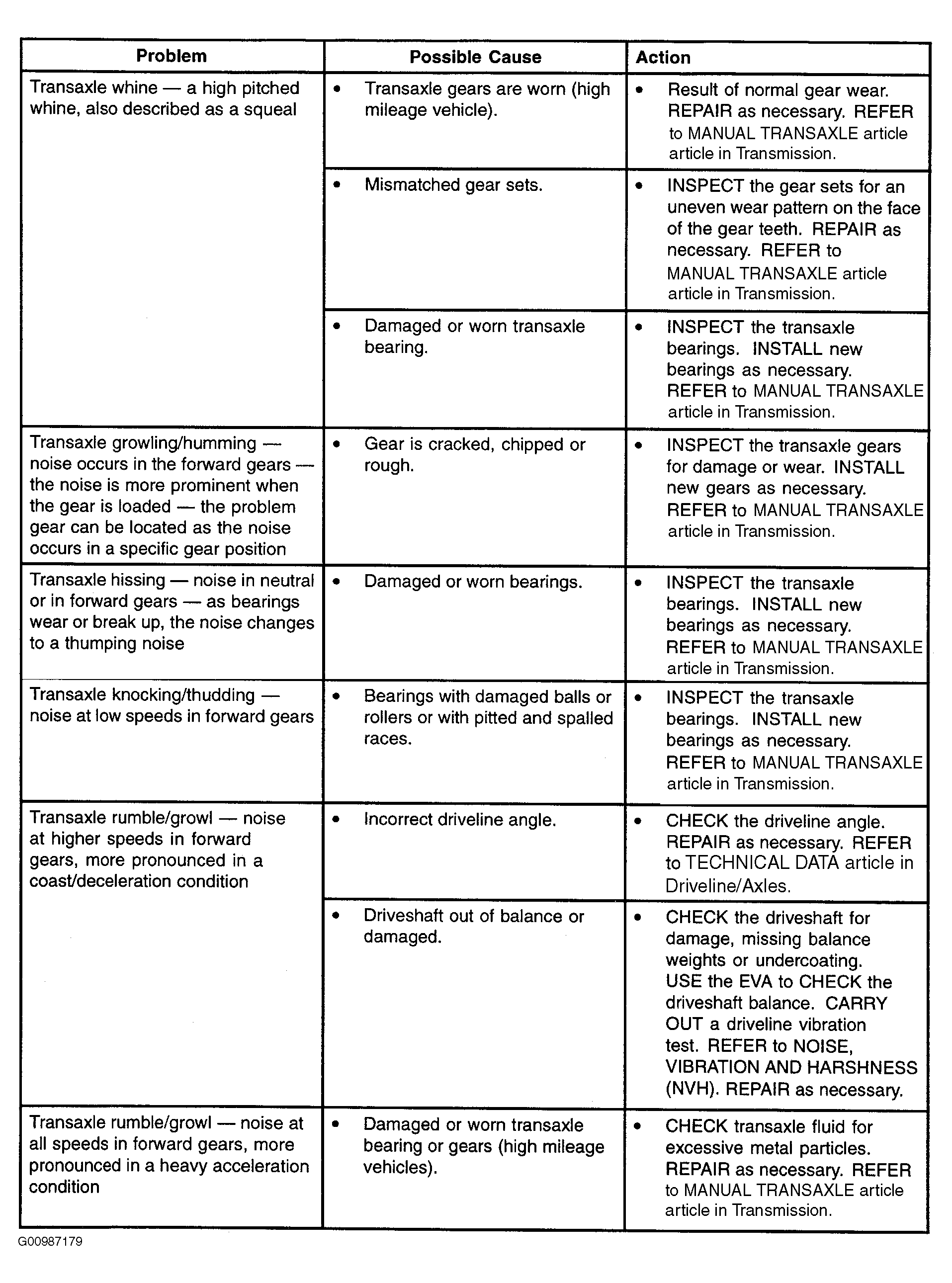

Fig 4: Symptom Troubleshooting Chart - Transaxle (Manual) & Power Take Off Unit Noise/Vibration (4 Of 6)

Courtesy of MAZDA MOTORS CORP.

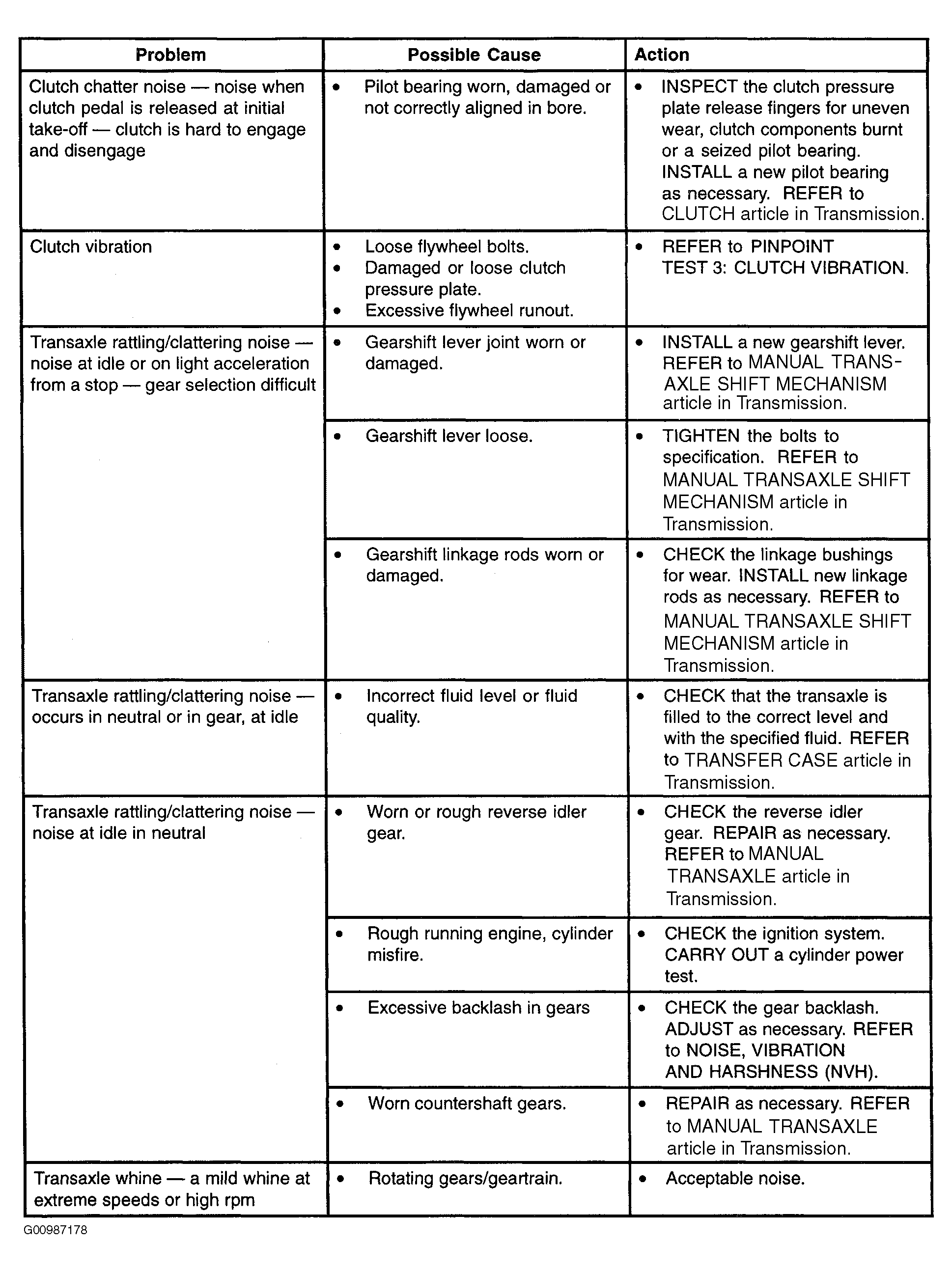

Fig 5: Symptom Troubleshooting Chart - Transaxle (Manual) & Power Take Off Unit Noise/Vibration (5 Of 6)

Courtesy of MAZDA MOTORS CORP.

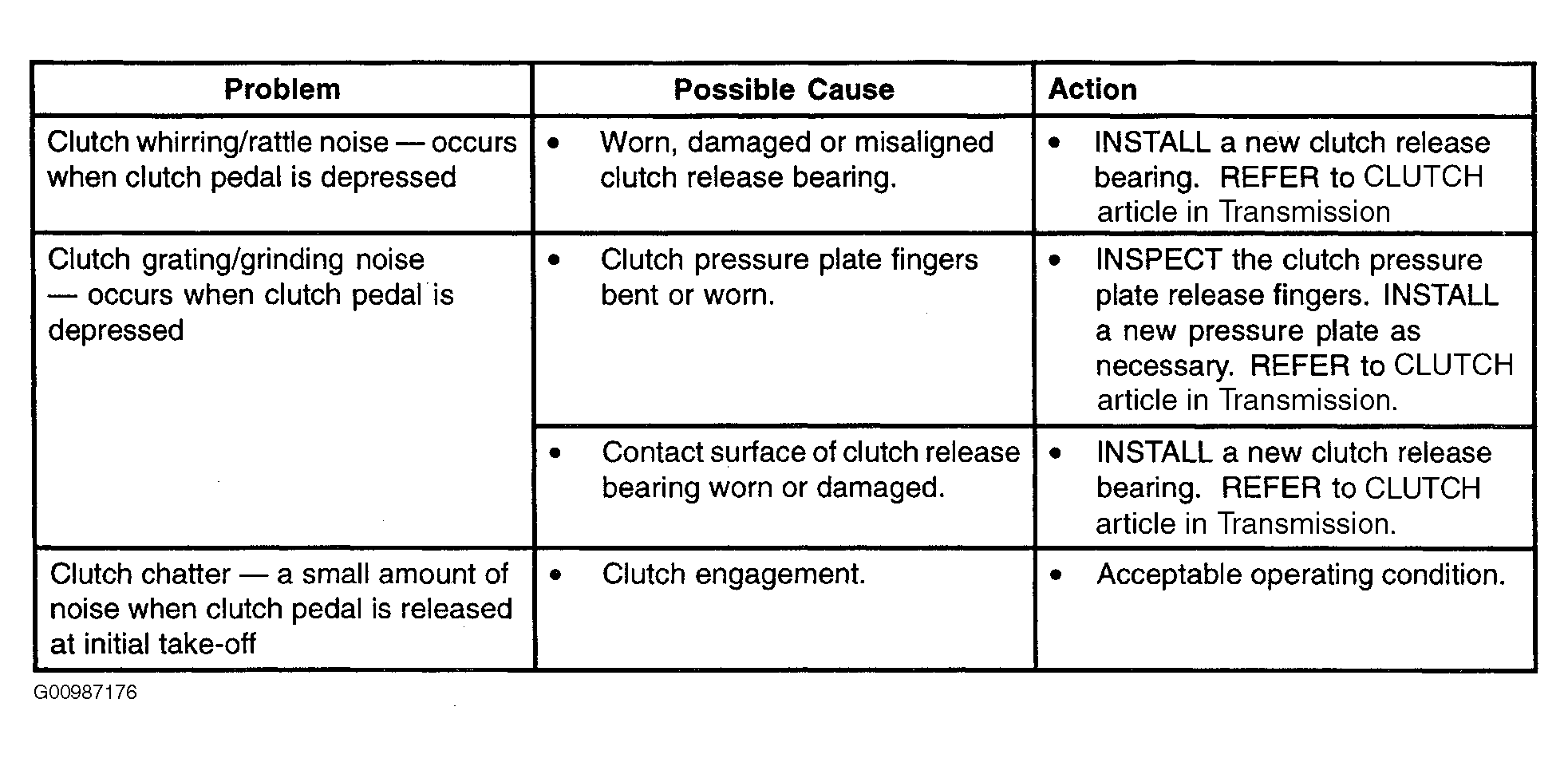

Fig 6: Symptom Troubleshooting Chart - Transaxle (Manual) & Power Take Off Unit Noise/Vibration (6 Of 6)

Courtesy of MAZDA MOTORS CORP.
