Symptom Troubleshooting Chart - Transaxle (Automatic) Noise/Vibration

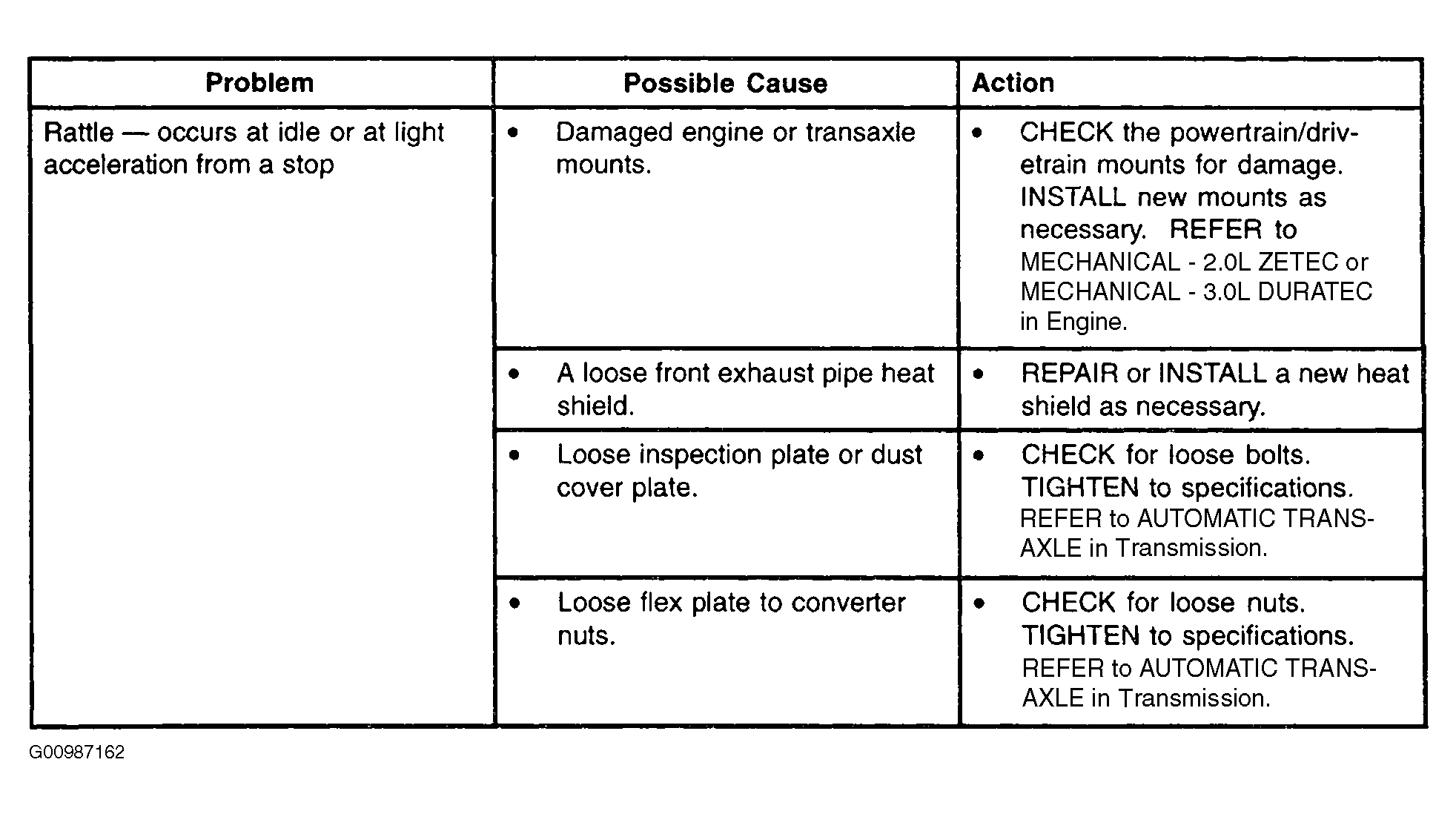

Fig 1: Symptom Troubleshooting Chart - Transaxle (Automatic) Noise/Vibration (1 Of 5)
G00987162Courtesy of MAZDA MOTORS CORP.

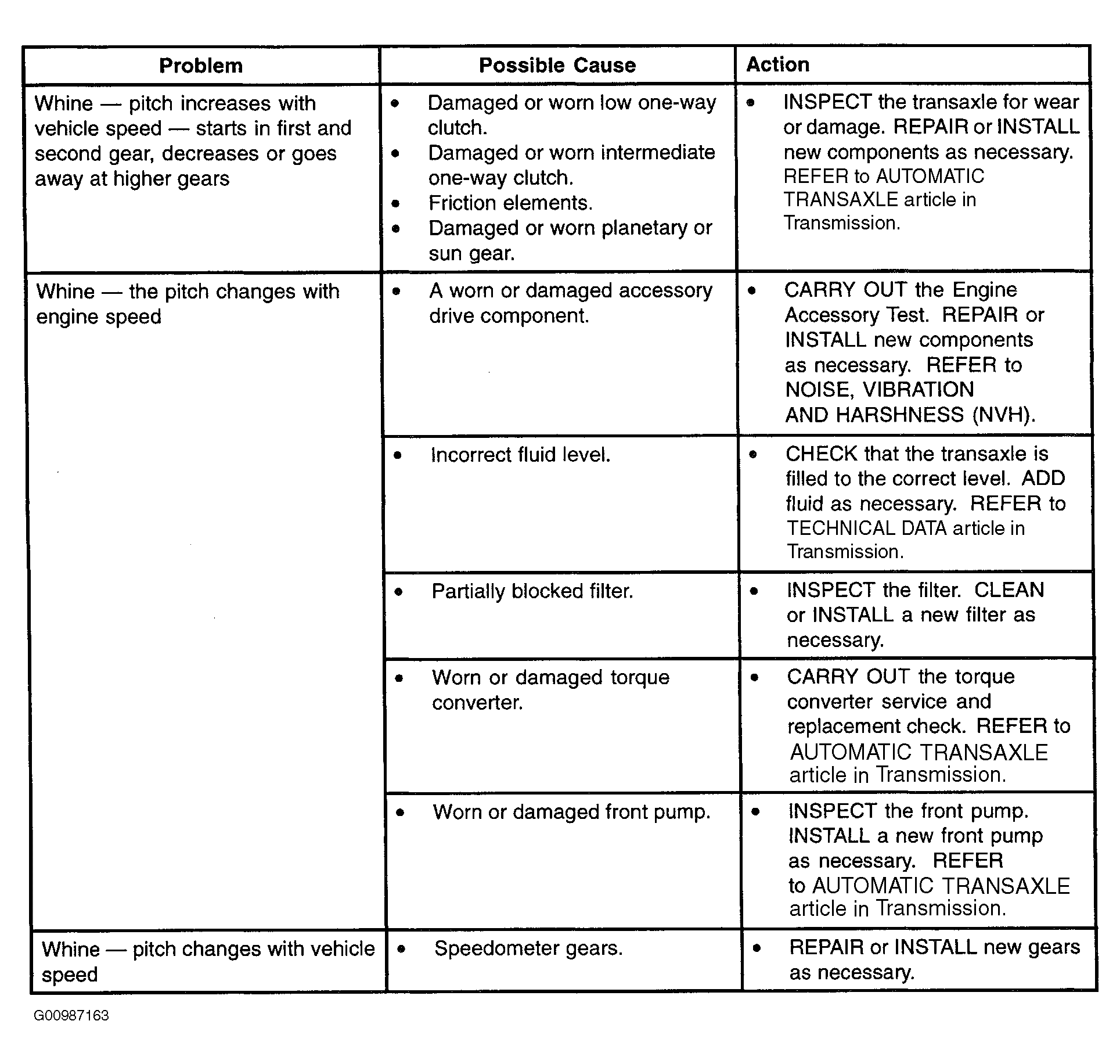

Fig 2: Symptom Troubleshooting Chart - Transaxle (Automatic) Noise/Vibration (2 Of 5)
G00987163Courtesy of MAZDA MOTORS CORP.

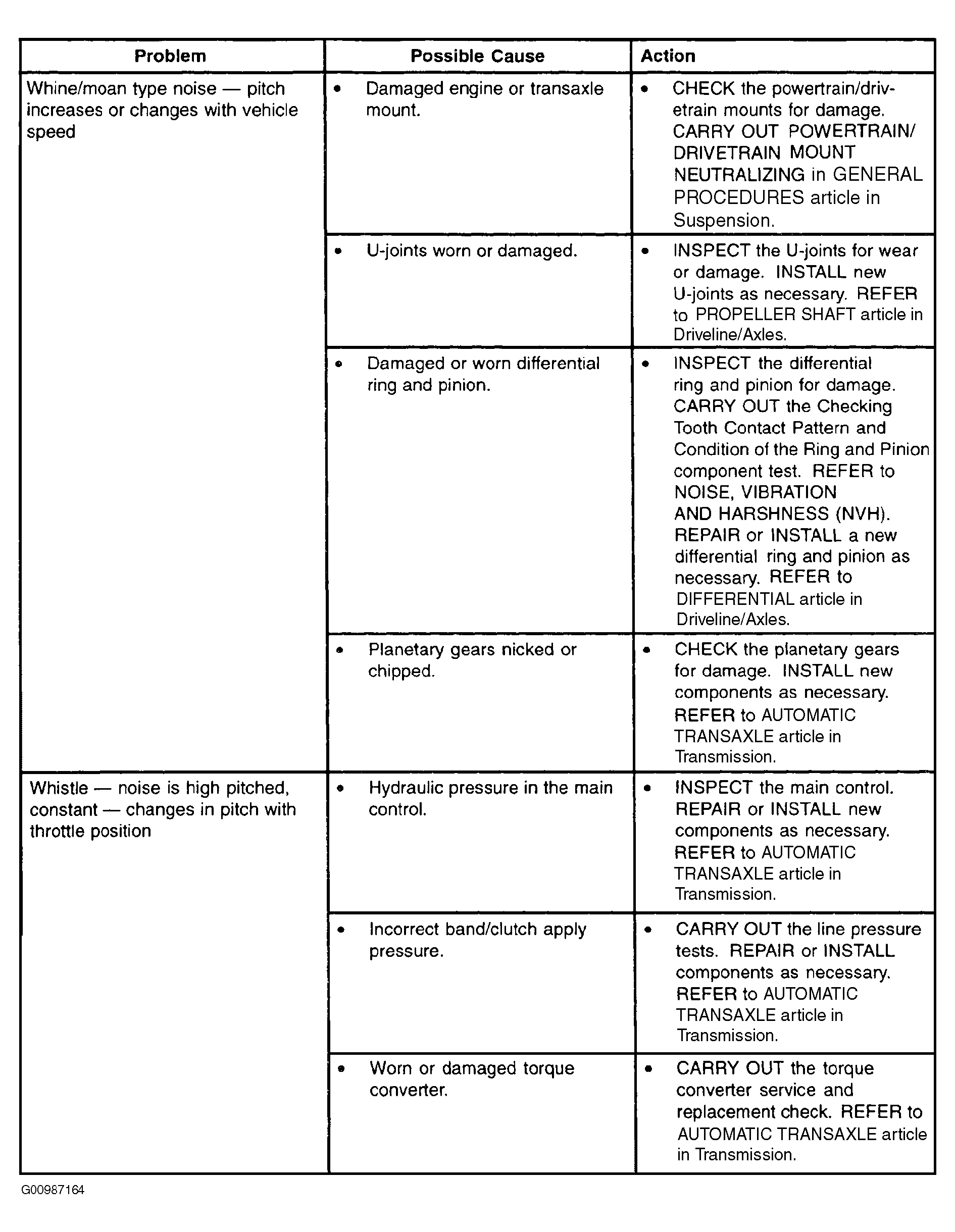

Fig 3: Symptom Troubleshooting Chart - Transaxle (Automatic) Noise/Vibration (3 Of 5)
G00987164Courtesy of MAZDA MOTORS CORP.

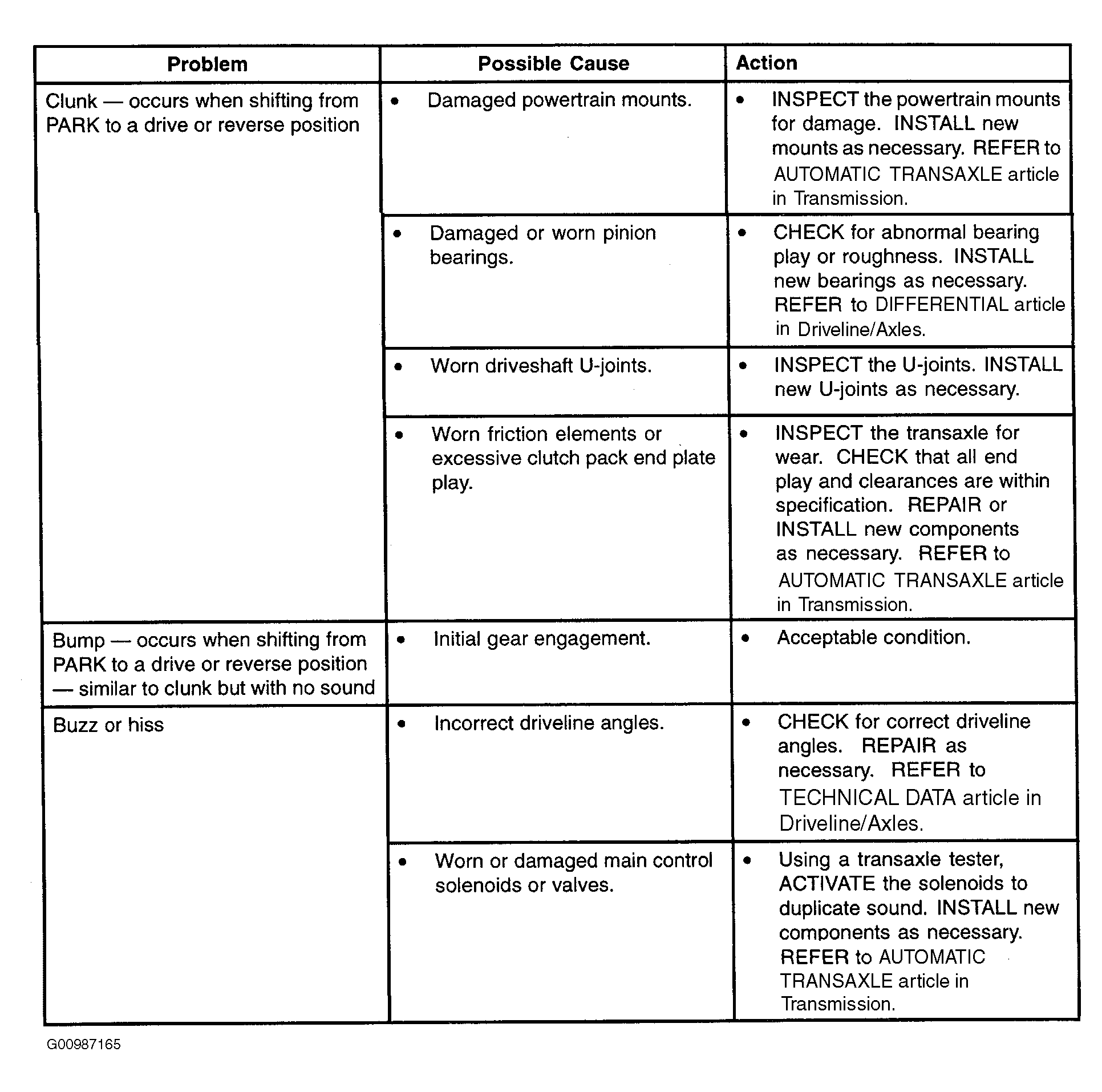

Fig 4: Symptom Troubleshooting Chart - Transaxle (Automatic) Noise/Vibration (4 Of 5)
G00987165Courtesy of MAZDA MOTORS CORP.

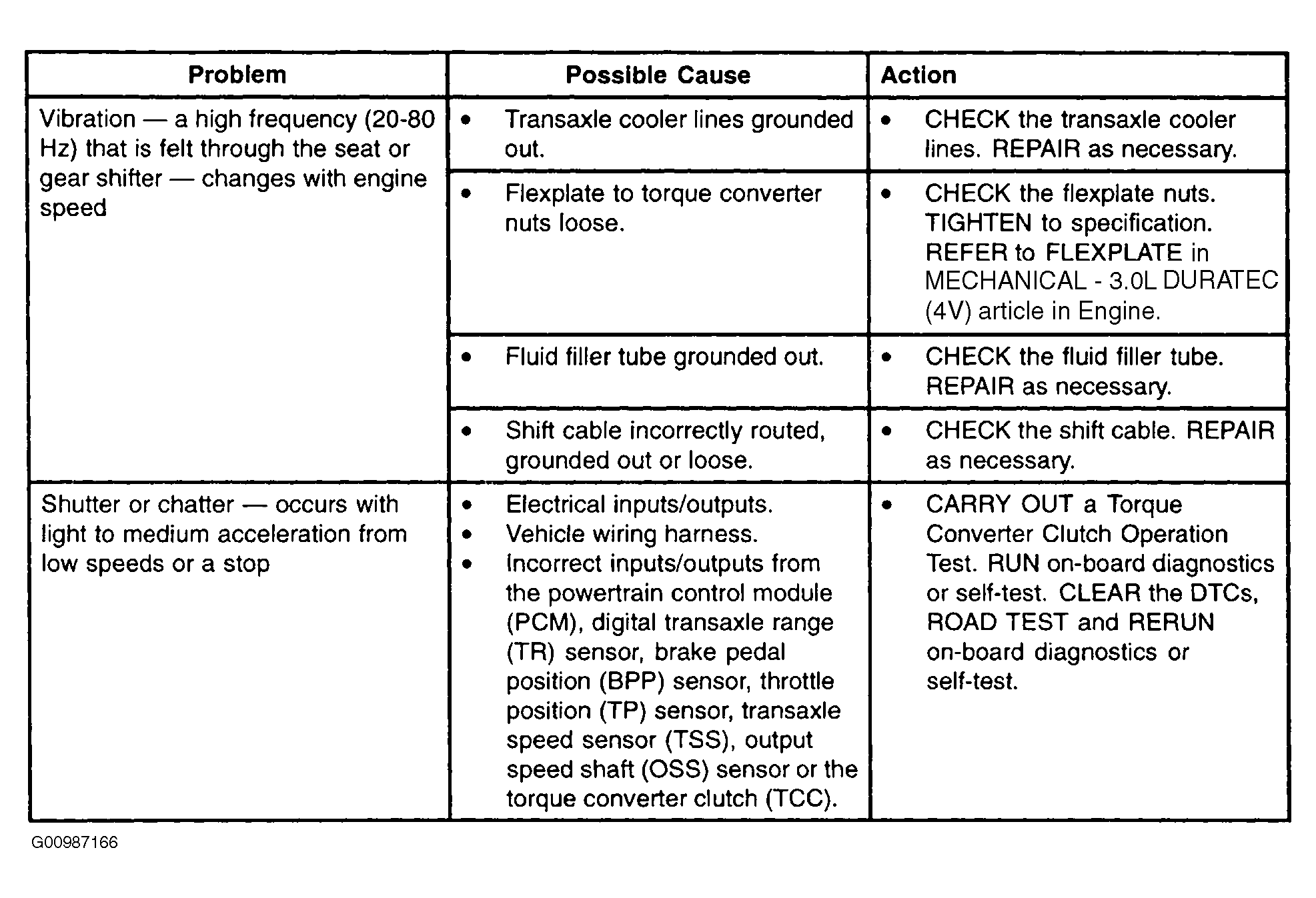

Fig 5: Symptom Troubleshooting Chart - Transaxle (Automatic) Noise/Vibration (5 Of 5)
G00987166Courtesy of MAZDA MOTORS CORP.
