Repair and Diagnosis
>>
Suspension
>>
Rear Suspension System
>>
Symptom Troubleshooting
>>
Symptom Troubleshooting Chart - Tire Noise/Vibration
>>
Pinpoint Test 2: Wheel & Tire
Pinpoint Test 2: Wheel & Tire

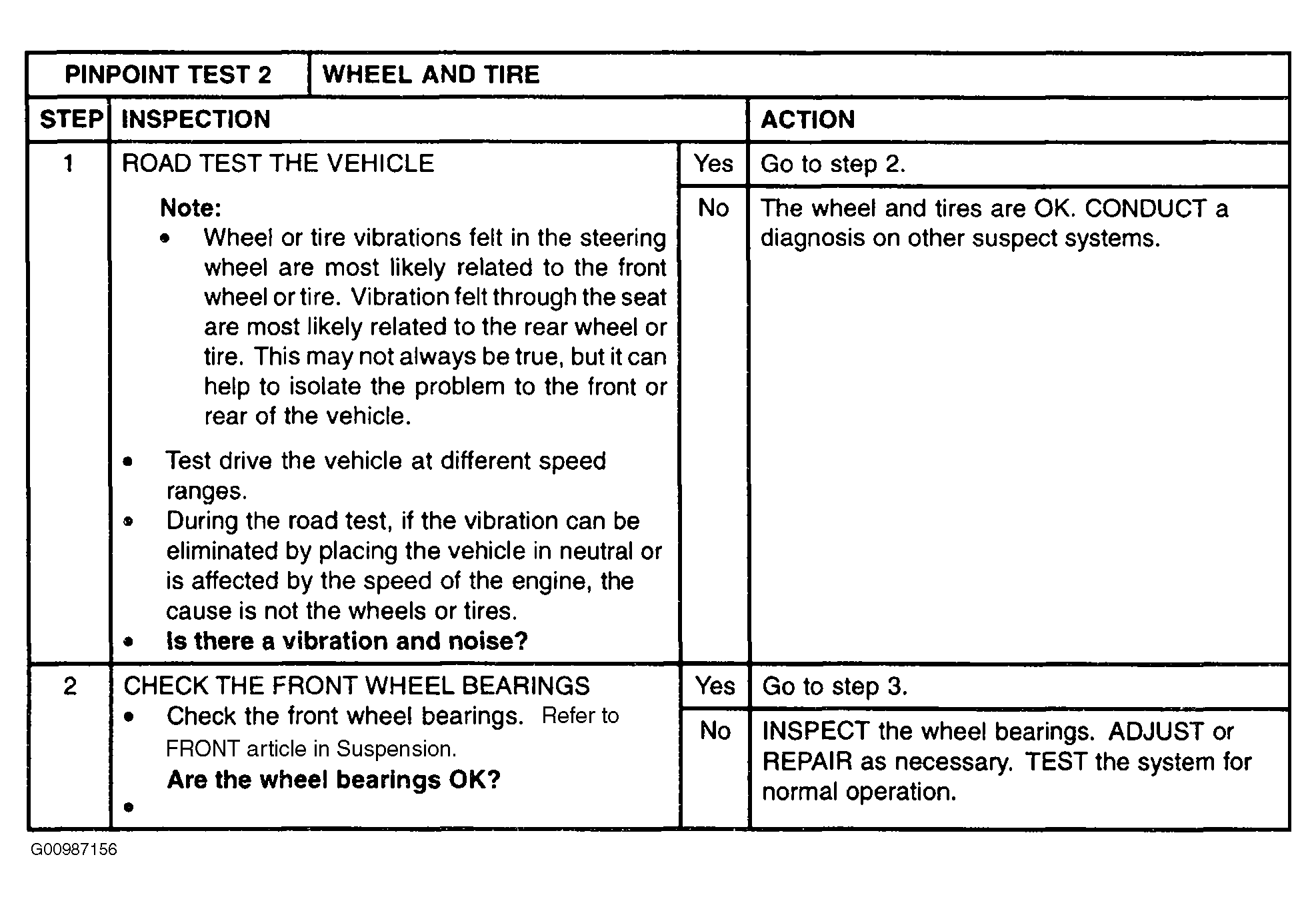

Fig 1: Pinpoint Test 2: Wheel & Tire (1 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Pinpoint Test 2: Wheel & Tire (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

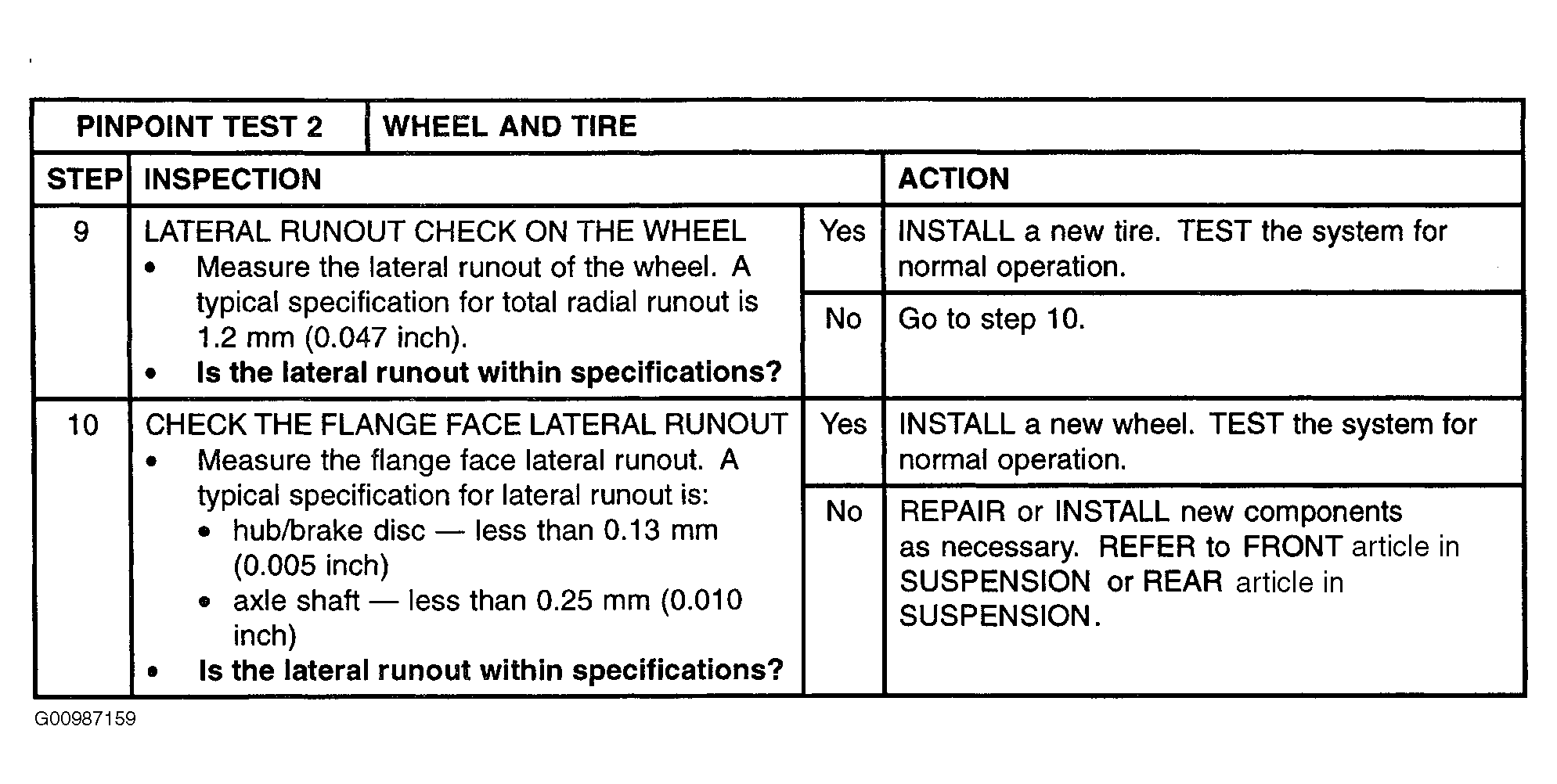

Fig 3: Pinpoint Test 2: Wheel & Tire (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Pinpoint Test 2: Wheel & Tire (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
