Symptom Troubleshooting Chart - Tire Noise/Vibration: Notes

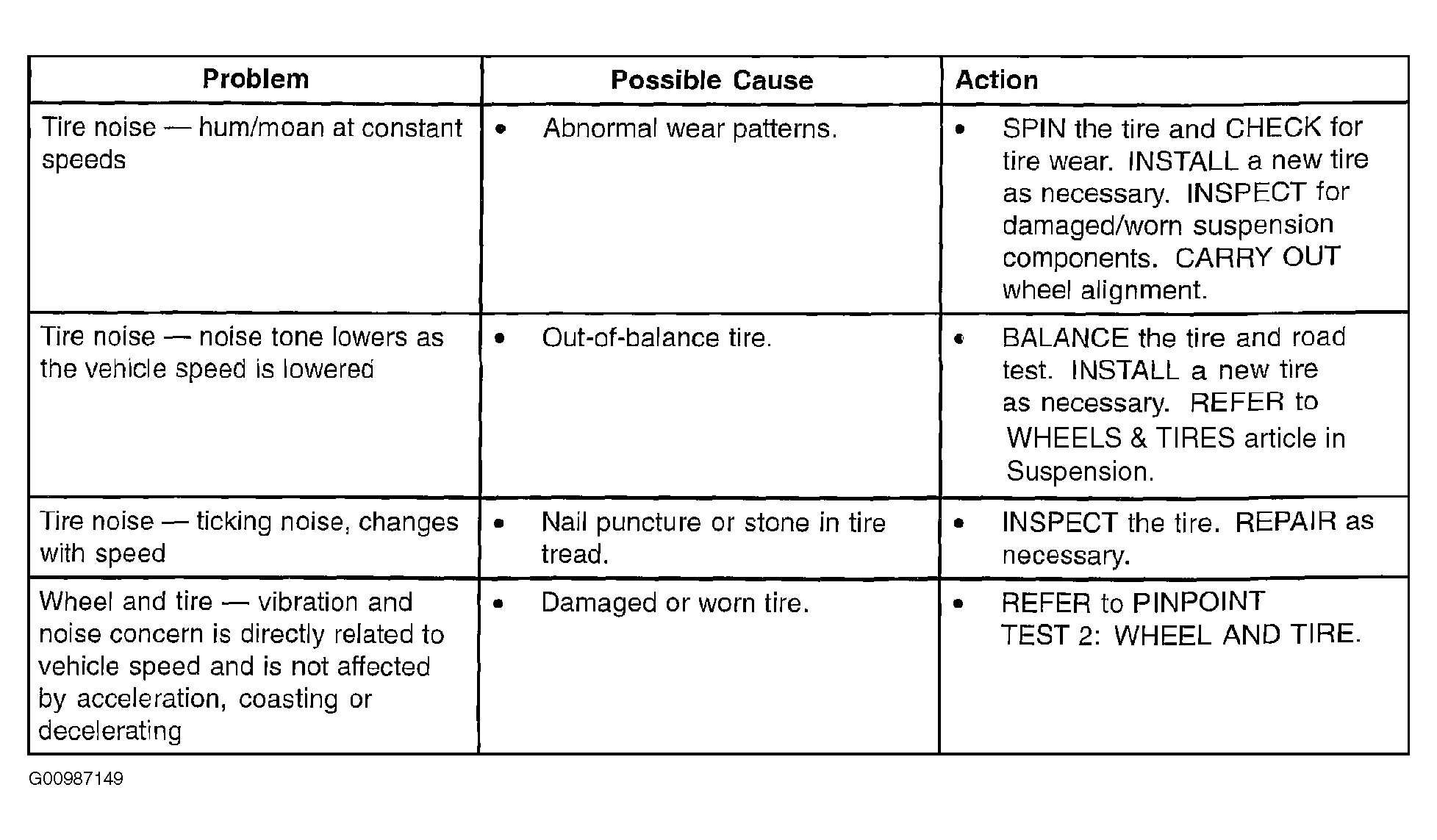

Fig 1: Symptom Troubleshooting Chart - Tire Noise/Vibration (1 Of 3)
G00987149Courtesy of MAZDA MOTORS CORP.

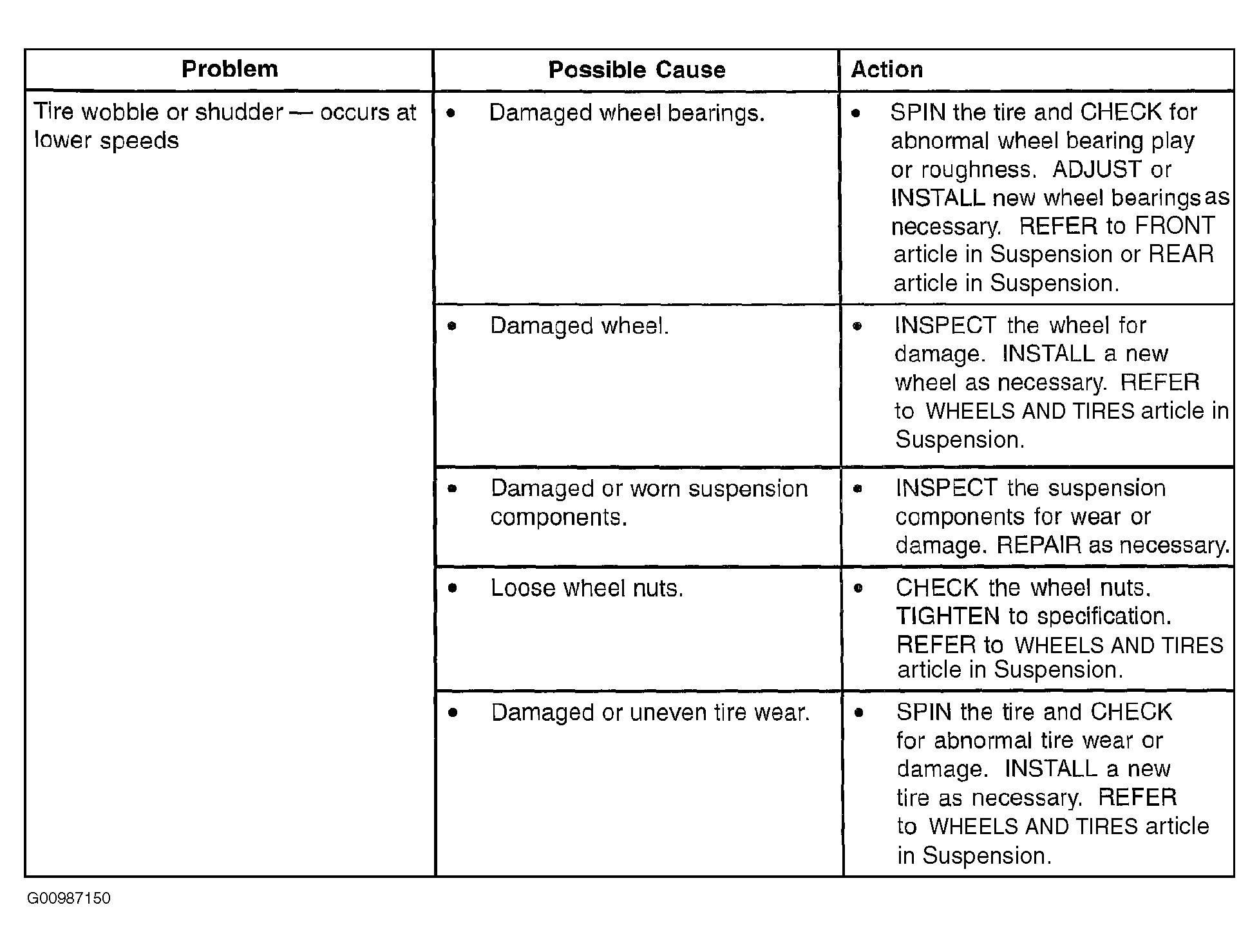

Fig 2: Symptom Troubleshooting Chart - Tire Noise/Vibration (2 Of 3)
G00987150Courtesy of MAZDA MOTORS CORP.

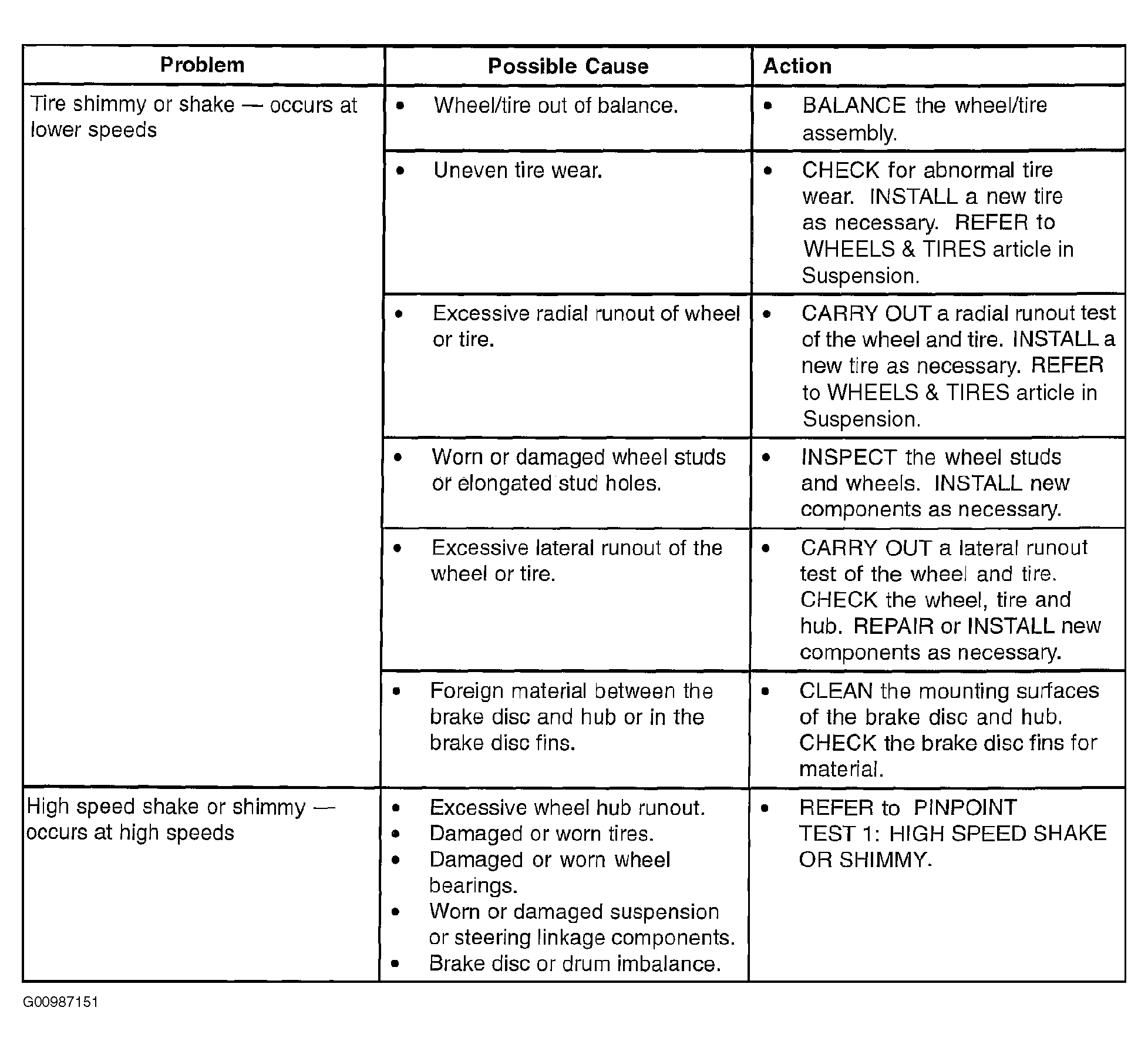

Fig 3: Symptom Troubleshooting Chart - Tire Noise/Vibration (3 Of 3)
G00987151Courtesy of MAZDA MOTORS CORP.
