Pinpoint Test 1: Front Suspension Noise

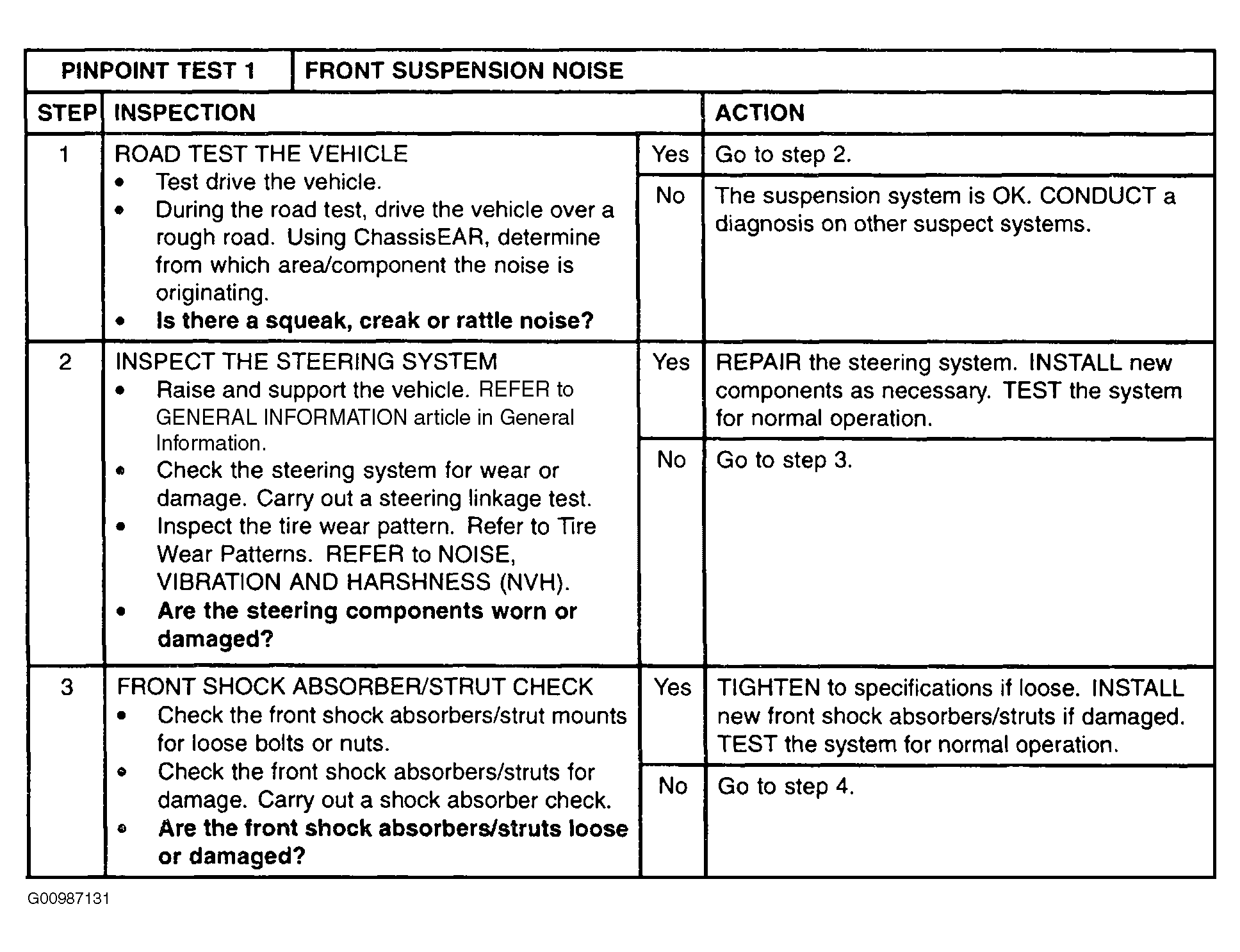

Fig 1: Pinpoint Test 1: Front Suspension Noise (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

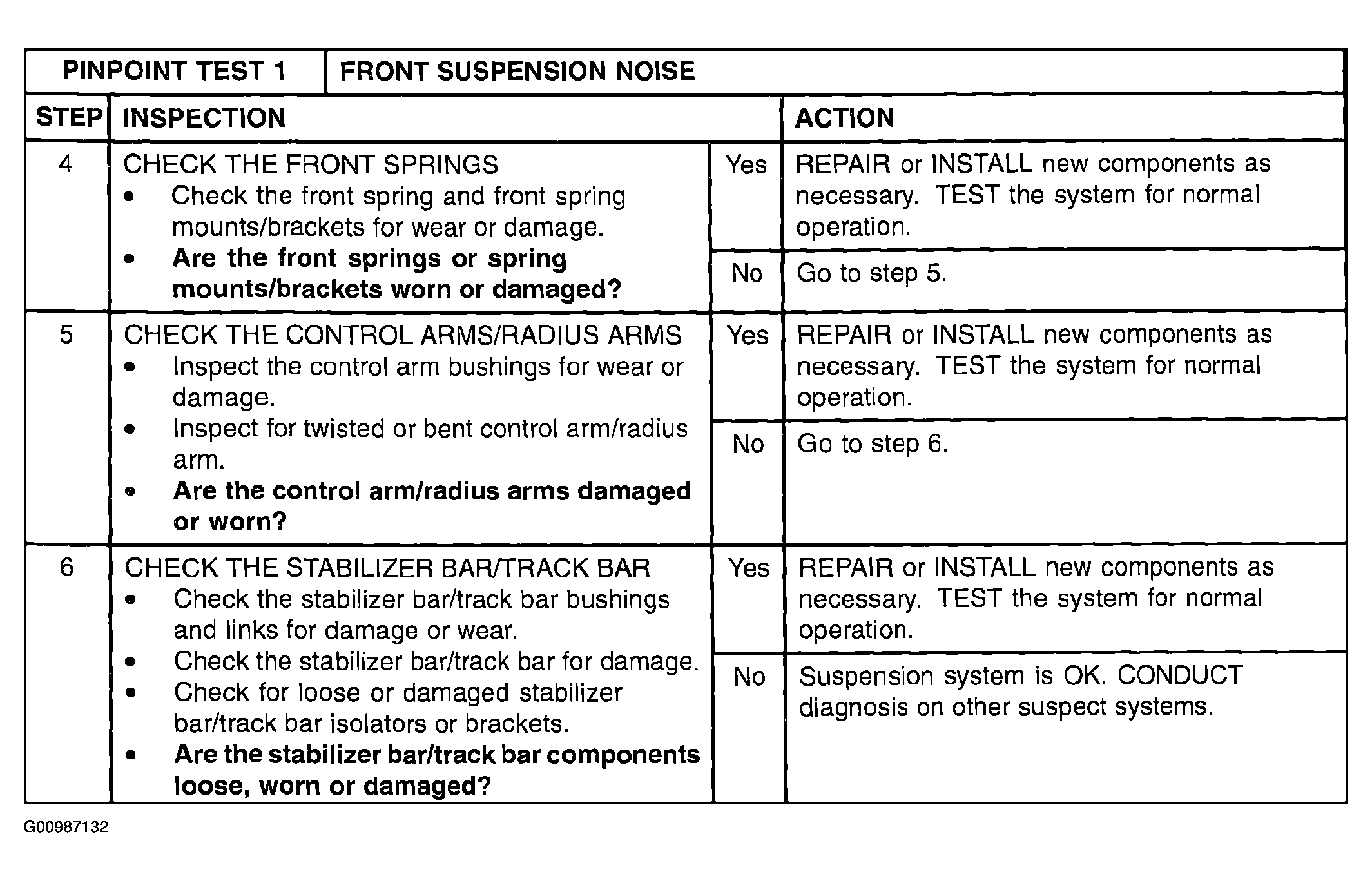

Fig 2: Pinpoint Test 1: Front Suspension Noise (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
