Symptom Troubleshooting Chart - Suspension Noise/Vibration: Notes

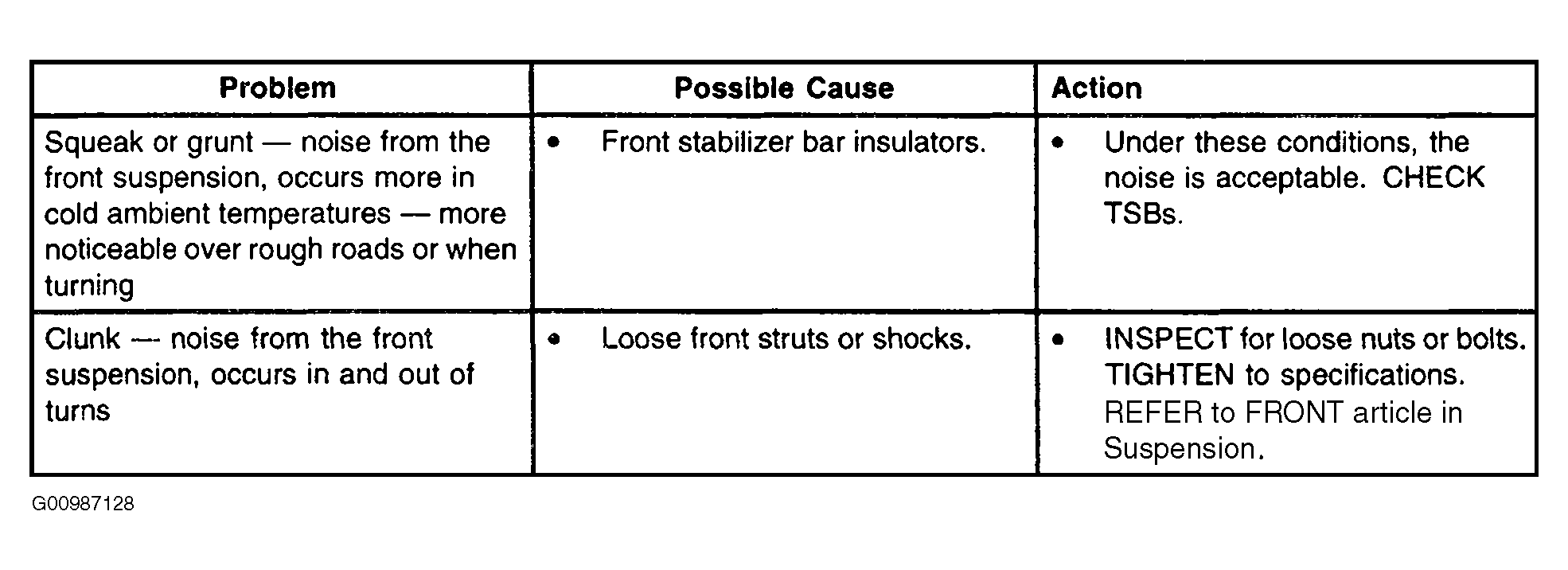

Fig 1: Symptom Troubleshooting Chart - Suspension Noise/Vibration (1 Of 3)
G00987128Courtesy of MAZDA MOTORS CORP.

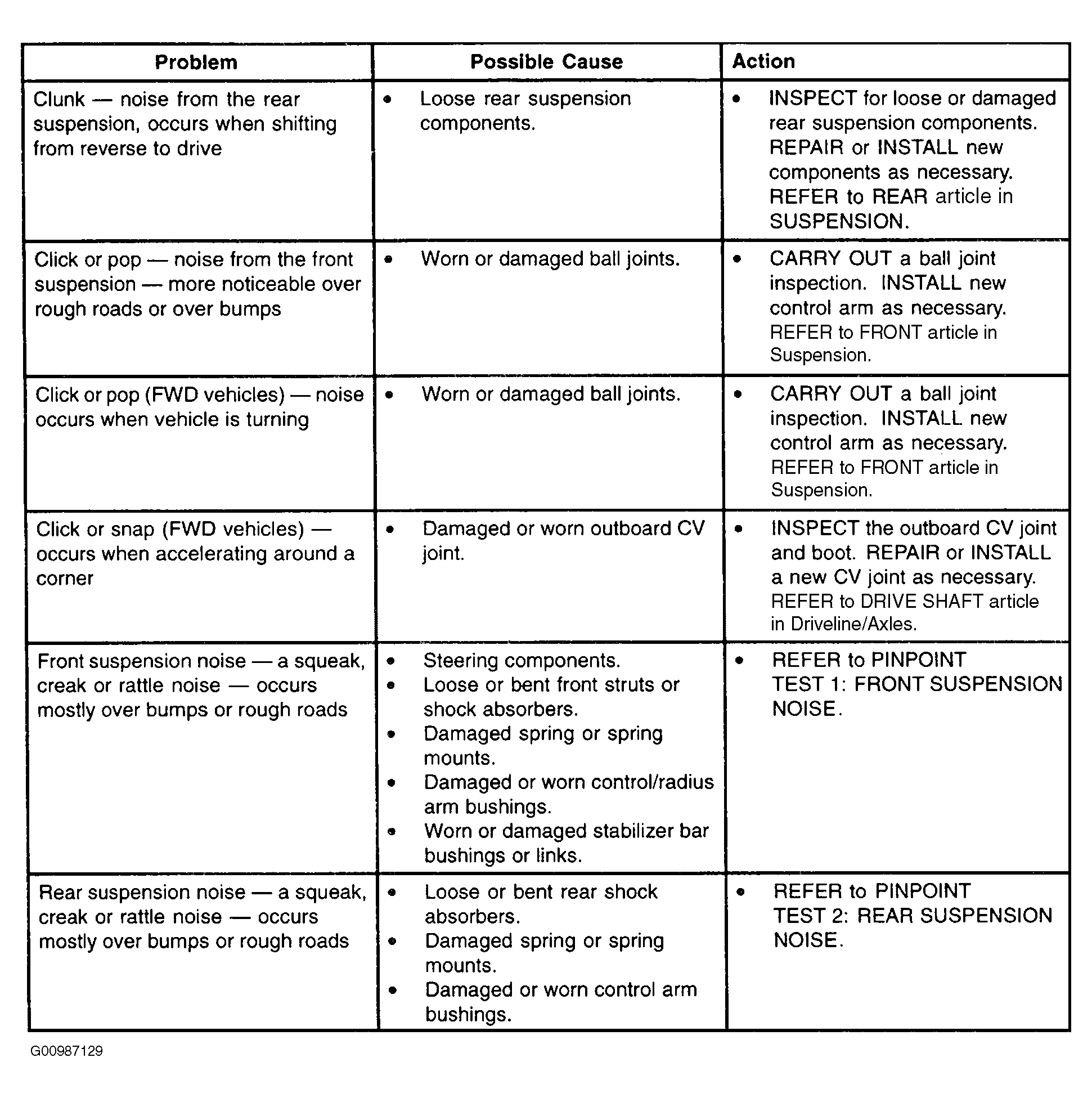

Fig 2: Symptom Troubleshooting Chart - Suspension Noise/Vibration (2 Of 3)
G00987129Courtesy of MAZDA MOTORS CORP.

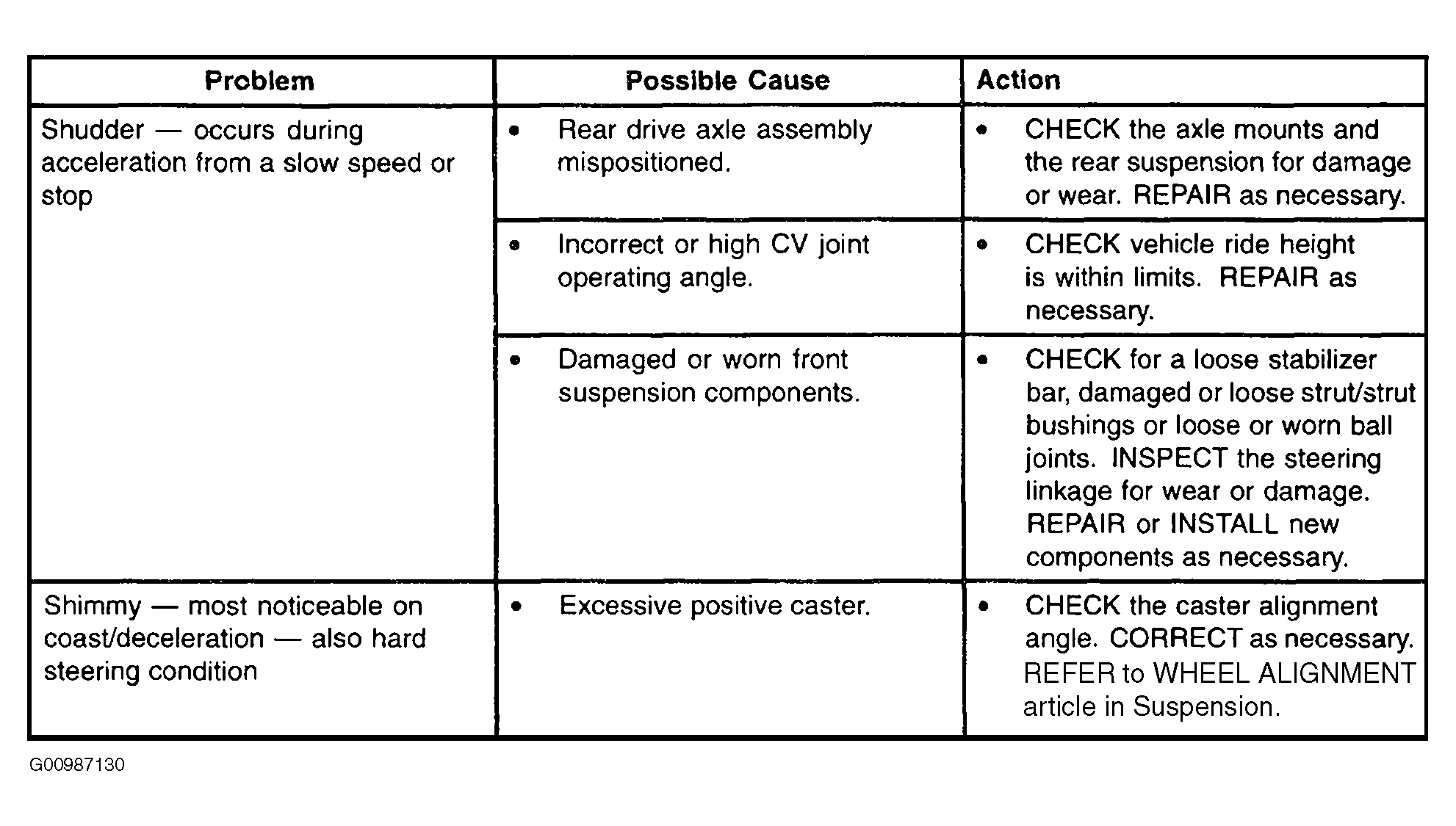

Fig 3: Symptom Troubleshooting Chart - Suspension Noise/Vibration (3 Of 3)
G00987130Courtesy of MAZDA MOTORS CORP.
