Symptom Troubleshooting Chart - Squeak & Rattle
Symptom Troubleshooting Chart - Squeak & Rattle

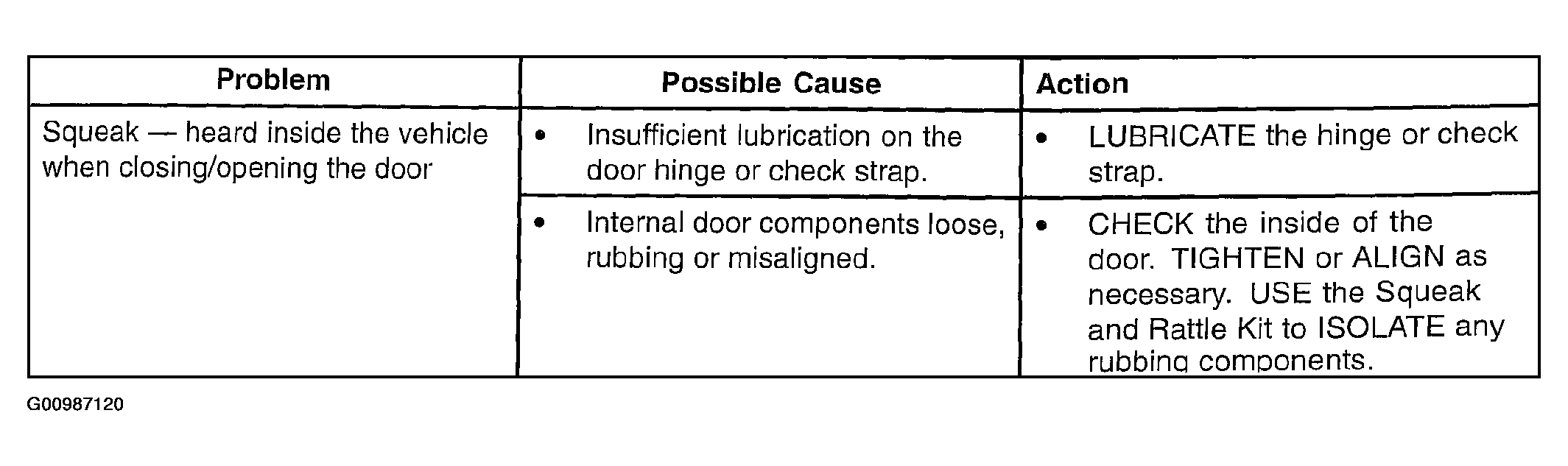

Fig 1: Symptom Troubleshooting Chart - Squeak & Rattle (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

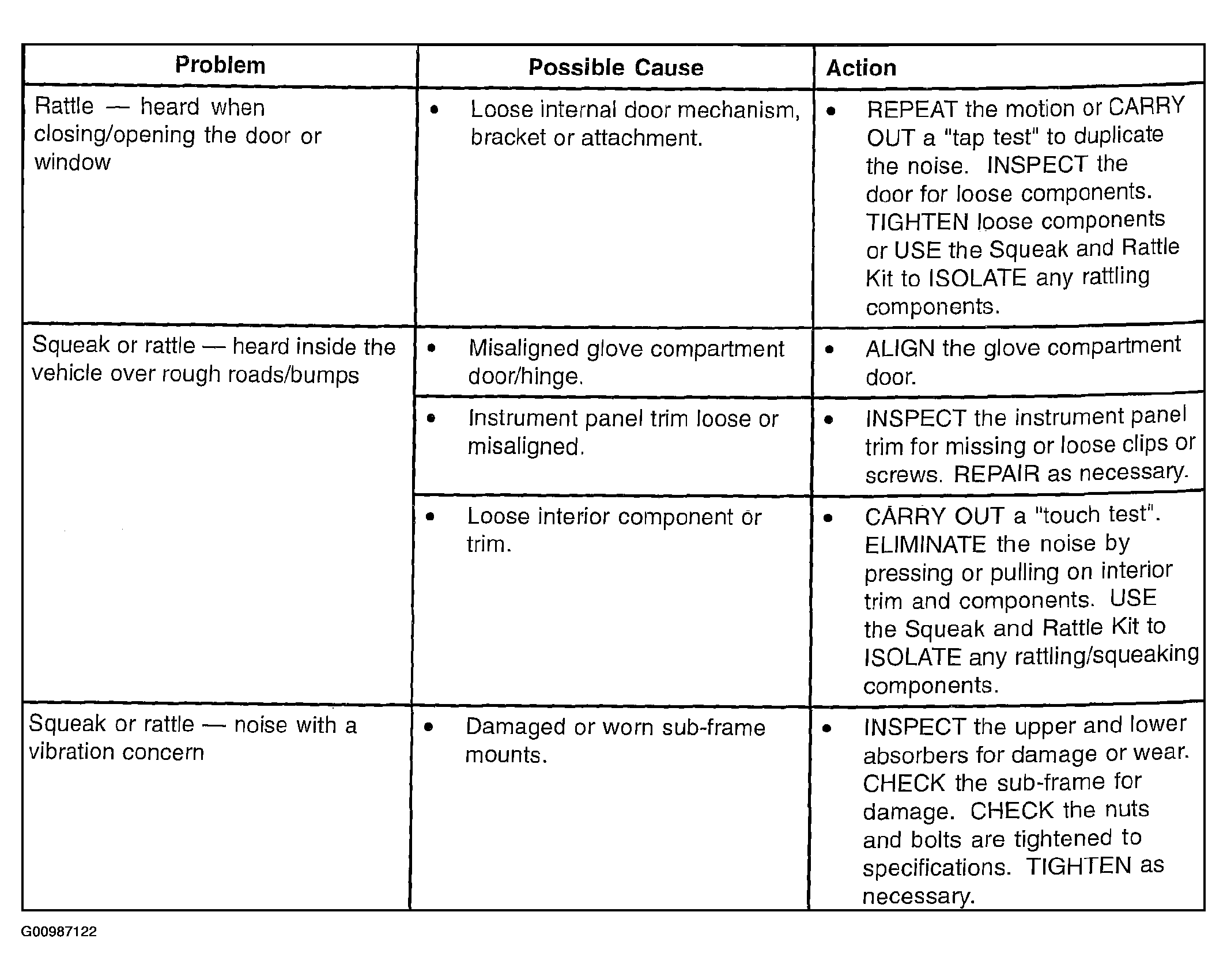

Fig 2: Symptom Troubleshooting Chart - Squeak & Rattle (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

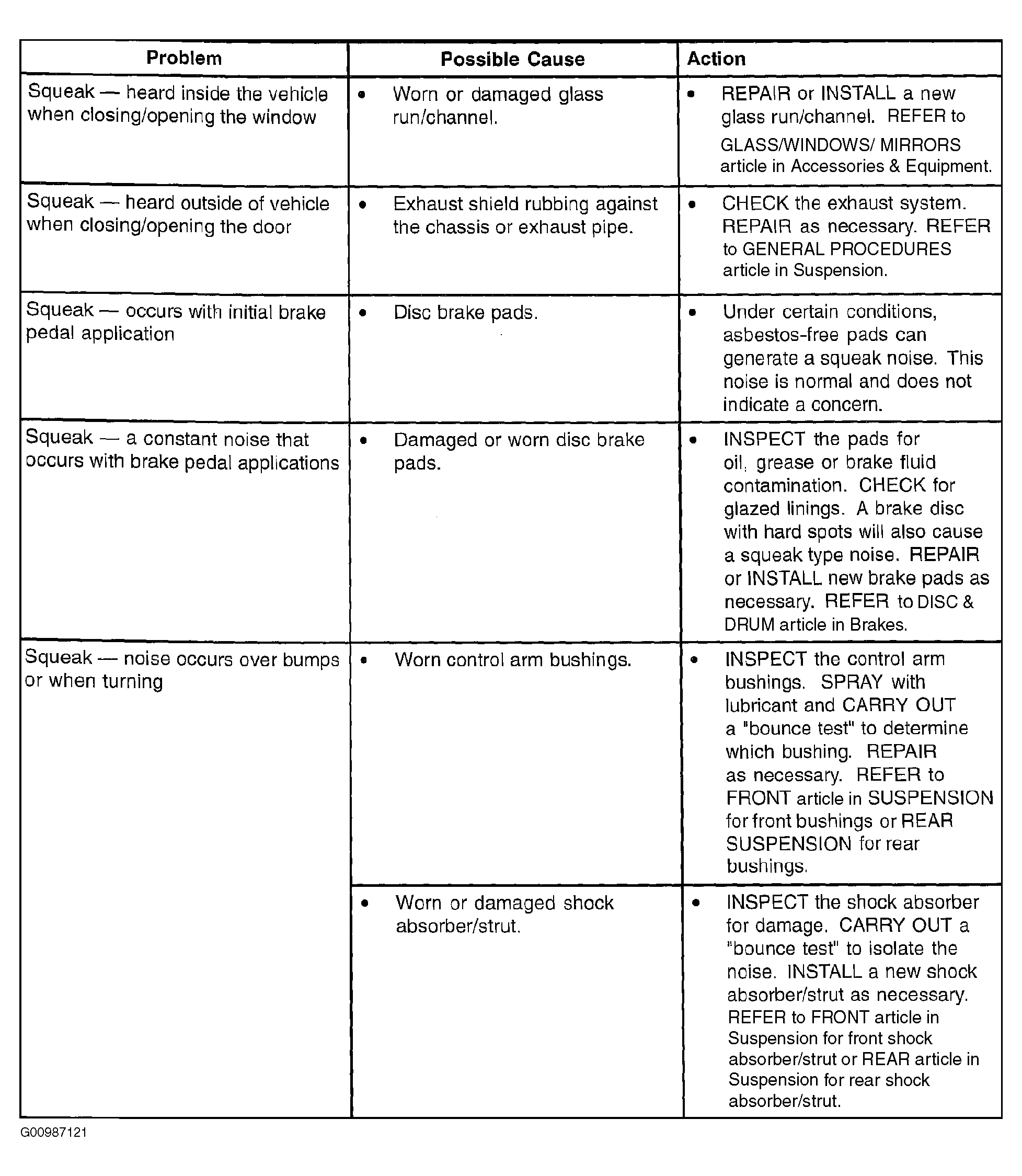

Fig 3: Symptom Troubleshooting Chart - Squeak & Rattle (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
