Pinpoint Test 4: Engine Ticking, Knocking Or Continuous Rattle

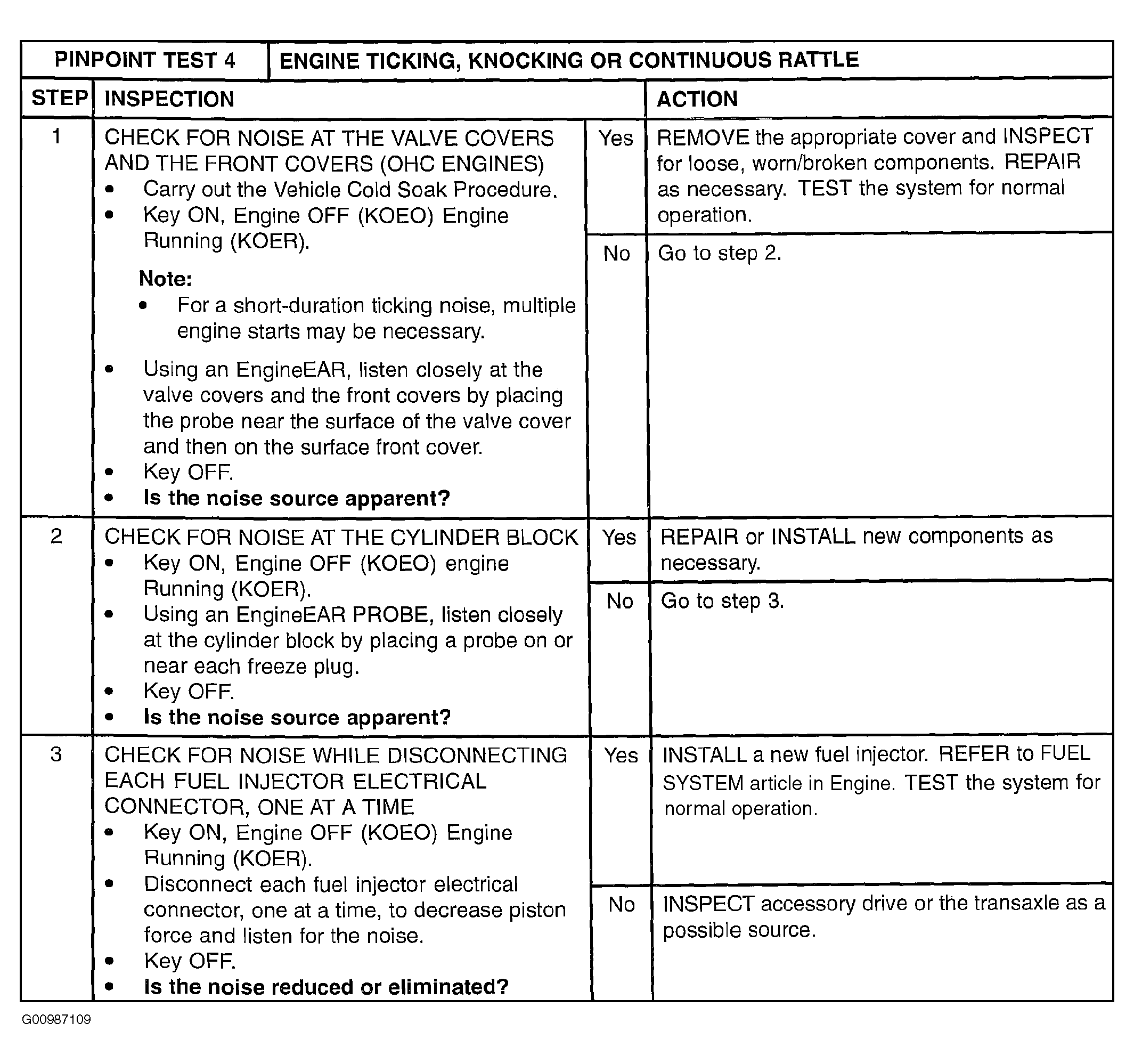

Fig 1: Pinpoint Test 4: Engine Ticking, Knocking Or Continuous Rattle
G00987109Courtesy of MAZDA MOTORS CORP.
