Symptom Troubleshooting Chart - Idle Noise/Vibration: Notes

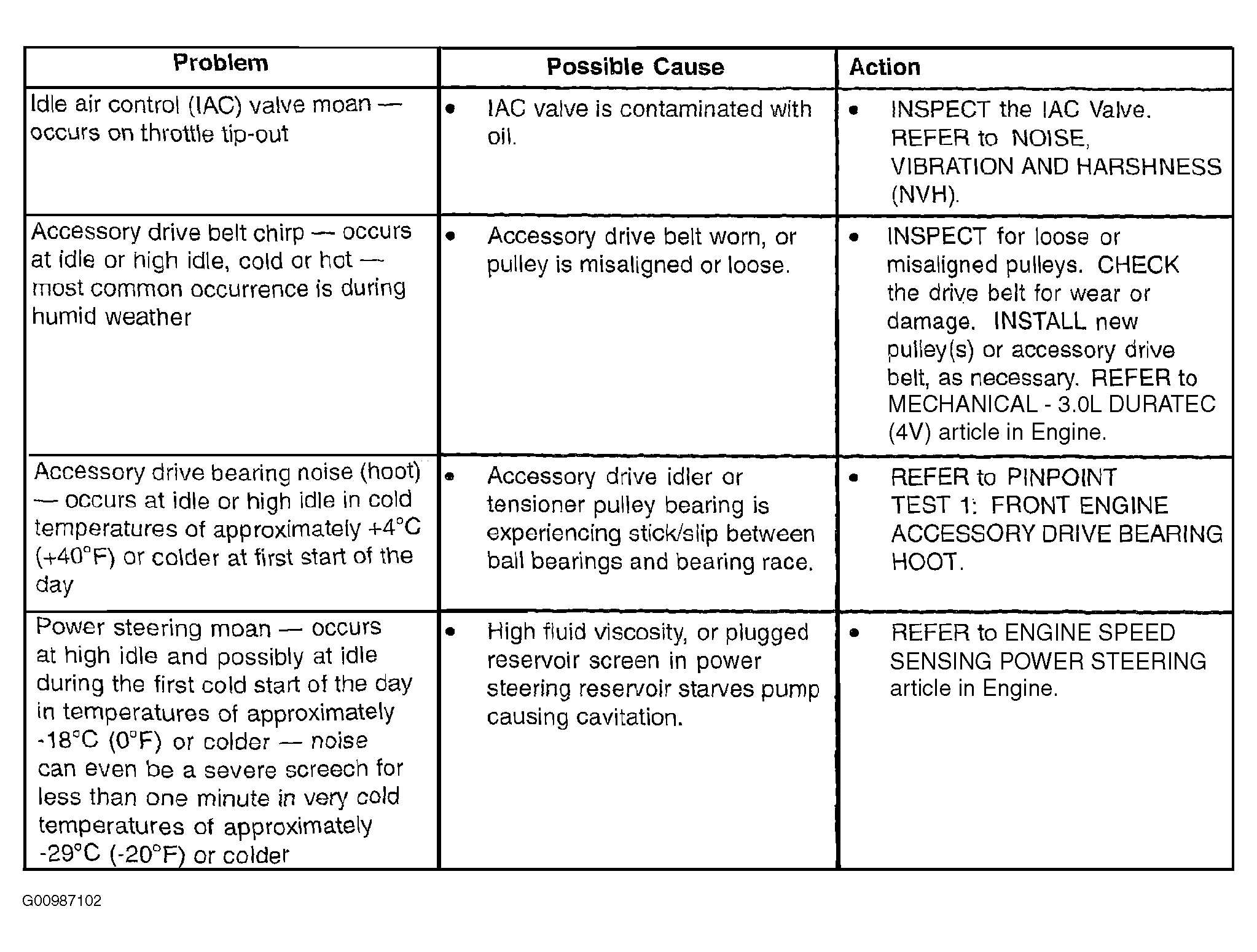

Fig 1: Symptom Troubleshooting Chart - Idle Noise/Vibration (1 Of 4)
G00987102Courtesy of MAZDA MOTORS CORP.

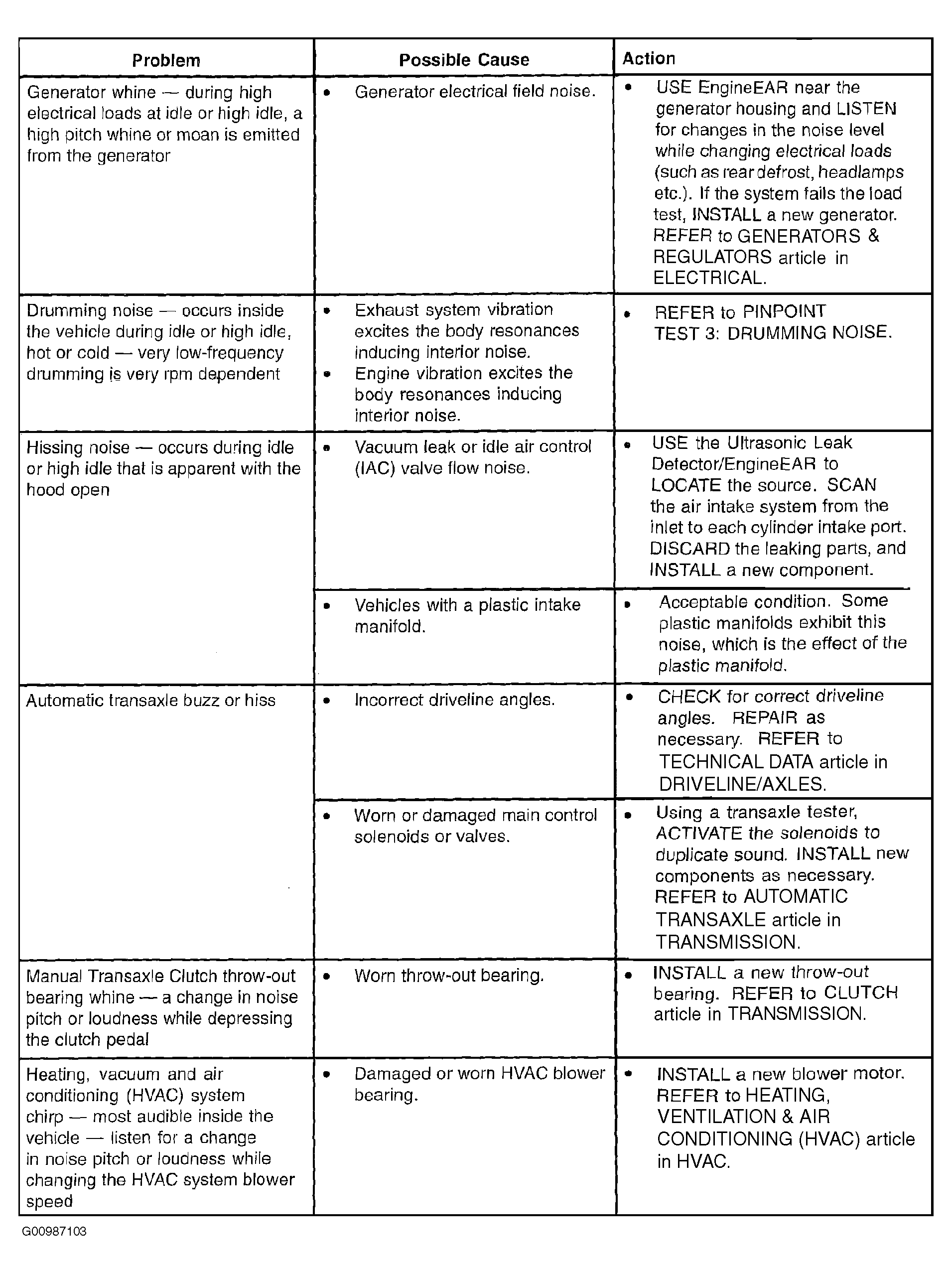

Fig 2: Symptom Troubleshooting Chart - Idle Noise/Vibration (2 Of 4)
G00987103Courtesy of MAZDA MOTORS CORP.

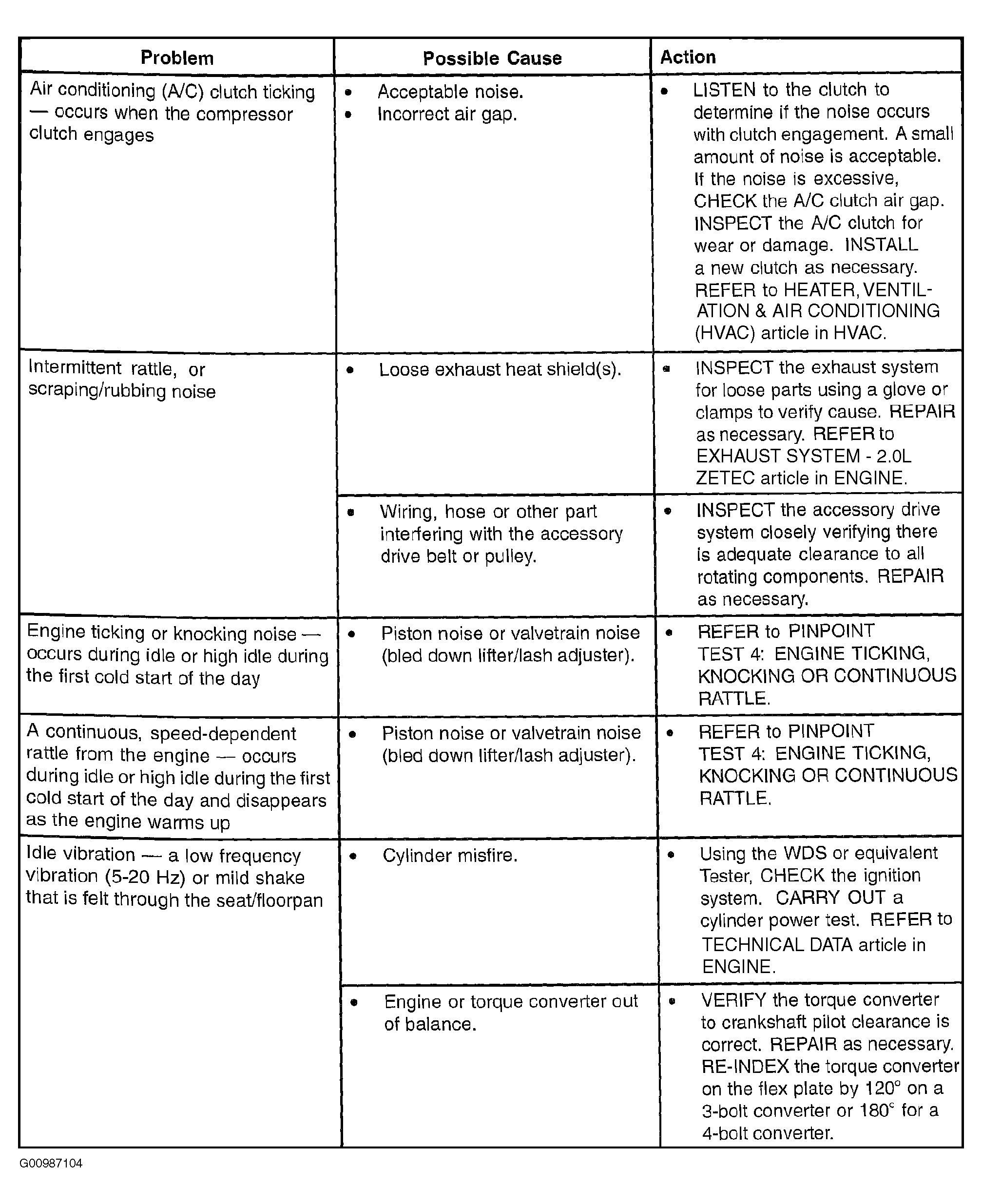

Fig 3: Symptom Troubleshooting Chart - Idle Noise/Vibration (3 Of 4)
G00987104Courtesy of MAZDA MOTORS CORP.

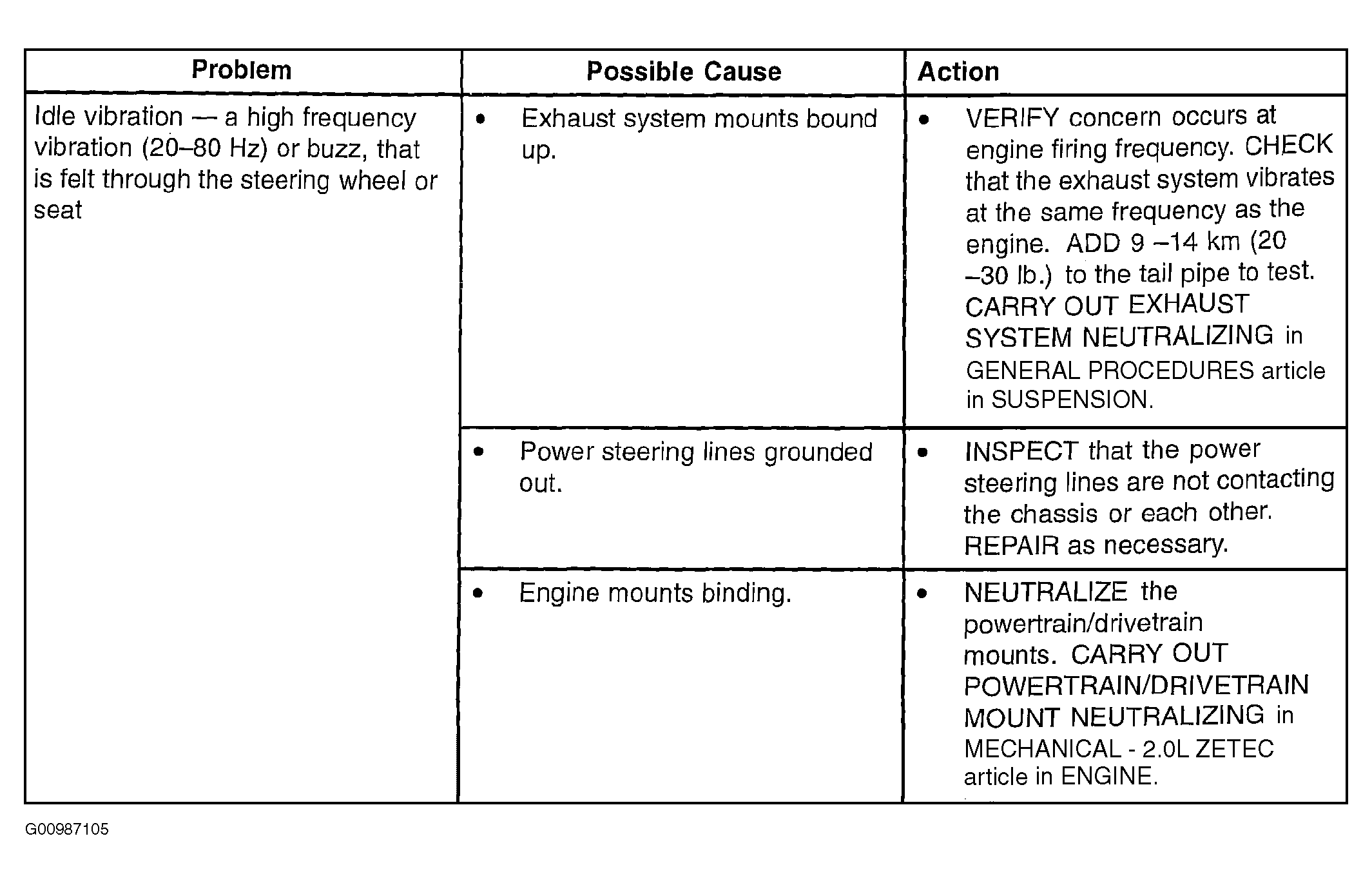

Fig 4: Symptom Troubleshooting Chart - Idle Noise/Vibration (4 Of 4)
G00987105Courtesy of MAZDA MOTORS CORP.
