Symptom Troubleshooting Chart - Engine Noise/Vibration: Notes

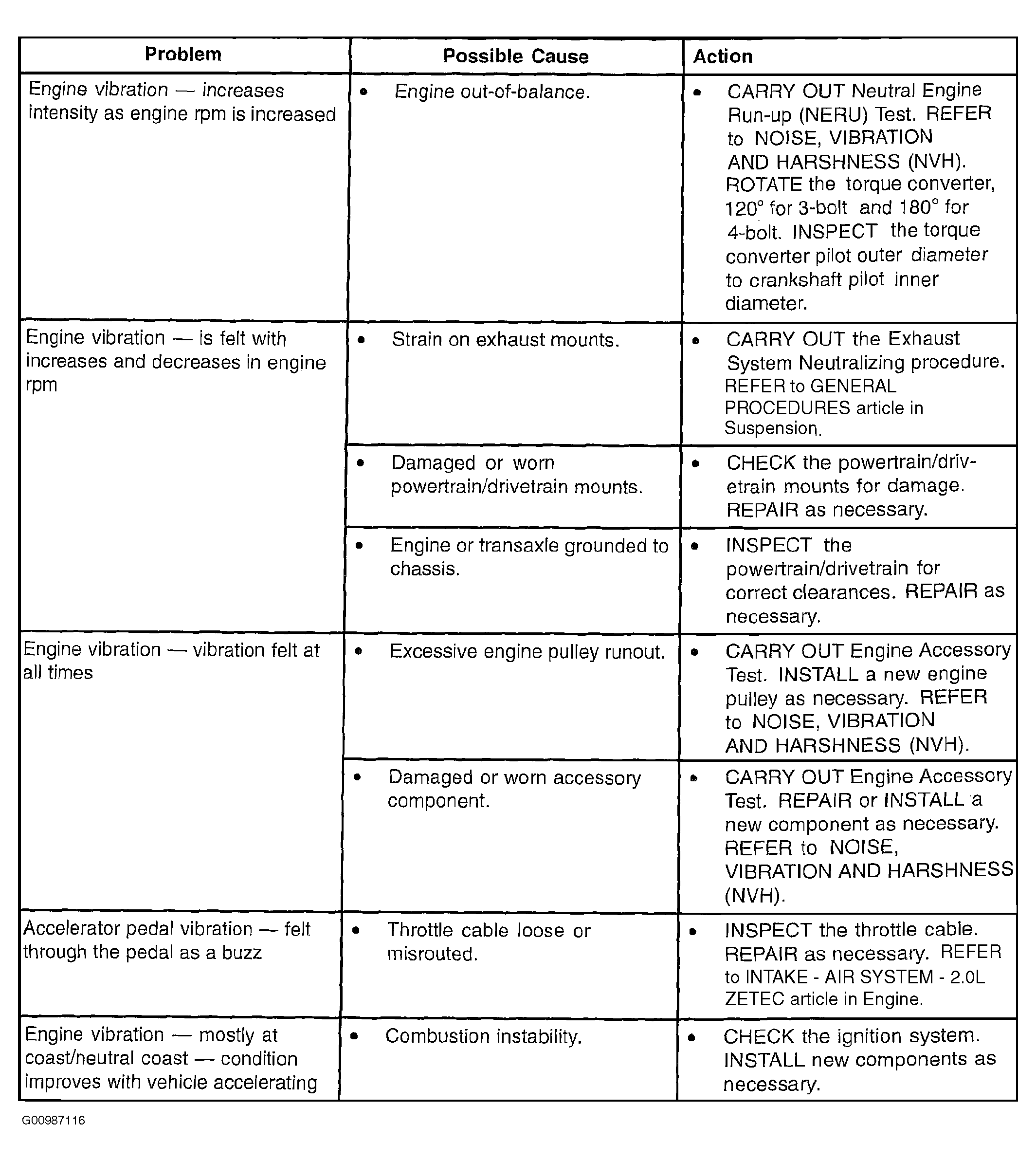

Fig 1: Symptom Troubleshooting Chart - Engine Noise/Vibration (1 Of 8)

Courtesy of MAZDA MOTORS CORP.

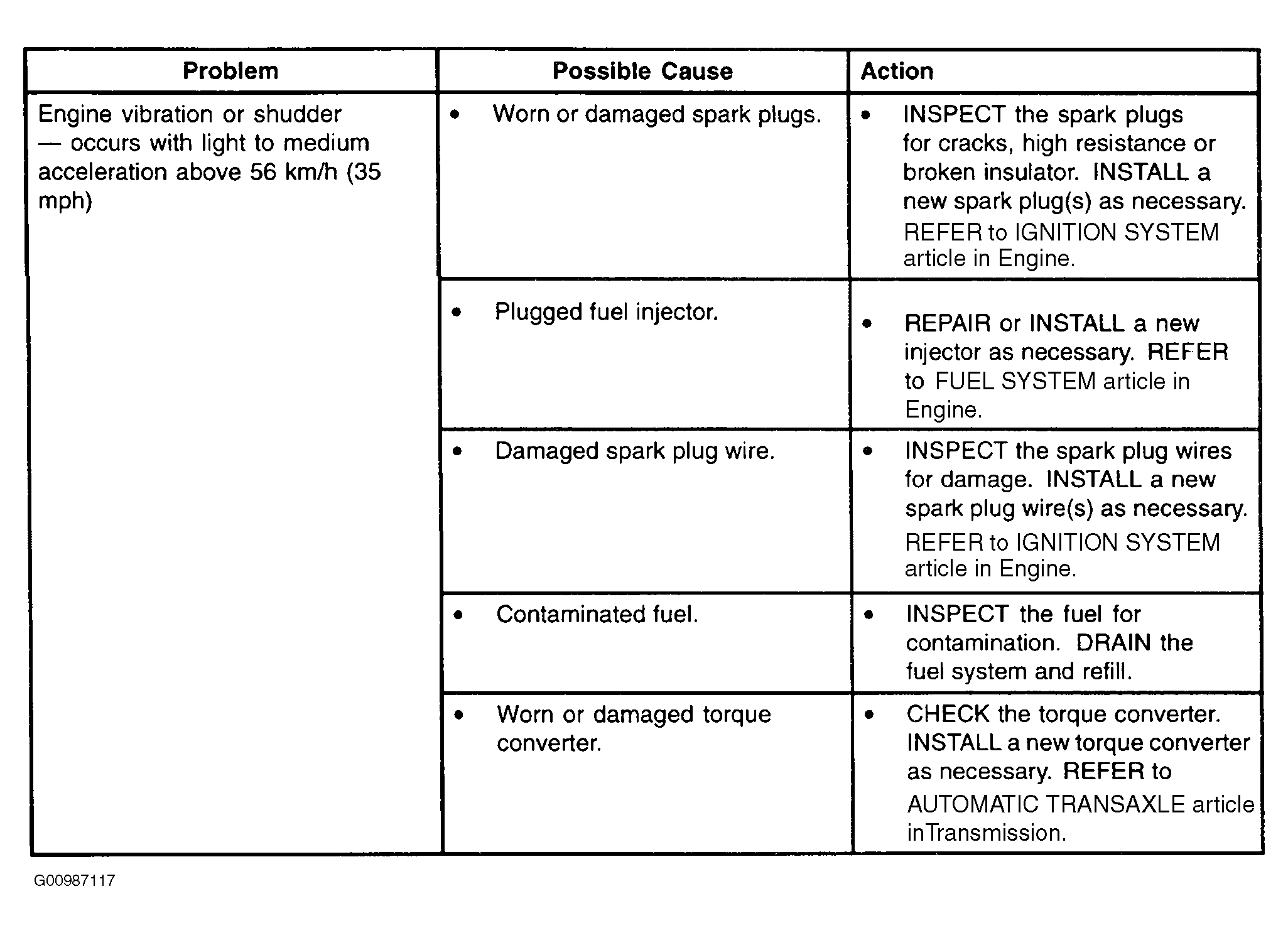

Fig 2: Symptom Troubleshooting Chart - Engine Noise/Vibration (2 Of 8)

Courtesy of MAZDA MOTORS CORP.

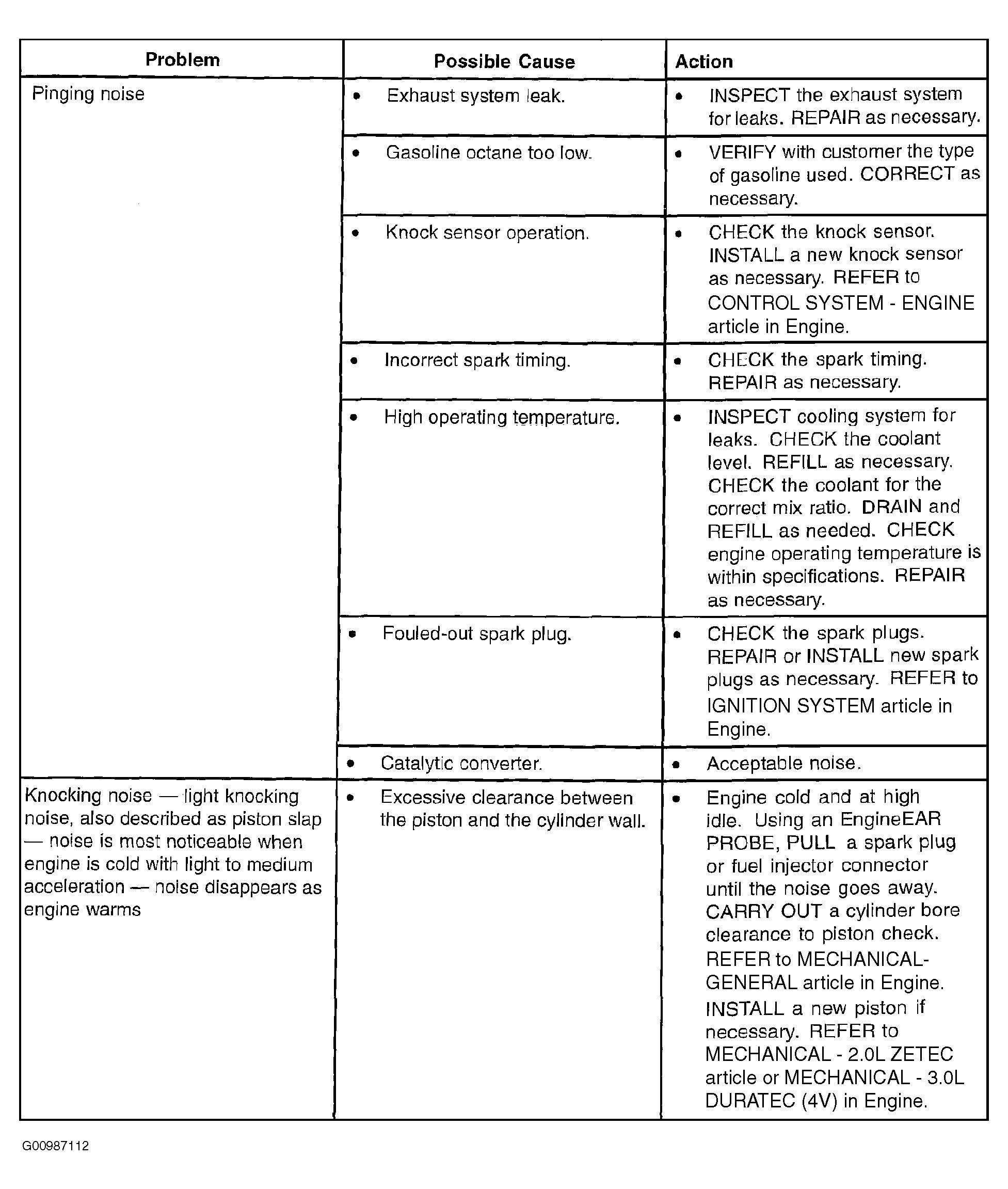

Fig 3: Symptom Troubleshooting Chart - Engine Noise/Vibration (3 Of 8)

Courtesy of MAZDA MOTORS CORP.

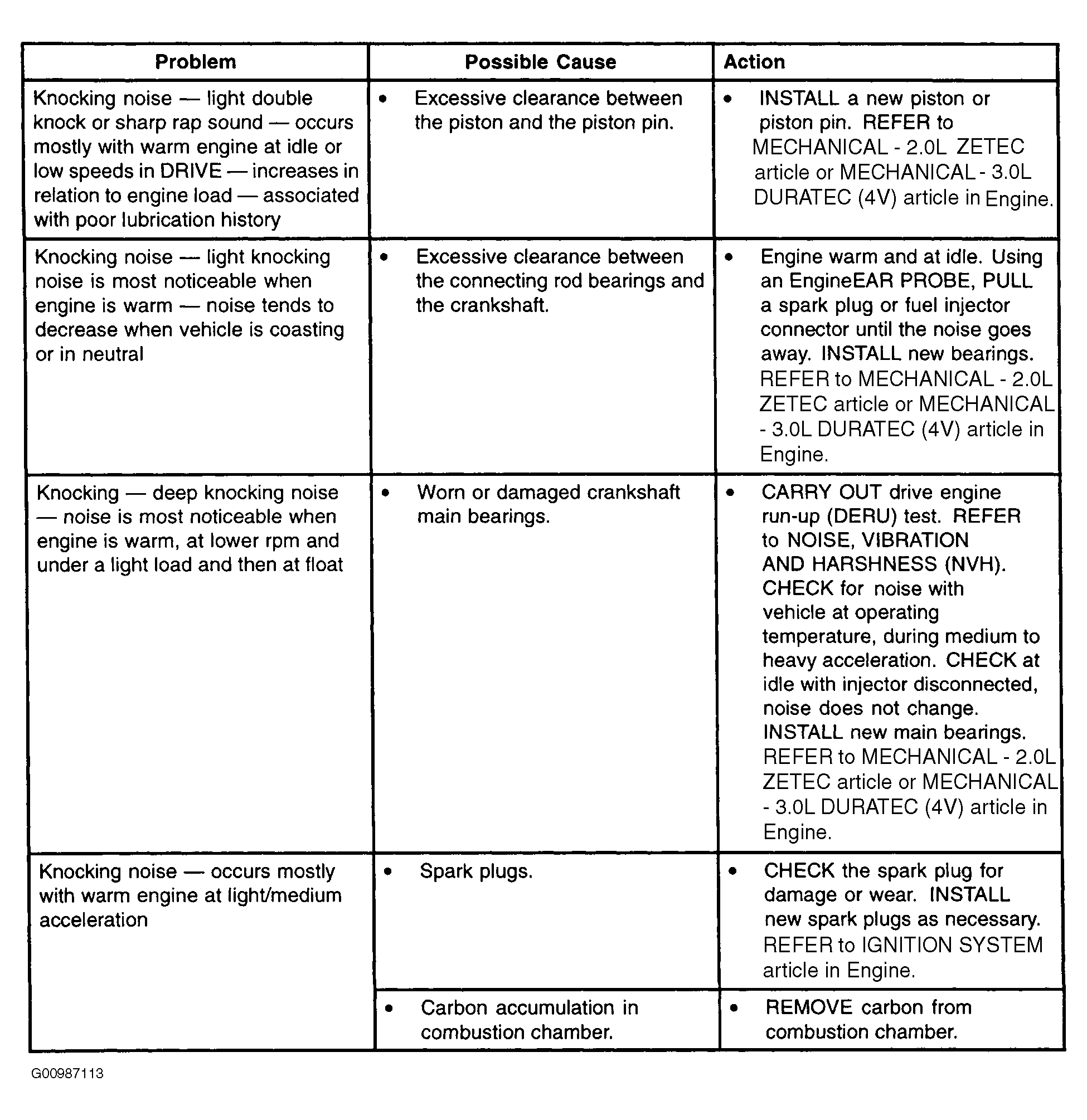

Fig 4: Symptom Troubleshooting Chart - Engine Noise/Vibration (4 Of 8)

Courtesy of MAZDA MOTORS CORP.

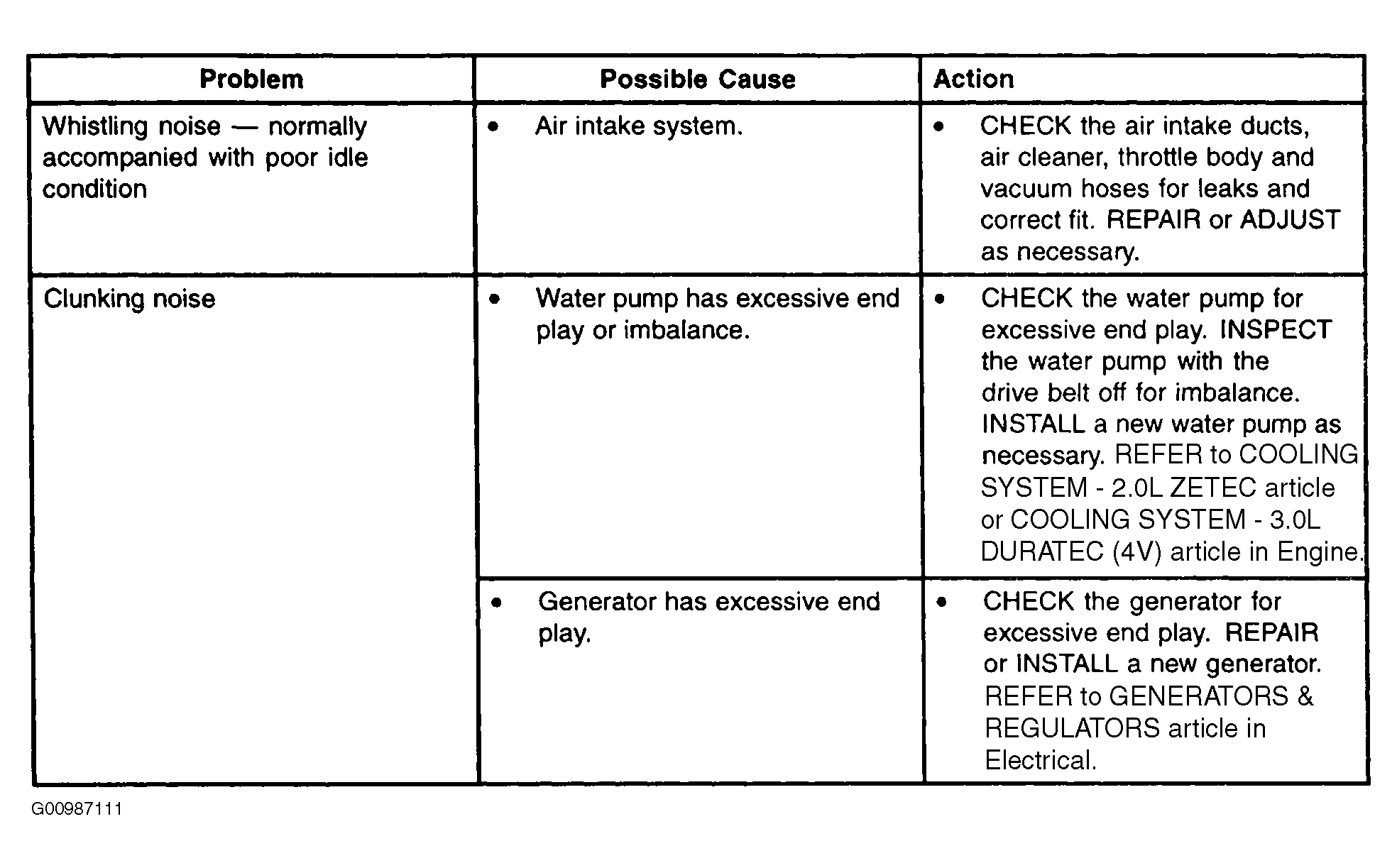

Fig 5: Symptom Troubleshooting Chart - Engine Noise/Vibration (5 Of 8)

Courtesy of MAZDA MOTORS CORP.

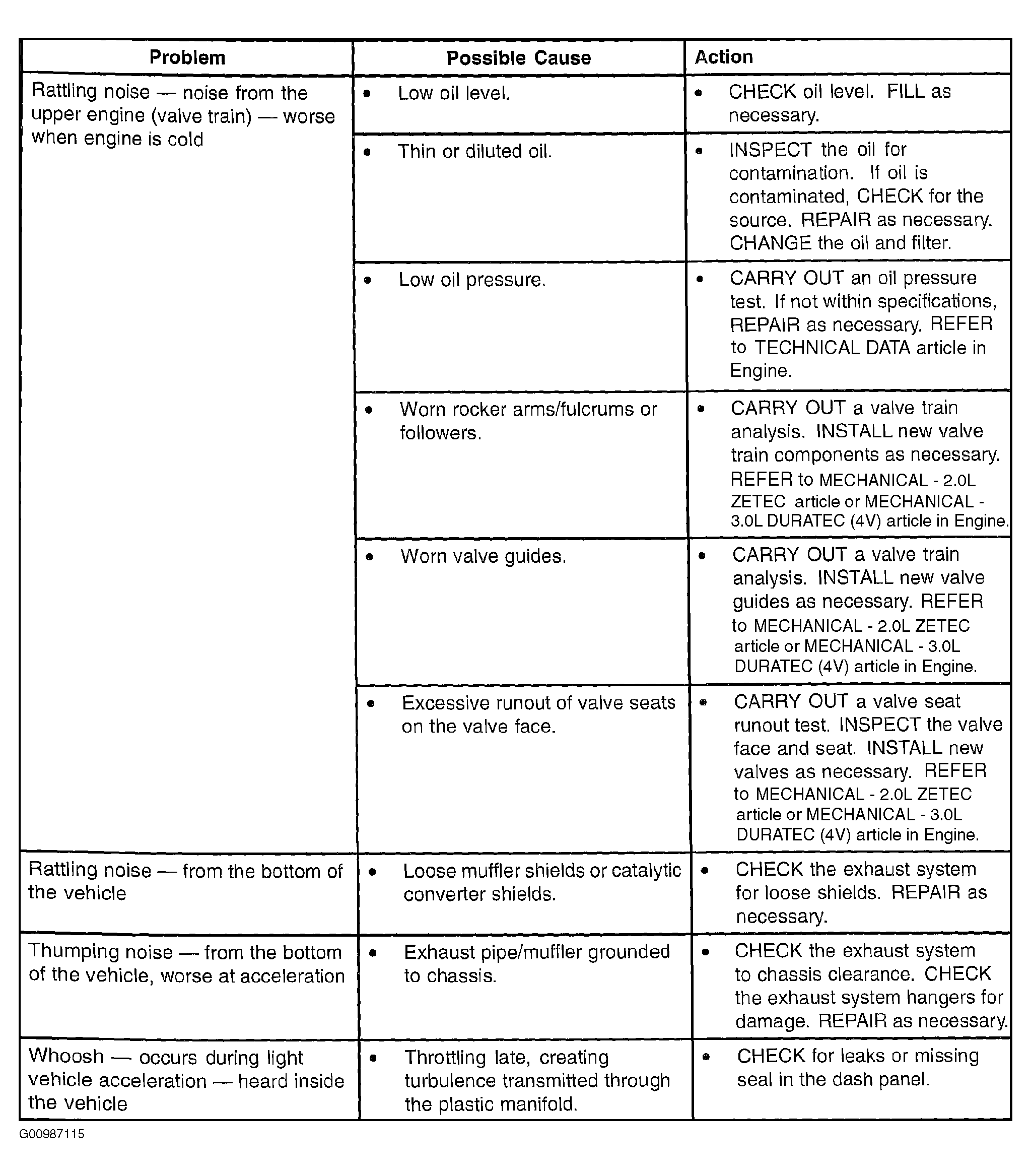

Fig 6: Symptom Troubleshooting Chart - Engine Noise/Vibration (6 Of 8)

Courtesy of MAZDA MOTORS CORP.

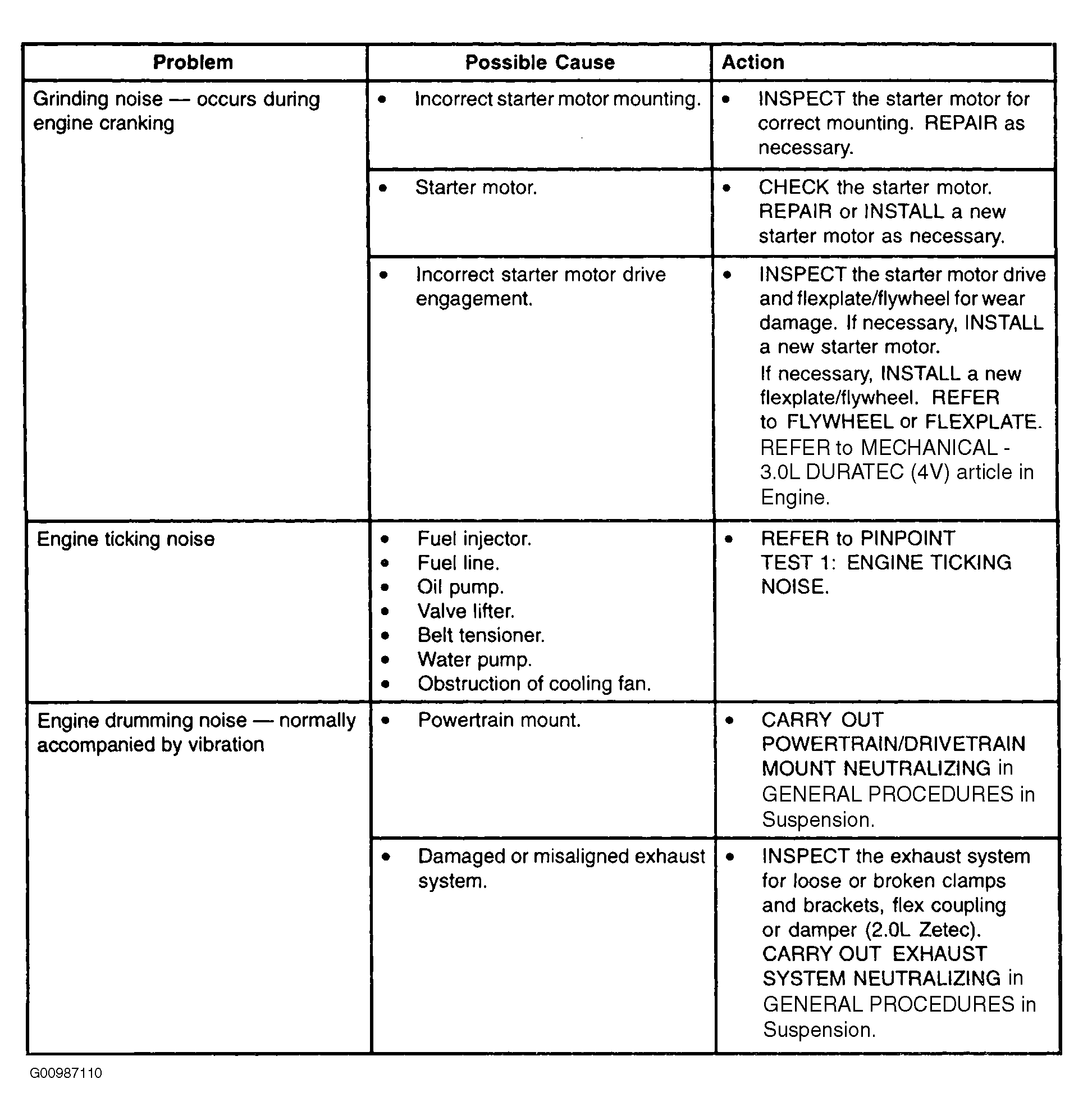

Fig 7: Symptom Troubleshooting Chart - Engine Noise/Vibration (7 Of 8)

Courtesy of MAZDA MOTORS CORP.

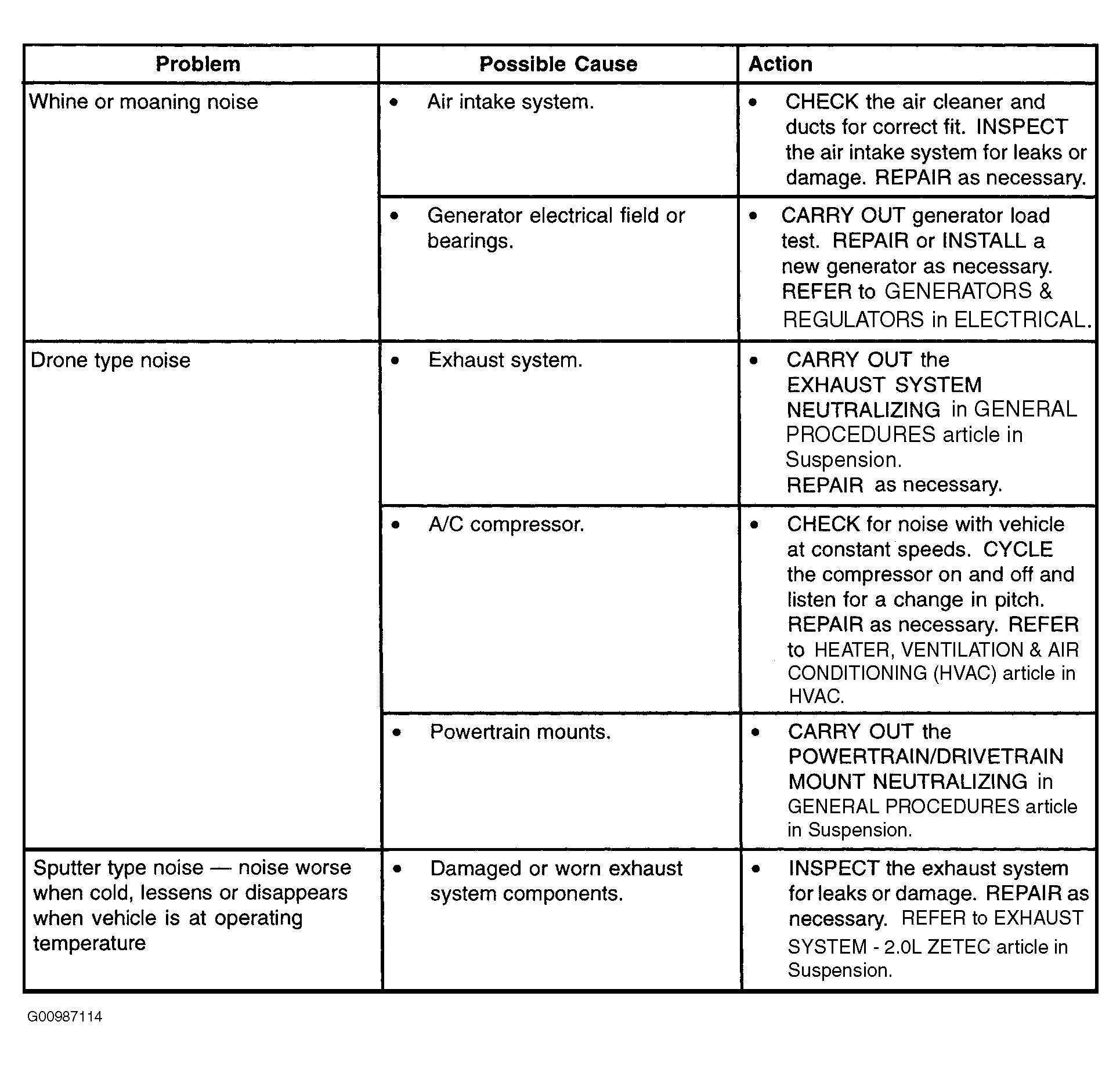

Fig 8: Symptom Troubleshooting Chart - Engine Noise/Vibration (8 Of 8)

Courtesy of MAZDA MOTORS CORP.
