Pinpoint Test 1: Brake Vibration/Shudder

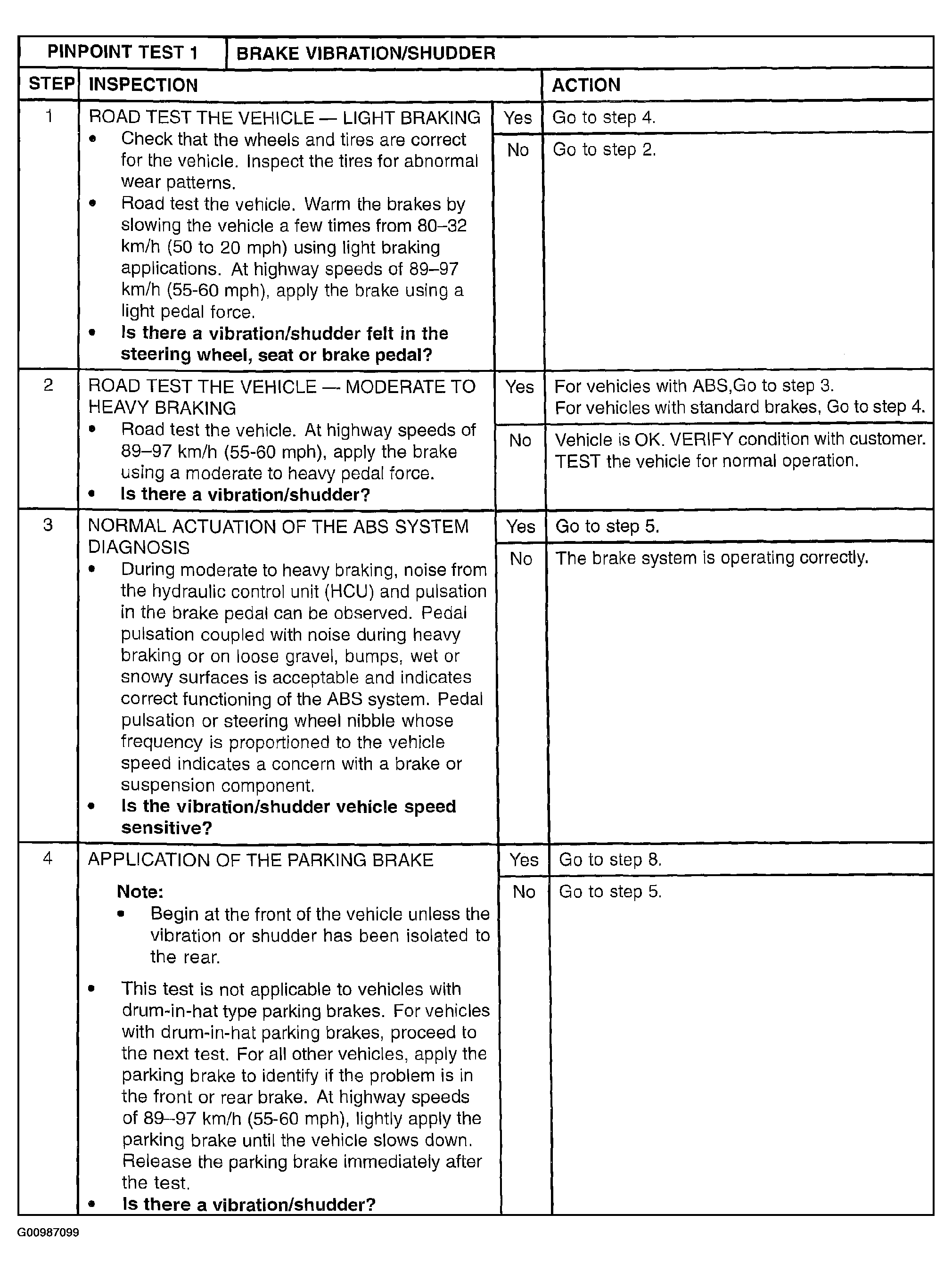

Fig 1: Pinpoint Test 1: Brake Vibration/Shudder (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

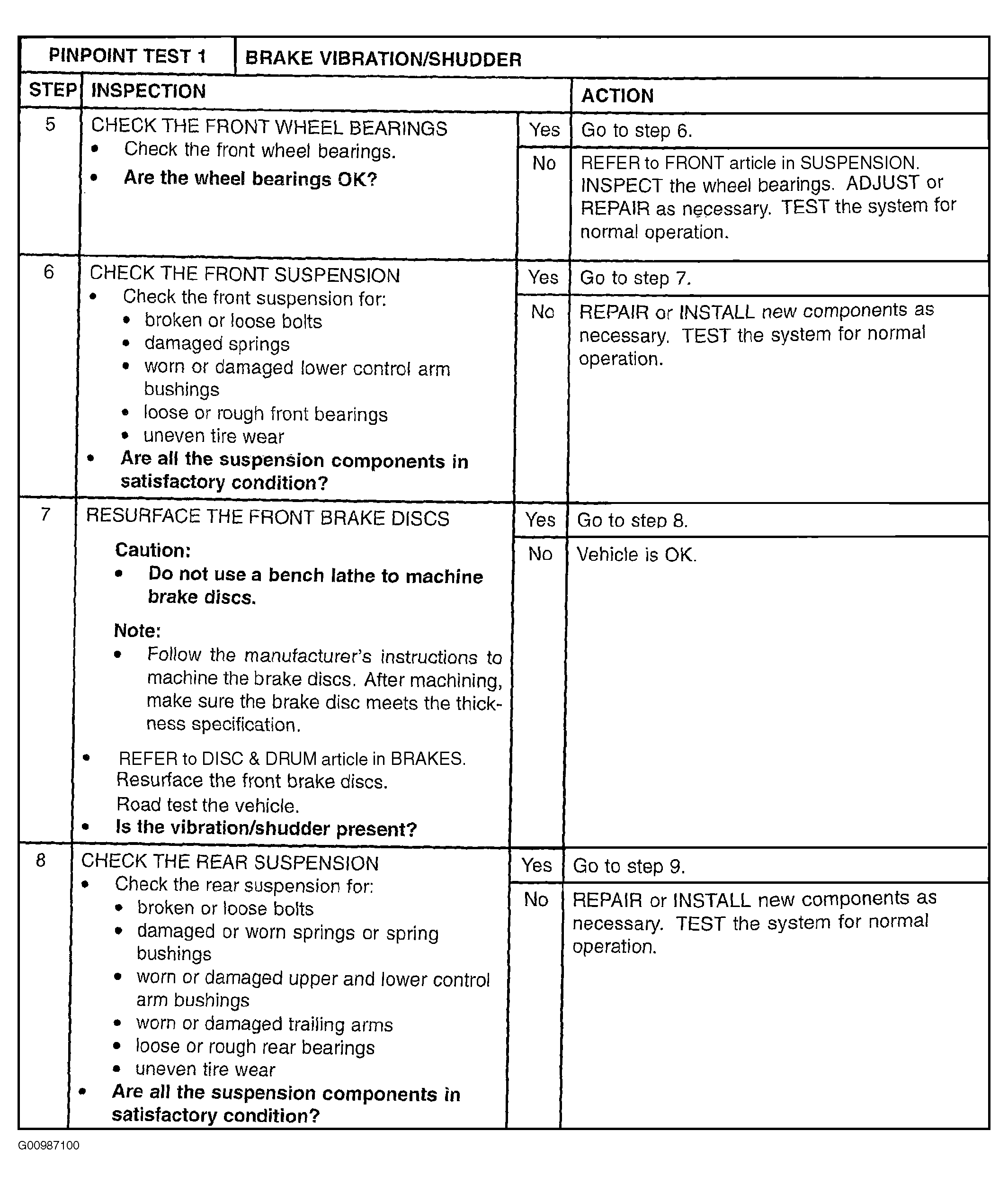

Fig 2: Pinpoint Test 1: Brake Vibration/Shudder (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

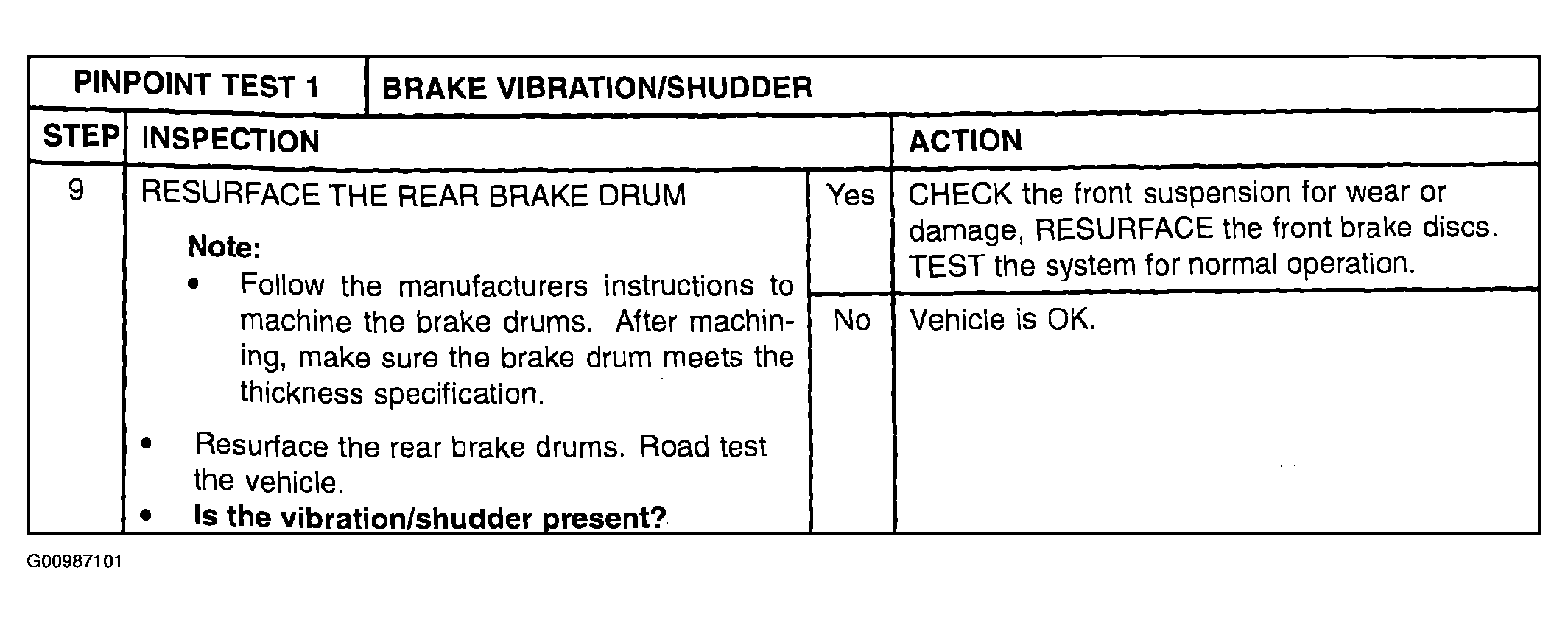

Fig 3: Pinpoint Test 1: Brake Vibration/Shudder (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
