Symptom Troubleshooting Chart - Brake Noise/Vibration: Notes

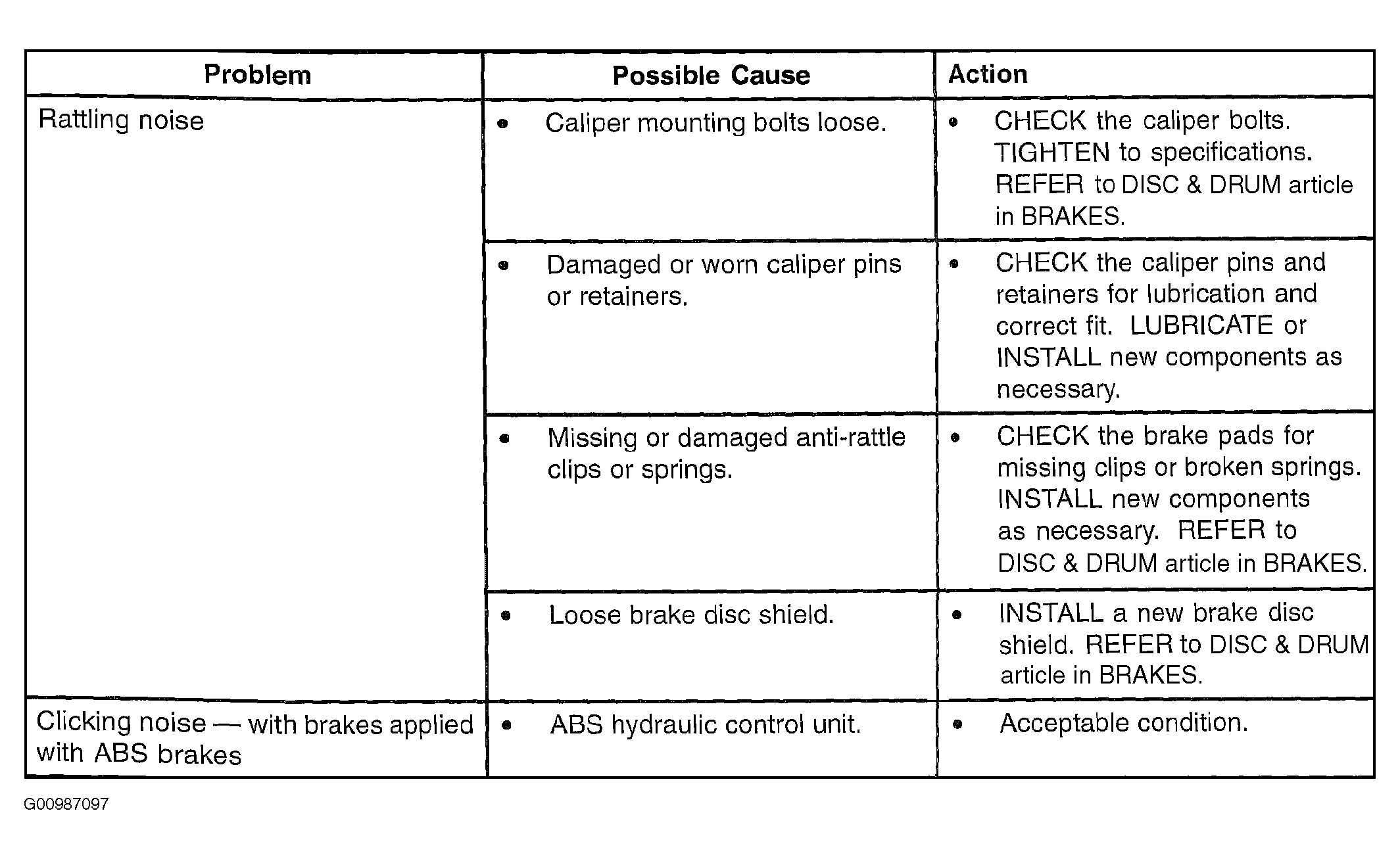

Fig 1: Symptom Troubleshooting Chart - Brake Noise/Vibration (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

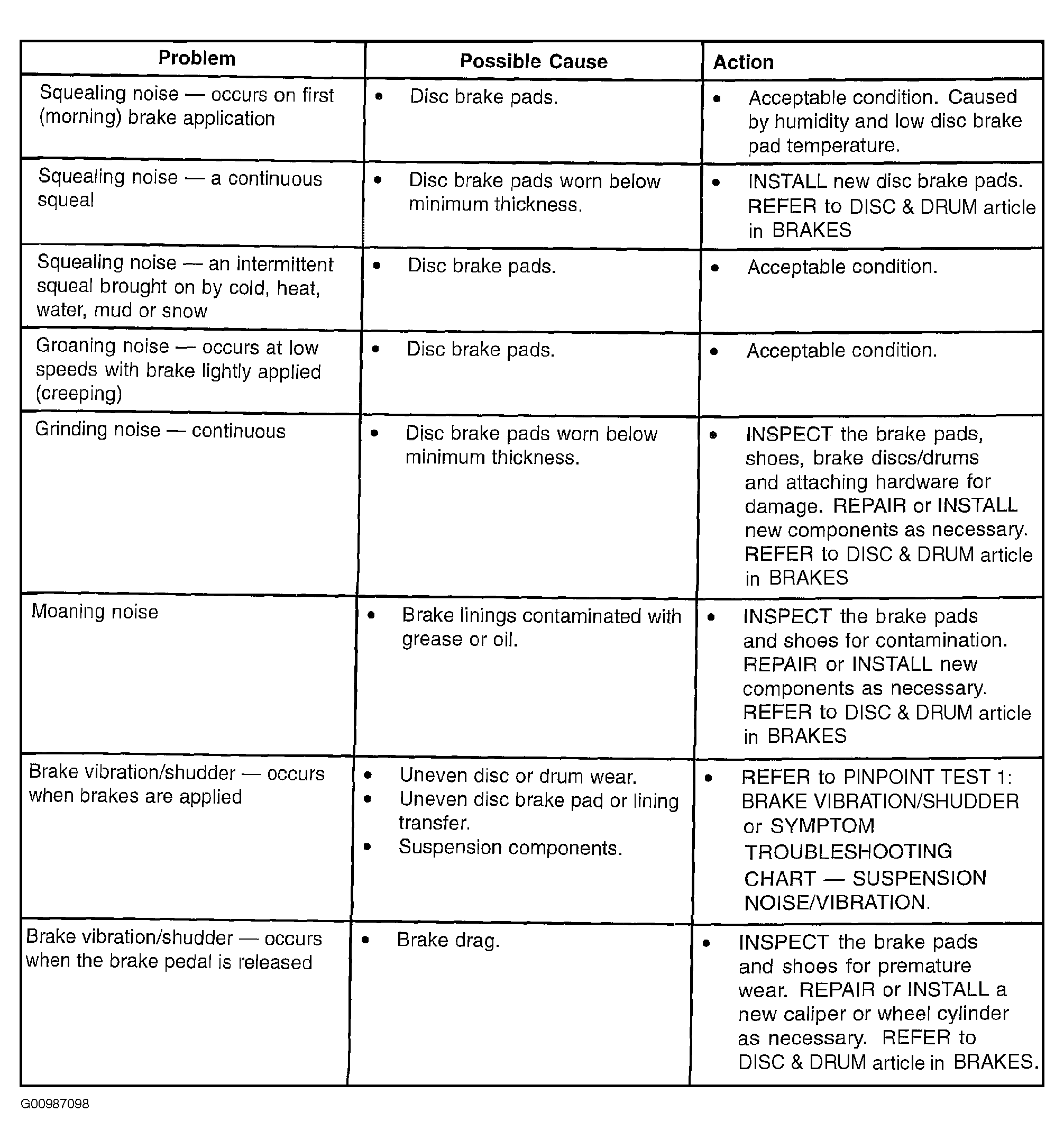

Fig 2: Symptom Troubleshooting Chart - Brake Noise/Vibration (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
